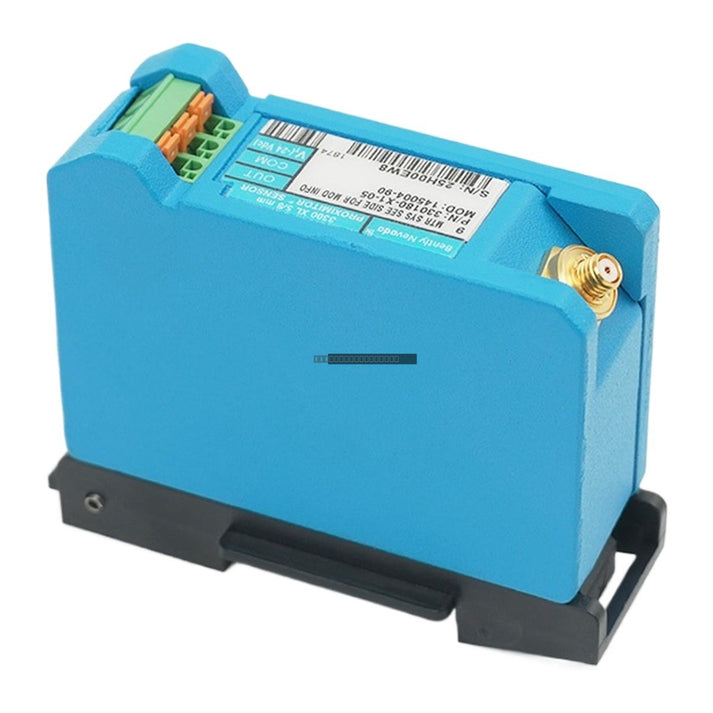

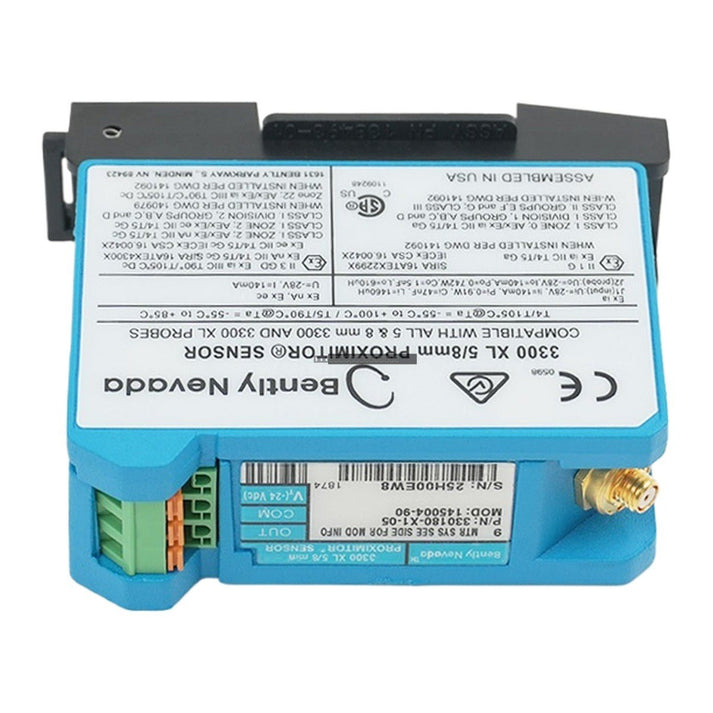

The Bently Nevada 330180-X1-05 MOD:145004-90 is a high-performance Proximitor Sensor designed for the 3300 XL 8 mm Proximity Transducer System. This sensor converts the eddy current signal from a proximity probe into a voltage output that is directly proportional to the distance between the probe tip and a conductive target, enabling precise measurement of both static (position) and dynamic (vibration) values in industrial rotating machinery.

Features

• Designed for demanding environments including compression systems, speed monitoring, and fluid-film bearing machines.
• Provides complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual bench calibration.
• Backwards compatible with legacy 3300 series transducer system components.
• Complies with API 670 standards (4th Edition) for linear range, accuracy, and temperature stability.
• Rated for extended temperature range applications.

Applications

• Oil and Gas: Monitoring centrifugal compressors, reciprocating compressors, and expanders in refineries and pipelines.
• Electric Power: Vibration and position monitoring for steam turbines, gas turbines, generators, and large water turbines.
• Petrochemical: Tracking operating conditions for high-temperature and high-pressure process pumps and fans.
• Heavy Manufacturing: Monitoring blast furnace fans, large motors, and rotary pressurizing equipment.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before installing or removing the Proximitor sensor from the rack or mounting rail.
• The unit should be mounted in a protected, dry environment, ideally within a weatherproof housing if exposed to outdoor conditions.
• Maintain proper shielding for all extension cables to minimize electromagnetic interference (EMI).
• Ensure the probe tip is correctly gapped according to the specific machine requirements to maintain linear range.
• Use ESD-safe handling practices when installing the module to protect internal electronic components.

FAQ

What is the primary function of the 330180-X1-05?

It acts as the signal processing interface for the 3300 XL transducer system, translating probe-detected gaps into a proportional voltage signal for monitoring systems.

Is this sensor compatible with older 3300 systems?

Yes, the 3300 XL series is designed to be backwards compatible with many legacy 3300 series components, allowing for easier system upgrades.

What does the MOD:145004-90 designation indicate?

This is a specific factory modification code for the sensor, ensuring it meets specific configuration requirements for the ordered system.
