Description

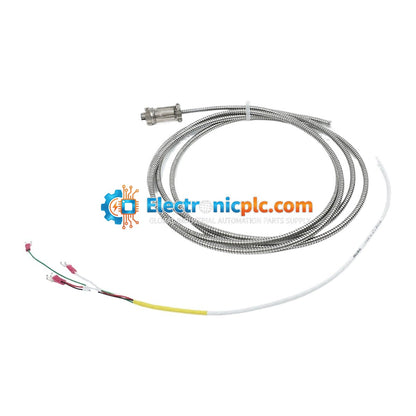

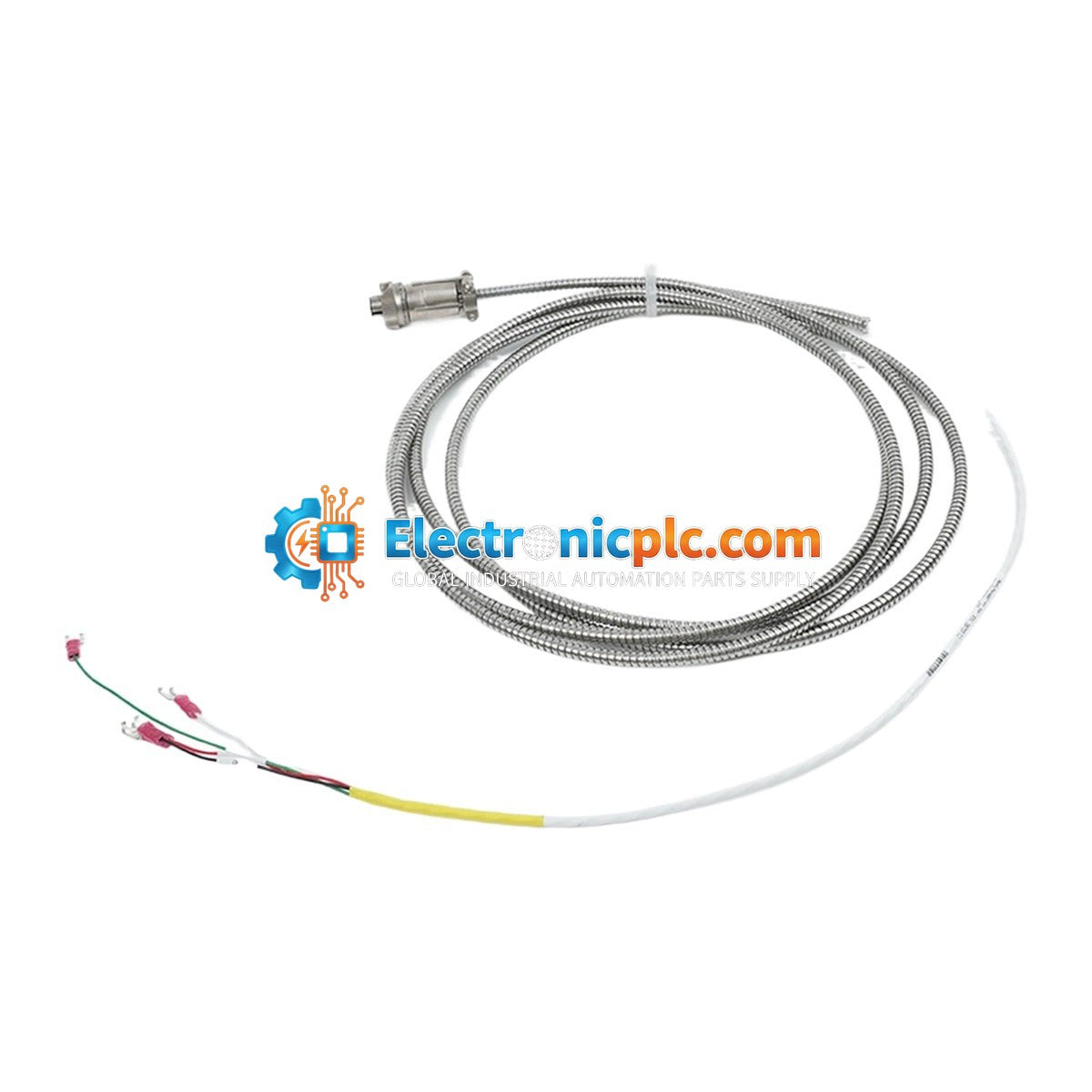

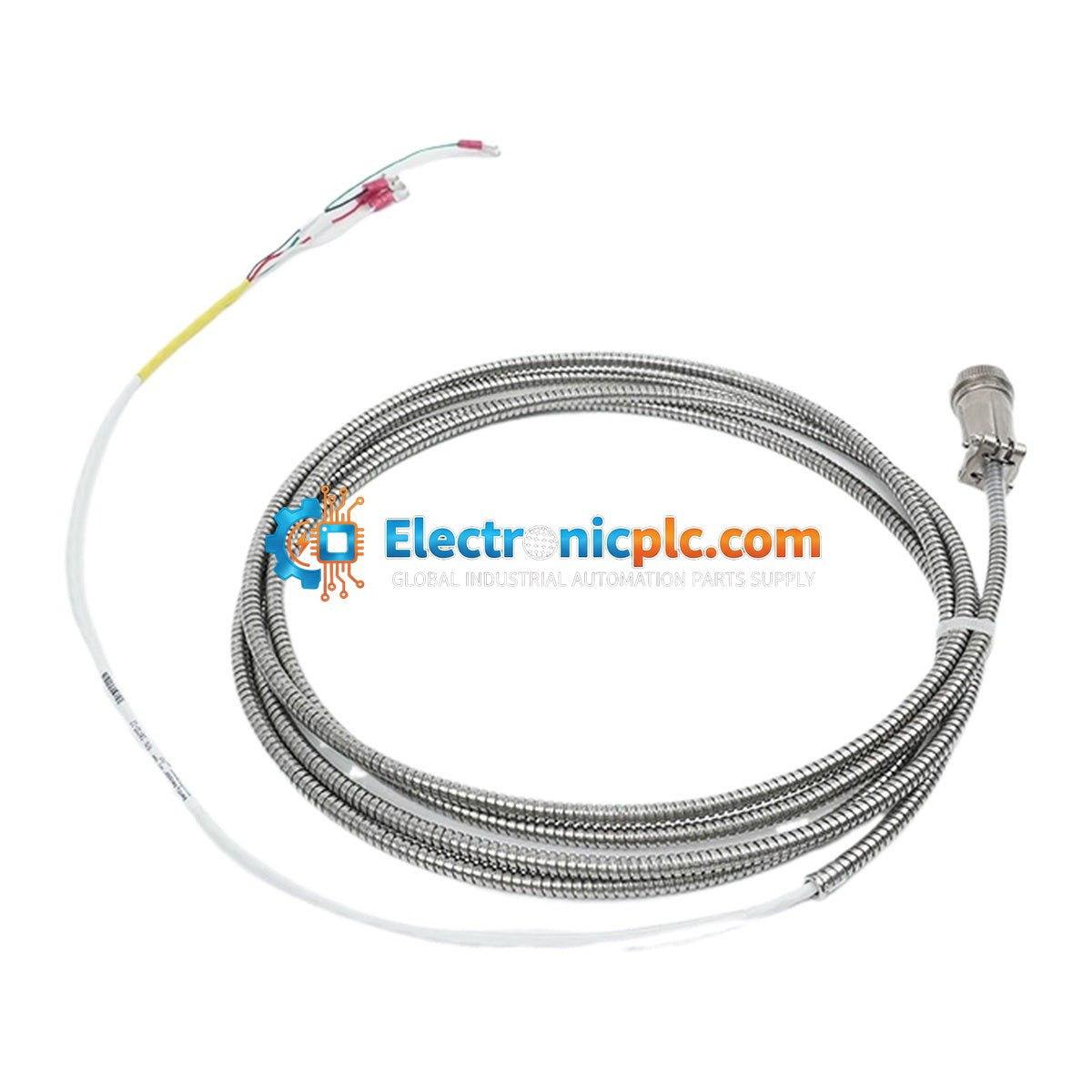

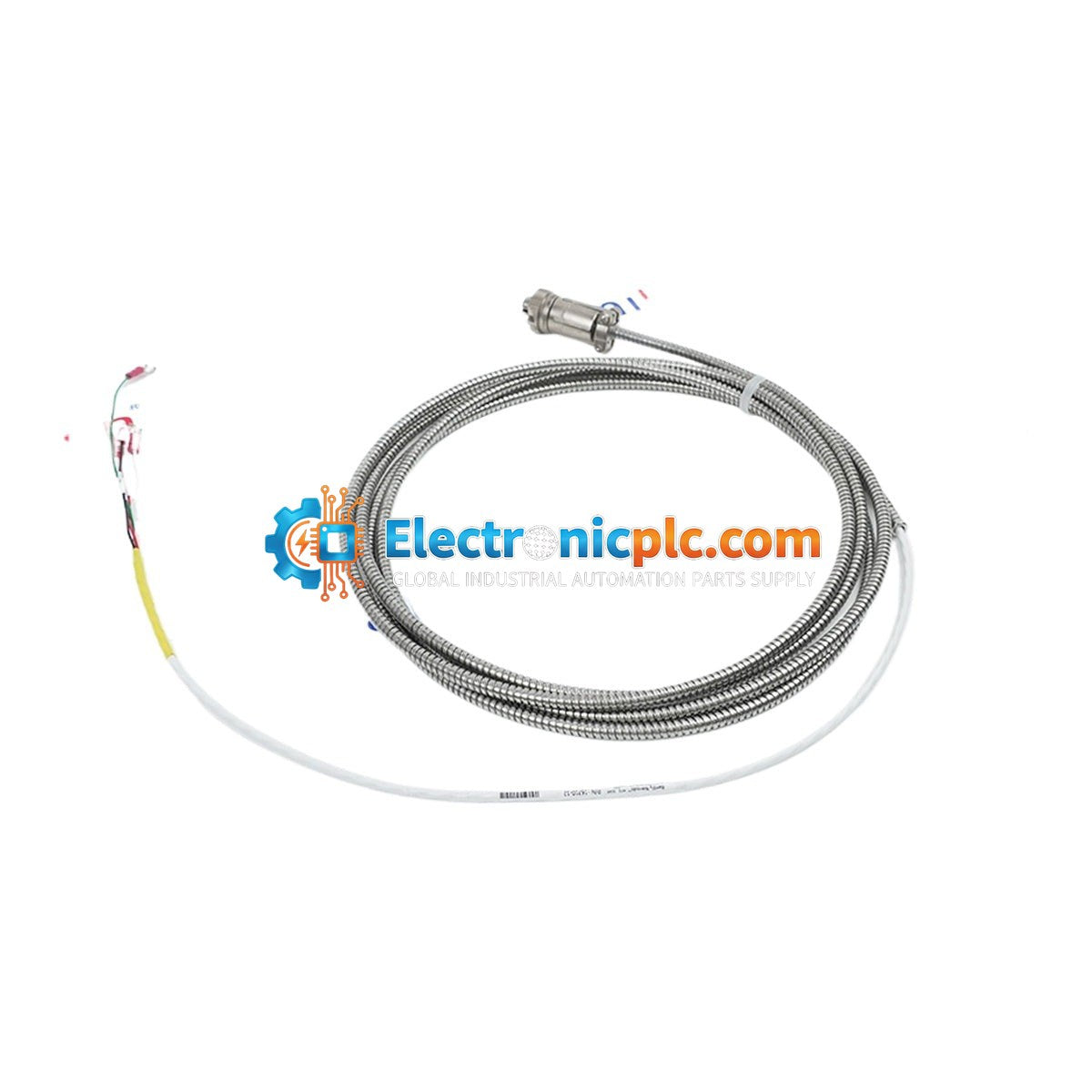

The Bently Nevada 16710-12 is a 12-foot (3.6-meter) armored interconnect cable engineered for use with Bently Nevada 330400 and 330425 accelerometer acceleration transducers. This high-quality cable is a critical component in machinery protection systems, ensuring reliable signal transmission for precise vibration data acquisition in demanding industrial environments.

Features

• 3-conductor shielded design for noise immunity
• 22 AWG (0.5 mm2) conductors
• Armored jacket for mechanical protection in harsh environments
• 3-socket plug at one end and terminal lugs at the other end
• Standard length: 12 ft (3.6 m)
• Compatible with API 670 compliant accelerometers

Applications

• Industrial Gearboxes: High-frequency (15 kHz) gear mesh monitoring for wear and misalignment detection
• Centrifugal and Reciprocating Compressors: Casing vibration monitoring for predictive maintenance
• Steam and Gas Turbines: Structural and casing vibration monitoring in power generation assets
• Electric Motors: Bearing housing and casing vibration analysis
• Industrial Pumps: Diagnostic monitoring for centrifugal pumps

Technical Specifications

Installation Guidelines

• Cable Routing: The armored jacket permits routing in harsh areas without additional conduit. Secure the cable with clamps every 12–18 inches to prevent fatigue and signal noise caused by cable movement.
• Bend Radius: Avoid sharp bends during installation to prevent damage to the internal shielding or armor.
• Accelerometer Mounting: Ensure the accelerometer is torqued to 4.1 N·m (3.0 ft·lb) on the machine surface to maintain accurate high-frequency data transmission.
• System Power: Always ensure the monitoring system is powered down before connecting or disconnecting the cable at the terminal block.

FAQ

What type of cable is 16710-12?

The 16710-12 is a 3-conductor shielded armored cable with a 3-pin connector on one end and terminal lugs on the other. It uses 22 AWG (0.5 mm2) conductors suitable for low-power signal transmission with high mechanical and electromagnetic protection.

What is the length range of the 16710-12 cable?

The cable is available in lengths ranging from a minimum of 3.0 ft (0.9 m) up to a maximum of 99 ft (30 m).

What are the benefits of the armored design?

The armored jacket provides robust mechanical protection against physical damage in industrial settings, while the internal shielding minimizes electromagnetic interference, ensuring signal integrity for sensitive vibration measurements.
