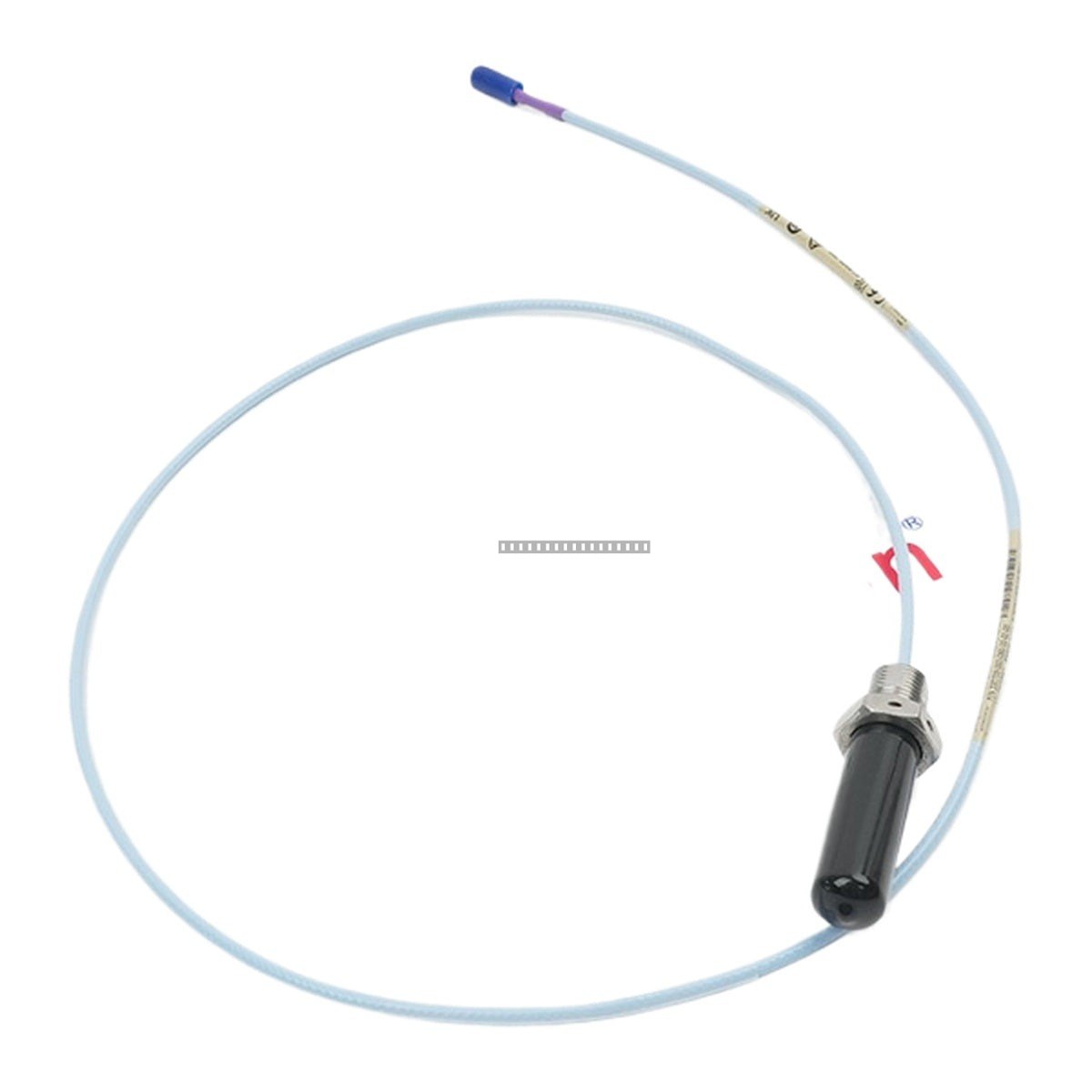

Bently Nevada 330709-000-060-10-02-00 3300 XL 11 mm Proximity Probe

Bently Nevada 330709-000-060-10-02-00 3300 XL 11 mm Proximity Probe

The Bently Nevada 330709-000-060-10-02-00 is a high-performance 3300 XL 11 mm proximity probe designed for precise vibration and position monitoring in industrial rotating machinery. This transducer system utilizes eddy current...

24 people are viewing this right now

Availability: Low stock: 10 left

SKU: 330709-000-060-10-02-00
Vendor: Bently Nevada
Category: Proximity Probe
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Bently Nevada 330709-000-060-10-02-00 is a high-performance 3300 XL 11 mm proximity probe designed for precise vibration and position monitoring in industrial rotating machinery. This transducer system utilizes eddy current technology to provide accurate, non-contact measurements of shaft displacement, radial vibration, and axial position.

Features

  • Output sensitivity of 3.94 V/mm (100 mV/mil).
  • Extended linear range for demanding monitoring applications.
  • M16 x 1.5 metric thread for secure mounting.
  • Miniature coaxial ClickLoc connector for reliable signal transmission.
  • Designed for compatibility with the 3300 XL Proximitor Sensor system.

Applications

  • Monitoring large steam turbine generators, gas turbines, and hydro turbines in power generation facilities.
  • Vibration and displacement monitoring for centrifugal compressors, reciprocating compressors, and industrial oil pumps.
  • Mechanical health status tracking for critical process units in petrochemical and chemical plants.
  • Precise position monitoring for blast furnace fans, large motors, and machine tool spindles.

Technical Specifications

Model Number 330709-000-060-10-02-00
Probe Diameter 11 mm
Thread Size M16 x 1.5
Overall Case Length 60 mm
Unthreaded Length 0 mm
Cable Length 1.0 meter (3.3 feet)
Connector Type Miniature coaxial ClickLoc
Armor Not included
Agency Approval Not required

Installation Guidelines

  • Ensure the probe is mounted using the provided locknut to secure the gap setting; the locknut includes pre-drilled holes for safety wire to prevent loosening due to machinery vibration.
  • When upgrading from 7200-series systems, ensure all components are replaced with 3300 XL 11 mm compatible parts and the monitoring system software is updated.
  • Maintain proper clearance and avoid high-EMI sources to ensure signal integrity.
  • Always power down the monitoring system before installing or removing transducer components to prevent electrical damage.
  • Handle the probe tip with care to avoid mechanical damage or calibration shifts.

FAQs

What is the primary function of this probe?

The 330709-000-060-10-02-00 is a proximity probe used to measure shaft vibration and position in rotating machinery by detecting changes in the eddy current field.

Is this probe compatible with older 7200-series systems?

No, the 3300 XL 11 mm system is not directly compatible with 7200-series components. A full system upgrade, including the Proximitor sensor and monitoring system configuration, is required.

What is the typical gap voltage for this probe?

The gap voltage is typically adjusted to -10V DC during installation to ensure the probe operates within its linear range.
