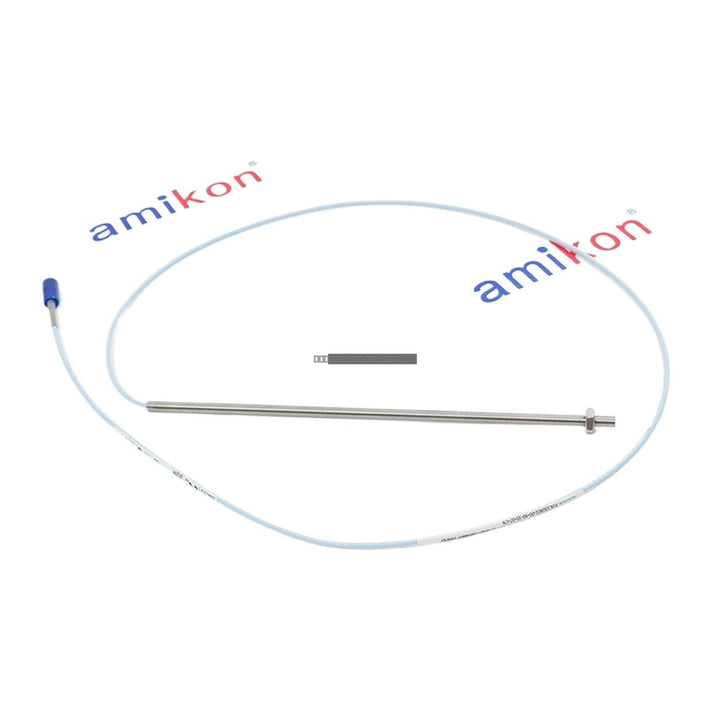

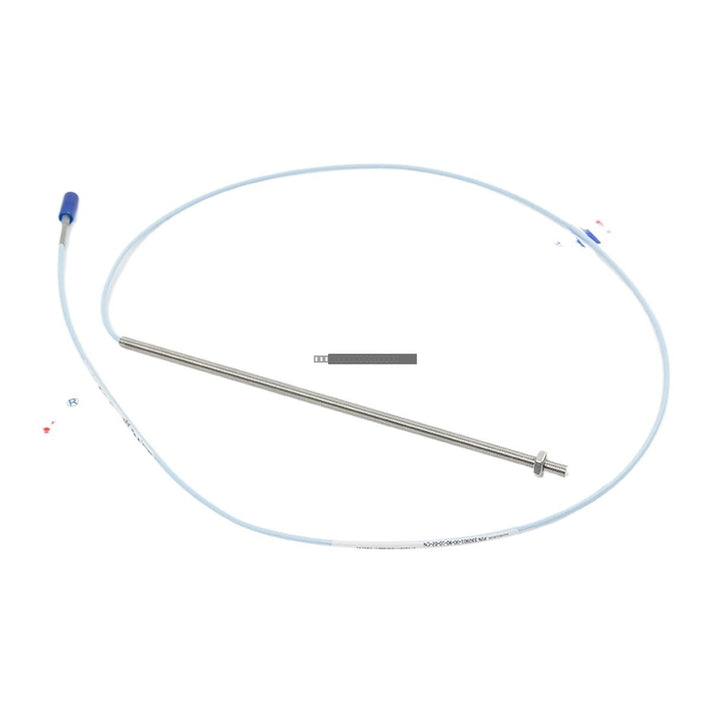

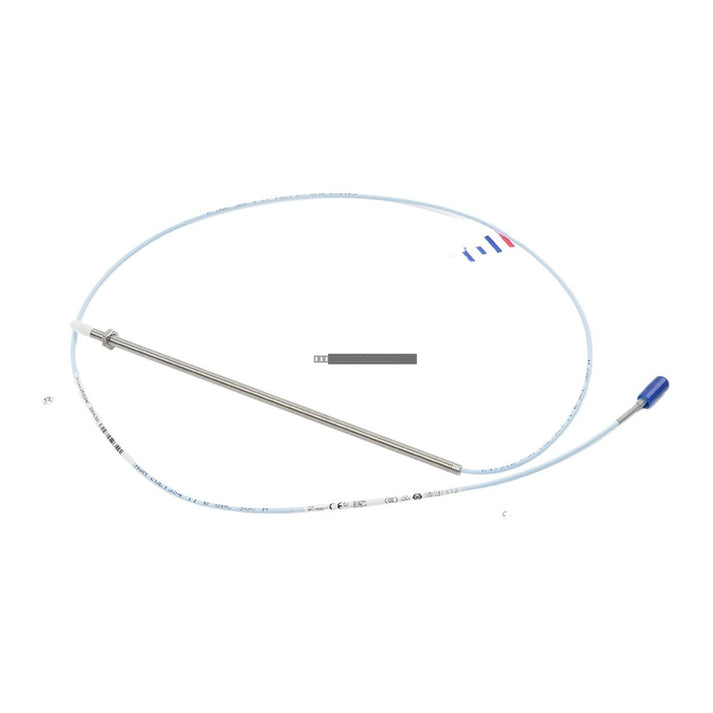

Bently Nevada 330901-00-90-10-02-CN 3300 NSv Proximity Probe

Bently Nevada 330901-00-90-10-02-CN 3300 NSv Proximity Probe

Description

The Bently Nevada 330901-00-90-10-02-CN is a 3300 NSv (Non-Standard vibration) proximity probe designed for high-precision vibration and position monitoring in space-constrained industrial environments. This probe utilizes eddy current technology to...

21 people are viewing this right now

Availability: Low stock: 1 left

SKU: 330901-00-90-10-02-CN
Vendor: Bently Nevada
Category: Proximity Probe
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 330901-00-90-10-02-CN is a 3300 NSv (Non-Standard vibration) proximity probe designed for high-precision vibration and position monitoring in space-constrained industrial environments. This probe utilizes eddy current technology to provide accurate measurements in applications where standard 5 mm or 8 mm probes are physically restricted by counter-bore, side-view, or rear-view limitations.

Features

  • Designed for tight installation requirements where standard transducer systems cannot fit.
  • Average scale factor of 7.87 V/mm (200 mV/mil).
  • Compatible with 3300 NSv Proximitor sensors for high-precision signal conditioning.
  • Features ClickLoc connectors for secure, reliable cable termination.
  • Suitable for small target applications, including shafts smaller than 51 mm (2 in).

Applications

  • Radial vibration and radial position monitoring for fluid-filmed bearing machines.
  • Axial (thrust) position measurements on flat targets.
  • Tachometer and zero-speed detection.
  • Phase reference (Keyphasor) signal generation.

Technical Specifications

Model Number 330901-00-90-10-02-CN
Thread Size 1/4-28 UNF
Minimum Unthreaded Length 0.0 in
Minimum Case Length 9.0 in
Total Length 1.0 meter (39 in)
Connector Type Miniature coaxial ClickLoc
Agency Approval Multiple Approvals (CN)
Manufacturer Bently Nevada

Installation Guidelines

  • Handling: Use care when handling the probe tip to avoid damage to the sensing element.
  • Connection: The probe utilizes ClickLoc connectors. Tighten these by hand only; the use of pliers or tools may damage the connector housing.
  • Field Wiring: Use three-conductor shielded triad cable (16 to 24 AWG). Ensure the total distance between the Proximitor sensor and the monitor does not exceed 305 meters (1,000 feet).
  • Grounding: Ensure proper system grounding to prevent electrostatic buildup, particularly in hazardous area installations.
  • Environment: Verify that the installation area is free from excessive mechanical stress on the cable assembly.

FAQ

What does the NSv designation mean?

NSv stands for Non-Standard vibration. These probes are specifically engineered for smaller machinery or tight spaces where standard 3300 XL 8 mm probes are too large to be installed effectively.

Can this probe be used for axial position measurement?

Yes, it is ideal for axial (thrust) position measurements on flat targets as small as 15 mm (0.6 in).

What is the primary benefit of the ClickLoc connector?

The ClickLoc connector provides a secure, vibration-resistant connection that simplifies installation and ensures signal integrity without the need for specialized crimping tools.
