Description

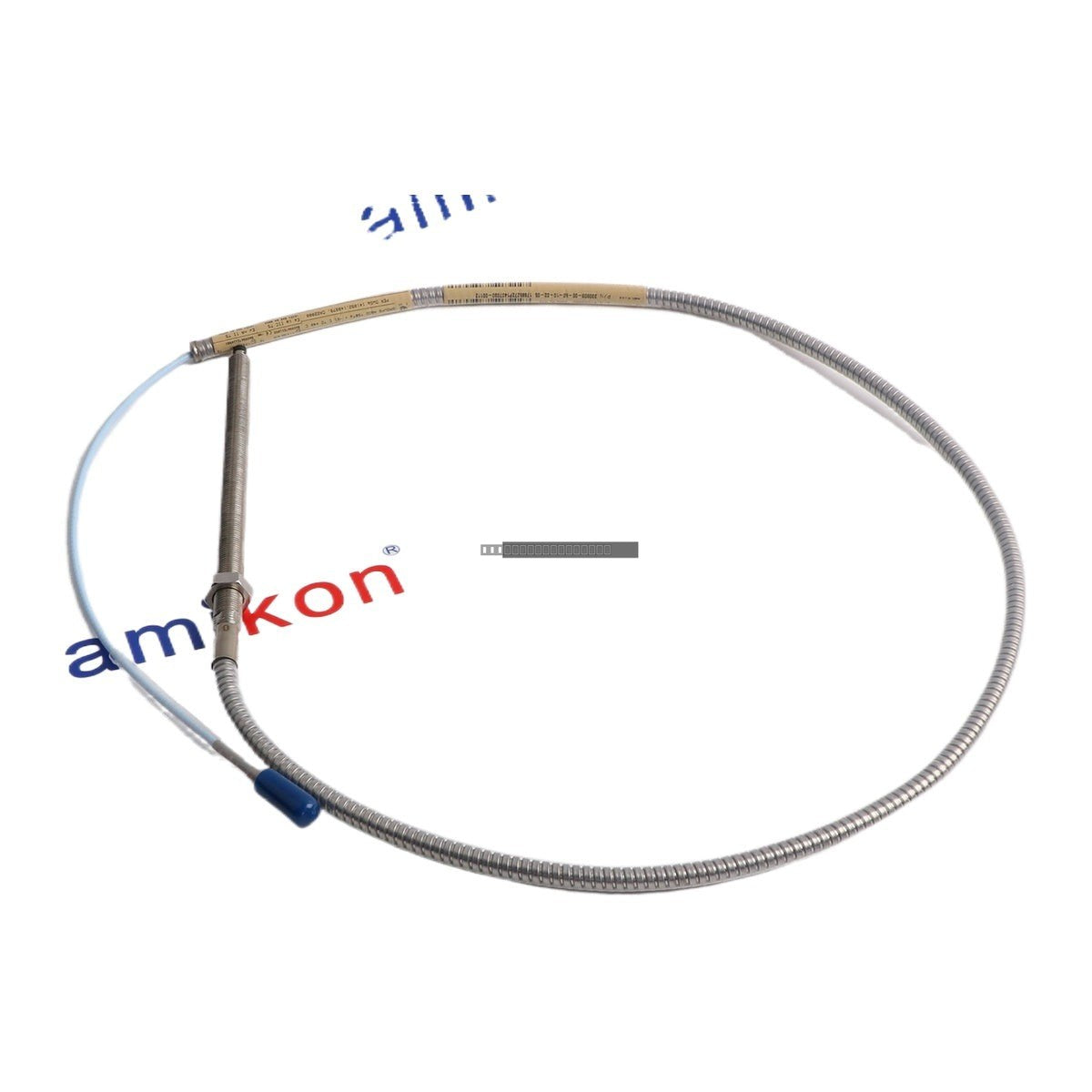

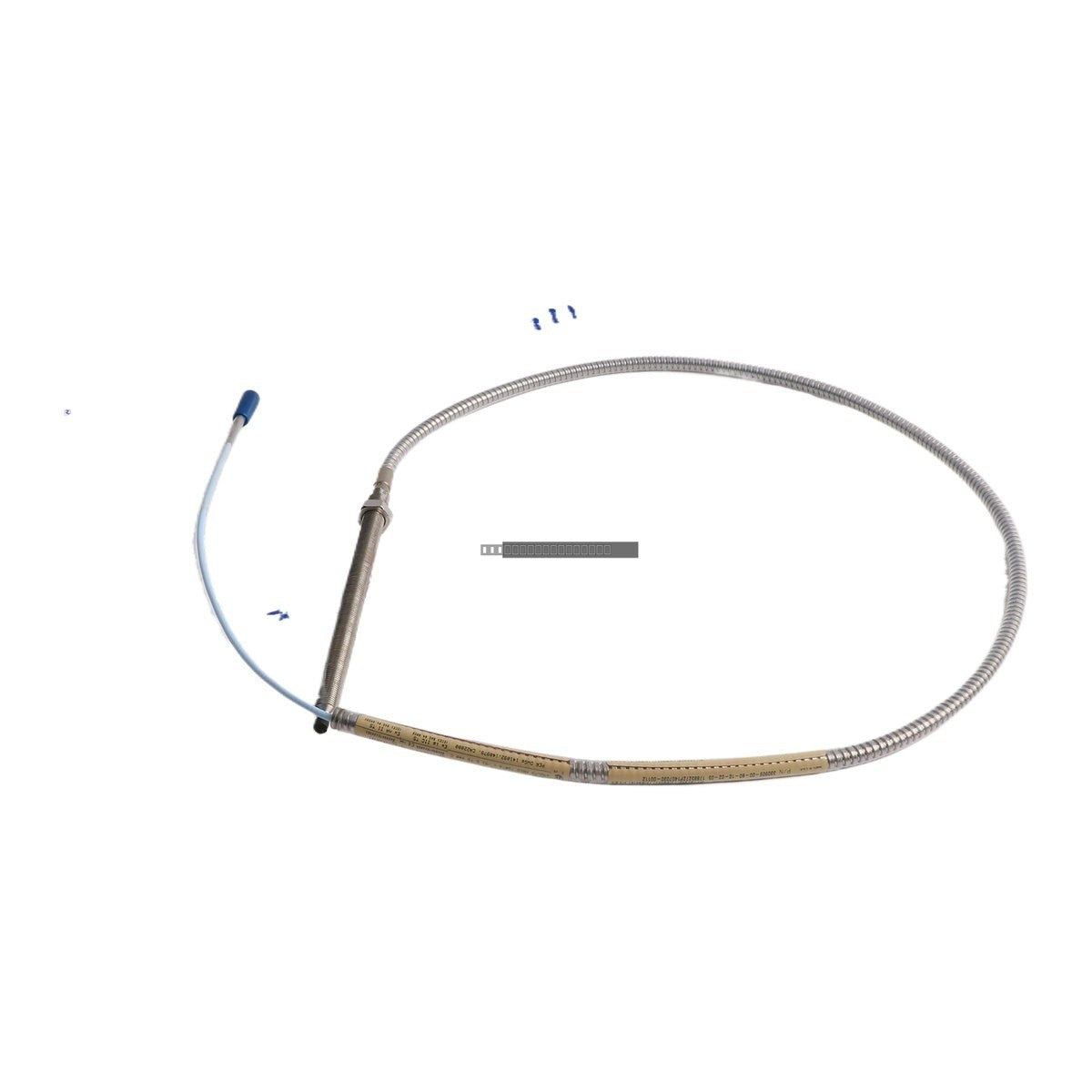

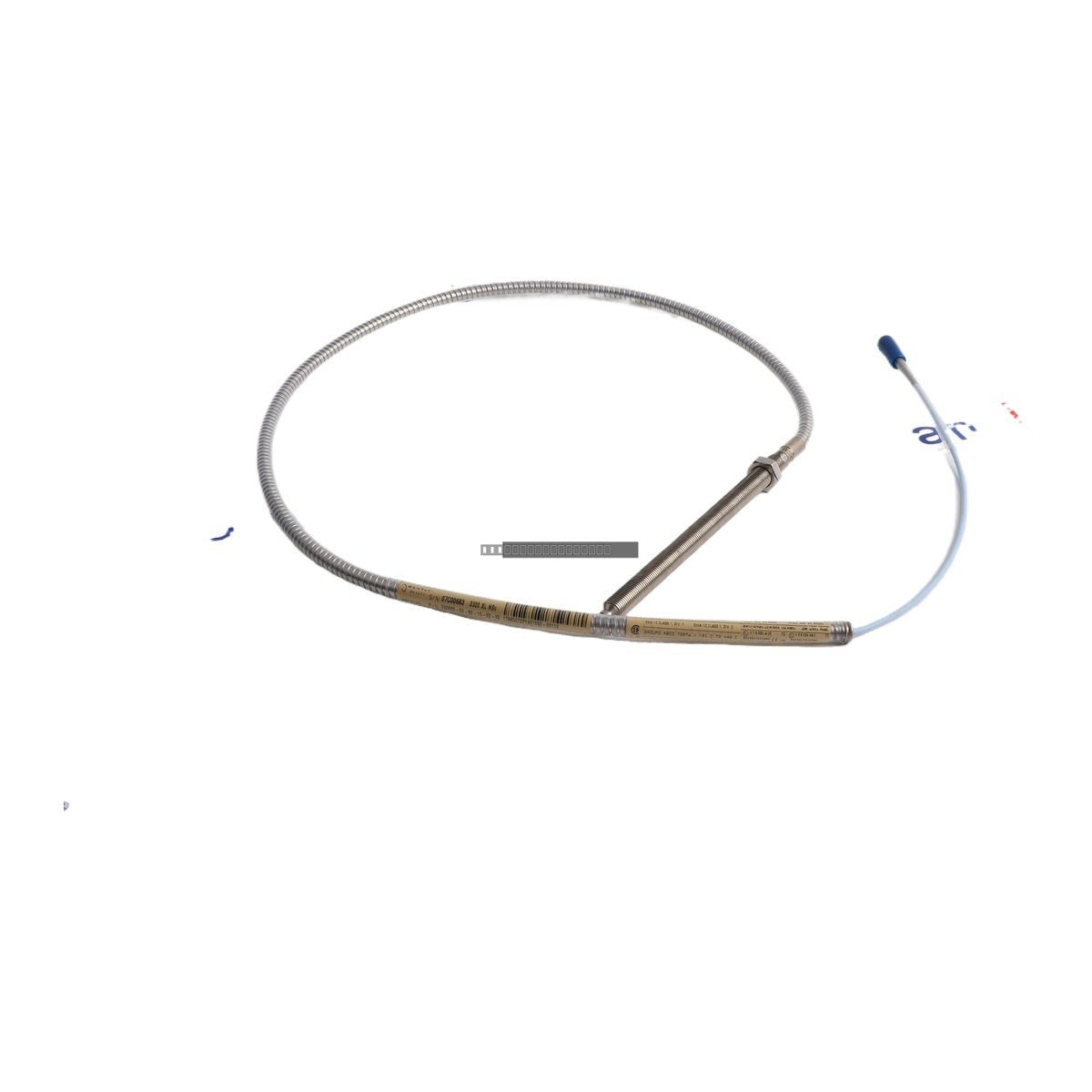

The Bently Nevada 330909-00-60-10-02-05 is a high-performance 3300 NSv (Near-field) proximity probe designed for precision vibration and position monitoring in industrial rotating machinery. This probe is specifically engineered for applications where space is limited or where target materials require the specialized sensing capabilities of the NSv system. It provides reliable, non-contact measurement of shaft displacement and position, ensuring critical diagnostic data for predictive maintenance programs.

Features

• Designed for 3300 NSv proximity transducer systems.
• 3/8-24 UNF thread configuration for standard mounting compatibility.
• Integrated armor for enhanced cable protection in harsh industrial environments.
• Equipped with a miniature coaxial ClickLoc connector for secure, reliable signal termination.
• Standard cable length of 1.0 meter (39 inches).
• Multiple agency approvals for global industrial compliance.

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted in a rigid, vibration-free bracket to prevent false signal readings.
• Handle the probe tip with extreme care; any damage or scratches to the sensing face can degrade measurement accuracy.
• Route the coaxial cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Use appropriate thread-locking compounds if required by the specific machine housing design, ensuring the probe is tightened to the manufacturer's recommended torque.
• Always perform a system calibration after installation to verify the gap voltage and ensure the transducer is operating within the linear range.
• Verify that the ClickLoc connector is fully seated and locked to prevent intermittent signal loss due to vibration.

FAQ

What is the primary application for the 3300 NSv probe? The 3300 NSv probe is typically used in applications where standard 3300 XL probes may not fit or where smaller target areas require the specialized near-field sensing characteristics of the NSv series.

Does this probe include the cable? Yes, this model includes a standard cable with a miniature coaxial ClickLoc connector as specified in the part configuration.
