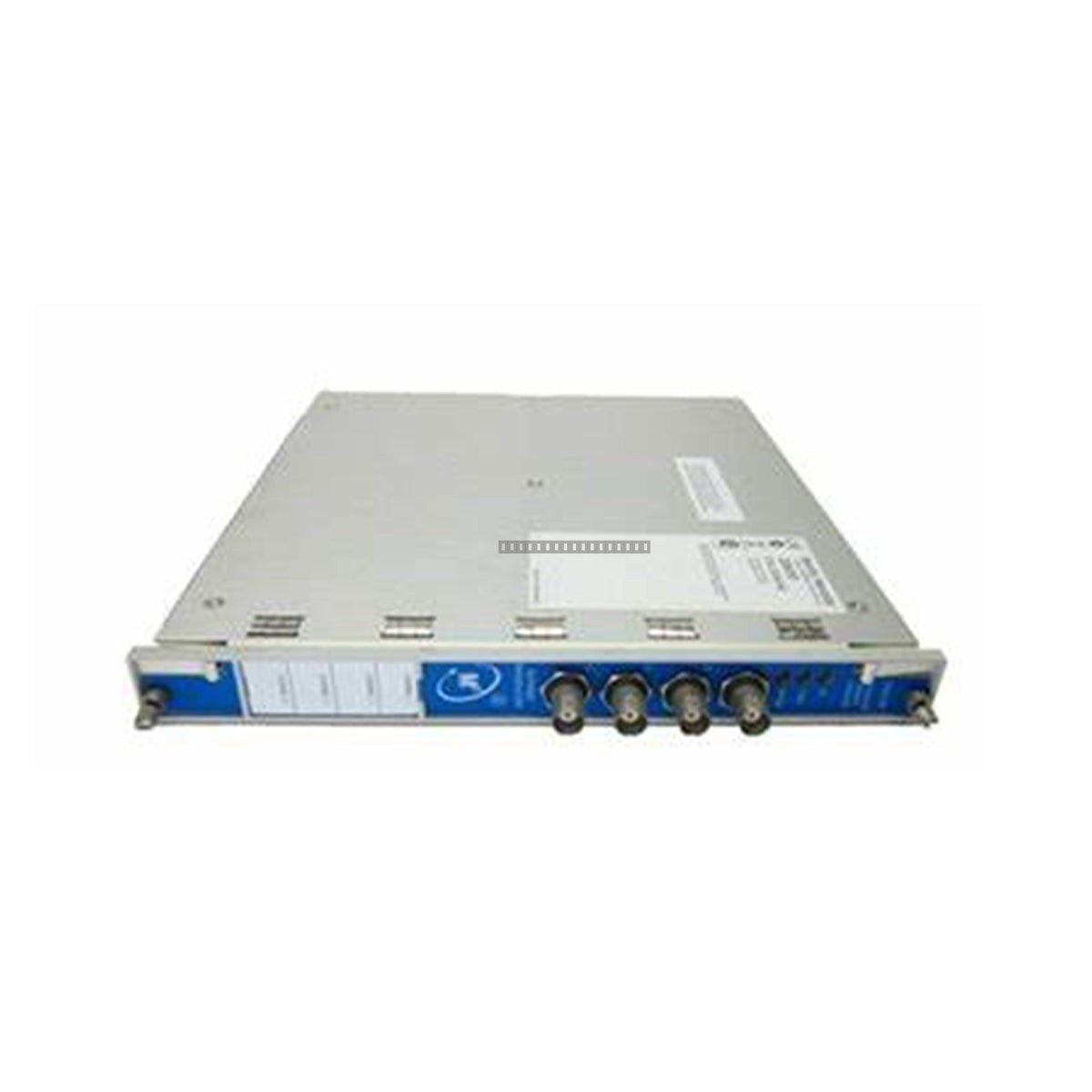

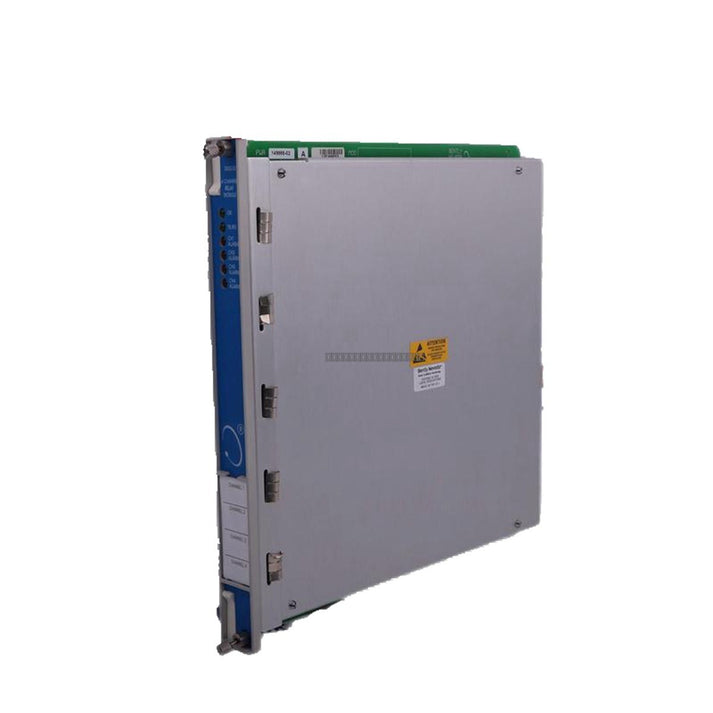

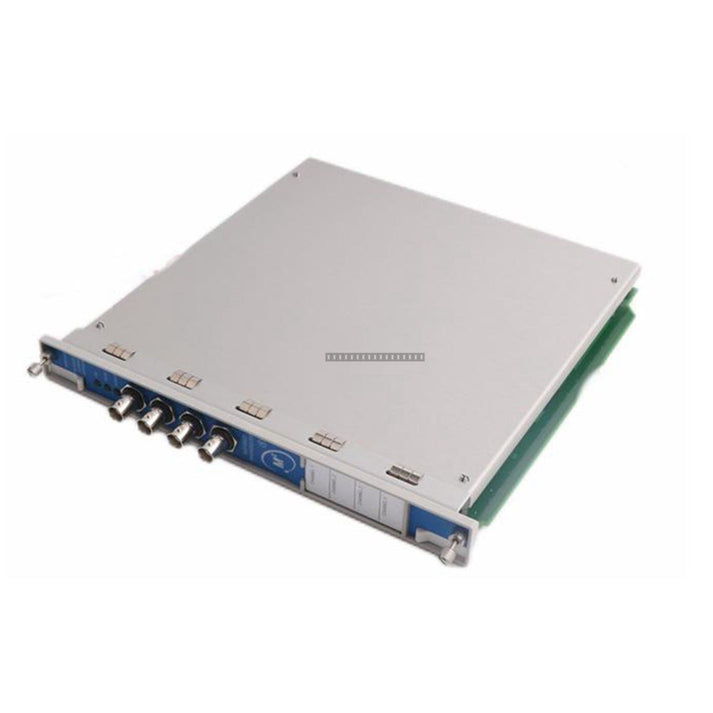

Bently Nevada 3500/42M Proximitor Seismic Monitor 140734-02

Bently Nevada 3500/42M Proximitor Seismic Monitor 140734-02

The Bently Nevada 3500/42M (Part Number 140734-02) is a Proximitor Seismic Monitor designed for the 3500 series machinery protection system. This module provides continuous monitoring of seismic vibration and shaft...

20 people are viewing this right now

Availability: Low stock: 6 left

SKU: 3500/42
Vendor: Bently Nevada
Category: Vibration Monitor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Bently Nevada 3500/42M (Part Number 140734-02) is a Proximitor Seismic Monitor designed for the 3500 series machinery protection system. This module provides continuous monitoring of seismic vibration and shaft absolute vibration, ensuring critical rotating machinery is protected against excessive vibration levels.

Features

  • Supports both 4-20 mA and mV/mm/s velocity sensor inputs.
  • Provides -24 Vdc transducer power supply for connected sensors.
  • Configurable vibration monitoring ranges, typically up to 0-20 mm/s (RMS) or 0-10 g (RMS).
  • High measurement accuracy of ±1% of full scale.
  • Integrated signal processing for reliable vibration analysis in industrial environments.

Technical Specifications

Model Number 3500/42M
Part Number 140734-02
Transducer Power Supply -24 Vdc
Output Impedance 550 Ohm
Shaft Absolute Output Impedance 300 Ohm
Voltage Compliance 0 to +12 Vdc range across load
Vibration Range 0-20 mm/s (RMS) / 0-10 g (RMS)
Accuracy ±1% of full scale

Installation Guidelines

  • Ensure the 3500 rack is powered down before inserting or removing the 3500/42M module to prevent electrical damage.
  • Use appropriate ESD protection when handling the module to avoid damage to internal circuitry.
  • Ensure the module is fully seated in the rack slot and the front panel screws are tightened to maintain proper grounding and mechanical stability.
  • Route signal cables away from high-voltage lines and high-EMI sources to maintain measurement integrity.
  • Verify that the transducer wiring matches the specific input configuration requirements for the 3500/42M.

FAQ

What is the primary function of the 3500/42M?
The 3500/42M is a Proximitor Seismic Monitor used to measure vibration levels in rotating machinery, providing alarm and trip signals to the 3500 system.

Does this module require external power?
The module is powered by the 3500 rack backplane, but it provides a -24 Vdc supply to power the connected seismic or proximity transducers.
