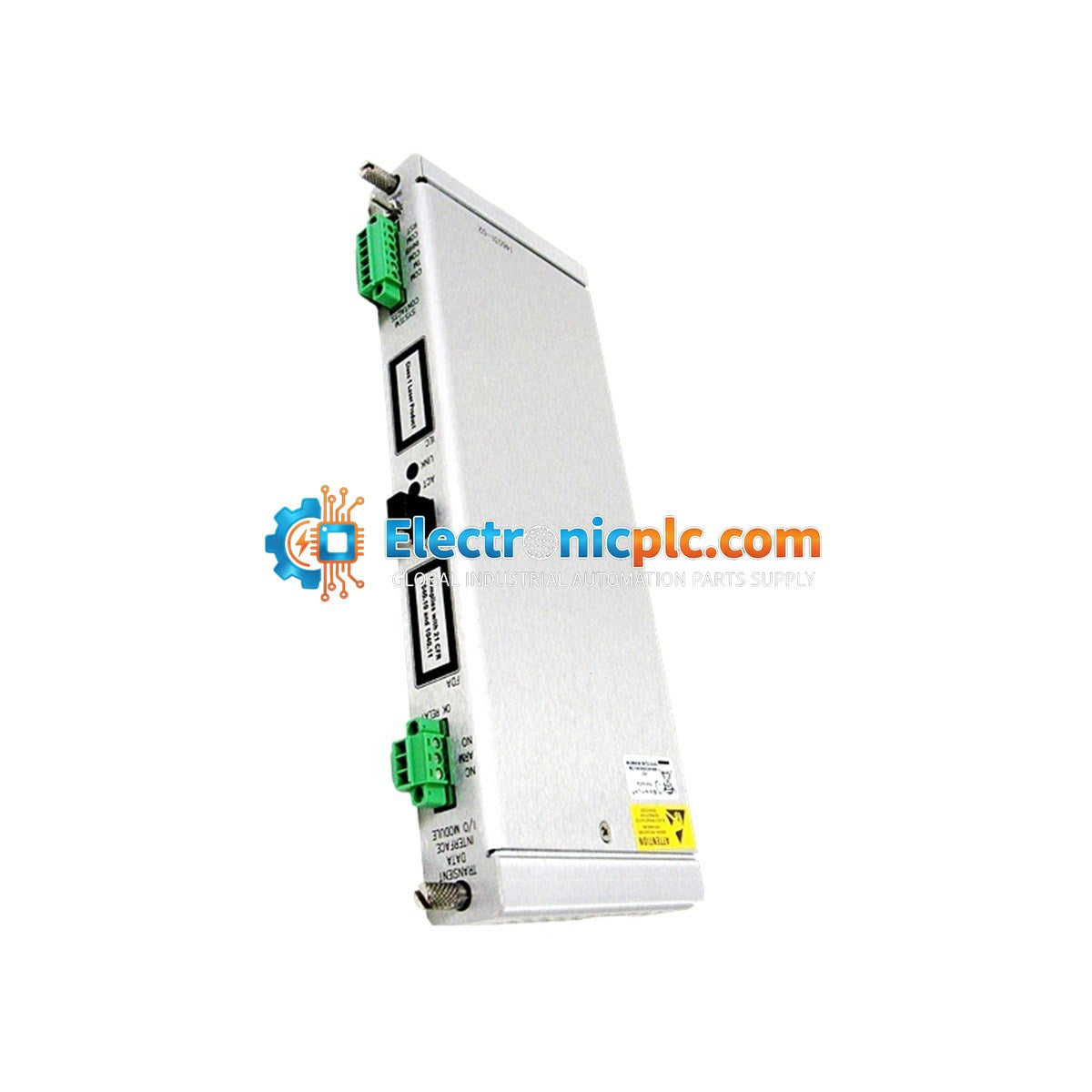

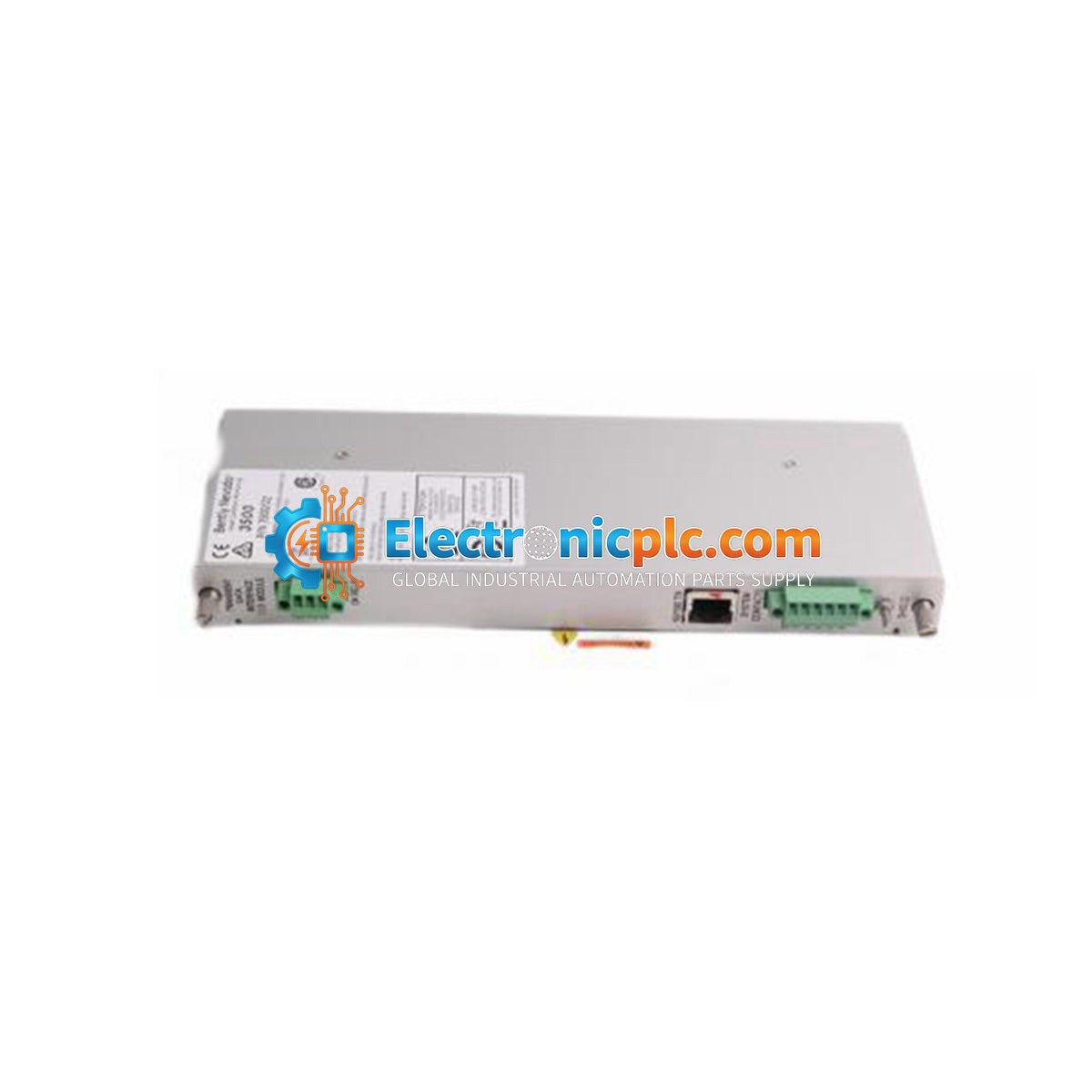

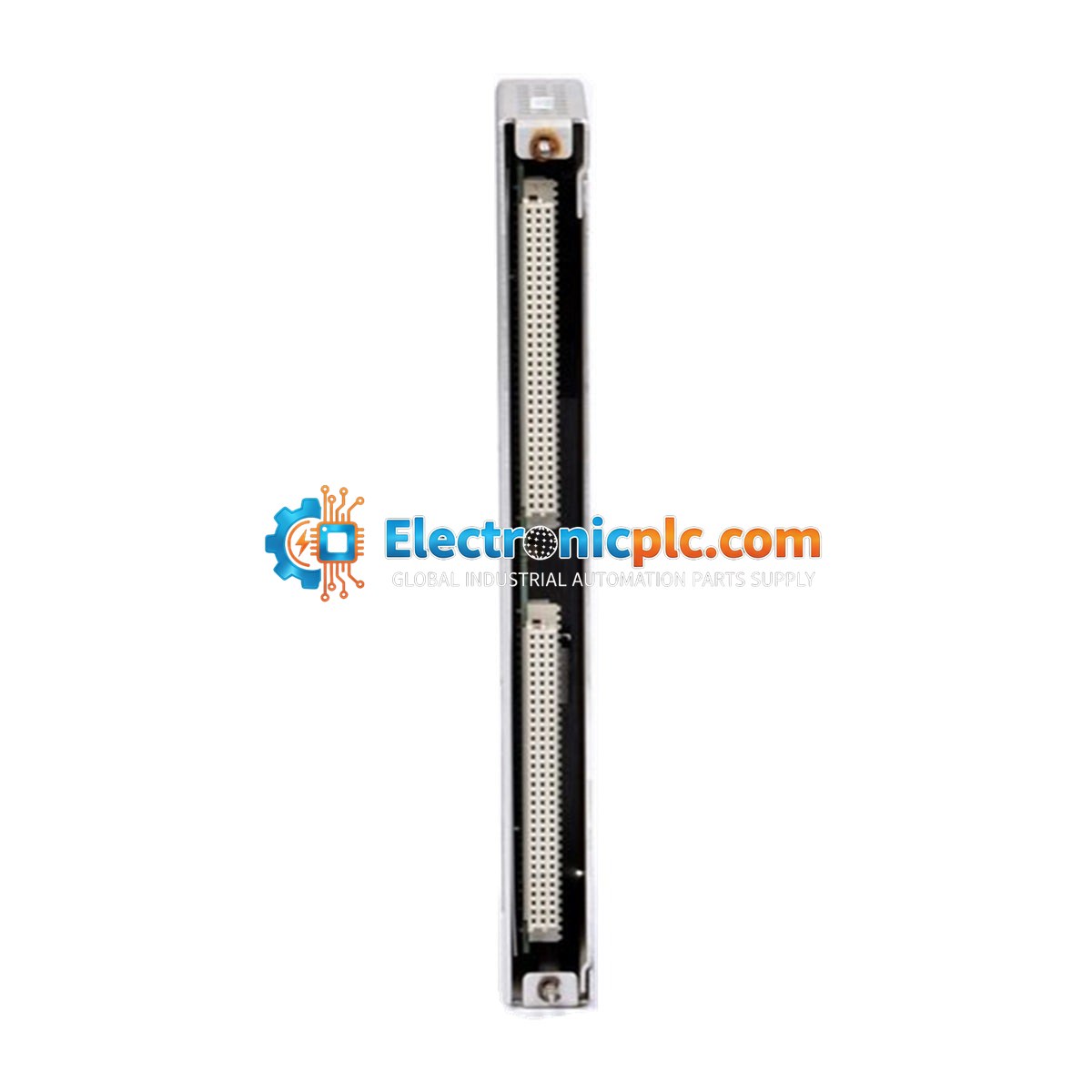

Bently Nevada 146031-01 10Base-T/100Base-TX I/O Module

Bently Nevada 146031-01 10Base-T/100Base-TX I/O Module

Description

The Bently Nevada 146031-01 is a 10Base-T/100Base-TX copper Ethernet I/O module designed for use with the 3500/22M Transient Data Interface (TDI). This module serves as the physical interface between the...

18 people are viewing this right now

Availability: Low stock: 1 left

SKU: 146031-01
Vendor: Bently Nevada
Category: I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 146031-01 is a 10Base-T/100Base-TX copper Ethernet I/O module designed for use with the 3500/22M Transient Data Interface (TDI). This module serves as the physical interface between the 3500 monitoring system and host software, such as System 1 Condition Monitoring and Diagnostic software. It mounts in the I/O slot directly behind the 3500/22M main module within the 3500 rack, providing essential network connectivity and status relay outputs.

Features

  • Provides physical Ethernet connectivity (10Base-T/100Base-TX) for system configuration and data collection.
  • Features a front-panel RJ-45 Ethernet port for seamless integration with diagnostic software.
  • Includes dedicated system contacts for rack status indication, including an OK relay for monitoring overall rack health.
  • Equipped with a 2-pin signal common external grounding terminal for single-point instrument grounding.
  • Supports continuous collection of steady-state and transient waveform data when used with the 3500/22M TDI.

Applications

  • Electric Power: Monitoring of steam, gas, and hydro turbines, as well as critical circulating pumps in nuclear facilities.
  • Oil & Gas: Surveillance of large compression units, turbine drive systems, and oil pumping stations.
  • Chemical & Process: Monitoring of centrifugal and reciprocating compressors and reactor mixing equipment.
  • Heavy Manufacturing: Oversight of large blowers, rolling mills, and core power equipment.

Technical Specifications

Product Model 146031-01
Module Type 10Base-T/100Base-TX I/O Module
Bandwidth DC to 20 kHz (±3 dB)
Input Impedance 100 kΩ
Accuracy ±0.1% FSR
Overvoltage Protection ±30 V DC
Operating Temperature -30 degC to +65 degC

Installation Guidelines

  • Rack Placement: The 146031-01 must be installed in Slot 1 of the 3500 rack, immediately adjacent to the power supply modules.
  • Handling: Ensure the 3500 rack power is disconnected before inserting or removing any I/O module to prevent electrical damage or system faults.
  • Grounding: Utilize the 2-pin signal common terminal to establish a secure, single-point instrument ground connection.
  • ESD Precautions: Always follow standard electrostatic discharge (ESD) prevention protocols when handling electronic modules to protect sensitive internal circuitry.
  • Cable Routing: Ensure Ethernet cables are properly shielded and routed away from high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the 146031-01?

The 146031-01 acts as the I/O interface for the 3500/22M Transient Data Interface, enabling Ethernet-based communication for configuration and diagnostic data transfer between the 3500 rack and external software.

Does the module support TMR configurations?

Yes, when used in a Triple Modular Redundant (TMR) setup, the associated 3500/22M TDI performs monitor channel comparison to ensure high availability and fault detection.

How do I verify the status of the module?

The module features front-panel LEDs that provide visual status indicators for power, communication activity, and fault states.
