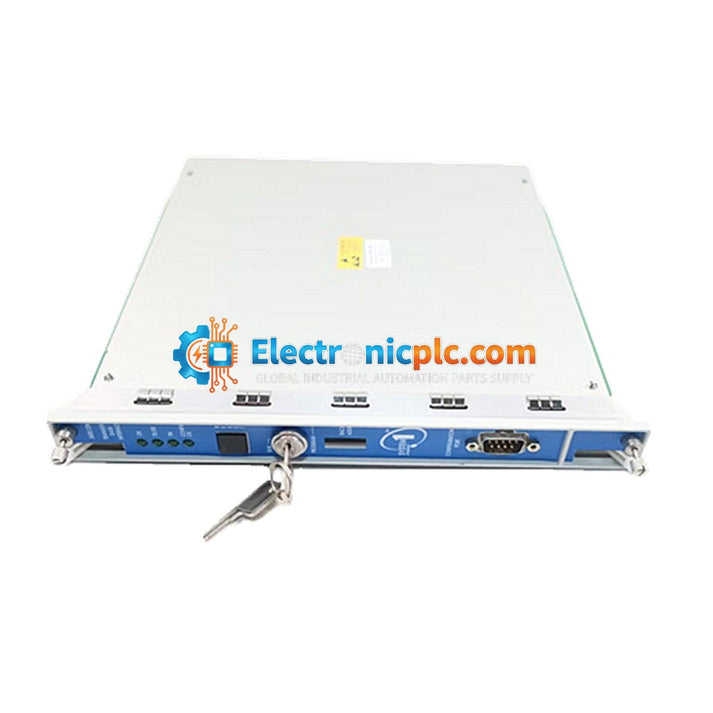

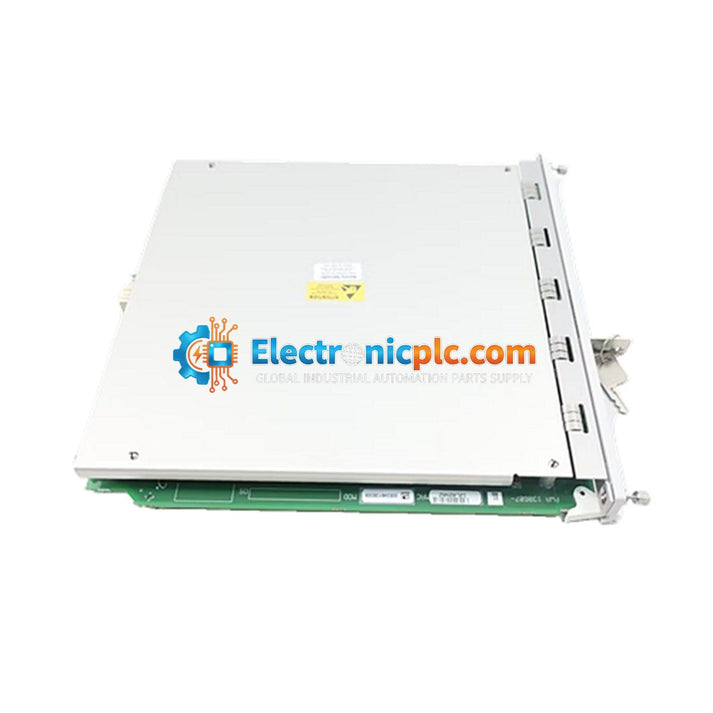

Bently Nevada 138607-01 3500/22M Transient Data Interface (TDI)

Bently Nevada 138607-01 3500/22M Transient Data Interface (TDI)

Description

The Bently Nevada 3500/22M Transient Data Interface (TDI) serves as the primary communication gateway between the 3500 Machinery Protection System and external software platforms, including System 1 Condition Monitoring and...

28 people are viewing this right now

Availability: Low stock: 6 left

SKU: 138607-01
Vendor: Bently Nevada
Category: Transient Data Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 3500/22M Transient Data Interface (TDI) serves as the primary communication gateway between the 3500 Machinery Protection System and external software platforms, including System 1 Condition Monitoring and Diagnostic software. By integrating the functionality of a 3500/20 Rack Interface Module (RIM) with the high-speed data collection capabilities of a communication processor, the TDI enables continuous monitoring of steady-state and transient dynamic waveform data.

The 138607-01 is the standard version of the TDI module, designed to occupy the dedicated slot (Slot 1) immediately adjacent to the power supplies in a 3500 rack. It facilitates Ethernet-based communication to host software for advanced machinery diagnostics.

Features

  • Integrates 3500/20 RIM functionality with advanced communication processing.
  • Supports continuous collection of steady-state and transient (waveform) data.
  • Enables high-resolution diagnostic analysis via System 1 software.
  • Features a physical keylock for secure switching between RUN and PROGRAM modes.
  • Standard static data capture with optional dynamic data capability.

Applications

  • Power Generation: Monitoring of steam, gas, and hydro turbines for early-stage mechanical fault detection.
  • Oil & Gas: Critical protection and analysis for high-value pumps, compressors, and motors in refineries.
  • Heavy Manufacturing: Vibration monitoring for large rotating equipment in steel and paper mills.
  • Predictive Maintenance: Facilitates long-term trend analysis and post-event failure investigation.

Technical Specifications

Model 3500/22M 138607-01
Module Type Transient Data Interface (TDI)
Power Consumption 10.5 Watts
Operating Temperature -30 degC to +65 degC
Storage Temperature -40 degC to +85 degC
Humidity 95%, non-condensing
Front Interface RS232 Serial Port (9-pin)
Rack Position Slot 1 (adjacent to power supplies)

Installation Guidelines

  • Slot Placement: The TDI must be installed in Slot 1 of the 3500 rack, directly next to the power supply modules.
  • Handling: Use standard ESD precautions when handling the module to prevent damage to sensitive internal circuitry.
  • Power: Ensure the rack power is stable; the module is hot-swappable in most configurations, but verify system requirements before removal.
  • Configuration: Use the front-panel serial port for local configuration. Ensure the keylock is set to the appropriate mode (RUN/PROGRAM) during operation.
  • Cabling: Use shielded Ethernet cabling for the host software connection to minimize EMI interference in industrial environments.

FAQ

What is the function of the 3500/22M 138607-01?

It acts as the interface between the 3500 rack and System 1 software, capturing both steady-state and transient vibration data for detailed machinery health analysis.

Is this module still in production?

The 138607-01 is a legacy version and has been superseded by the 288055-01. The newer version replaces the serial port with a USB-B interface for easier connectivity.

Can this be used in TMR systems?

The 138607-01 is the standard version. For Triple Modular Redundant (TMR) applications, a specific TMR version of the TDI is required to perform monitor channel comparison.
