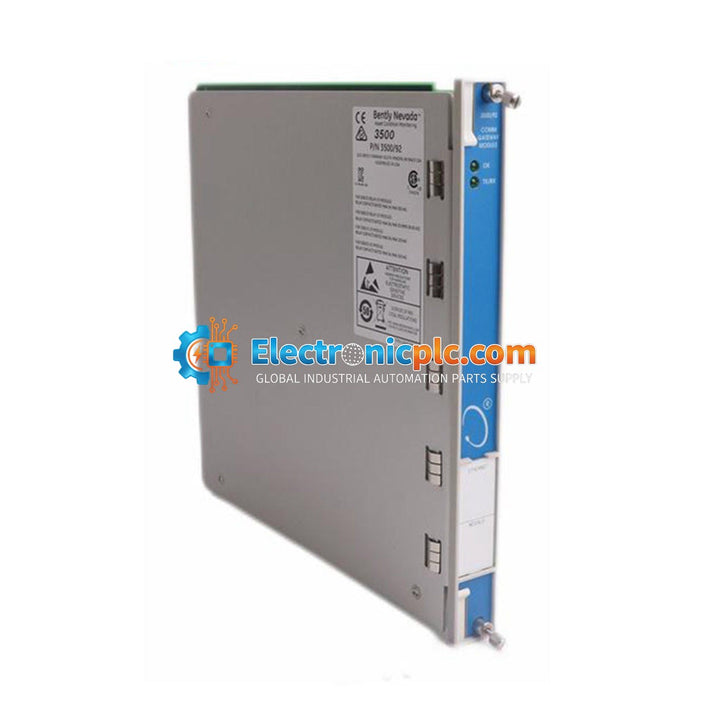

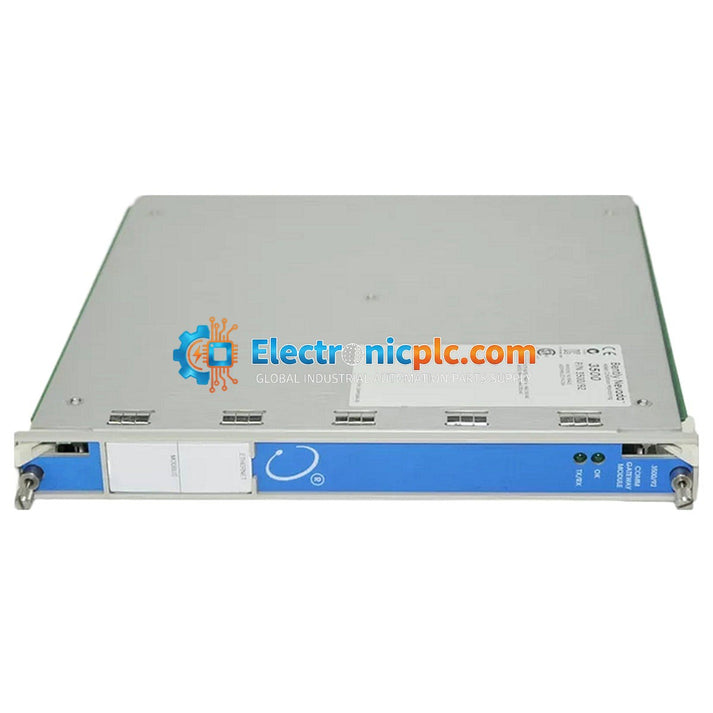

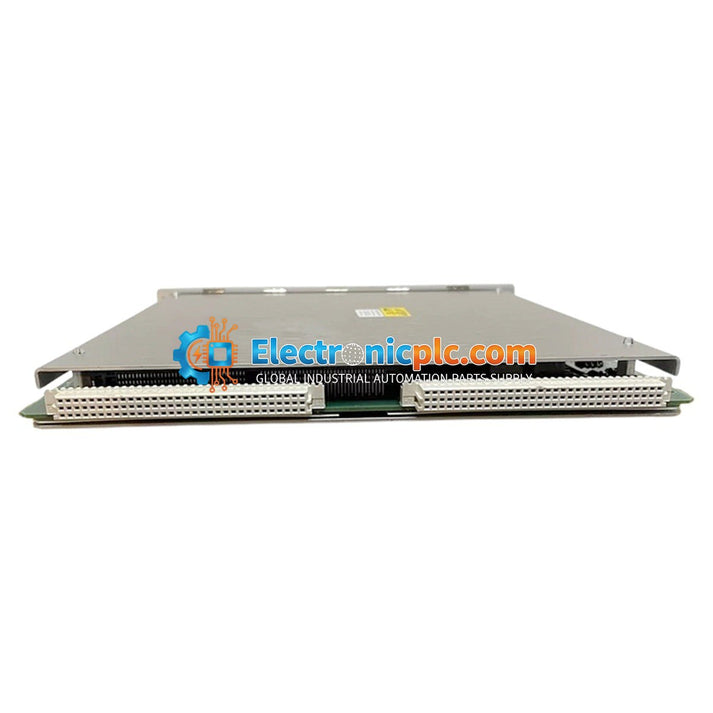

Bently Nevada 3500/92 136180-01 Communication Gateway Module

Bently Nevada 3500/92 136180-01 Communication Gateway Module

Description

The Bently Nevada 3500/92 136180-01 Communication Gateway Module serves as a critical interface for the 3500 Machinery Protection and Condition Monitoring System. It facilitates the exchange of rack-monitored values, alarm...

24 people are viewing this right now

Availability: Low stock: 10 left

SKU: 136180-01
Vendor: Bently Nevada
Category: Communication Gateway Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 3500/92 136180-01 Communication Gateway Module serves as a critical interface for the 3500 Machinery Protection and Condition Monitoring System. It facilitates the exchange of rack-monitored values, alarm statuses, and diagnostic data between the 3500 monitoring rack and external supervisory systems, including DCS, PLC, and SCADA platforms. This module provides robust connectivity via Ethernet TCP/IP and serial interfaces, ensuring seamless integration into plant-wide automation architectures.

Features

  • Supports Ethernet TCP/IP (10BASE-T) and serial (RS-232, RS-422, RS-485) communication protocols.
  • Includes a Configurable Modbus Register Utility for flexible data mapping.
  • Compatible with Bently Nevada 3500 Rack Configuration and Data Acquisition software.
  • Standard RJ45 Ethernet connection for 10 Mbps star configuration networks.
  • Designed for integration with process control and asset management systems.

Applications

  • Power Generation: Monitoring of turbines, generators, and boiler feed pumps.
  • Oil & Gas / Petrochemical: Tracking of pumps, mixers, and reactors for process safety.
  • Water & Wastewater: Supervision of pumps and blowers for distribution reliability.
  • Process Industries: Steel production, mining, and pulp/paper operations.
  • Manufacturing: Monitoring of motors, gearboxes, and fans to optimize maintenance.

Technical Specifications

Model 3500/92 136180-01
Manufacturer Bently Nevada
Communication Link Ethernet (10Mbps, IEEE 802.3)
Protocols Modbus/TCP, Modbus RTU, Proprietary BNC
Operating Temperature -30 degC to +65 degC
Storage Temperature -40 degC to +85 degC
Humidity 95% non-condensing
Weight 0.8 kg

Installation Guidelines

  • ESD Protection: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage.
  • Slot Requirements: The main module occupies one full-height front slot in the 3500 rack; the corresponding I/O module requires the rear slot directly behind it.
  • Firmware: Ensure firmware compatibility when integrating with existing I/O modules; upgrades may require replacing firmware ICs on the PWA.
  • Environment: Ensure adequate ventilation within the rack to maintain operating temperatures within the specified range.

FAQs

What is the primary function of the 3500/92?

The 3500/92 acts as a communication gateway, exporting rack-monitored data and alarm statuses to external control and automation systems.

Which communication protocols are supported?

The module supports Modbus RTU (serial), Modbus/TCP (Ethernet), and the proprietary Bently Nevada protocol used for configuration and data acquisition software.

Can this module communicate via serial?

Yes, the module supports serial communication via RS-232, RS-422, and RS-485 interfaces, typically implemented through an associated I/O module.
