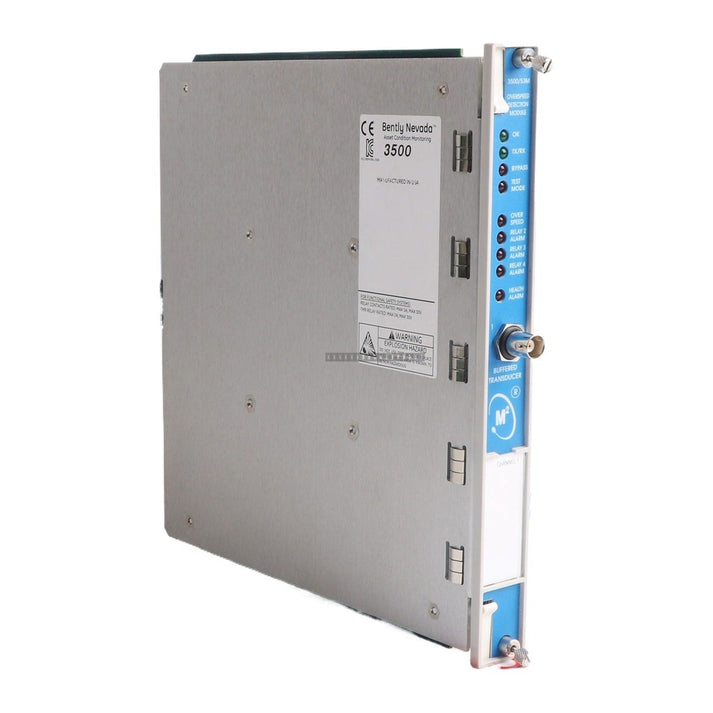

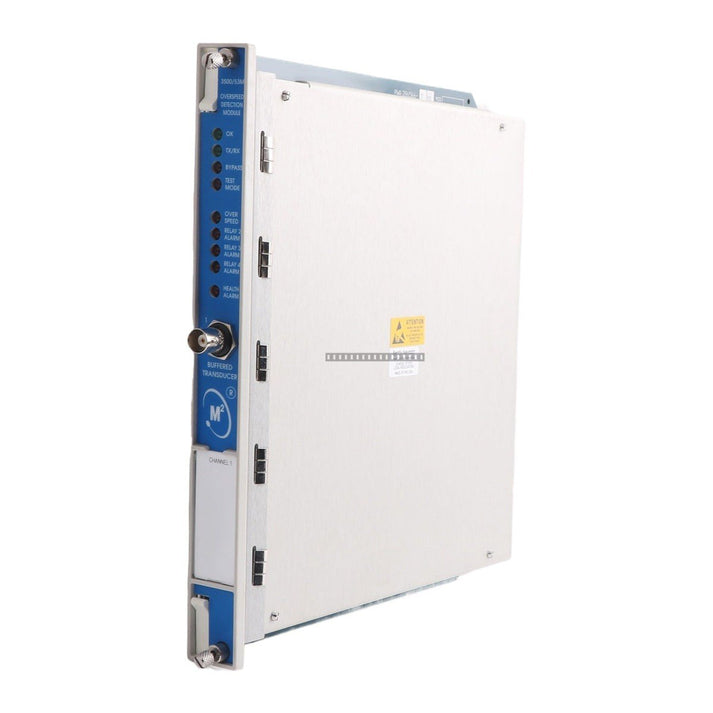

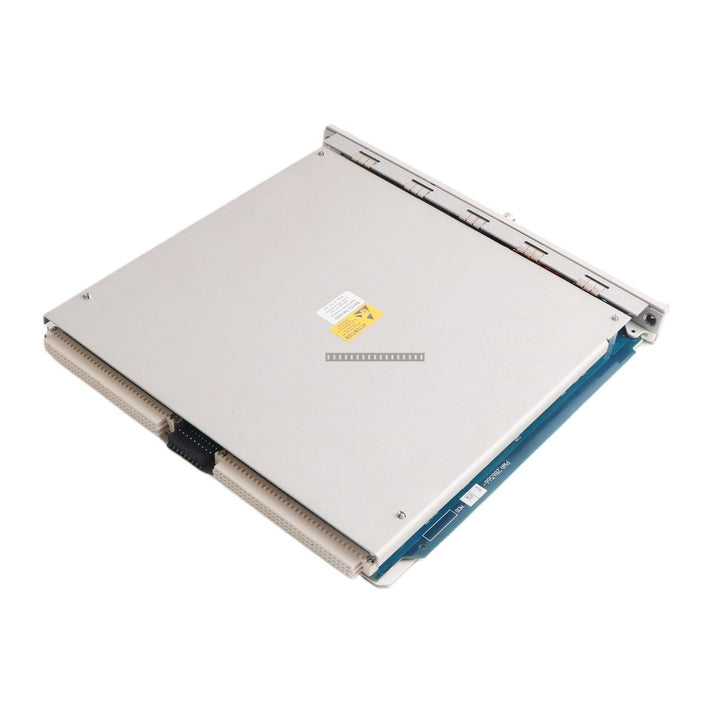

The Bently Nevada 3500/53M (order code 286566-01) is a high-performance Overspeed Detection Module designed for the 3500 Machinery Detection System. This module provides critical protection by monitoring machinery speed and triggering alarms or shutdowns when speed thresholds are exceeded, ensuring the integrity and safety of rotating equipment.

Features

• Designed specifically for the Bently Nevada 3500 Series rack-based monitoring platform.
• Provides reliable overspeed protection for critical assets.
• Integrated transducer power supply for sensor excitation.
• Configurable alarm setpoints to match specific machinery requirements.
• High-reliability relay outputs for machine shutdown or alarm annunciation.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is properly grounded before installing the module.
• Handle the module using standard ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
• Insert the module into the designated slot in the 3500 rack; ensure the backplane connector is fully seated.
• Verify that the module is configured correctly via the 3500 Configuration Software before putting the machine into service.
• Always power down the rack or follow site-specific safety procedures before inserting or removing I/O modules.
• Ensure signal cables are shielded and routed away from high-voltage or high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the 3500/53M module?

The 3500/53M is an overspeed detection module that monitors the rotational speed of machinery and provides relay outputs to initiate a shutdown if the speed exceeds pre-defined safety limits.

Is this module compatible with other 3500 series components?

Yes, the 3500/53M is designed to integrate seamlessly into the standard Bently Nevada 3500 rack system and communicates with other system components via the rack backplane.
