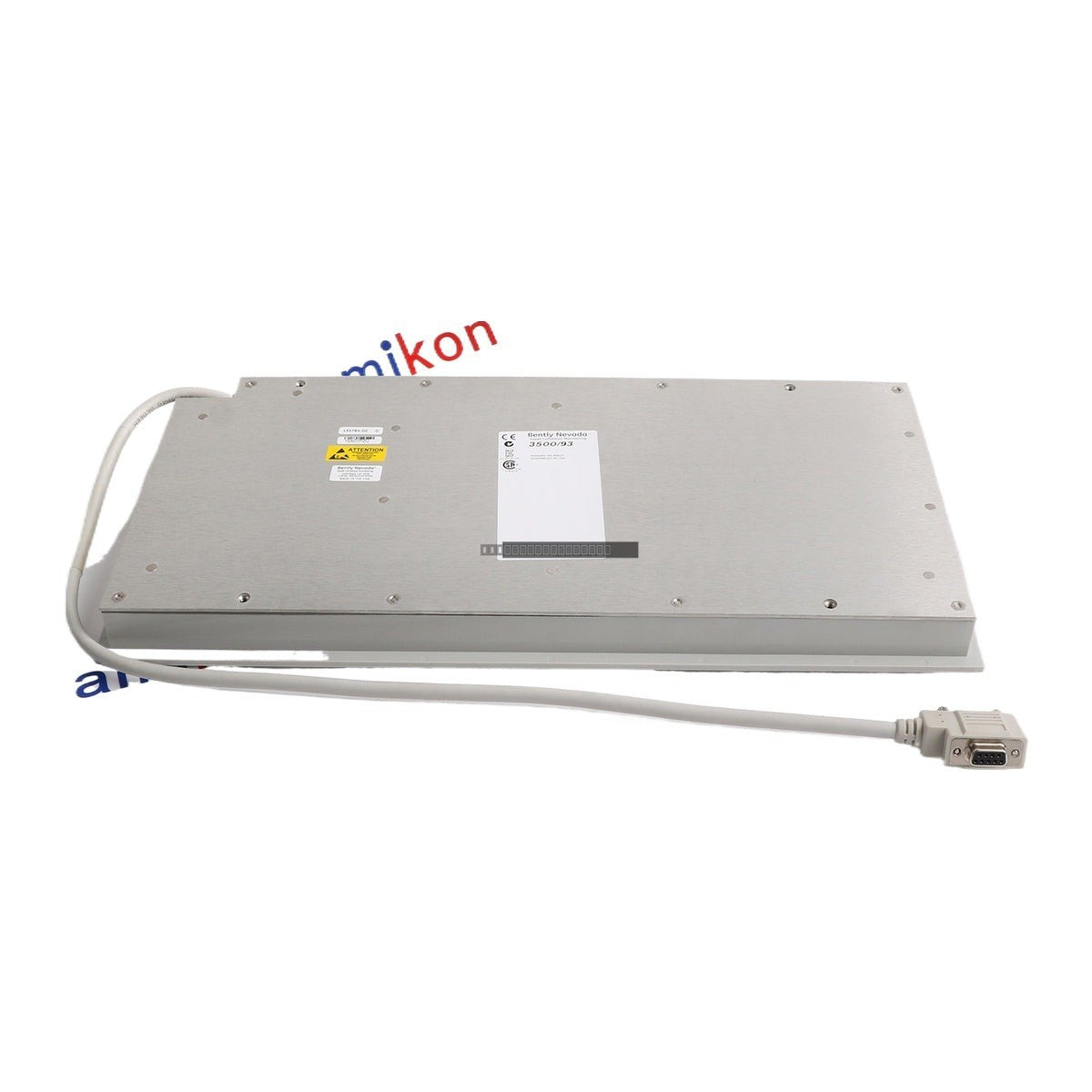

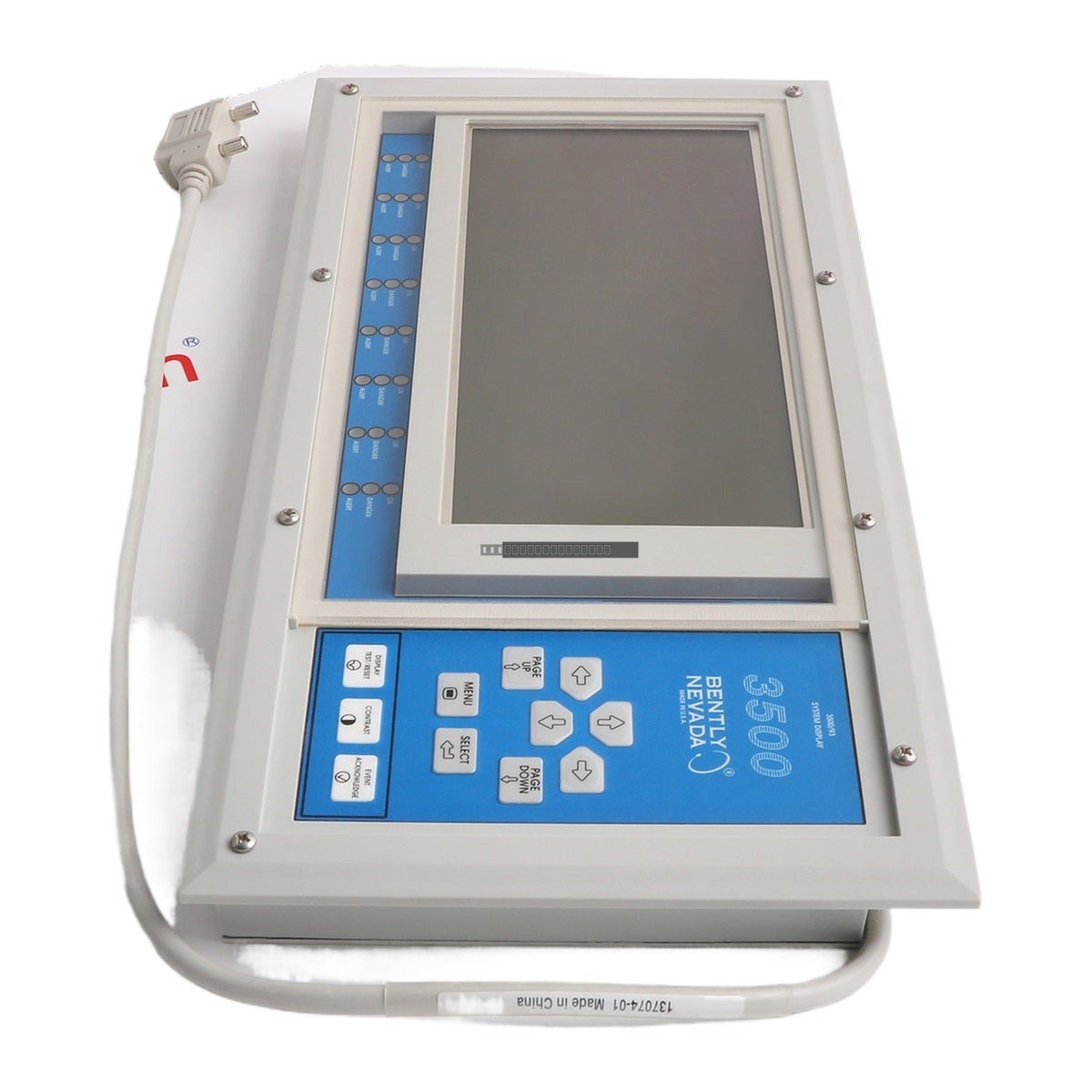

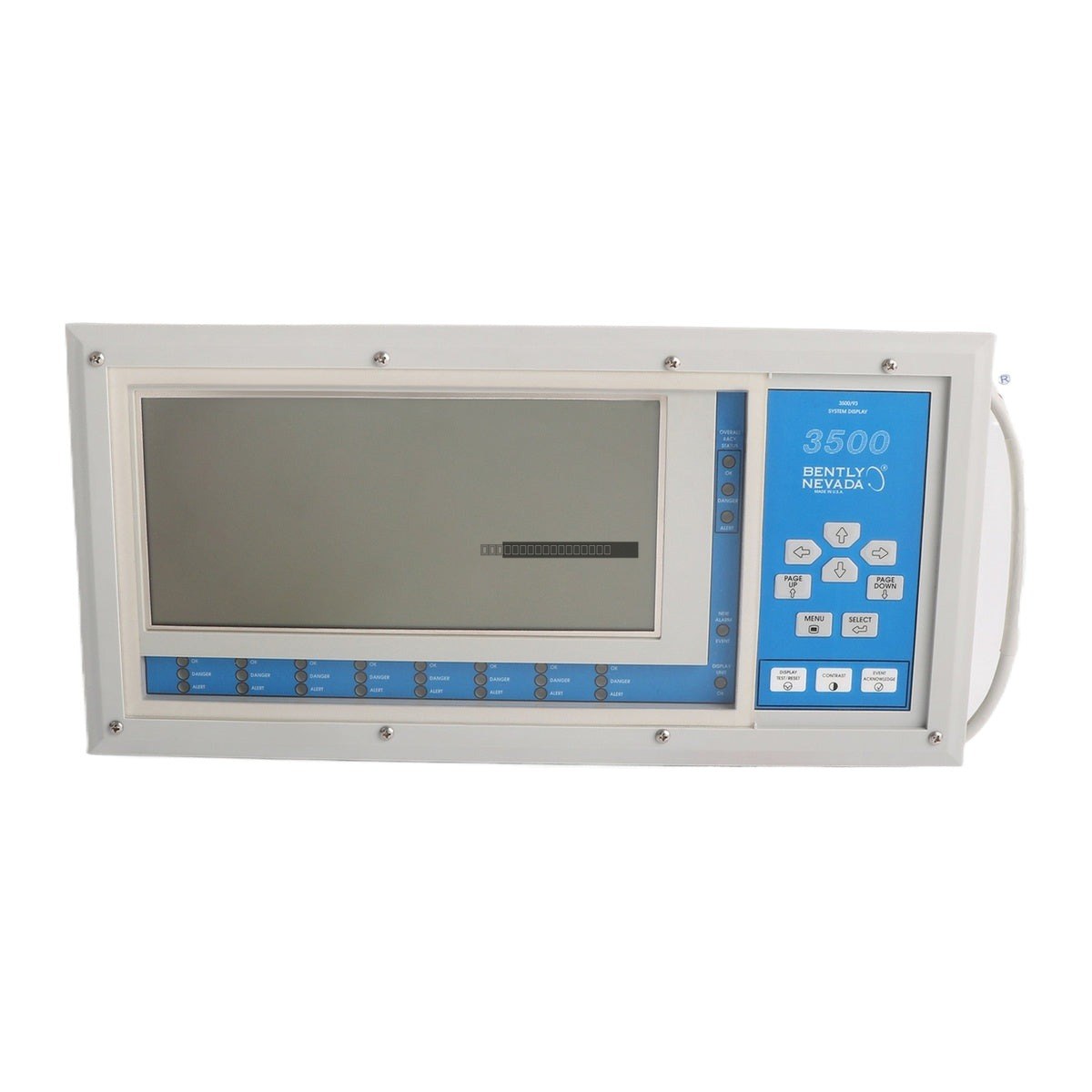

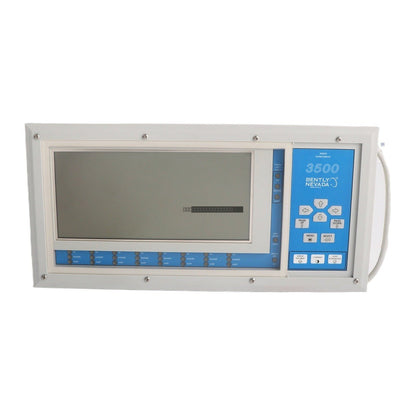

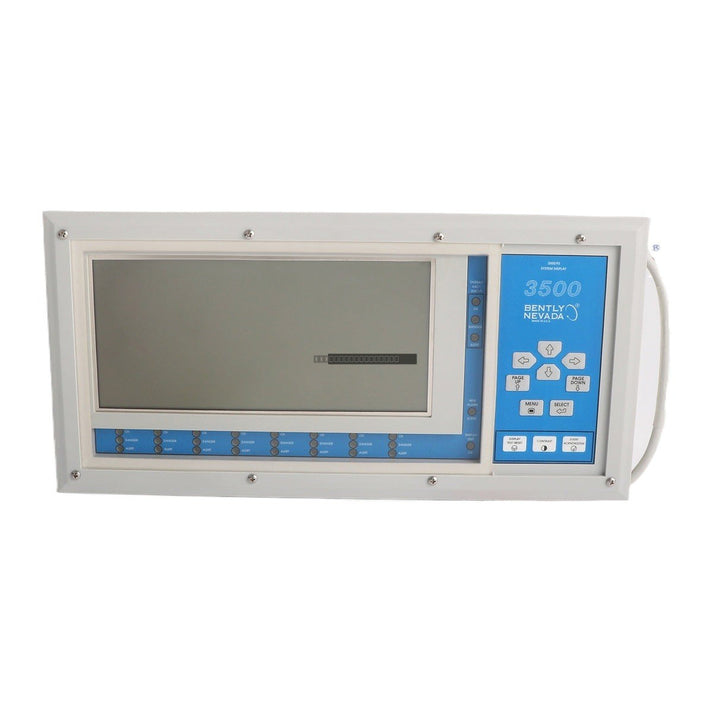

Bently Nevada 3500/93 135785-02 System Display

Bently Nevada 3500/93 135785-02 System Display

The Bently Nevada 3500/93 135785-02 is a dedicated System Display module designed for the 3500 Machinery Protection System. This interface provides local or remote visual indication of system data, allowing...

20 people are viewing this right now

Availability: Low stock: 4 left

SKU: 3500/93 135785-02
Vendor: Bently Nevada
Category: System Display Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Bently Nevada 3500/93 135785-02 is a dedicated System Display module designed for the 3500 Machinery Protection System. This interface provides local or remote visual indication of system data, allowing operators to monitor critical machinery parameters directly at the rack or from a remote location. The module supports flexible installation configurations and utilizes fiber-optic communication for reliable data transmission.

Features

  • Provides local or remote visual monitoring for the 3500 Machinery Protection System.
  • Supports up to four distinct display mounting configurations.
  • Allows for the integration of up to two display modules per 3500 rack.
  • Utilizes 100Base-FX fiber-optic Ethernet for robust, noise-immune communication.
  • Designed for high-reliability operation in industrial environments.

Technical Specifications

Product Model 3500/93 135785-02
Input Signal -10 Vdc to +10 Vdc
Power Consumption 10.5 watts
Communication 100Base-FX Fiber-Optic Ethernet
Operating Temperature -30 degC to +65 degC (-22 degF to +150 degF)
Weight 1.88 kg

Installation Guidelines

  • Ensure the 3500 rack is powered down before inserting or removing the 3500/93 module to prevent electrical damage.
  • Verify that the module is properly seated in the designated rack slot and that the front panel screws are tightened to ensure a secure connection.
  • Handle the module using standard ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
  • When connecting fiber-optic cables, ensure the connectors are clean and free of debris to maintain signal integrity.
  • Route fiber-optic cabling away from high-EMI sources and avoid sharp bends that could cause signal attenuation.

FAQ

Can I install more than one display on a single 3500 rack? Yes, the 3500/93 system supports up to two display modules per rack.

What type of communication interface does this module use? This module utilizes a 100Base-FX fiber-optic Ethernet interface for data communication.

What is the operating temperature range for this unit? The module is rated for operation between -30 degC and +65 degC (-22 degF to +150 degF).
