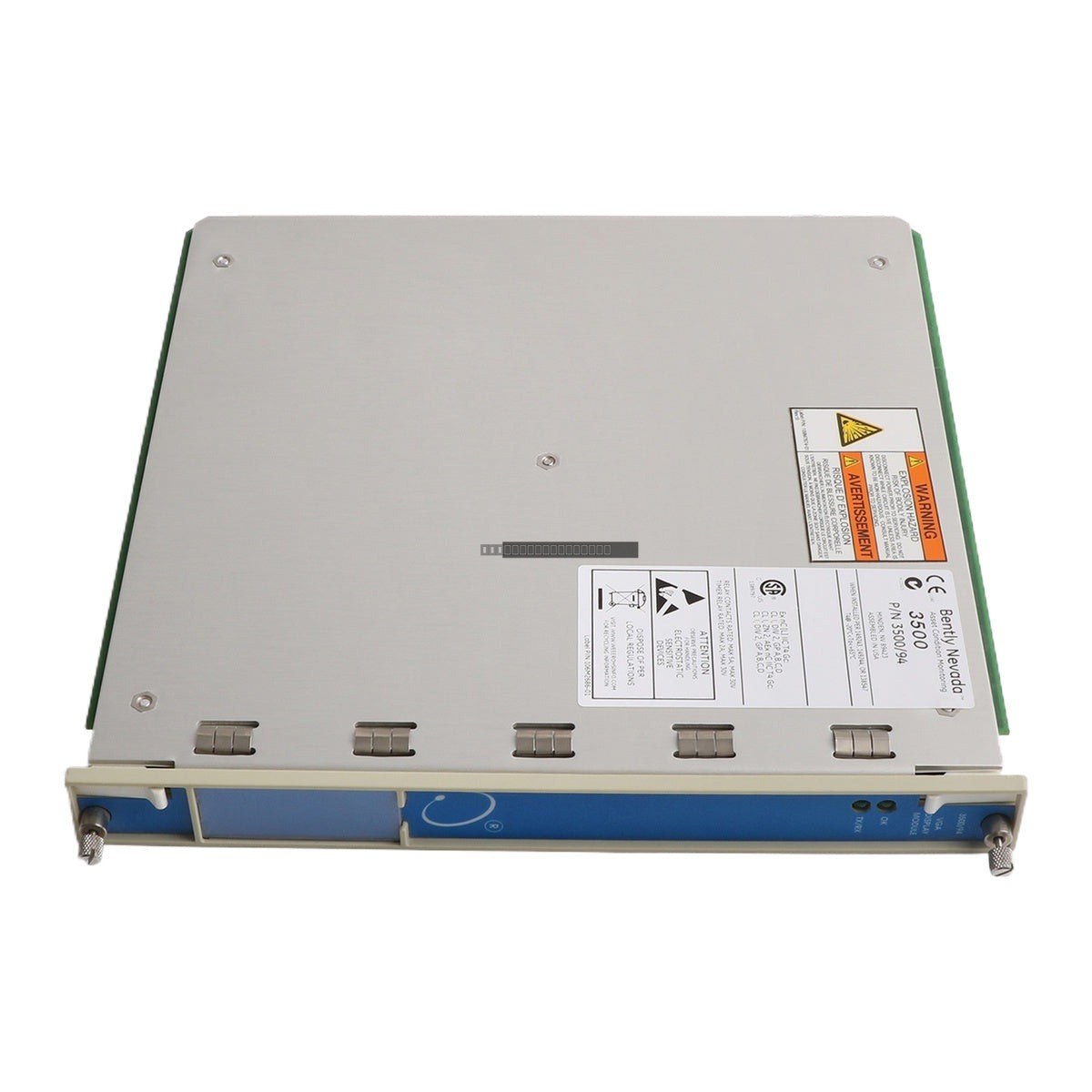

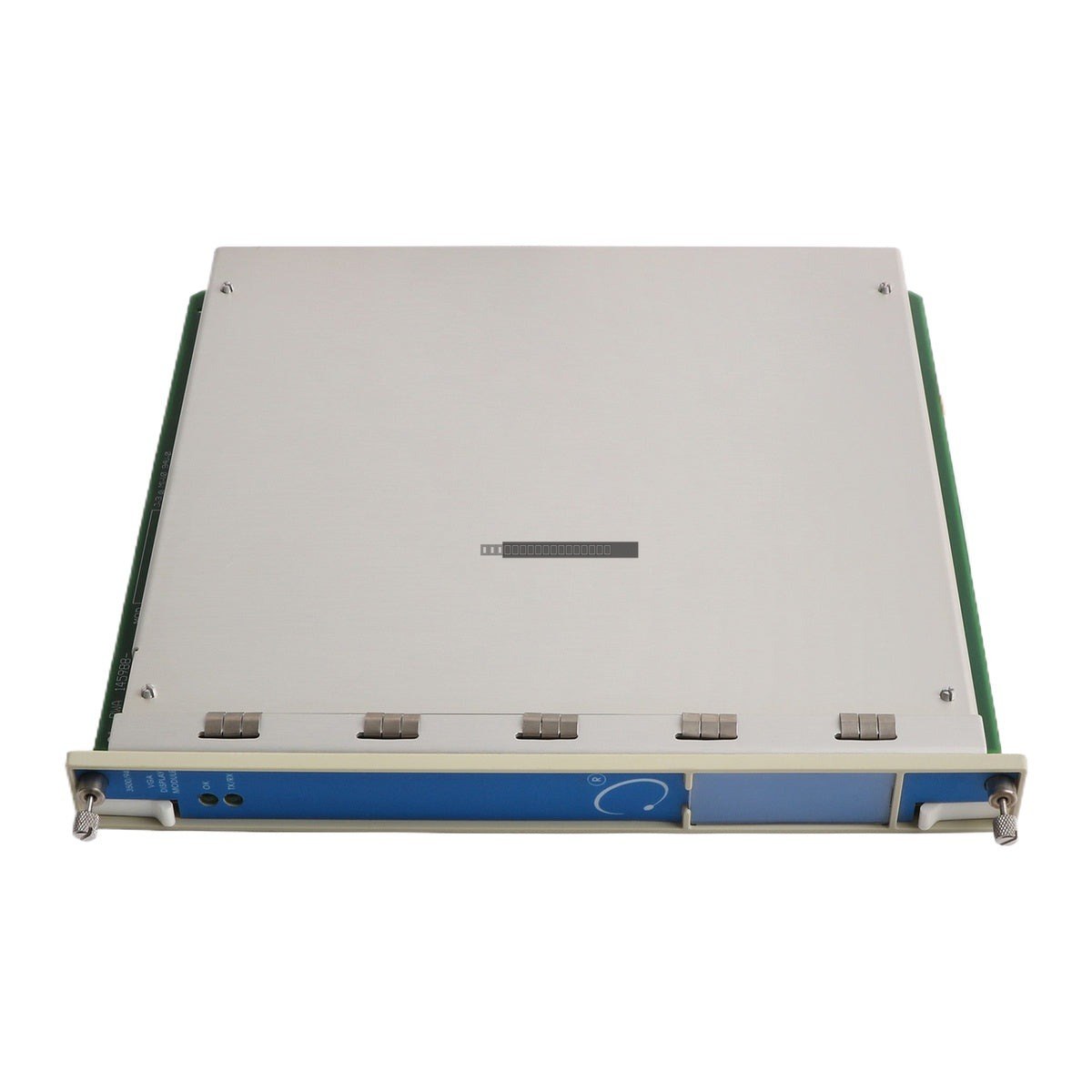

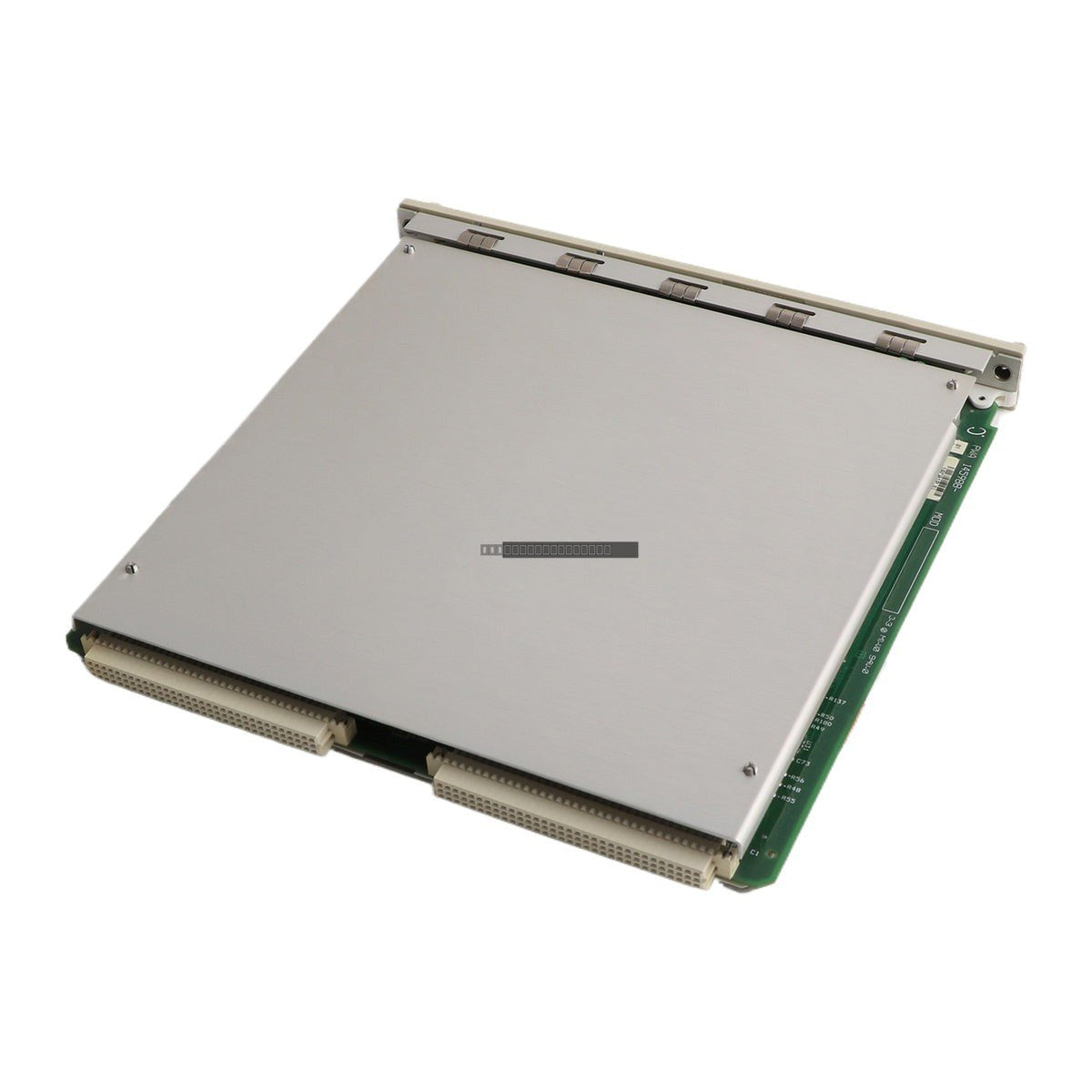

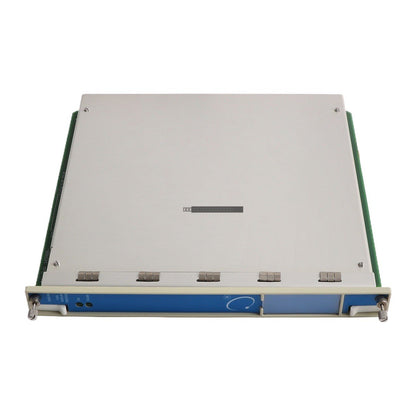

Bently Nevada 3500/94 145988-01 VGA Display Monitor

Bently Nevada 3500/94 145988-01 VGA Display Monitor

Description

The Bently Nevada 3500/94 145988-01 is a specialized VGA Display Monitor designed for the 3500 Machinery Protection System. This module provides operators with real-time visualization of system data, allowing for...

27 people are viewing this right now

Availability: Low stock: 6 left

SKU: 3500/94 145988-01
Vendor: Bently Nevada
Category: VGA Display Monitor
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 3500/94 145988-01 is a specialized VGA Display Monitor designed for the 3500 Machinery Protection System. This module provides operators with real-time visualization of system data, allowing for efficient monitoring of machinery health and alarm status directly from the rack environment.

Features

  • Provides comprehensive System Event Lists and Alarm Event Lists for rapid diagnostics.
  • Supports 3300-style rack view, ensuring compatibility with API-670 standards.
  • Offers nine customizable display options to suit specific operational requirements.
  • Includes a quick-view feature for current alarm data.
  • Integrated RS232 port facilitates touch controller data communication.
  • High-speed network connectivity for monitoring module status, values, and system data.

Technical Specifications

Model 3500/94 145988-01
Power Consumption 4.6 Watts max
Input Voltage Range 22.5 to 25.5 Vdc
Operating Temperature -30 degC to +65 degC (-22 degF to +150 degF)
Storage Temperature -40 degC to +85 degC (-40 degF to +185 degF)
Humidity 95%, non-condensing
Weight 0.74 kg

Installation Guidelines

  • Ensure the 3500 rack is powered down before inserting or removing the 3500/94 module to prevent electrical damage.
  • The module is designed for standard 3500 rack mounting; ensure the module is fully seated and the front panel screws are tightened to maintain proper grounding.
  • Use appropriate shielded cabling for RS232 connections to minimize potential EMI interference.
  • Maintain adequate ventilation around the rack to ensure the operating temperature remains within the specified -30 degC to +65 degC range.
  • Handle with standard ESD precautions to protect sensitive internal circuitry.

FAQ

What is the primary function of the 3500/94 module?

The 3500/94 serves as a VGA interface that allows operators to view real-time machinery protection data, including alarm events and system status, on a connected display.

Does this module require external power?

The module operates on a DC input range of 22.5 to 25.5 Vdc, typically supplied through the 3500 rack backplane power distribution.

Can this module be used for touch screen applications?

Yes, the module features an RS232 interface specifically intended for touch controller data communication.
