Description

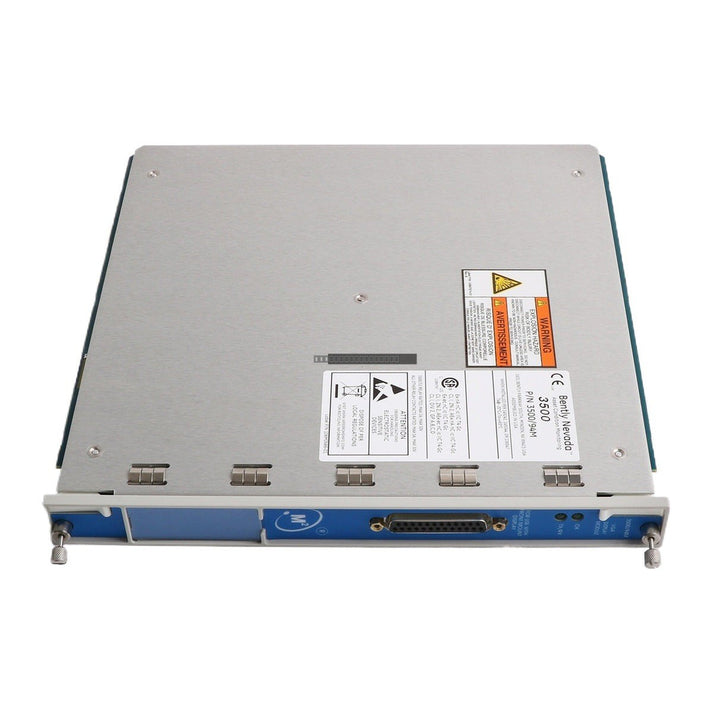

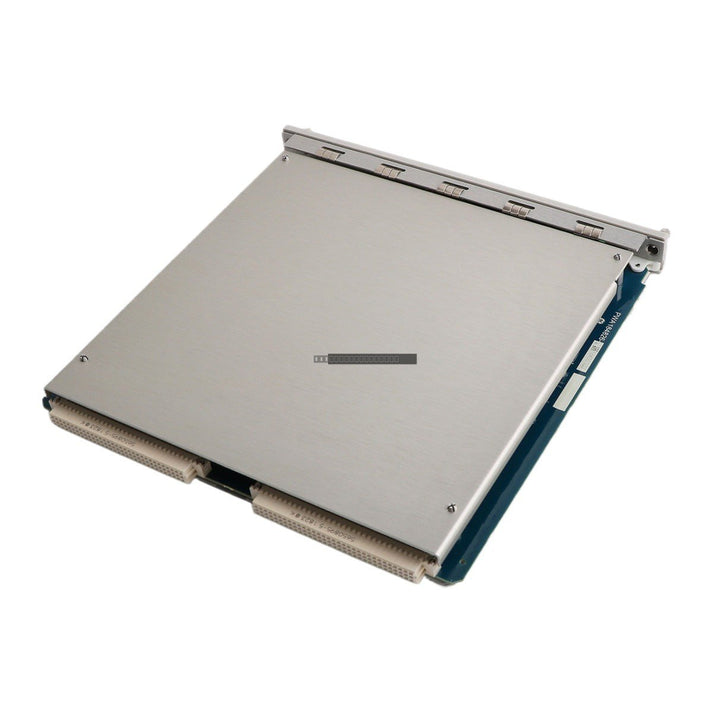

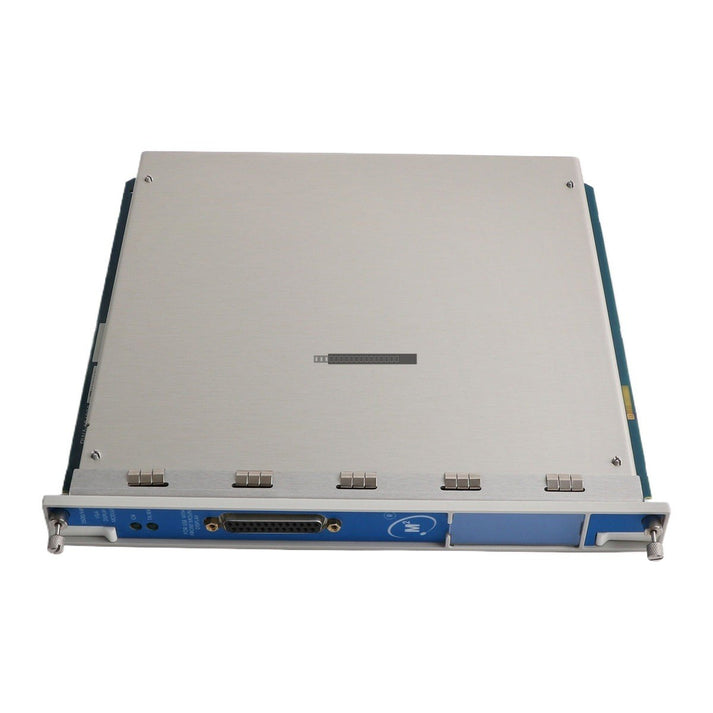

The Bently Nevada 3500/94M (184826-01) is a VGA Display Unit designed for integration with the 3500 Machinery Protection System. This unit provides operators with a visual interface to monitor system status, machinery data, and real-time values directly from the rack. It is engineered to support high-speed network communication and features dedicated ports for video input and touch screen control data, ensuring seamless interaction with the 3500 series configuration.

Features

  • 10-inch diagonal LCD screen with LED backlight for clear data visualization.
  • Dedicated VGA input for high-quality video image processing.
  • RS232 port support for touch screen controller data integration.
  • Optimized power consumption with a maximum rating of 4.7 watts.
  • Front-mounted 24 Vdc power input for convenient system connectivity.
  • Designed for harsh industrial environments with an operating temperature range of -20 degC to 65 degC.

Technical Specifications

Model 3500/94M 184826-01
Display Type LCD with LED backlight
Screen Size 10 inch diagonal
Power Input Range 22.5 to 25.5 Vdc
Power Consumption 4.7 watts max
Operating Temperature -20 degC to 65 degC (-4 degF to 149 degF)
Communication Ports VGA (Video), RS232 (Touch Control)

Installation Guidelines

  • Ensure the 3500/94M is mounted in a location that allows for adequate ventilation and clear operator access.
  • Verify that the power supply provides a stable 24 Vdc input within the specified 22.5 to 25.5 Vdc range before connection.
  • Use shielded cables for VGA and RS232 connections to minimize electromagnetic interference (EMI) in industrial settings.
  • Always power down the rack or module before inserting or removing components to prevent electrical damage.
  • Ensure proper grounding of the display unit chassis to the system common to maintain signal integrity.

FAQ

What is the primary function of the 3500/94M?
The 3500/94M serves as a VGA display interface for the Bently Nevada 3500 system, allowing users to view rack status and machinery data on a 10-inch screen.

Does this unit require an external power supply?
Yes, the unit operates on a 24 Vdc power supply. Ensure the input voltage remains within the 22.5 to 25.5 Vdc range for optimal performance.

Can this unit be used for touch screen control?
Yes, the module includes an RS232 port specifically for handling touch screen control data.
