Description

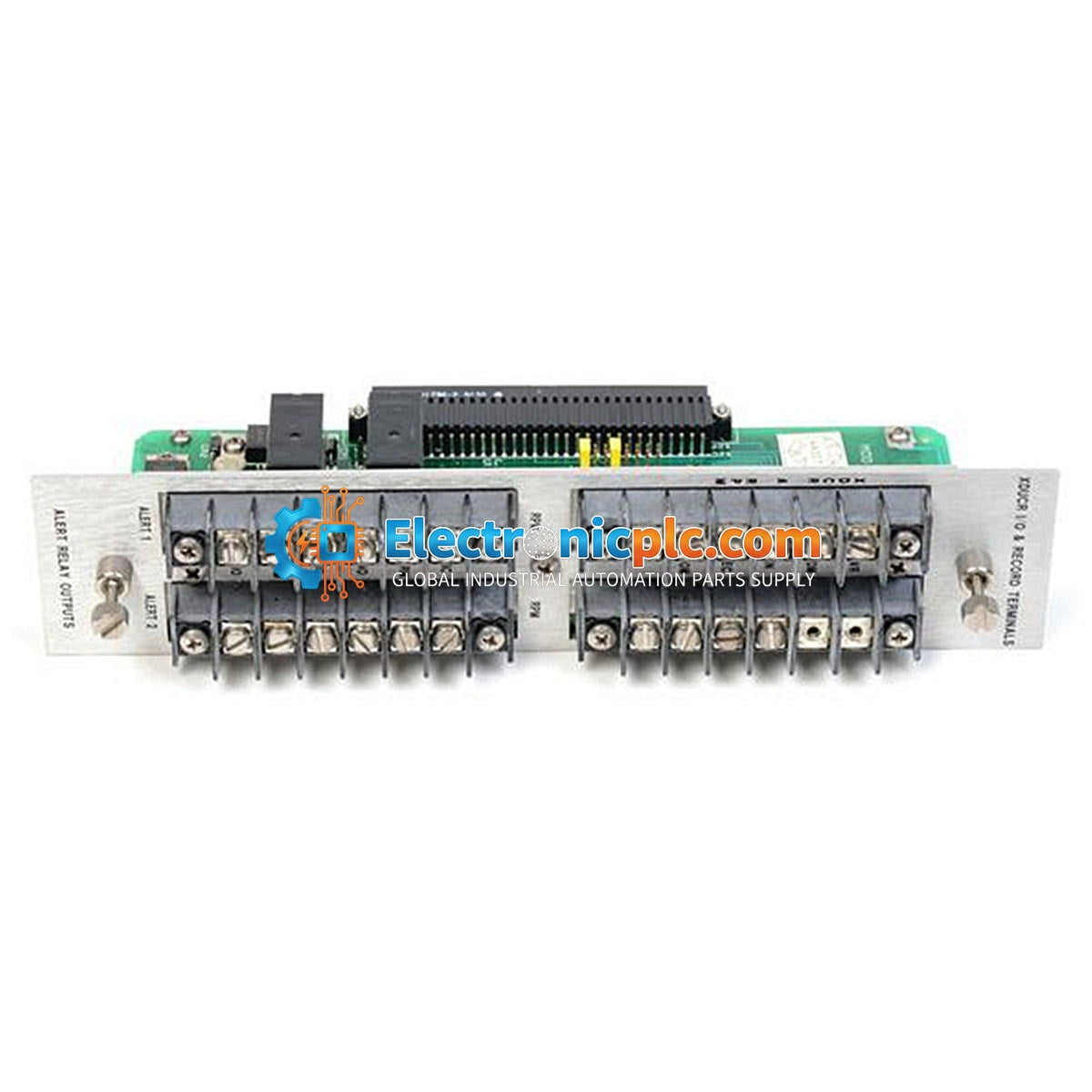

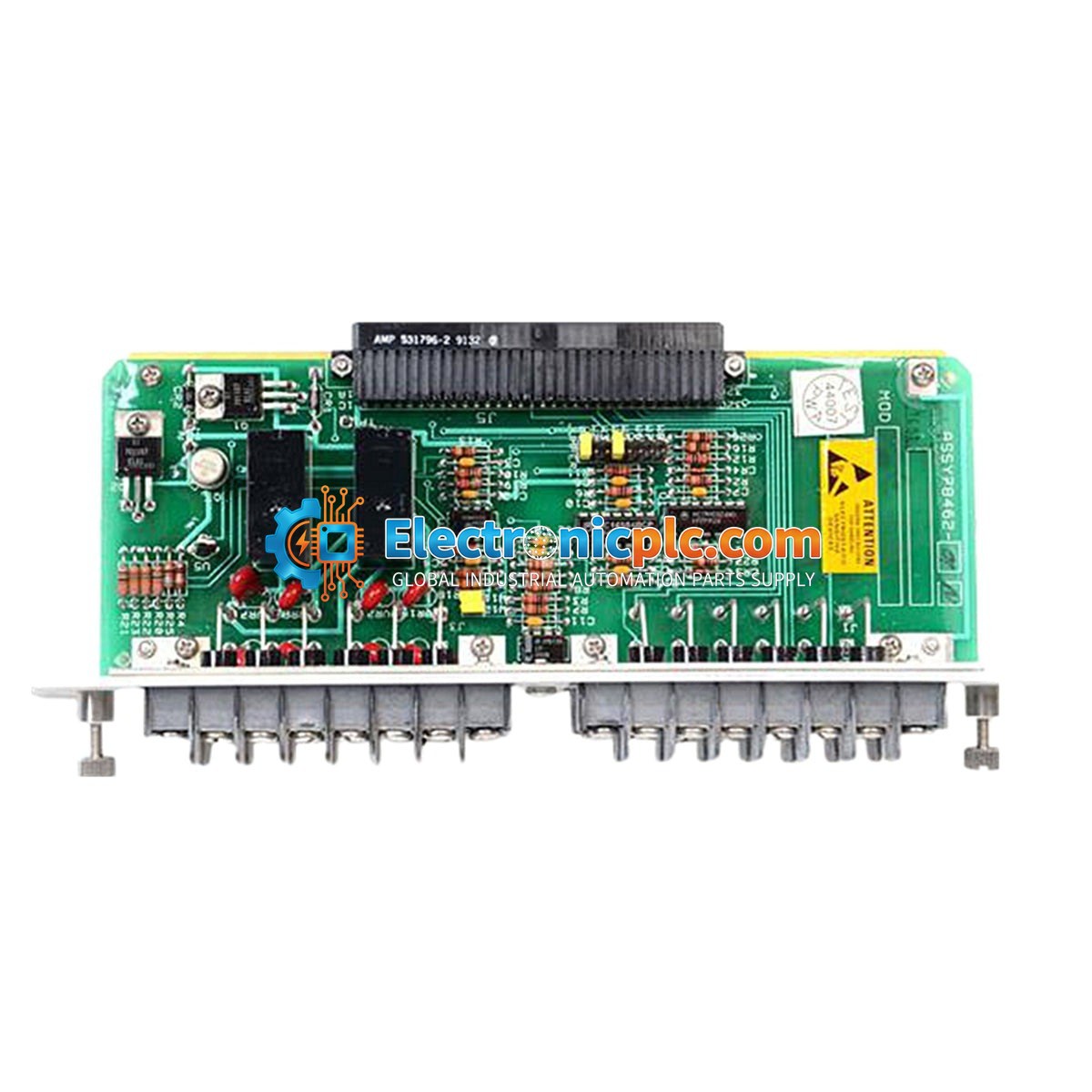

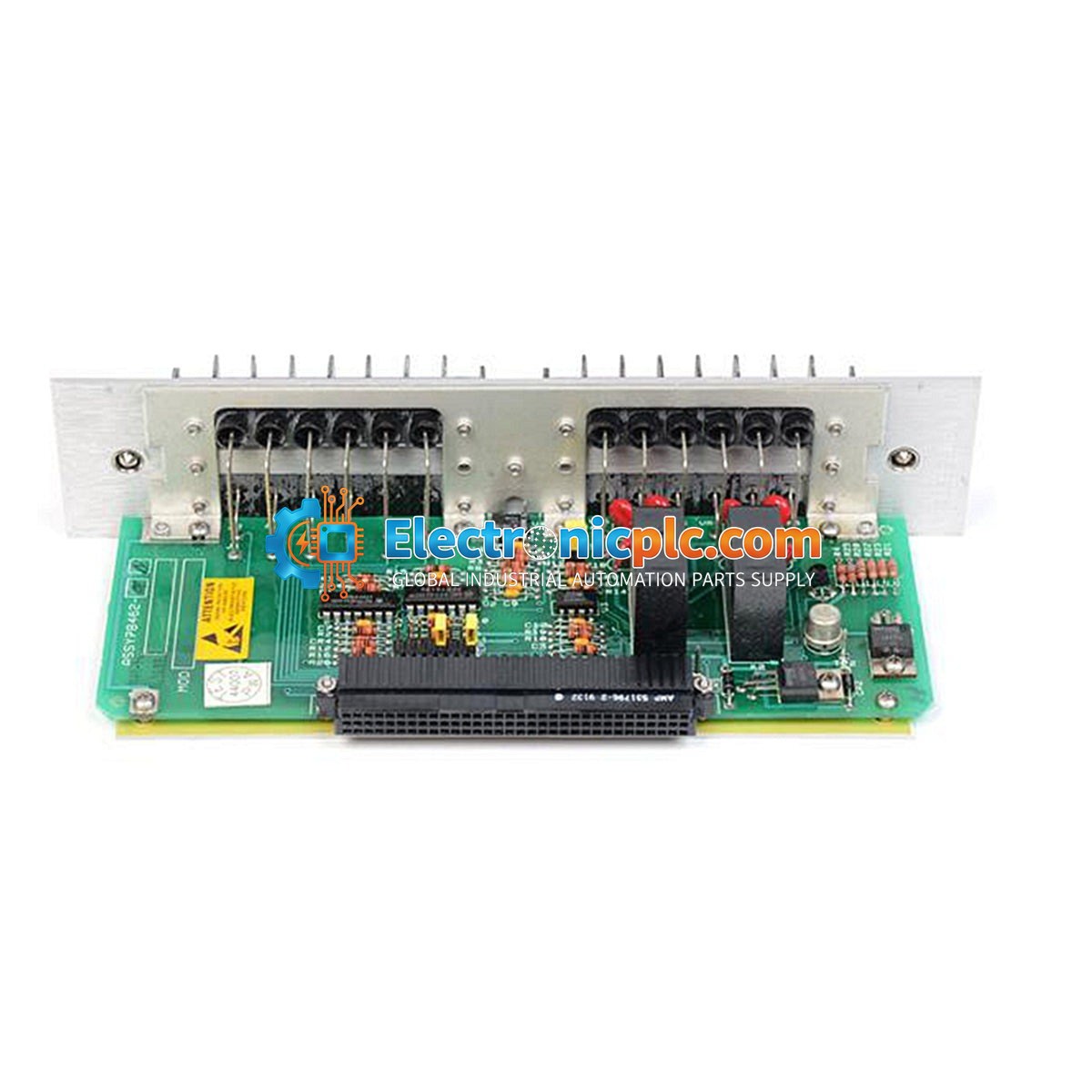

The Bently Nevada 84143-01 XDCR I/O Record Terminal Module is a specialized rack-mounted input/output termination unit designed for use within the 3300 Monitoring System. This module serves as the critical interface between field-installed transducers and the internal monitoring circuitry of the rack. By providing secure, reliable termination points for proximity probes, vibration sensors, and other transducer types, it ensures signal integrity for machinery protection and condition monitoring applications.

Features

• Signal Termination: Facilitates robust wiring connections for proximity probes and vibration transducers.
• System Integration: Acts as a dedicated interface to route conditioned sensor signals to the appropriate monitoring modules within the 3300 rack.
• Compact Design: Engineered with a half-height rack profile to maximize space efficiency in industrial control panels.
• Passive Architecture: Operates as a passive termination component with negligible power consumption, ensuring high reliability.

Applications

This module is essential for critical machinery protection systems, including turbines, centrifugal compressors, and large industrial pumps. It is widely utilized in predictive maintenance programs where accurate, low-noise signal transmission from sensors to the monitoring system is required.

Technical Specifications

Installation Guidelines

• Rack Seating: Ensure the module is fully seated in the designated 3300 rack slot to maintain proper backplane contact.
• ESD Precautions: Handle the module using standard electrostatic discharge (ESD) protection practices to prevent damage to internal components.
• Wiring Integrity: Ensure all field wiring is properly stripped and secured to the terminal blocks. Use shielded cabling for transducer signals to minimize EMI interference.
• Power Down: While this is a passive module, it is recommended to follow standard plant safety procedures and verify the rack is de-energized before inserting or removing modules.
• Environment: Ensure the installation environment remains within the specified temperature range of 0 degC to +60 degC.

FAQ

Is the 84143-01 an active or passive module?

The 84143-01 is a passive I/O terminal module; it does not require an external power supply to function, as it primarily serves as a signal routing and termination interface.

Can this module be used in systems other than the 3300 series?

No, this module is specifically designed for the Bently Nevada 3300 monitoring system architecture and is not compatible with other series such as the 3500.
