The Bently Nevada 9200-01-05-10-00 is a high-sensitivity Seismoprobe velocity transducer designed for measuring absolute vibration on machine casings or structural components. Unlike proximity probes that measure relative shaft motion, this two-wire moving-coil...
Availability: Low stock: 10 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

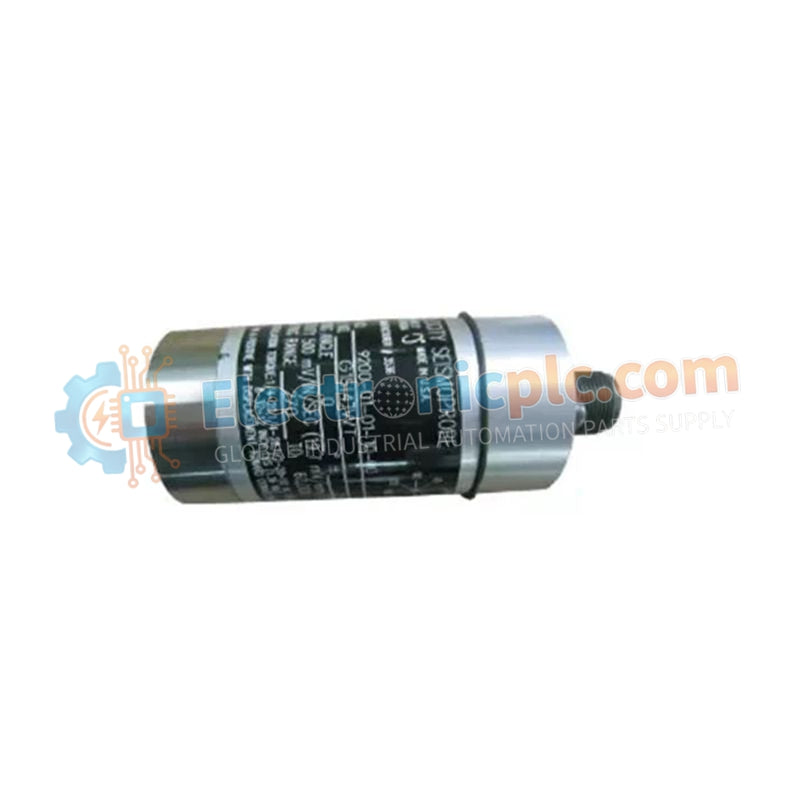

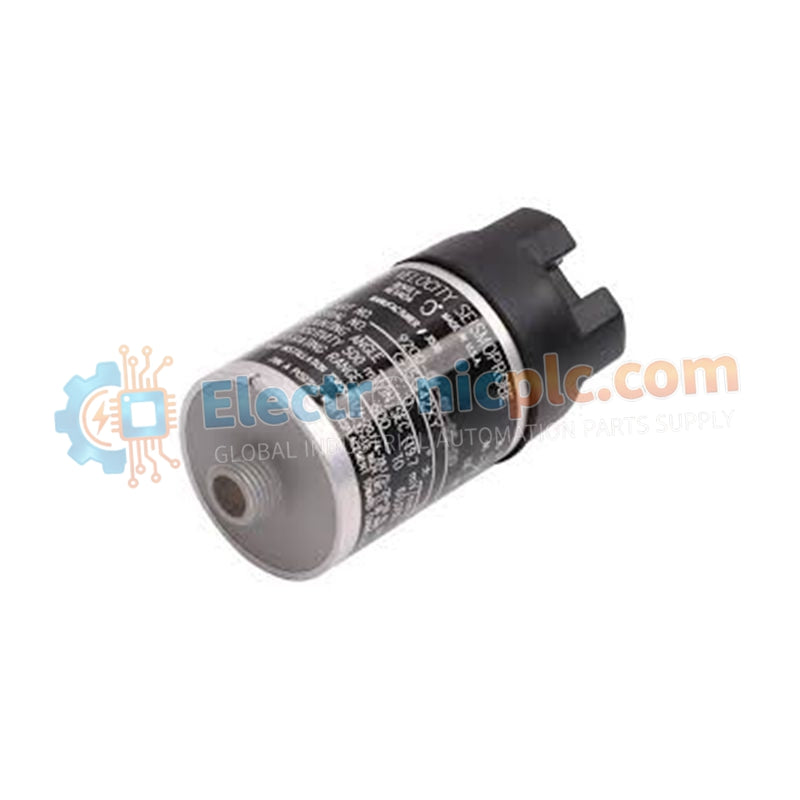

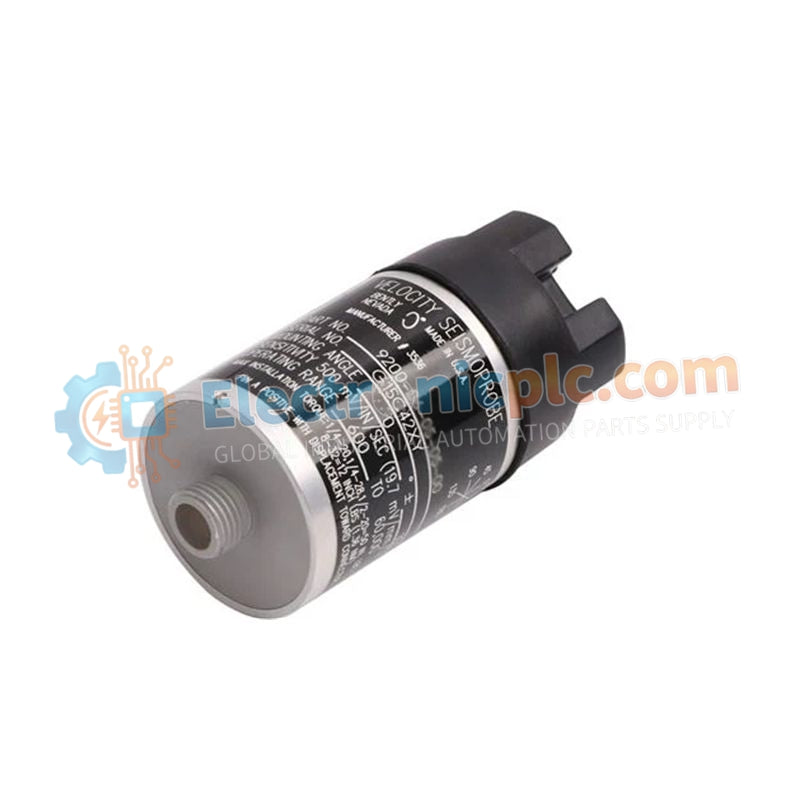

The Bently Nevada 9200-01-05-10-00 is a high-sensitivity Seismoprobe velocity transducer designed for measuring absolute vibration on machine casings or structural components. Unlike proximity probes that measure relative shaft motion, this two-wire moving-coil sensor provides a voltage output directly proportional to vibration velocity. It is ideal for monitoring bearing housings on small pumps, motors, and fans, especially where shaft access is limited.
The 9200 series is optimized for low-to-mid frequency applications. Its self-generating design eliminates the need for external power, simplifying wiring and minimizing electrical interference. The rugged stainless steel housing ensures calibration stability, even in harsh industrial environments with exposure to lubricants and humidity.
| Specification | Details |
|---|---|
| Model Configuration | 9200-01-05-10-00 |
| Transducer Type | Velocity (Moving-coil) |
| Sensitivity | 20 mV/mm/s (500 mV/in/s) ±5% at 100 Hz |
| Frequency Response | 10 Hz to 1,000 Hz (Standard range) |
| Mounting Orientation Option | Supports vertical or horizontal angles |
| Connector Option | 2-pin Mil-spec circular connector |
| Mounting Thread | 1/2-20 UNF stud mount configuration |
| Approvals | Non-hazardous area version |
| Housing Material | Corrosion-resistant stainless steel |
| Dimensions | 2.2 cm diameter x 12.4 cm x 12.6 cm |
| Weight | 2 kg |
The 9200-01-05-10-00 is primarily used on machinery with rolling-element bearings. It is particularly effective in detecting early-stage bearing fatigue, mechanical looseness, or structural resonance in cooling tower fans and centrifugal pumps.
No, the 9200-01-05-10-00 is a self-generating sensor that produces its own voltage signal, requiring no external excitation.
The 9200 series uses a traditional moving-coil design for durability and lower frequency ranges, while the 47220 series uses piezo-velocity sensors with internal integrators for a wider frequency response, but requires external power.
