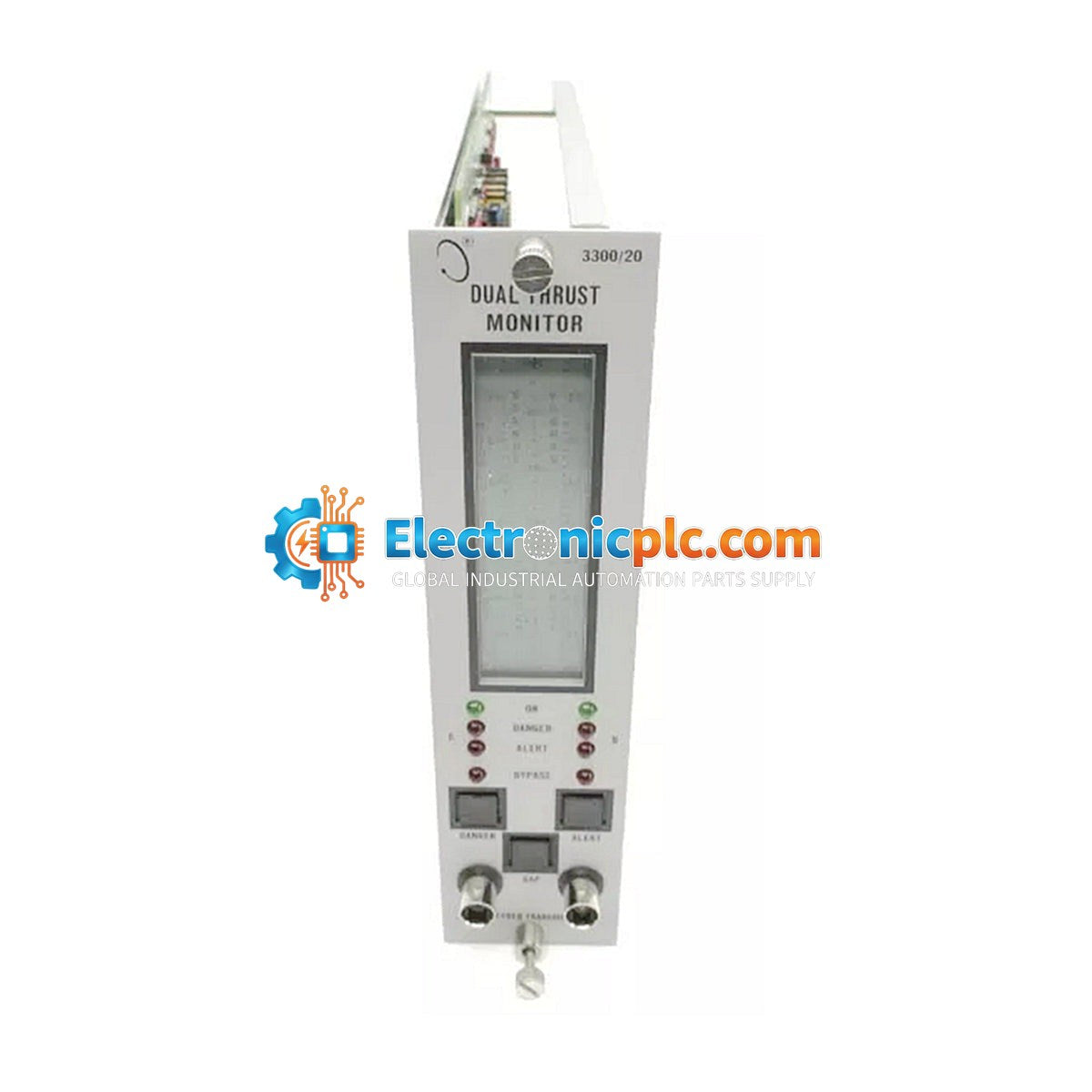

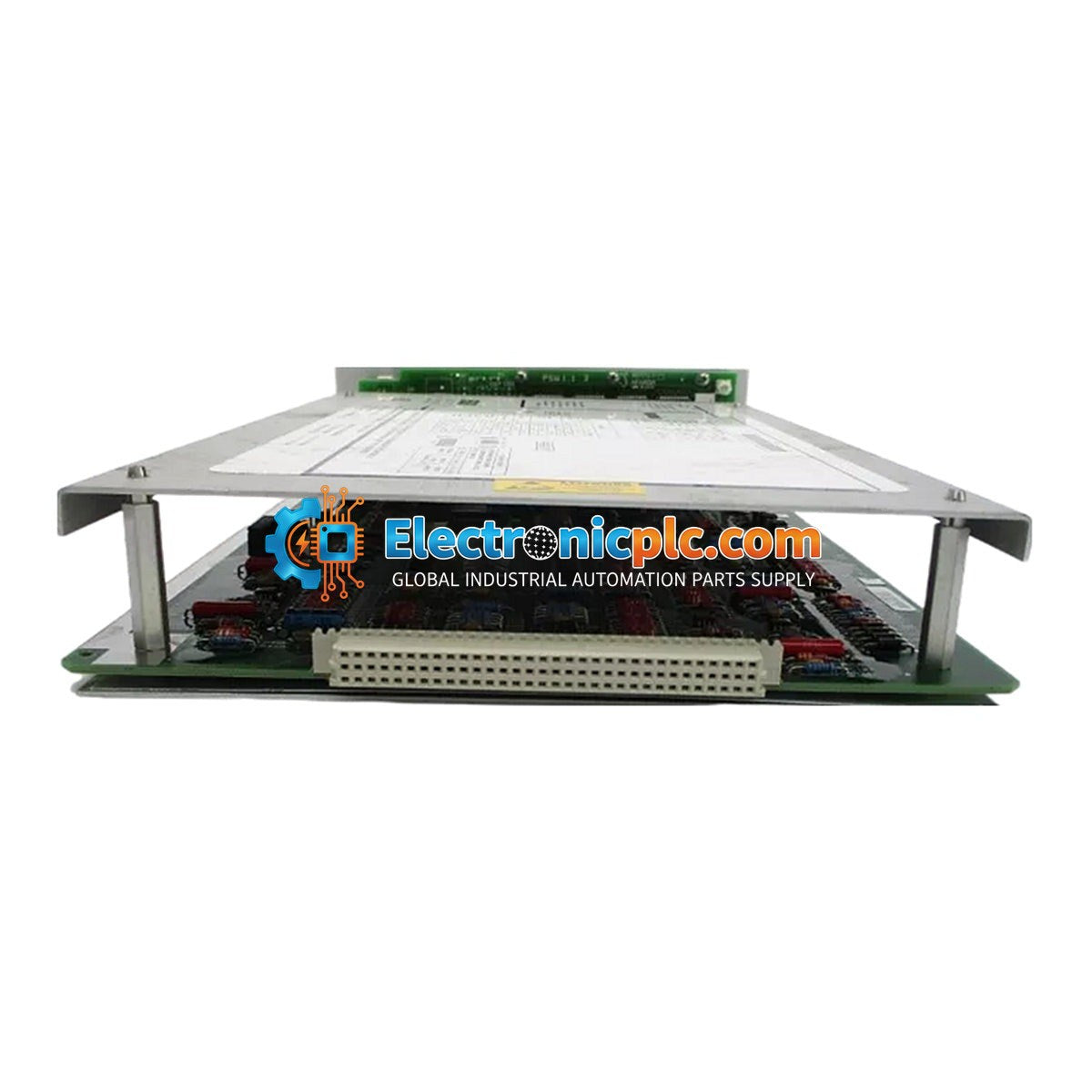

Bently Nevada 3300/20-01-01-02-01-00 Dual Thrust Monitor

Bently Nevada 3300/20-01-01-02-01-00 Dual Thrust Monitor

Description

The Bently Nevada 3300/20 Dual Thrust Monitor is a specialized monitoring module designed for the 3300 series system. It provides continuous monitoring of axial shaft position (thrust) in rotating machinery,...

27 people are viewing this right now

Availability: Low stock: 6 left

SKU: 3300/20-01-01-02-01-00
Vendor: Bently Nevada
Category: Vibration Monitor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Bently Nevada 3300/20 Dual Thrust Monitor is a specialized monitoring module designed for the 3300 series system. It provides continuous monitoring of axial shaft position (thrust) in rotating machinery, ensuring critical protection by comparing the measured position against user-programmed alarm setpoints. This monitor is engineered to process signals from proximity transducers to detect excessive axial movement, which is essential for preventing catastrophic equipment failure.

Features

  • Dual-channel monitoring capability for redundancy or multi-point axial measurement.
  • Compatible with 7200 series proximity transducer systems.
  • Integrated 4-20 mA recorder output for external data logging and trending.
  • Configurable alarm setpoints for Danger and Alert conditions.
  • Designed for integration into the standard Bently Nevada 3300 rack system.

Technical Specifications

Product Model 3300/20-01-01-02-01-00
Scale Factor 7200 200 mV/mil
Full Scale Range 25-0-25 mils
Input Signal 0 to -10 Vdc
Input Impedance 100 Ohm
Power Consumption 7.7 Watts
Transducer Power Supply -24 Vdc
Operating Temperature 0 to +65 deg C

Installation Guidelines

  • Ensure the 3300 rack is properly grounded according to site electrical standards to prevent noise interference.
  • Always power down the rack before inserting or removing the monitor module to prevent electrical arcing or damage to the backplane connectors.
  • Use shielded twisted-pair cabling for transducer inputs to minimize EMI/RFI susceptibility.
  • Maintain adequate ventilation around the 3300 rack to ensure ambient temperatures remain within the 0 to +65 deg C operating range.
  • Verify that the transducer power supply settings match the requirements of the installed proximity probes.

FAQ

What is the primary function of the 3300/20 monitor?

The 3300/20 is designed to monitor the axial position of a machine shaft, providing critical protection by triggering alarms or trips if the shaft position exceeds safe operating limits.

Is this module compatible with other Bently Nevada systems?

This module is specifically designed for the Bently Nevada 3300 series monitoring system. It is not directly interchangeable with 3500 series modules.

What does the 4-20 mA output provide?

The 4-20 mA output provides a proportional signal representing the measured thrust position, which can be sent to a PLC, DCS, or external data acquisition system for remote monitoring.
