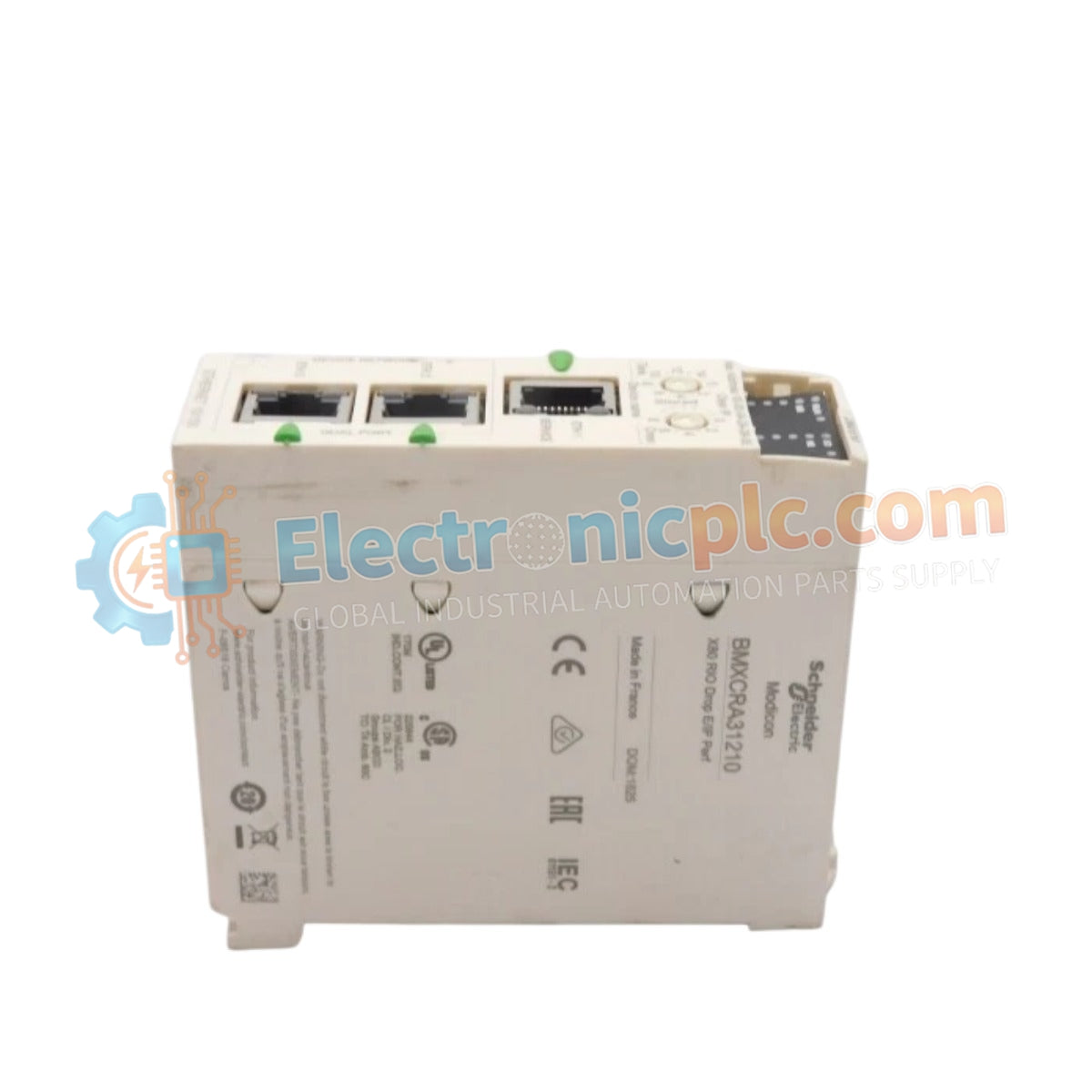

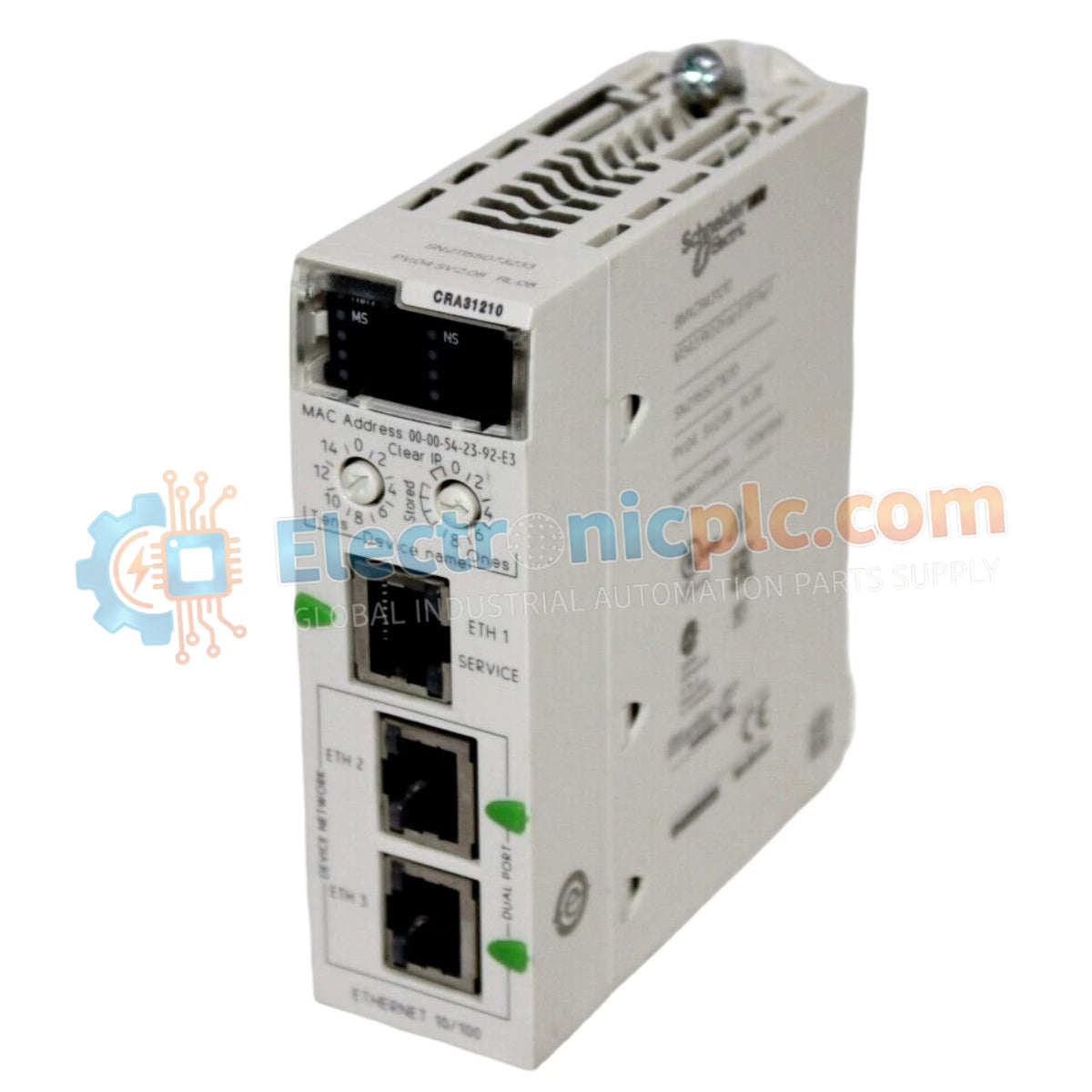

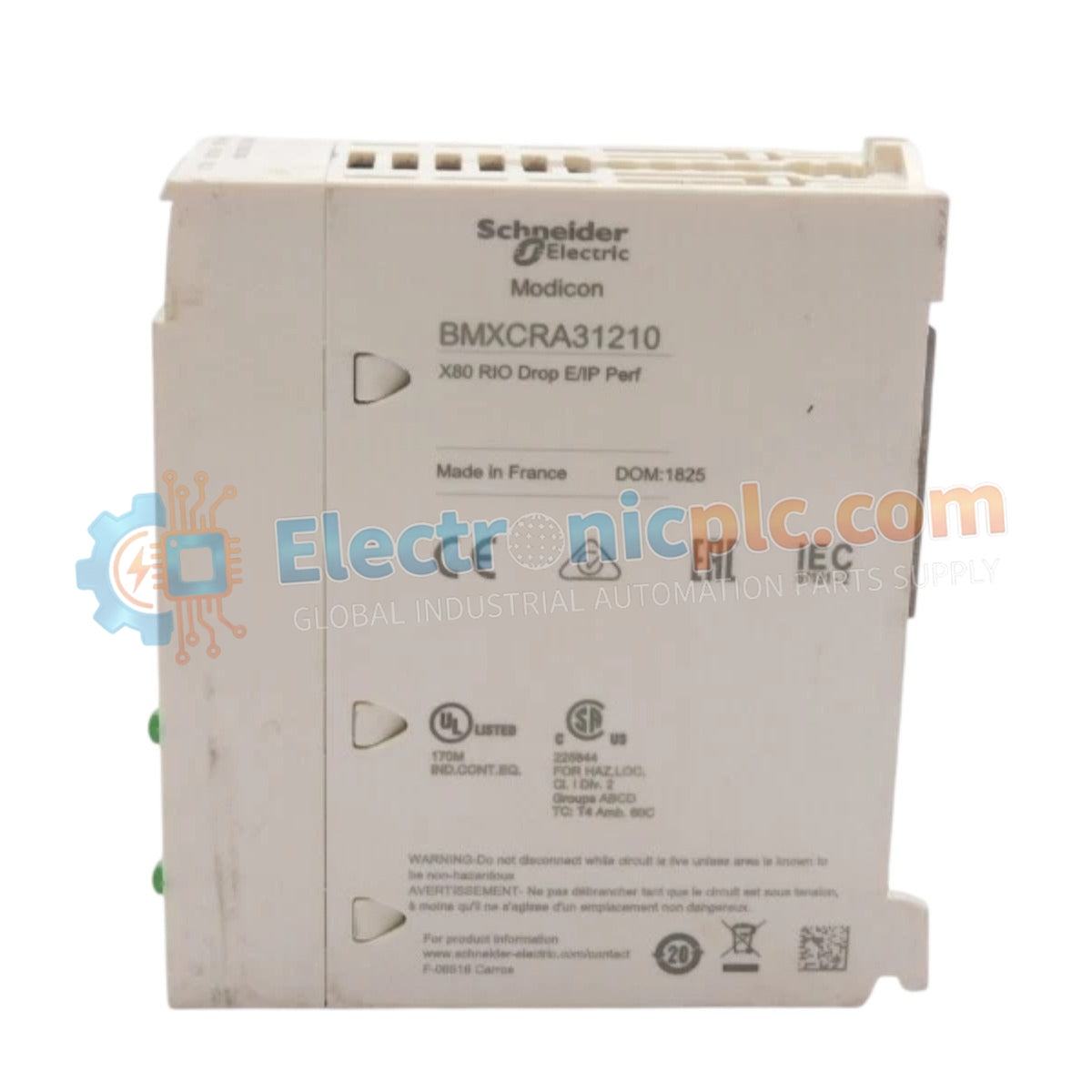

BMXCRA31210 Schneider Modicon X80 Ethernet RIO Drop Adapter

BMXCRA31210 Schneider Modicon X80 Ethernet RIO Drop Adapter

Product Overview

The Schneider Electric BMXCRA31210 is an Ethernet Remote I/O (RIO) drop adapter for Modicon X80 racks used in M580 and Quantum architectures. Installed in the first slot of...

17 people are viewing this right now

Availability: Low stock: 94 left

SKU: BMXCRA31210
Vendor: Schneider
Category: Ethernet RIO Drop Adapter
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Schneider Electric BMXCRA31210 is an Ethernet Remote I/O (RIO) drop adapter for Modicon X80 racks used in M580 and Quantum architectures. Installed in the first slot of an expansion rack, it enables remote I/O communication over Modbus TCP/IP, allowing distributed control systems to be managed through a central PLC. We supply this unit as 100% brand new and original.

Technical Specifications

Specification Details
Module Type Ethernet RIO Drop Adapter
Platform Compatibility Modicon X80 (M580 / Quantum)
Communication Protocol Modbus TCP/IP
Ethernet Ports 2 × RJ45 (Integrated switch)
Network Topology Star, Daisy Chain, RIO Ring
Addressing Method Rotary switches / DHCP / BootP
Diagnostics Module status, network, I/O LEDs
Weight 0.23 kg

Engineering Advantages

Network Redundancy Support
Dual Ethernet ports enable daisy-chain and ring topologies for higher system availability.

Simplified Remote I/O Architecture
Uses standard Ethernet cabling instead of proprietary fieldbus wiring.

High Determinism Communication
Ensures stable and synchronized remote I/O data transmission to the CPU.

Flexible Maintenance
Supports configuration changes and device replacement with minimal downtime.

FAQs

What are the rotary switches used for?
They are used to manually set device addressing for quick replacement and configuration.

Does it support safety modules?
Yes, it is compatible with X80 safety modules when used in an M580 Safety system.

Can it connect M340 racks to M580?
Yes, it enables X80 racks originally used with M340 to operate as Ethernet RIO drops for M580 systems.

Does it include an SD card?
The module has an SD card slot, but the card is usually sold separately depending on project requirements.
