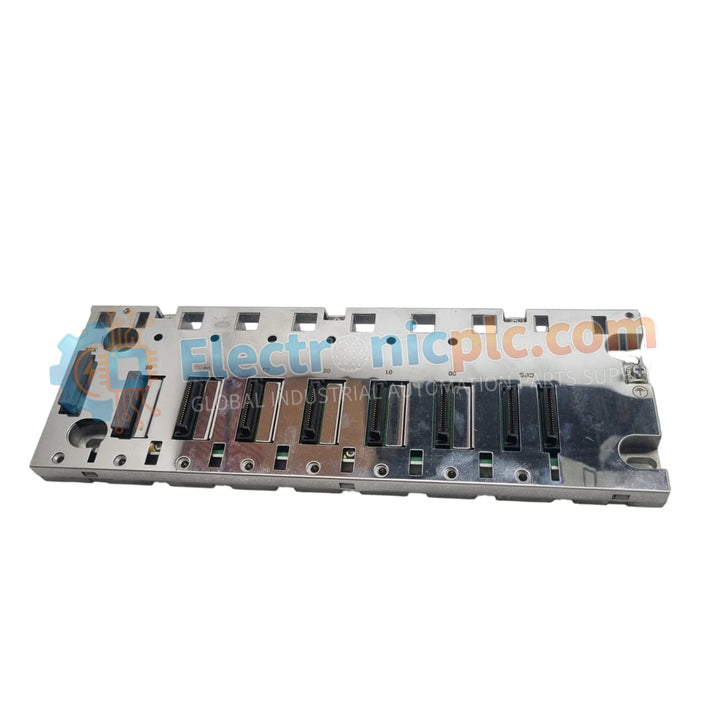

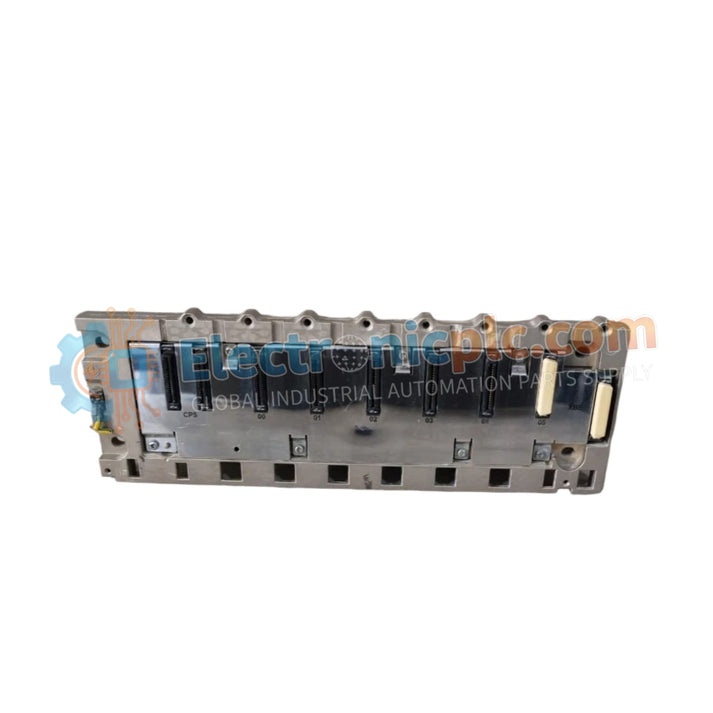

BMXXBP0600 Schneider Modicon X80 6-Slot Backplane Rack

BMXXBP0600 Schneider Modicon X80 6-Slot Backplane Rack

Product Overview

The Schneider Electric BMXXBP0600 is a 6-slot backplane for the Modicon X80 platform. It provides power distribution and high-speed communication for M340 and M580 PLC systems, supporting CPUs,...

28 people are viewing this right now

Availability: Low stock: 94 left

SKU: BMXXBP0600
Vendor: Schneider
Category: 6-Slot Backplane Rack
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Schneider Electric BMXXBP0600 is a 6-slot backplane for the Modicon X80 platform. It provides power distribution and high-speed communication for M340 and M580 PLC systems, supporting CPUs, I/O modules, and communication modules within a compact industrial rack design. We supply this unit as 100% brand new and original.

Technical Specifications

Specification Details
Number of Slots 6 Slots
Platform Compatibility Modicon M340 / M580 (X80 Series)
Power Consumption 1.5 W Maximum
Bus Type X-bus and Ethernet backplane
Mounting Type DIN Rail or Panel Mount
Power Supply Connection Integrated BMXXPS connectors
Weight 1.63 kg

Engineering Advantages

Compact System Design
Provides 6 application slots for medium-sized automation systems.

Flexible Platform Support
Compatible with both M340 and M580 controllers.

Industrial-Grade Construction
Designed for reliable operation in high-vibration environments.

Easy Installation
Supports DIN rail mounting with clear slot labeling for faster assembly.

FAQs

Does the 6-slot count include the power supply position?
No, the power supply uses a separate dedicated position.

Can it work with AC and DC power supplies?
Yes, it supports all compatible BMXXPS series power supplies.

How can I expand beyond 6 slots?
Additional racks can be connected using BMXXBE1000 expansion modules.

Does it support hot swapping?
Yes, if the installed CPU and I/O modules support RIUP functionality.
