Siemens C98043-A1682-L1 SIMODRIVE DC Converter Control Circuit Board

Siemens C98043-A1682-L1 SIMODRIVE DC Converter Control Circuit Board

Description

The Siemens C98043-A1682-L1 is a specialized control circuit board designed for use within the SIMODRIVE DC converter systems. This module, often associated with the 6SE7036-1EE85-1HA0 spare part reference, serves as...

23 people are viewing this right now

Availability: Low stock: 1 left

SKU: C98043-A1682-L1
Vendor: Siemens
Category: Control Circuit Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

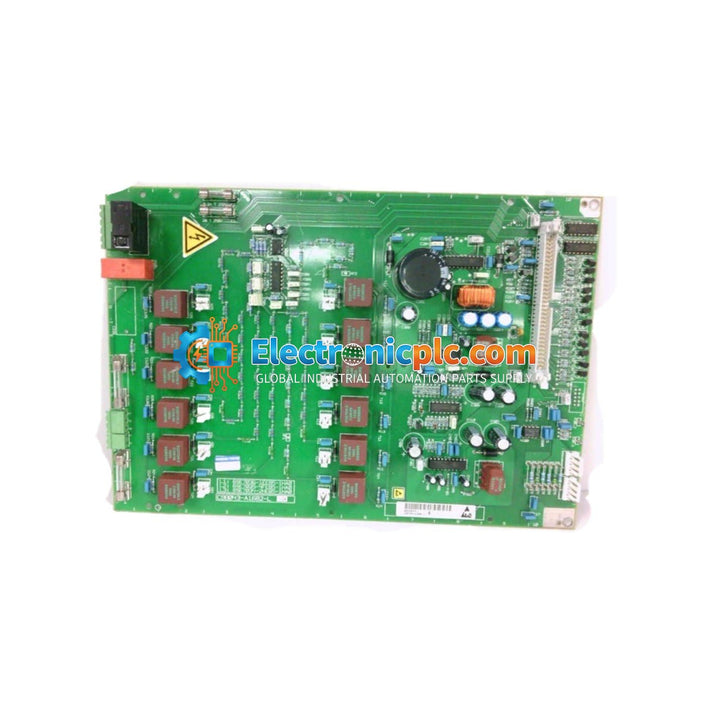

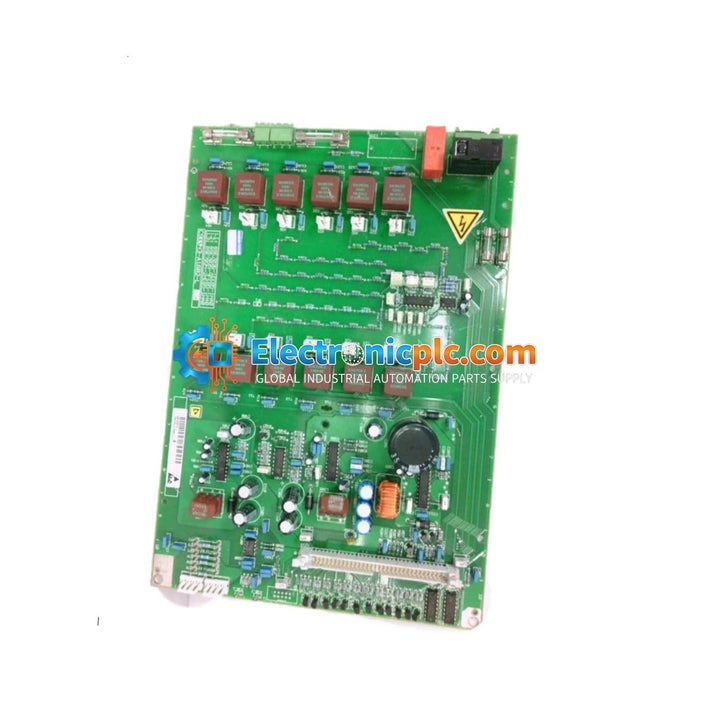

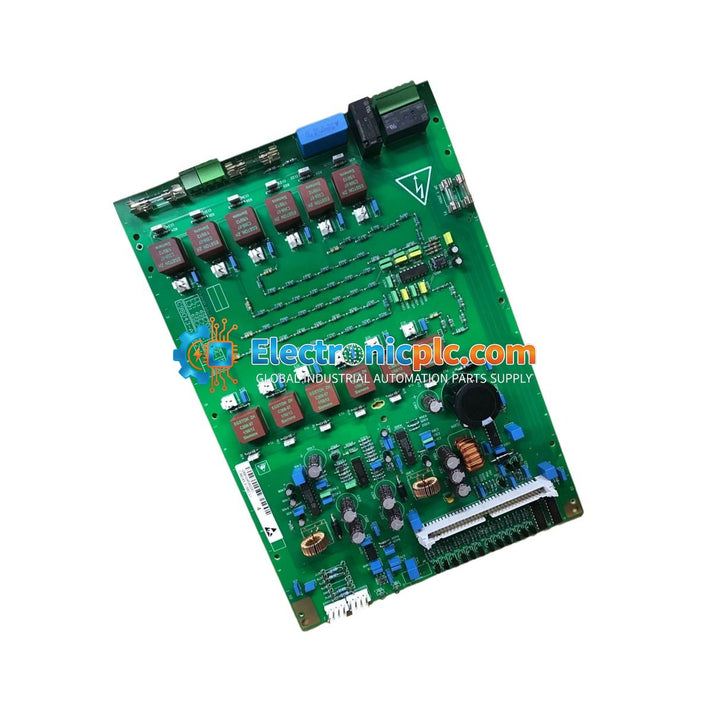

The Siemens C98043-A1682-L1 is a specialized control circuit board designed for use within the SIMODRIVE DC converter systems. This module, often associated with the 6SE7036-1EE85-1HA0 spare part reference, serves as a critical component for managing control logic and signal processing in industrial motor drive applications. It ensures precise regulation and reliable operation of DC drive equipment in demanding manufacturing environments.

Features

  • Engineered for SIMODRIVE DC converter control architectures.
  • Provides stable control signal processing for motor drive regulation.
  • Integrated galvanic isolation to protect sensitive control circuitry from electrical noise and surges.
  • Compact PCB design optimized for integration into standard drive control racks.

Technical Specifications

Manufacturer Siemens
Model / Order Code C98043-A1682-L1
Associated Spare Model 6SE7036-1EE85-1HA0
Power Supply 24 V DC
Current Consumption 100 to 200 mA
Signal Isolation Galvanic isolation
Operating Temperature 0 degC to +60 degC
Tariff Code 8537101190

Installation Guidelines

  • ESD Precautions: Always handle the circuit board using proper electrostatic discharge (ESD) protection, including grounded wrist straps, to prevent damage to sensitive electronic components.
  • Power Status: Ensure all power to the drive system is disconnected and verified as de-energized before attempting to install or remove the board.
  • Seating: Ensure the board is fully and firmly seated in its designated slot within the converter housing to maintain reliable electrical contact.
  • Environment: Maintain the operating environment within the specified 0 to 60 degC range and ensure adequate ventilation to prevent thermal degradation.
  • Wiring: Route control signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI) and ensure signal integrity.

FAQ

What is the primary function of the C98043-A1682-L1 board?

This board acts as a control module for Siemens SIMODRIVE DC converters, responsible for managing the control logic necessary for the operation and regulation of DC motor drives.

Is this board compatible with the 6SE7036-1EE85-1HA0 unit?

Yes, the C98043-A1682-L1 is identified as a component or spare part associated with the 6SE7036-1EE85-1HA0 converter assembly. Please verify your specific drive configuration before installation.

What are the power requirements for this module?

The module operates on a 24 V DC power supply with a current consumption ranging between 100 mA and 200 mA.
