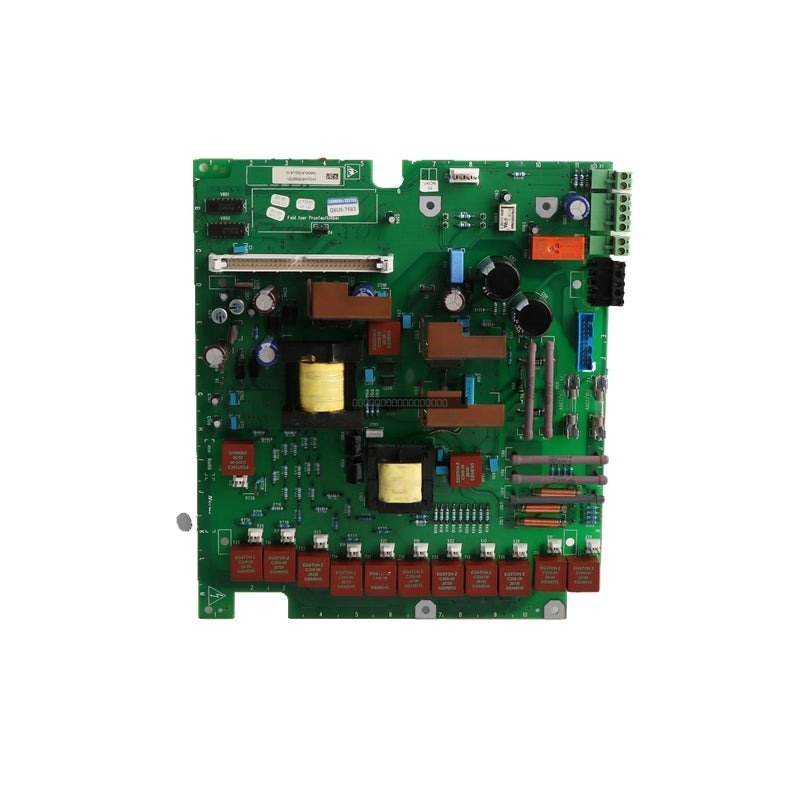

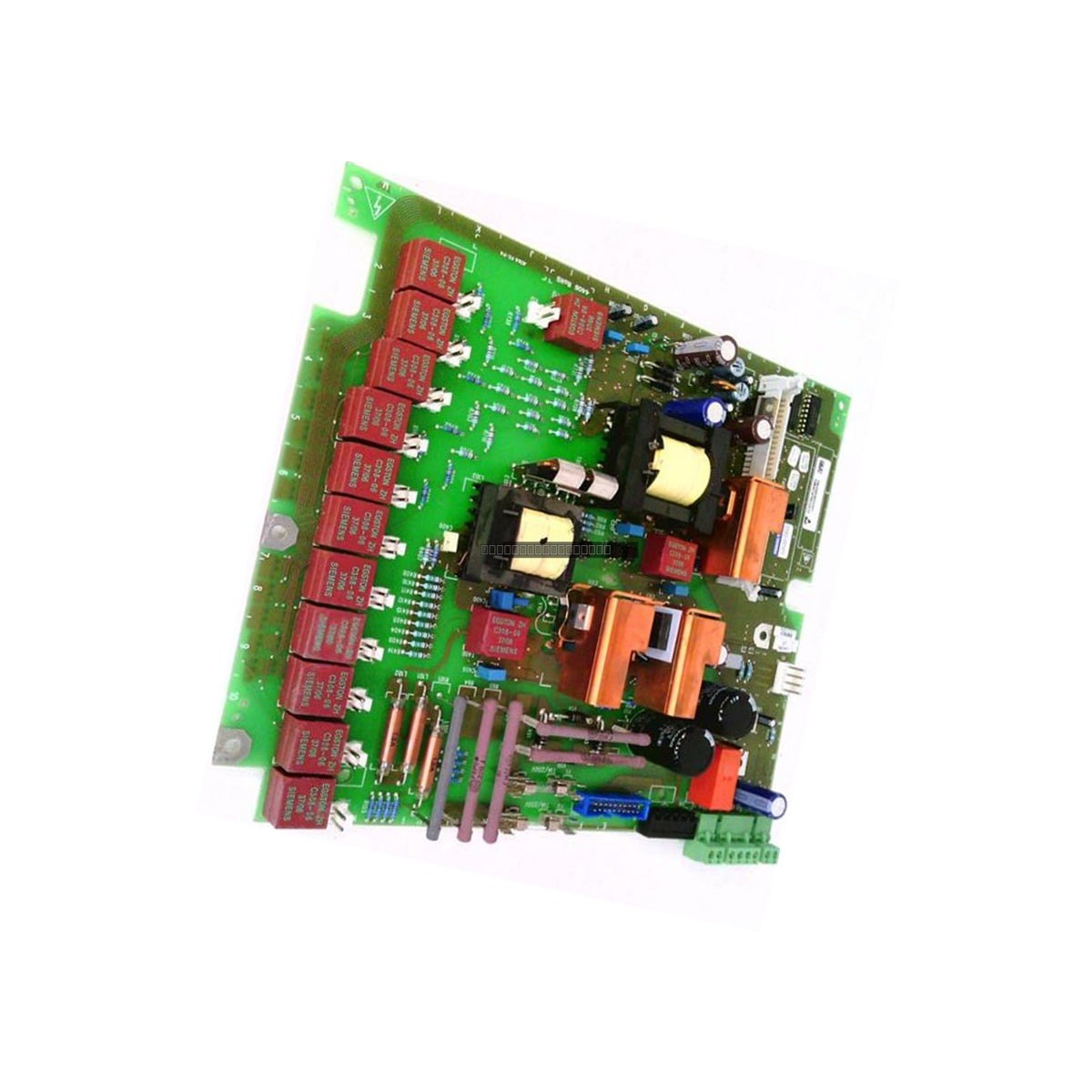

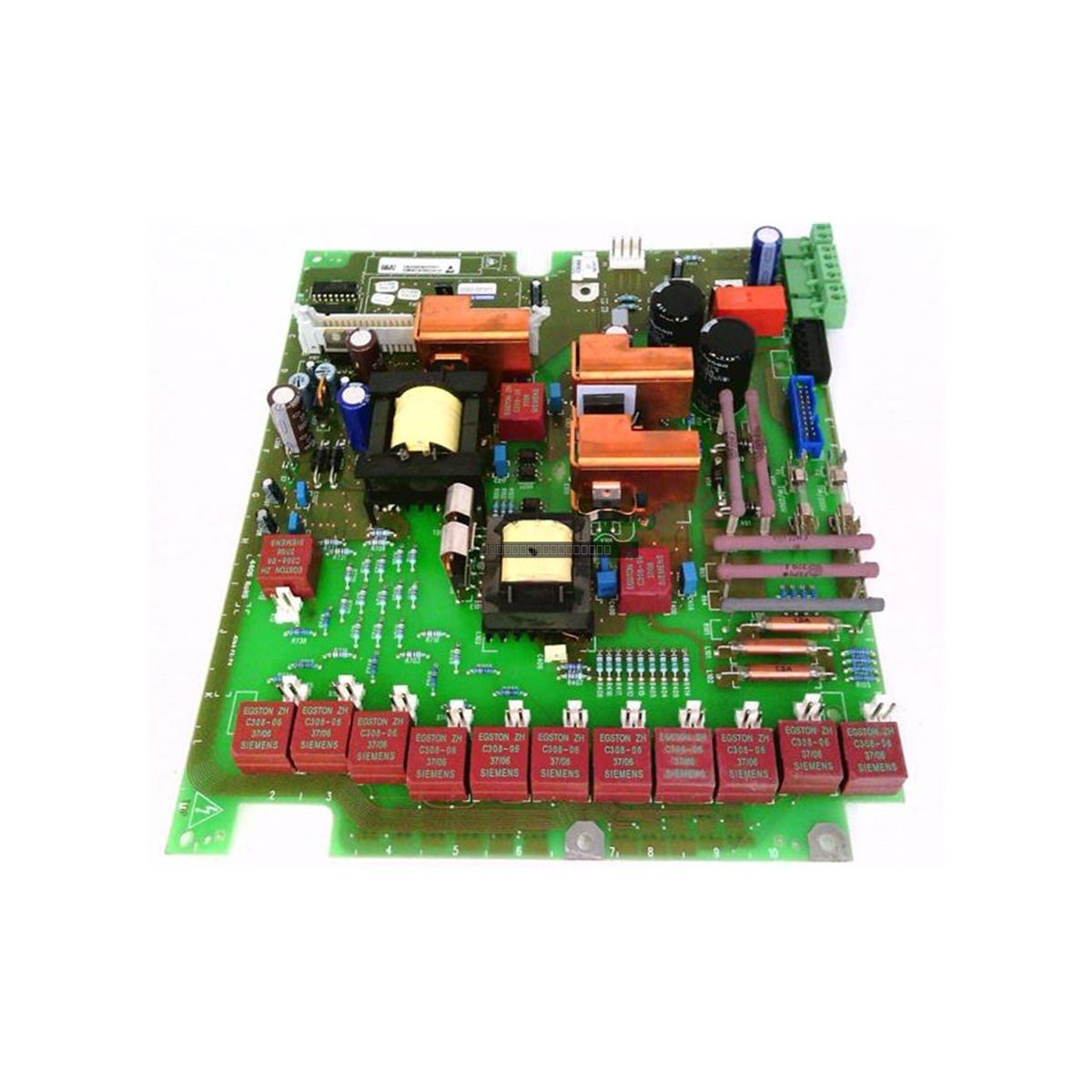

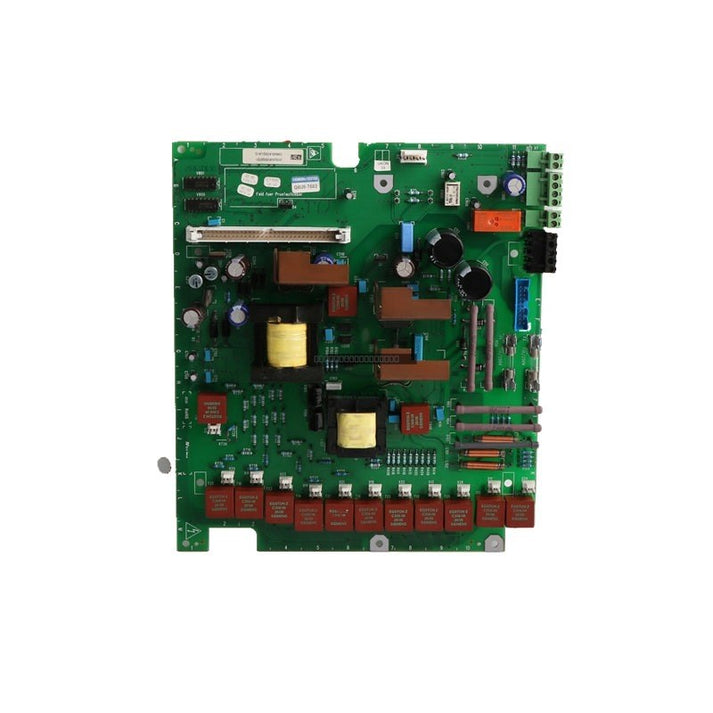

Siemens C98043-A7002-L4-12 SIMOVERT Power Interface Board

Siemens C98043-A7002-L4-12 SIMOVERT Power Interface Board

The Siemens C98043-A7002-L4-12 is a power interface board designed for use within the SIMOVERT drive and inverter systems. This component serves as a critical link for signal conditioning and power...

27 people are viewing this right now

Availability: In stock

SKU: C98043-A7002-L4-12
Vendor: Siemens
Category: Power Interface Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Siemens C98043-A7002-L4-12 is a power interface board designed for use within the SIMOVERT drive and inverter systems. This component serves as a critical link for signal conditioning and power distribution within the control architecture, ensuring reliable communication between the drive control logic and the power stage.

Features

  • Integrated power interface functionality for SIMOVERT drive systems.
  • Includes necessary terminals for direct field wiring.
  • Supports 24 V DC control voltage with a tolerance of ±15%.
  • Compatible with standard 24 V DC digital I/O signals.
  • Configurable analog input support for ±10 V or 4–20 mA signals.
  • Robust contact ratings for switching applications up to 5 A at 250 V AC/DC.

Technical Specifications

Product Model C98043-A7002-L4-12
Spare Part Reference 6RY1703-0DA02
Supply Voltage 24 V DC (±15%)
Current Consumption ≤2 A
Ambient Temperature 0 to 55 degC (derate above 40 degC)
Relative Humidity ≤93% (non-condensing)
Tariff Code 8537101190

Installation Guidelines

  • Ensure all power is disconnected from the drive system before attempting to install or remove the interface board.
  • Handle the module using proper ESD (Electrostatic Discharge) protection measures to prevent damage to sensitive internal circuitry.
  • Verify that the mounting environment is free from excessive dust, moisture, and corrosive gases.
  • Ensure adequate ventilation around the drive cabinet; derate performance if the ambient temperature exceeds 40 degC.
  • Check all terminal connections for tightness and ensure wires are properly routed to avoid interference from high-voltage power cables.

FAQ

Is this module compatible with other SIMOVERT series?

This specific board is identified by order code C98043-A7002-L4-12 and is often cross-referenced with spare model 6RY1703-0DA02. Please verify your existing drive's part number or consult your system manual to ensure full compatibility with your specific drive revision.

What should I do if the ambient temperature exceeds 40 degC?

The module is rated for operation up to 55 degC; however, you must apply appropriate derating to the performance specifications if the ambient temperature in the cabinet rises above 40 degC to prevent thermal stress on the components.
