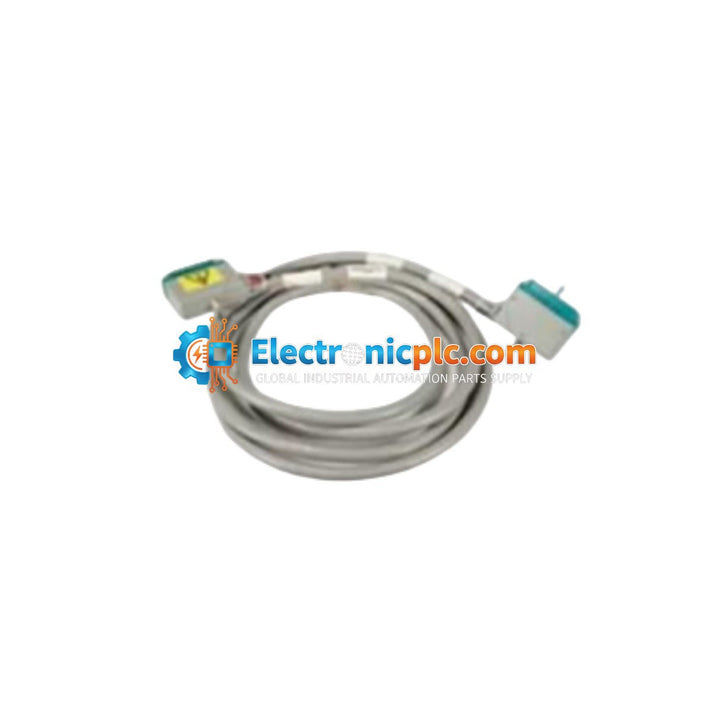

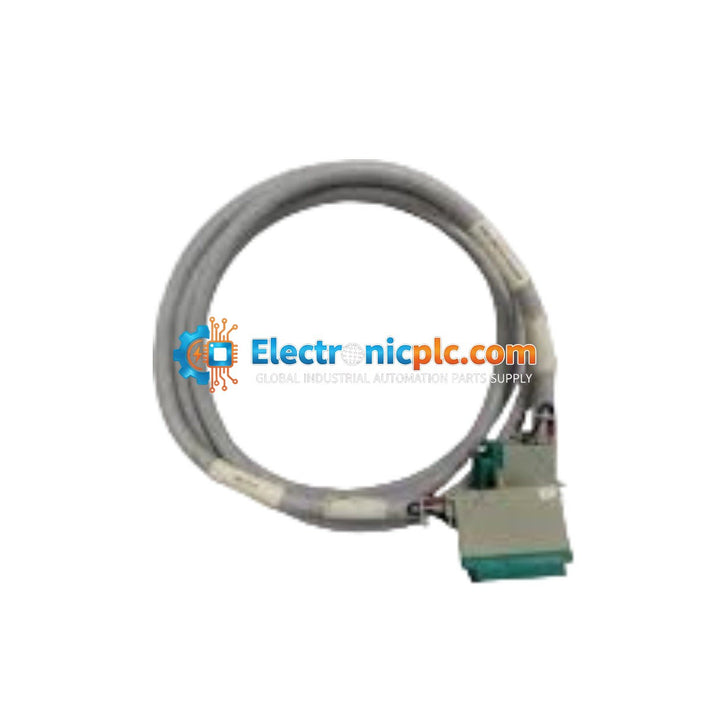

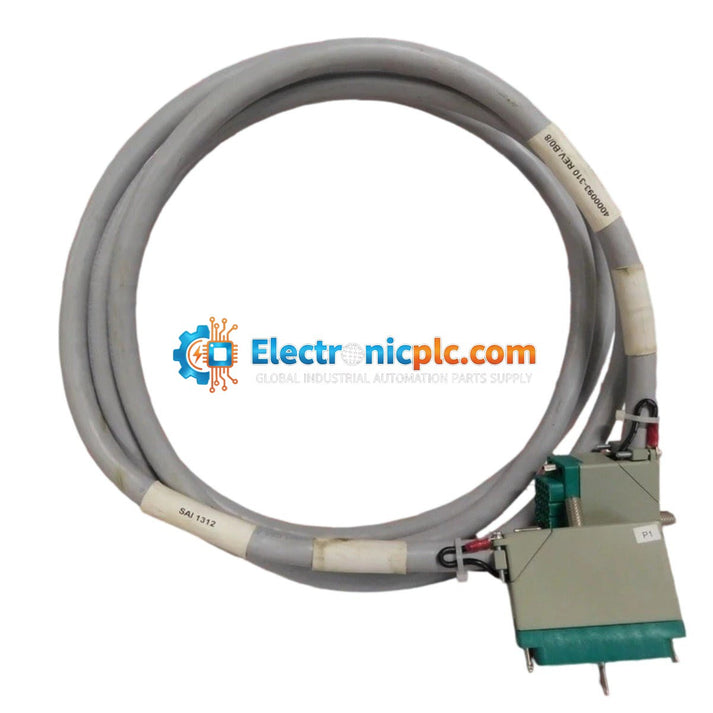

Triconex 4000093-320 Cable Assembly

Triconex 4000093-320 Cable Assembly

Description

The Triconex 4000093-320 cable assembly is a high-integrity interconnection component designed for use within Triple Modular Redundancy (TMR) safety-instrumented systems. This heavy-duty interface cable is engineered to facilitate reliable, deterministic...

25 people are viewing this right now

Availability: Low stock: 8 left

SKU: 4000093-320
Vendor: Triconex
Category: Cable Assembly
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Triconex 4000093-320 cable assembly is a high-integrity interconnection component designed for use within Triple Modular Redundancy (TMR) safety-instrumented systems. This heavy-duty interface cable is engineered to facilitate reliable, deterministic bus communications between I/O chassis, termination panels, and main processor modules. It is specifically built for demanding industrial environments, such as petroleum refining, petrochemical processing, and power generation, where signal integrity is critical for safety and operational continuity.

Features

  • High-Integrity Shielding: Incorporates individual foil shielding for internal data pairs combined with an overall braided shield to mitigate electromagnetic interference (EMI) and radio frequency interference (RFI).
  • Robust Construction: Features a flame-retardant, abrasion-resistant industrial jacket designed to withstand moisture and chemical exposure.
  • Secure Connectivity: Equipped with high-precision molded connectors featuring physical locking mechanisms to ensure low contact resistance and consistent ground continuity.
  • Vibration Resistance: Designed to maintain signal stability and prevent intermittent failures in high-vibration industrial settings.

Applications

This cable assembly is intended for use in critical safety applications, including:

  • TMR safety-instrumented system (SIS) communication links.
  • Interconnection between I/O chassis and termination assemblies.
  • Data transmission in high-EMI industrial environments.
  • Critical process control loops requiring high signal fidelity.

Technical Specifications

Model 4000093-320
Brand Triconex
Wire Configuration Multi-conductor shielded pairs
Nominal Impedance 100 Ohms
Voltage Rating 600 V
Insulation Resistance 100 MOhms minimum
Operating Temperature -40 to +85 deg C

Installation Guidelines

  • Power Down: Always ensure the associated chassis and power supplies are de-energized before connecting or disconnecting the cable assembly.
  • Cable Routing: Route cables away from high-voltage power lines and sources of high-frequency electrical noise to maintain signal integrity.
  • Grounding: Ensure the connector locking mechanisms are fully engaged to maintain proper ground continuity across the shield.
  • Handling: Avoid sharp bends or excessive tension during installation to prevent damage to the internal conductors and shielding layers.
  • Environment: Verify that the installation area remains within the specified operating temperature range of -40 to +85 deg C.

FAQ

What is the primary function of the 4000093-320 cable?

This cable is used to provide secure, shielded data communication within Triconex TMR safety systems, ensuring reliable signal transmission between system components.

Is this cable suitable for hazardous environments?

Yes, the cable features a flame-retardant and chemical-resistant jacket, making it suitable for use in demanding industrial sectors like petrochemical and power generation facilities.
