Product Overview

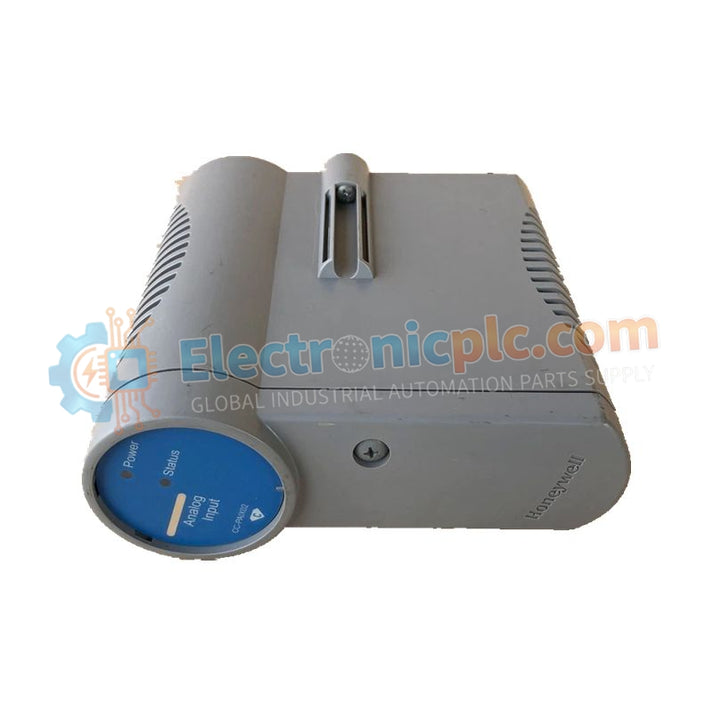

The Honeywell CC-PAIX02 is a high-density Analog Input module specifically engineered for the Experion PKS Series C platform. It enables seamless integration of field instruments—such as pressure transmitters and flow meters—into the control system environment. This module supports HART digital communication, allowing operators to access diagnostic data directly from smart field devices. We supply this unit as 100% Brand New and Original, ensuring full factory performance and longevity for mission-critical control loops.
| Specification | Details |
|---|---|
| Part Number | CC-PAIX02 |
| Module Type | Analog Input with HART Support |
| Dimensions | 11.0 cm x 7.4 cm x 6.5 cm |
| Weight | 0.5 kg |
| Series | Experion PKS Series C |
| Input Signal Range | 4-20 mA / 1-5 VDC |
High-Density Footprint: The compact dimensions (11 cm x 7.4 cm) maximize cabinet space, allowing engineers to fit more I/O points into a smaller physical area.
Integrated HART Pass-Through: This module extracts secondary variables and device health data from smart transmitters without needing additional external hardware or multiplexers.
Enhanced Thermal Management: The Series C mechanical design efficiently dissipates heat, preventing internal component degradation, even when mounted in high-density vertical arrays.
Superior Noise Rejection: Advanced filtering circuitry eliminates common-mode noise and 50/60Hz interference, ensuring the C300 controller receives clean, accurate process variables for tighter loop control.
Yes, the Series C architecture allows for the replacement of the CC-PAIX02 module while the system remains under power, provided you follow standard safety protocols for the IOTA (Input Output Termination Assembly).
The CC-PAIX02 includes specialized circuitry to handle HART digital signals, whereas the CC-PAIN01 is designed to handle standard high-level analog signals without integrated HART processing.
Honeywell designs these modules to meet rigorous industrial standards; however, the CC-PAIX02 must be installed in a properly rated enclosure and appropriate barriers should be used if the field devices reside in explosive atmospheres.
