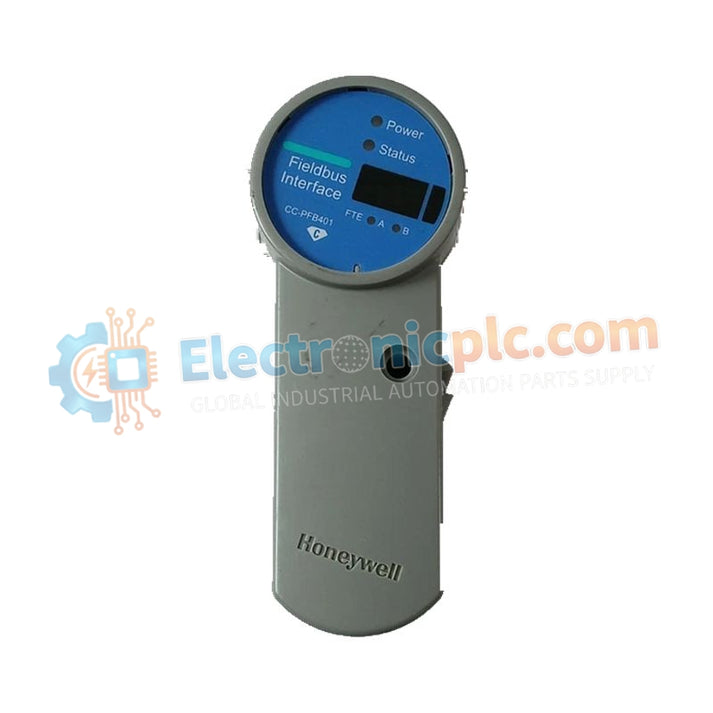

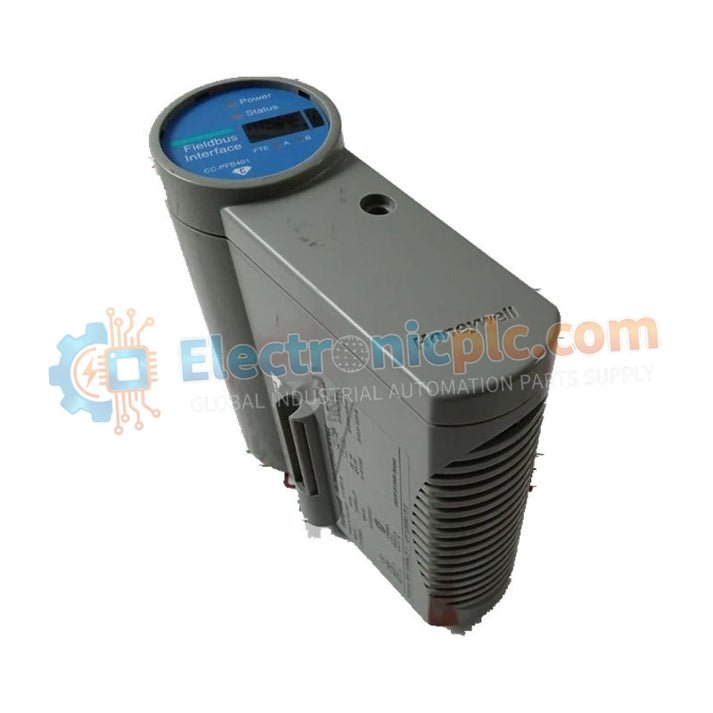

CC-PFB402 Fieldbus Interface Module HONEYWELL

CC-PFB402 Fieldbus Interface Module HONEYWELL

Product Overview

The Honeywell CC-PFB402 is a high-performance Fieldbus Interface Module within the Experion Series C hardware family. It serves as a communication bridge between industrial control systems and field...

21 people are viewing this right now

Availability: Low stock: 50 left

SKU: CC-PFB402
Vendor: Honeywell
Category: Fieldbus Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell CC-PFB402 is a high-performance Fieldbus Interface Module within the Experion Series C hardware family. It serves as a communication bridge between industrial control systems and field instrumentation by supporting both Profibus DP and H1 FOUNDATION Fieldbus protocols. This module enables seamless integration of smart field devices into the C300 controller environment, supporting centralized monitoring, diagnostics, and control. It is supplied as 100% Brand New Original equipment.

Technical Specifications

Parameter Details
Model Number CC-PFB402
Series Series C
Communication Protocols Profibus DP, H1 FOUNDATION Fieldbus
Profibus Data Speed Up to 12 Mbps
H1 Link Speed 31.25 kbit/s (per link)
Capacity 4 Independent H1 Network Links
Input Voltage 24 VDC
Operating Temperature -25°C to +60°C
Weight 0.6 kg

Engineering Advantages

  • Multi-Protocol Versatility: Supports both Profibus DP and FOUNDATION Fieldbus H1, reducing the need for multiple interface modules and simplifying system architecture.

  • High-Speed Profibus Communication: Up to 12 Mbps throughput ensures efficient handling of large volumes of process and diagnostic data.

  • Independent H1 Segment Management: Four isolated H1 links prevent a fault in one segment from affecting others, improving system robustness.

  • Standard-Compliant Physical Layer: IEC 61158-2 compliance ensures reliable, intrinsically safe-ready communication with certified field devices.

FAQs

What is the difference between Profibus DP and H1 on this module?
Profibus DP is used for high-speed communication with controllers, while H1 FOUNDATION Fieldbus connects directly to field instruments such as transmitters and control valves.

Does the module supply power to H1 devices?
No, it handles communication. A separate fieldbus power supply and compatible IOTA are required to power H1 segments.

Is it hot-swappable?
Yes, when installed in a supported redundant Series C configuration, the module can be replaced without shutting down the system.

How many devices can each H1 link support?
Typically up to 16 devices per H1 segment, depending on power supply capacity and intrinsic safety requirements.
