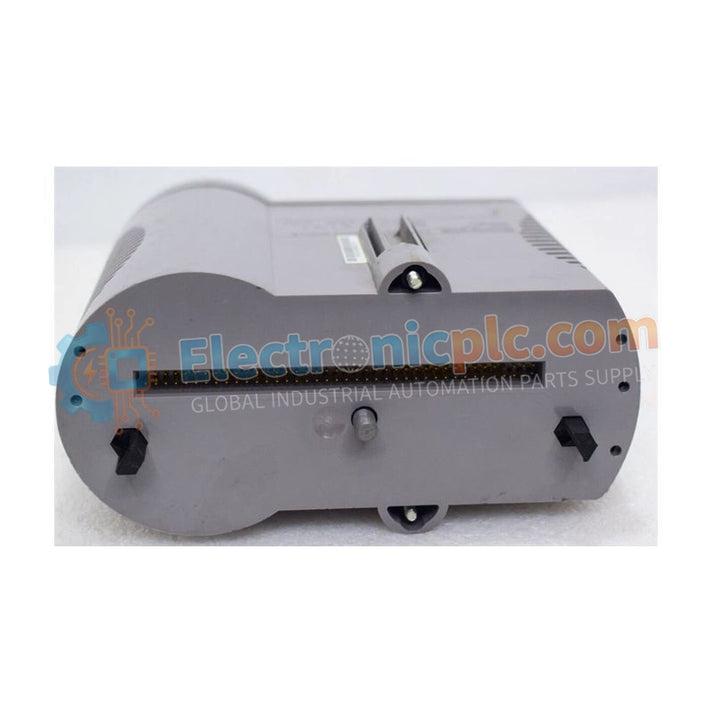

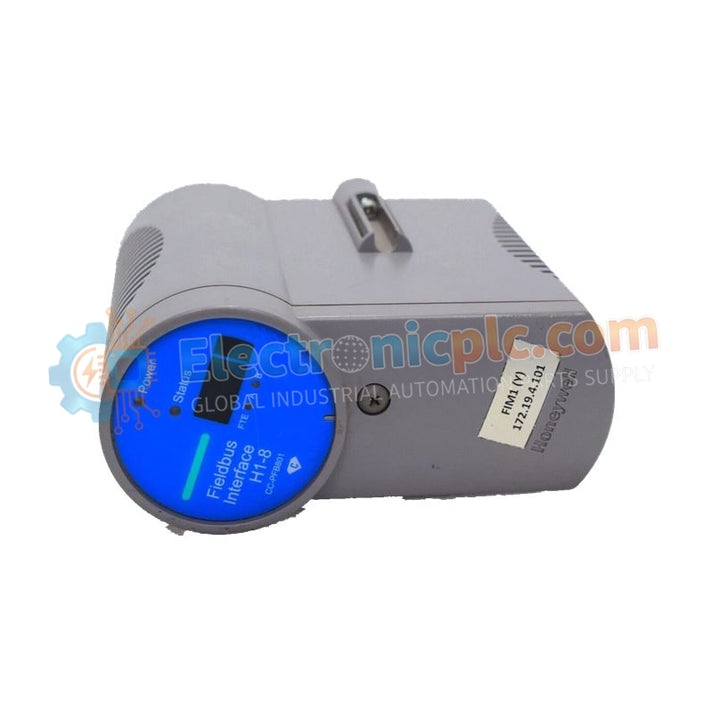

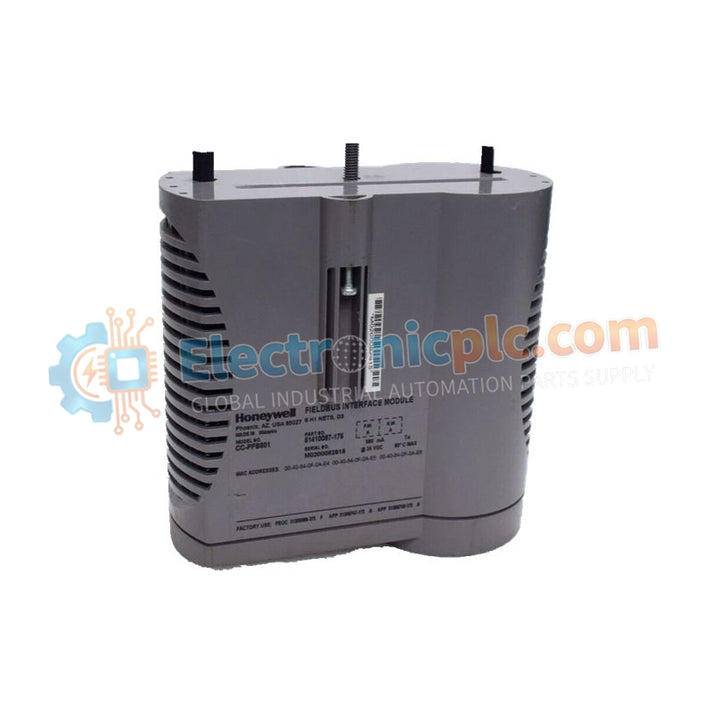

The Honeywell CC-PFB801 functions as a high-capacity FOUNDATION Fieldbus (FF) H1 interface module specifically designed for the Experion PKS Series C control platform. This module acts as the digital bridge between the C300 controller and smart...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The Honeywell CC-PFB801 functions as a high-capacity FOUNDATION Fieldbus (FF) H1 interface module specifically designed for the Experion PKS Series C control platform. This module acts as the digital bridge between the C300 controller and smart field instrumentation, facilitating the exchange of multi-variable process data and advanced device diagnostics. By supporting the 31.25 kbit/s H1 protocol, the CC-PFB801 enables Control in the Field (CIF) and comprehensive asset management directly from the DCS console. We provide this unit as 100% Brand New and Original, ensuring the highest level of network reliability for your smart field segments.
| Specification | Details |
|---|---|
| Model Number | CC-PFB801 |
| Module Type | FOUNDATION Fieldbus H1 Interface (Enhanced Density) |
| Protocol Support | FOUNDATION Fieldbus H1 |
| Dimensions | 12.7 cm x 12.7 cm x 12.7 cm |
| Weight | 0.8 KG |
| Platform Compatibility | Experion PKS Series C / C300 |
| Mounting | Series C Fieldbus IOTA (Input Output Termination Assembly) |
The CC-PFB801 manages high-density Fieldbus segments, allowing for more smart devices per I/O rack while maintaining deterministic communication for critical control loops.
This module extracts secondary variables and status alerts from field transmitters and valve positioners, enabling predictive maintenance through Honeywell’s Asset Management System (AMS).
Integrated galvanic isolation protects the C300 controller and the FTE network from electrical surges, noise, or short circuits occurring on the long-distance Fieldbus home-run cables.
The CC-PFB801 is typically utilized in configurations requiring higher segment density or specific Series C hardware builds. It features a larger physical footprint (12.7 cm cubic) to accommodate enhanced signal processing hardware.
No, the CC-PFB801 handles data communication only. You must use an external, conditioned Fieldbus Power Supply (FPS) to energize the H1 segment and its connected devices.
Yes, in a redundant IOTA configuration, you can replace a failed CC-PFB801 while the secondary module maintains uninterrupted communication with the field instruments.
We ship all CC-PFB801 units in original Honeywell factory packaging with intact security seals, complete with a certificate of origin to ensure the hardware has never been previously installed.
