The Honeywell CC-SDOR01 is a Digital Output Relay module designed for the Experion PKS Series C system. It provides mechanical relay contacts to drive high-current or high-voltage field devices, such as motor starters, solenoids, and signaling lamps. The module...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

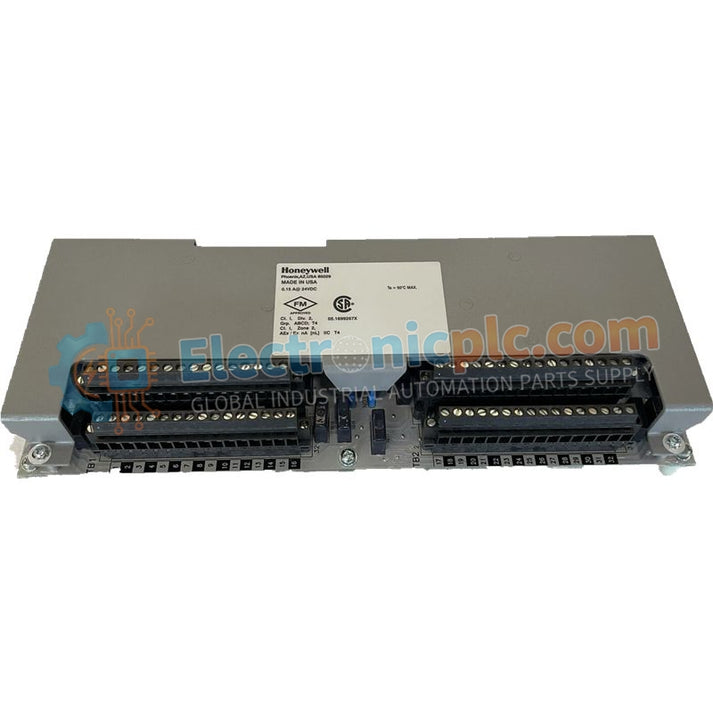

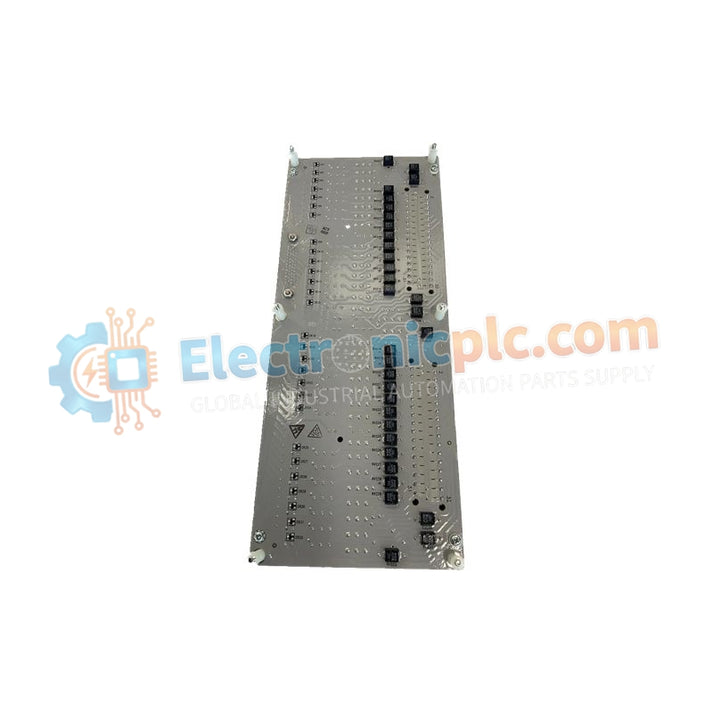

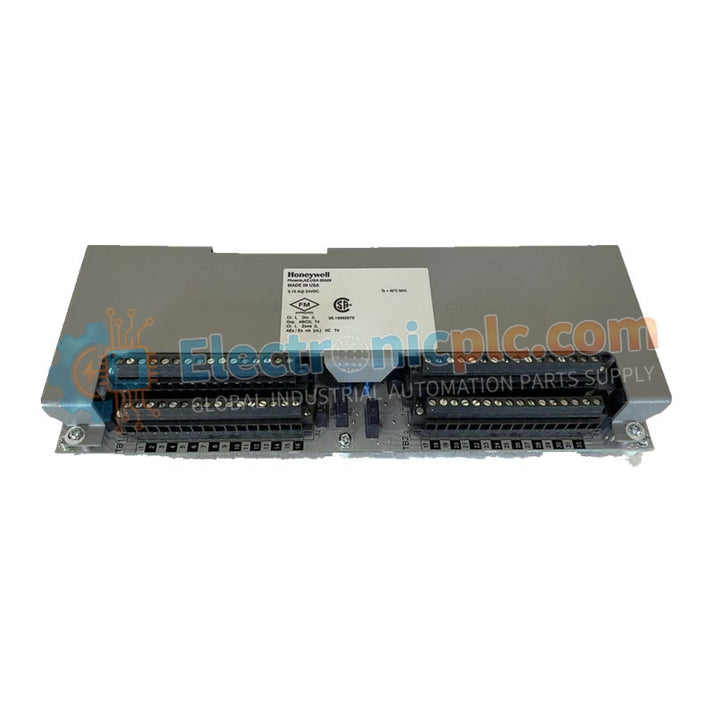

The Honeywell CC-SDOR01 is a Digital Output Relay module designed for the Experion PKS Series C system. It provides mechanical relay contacts to drive high-current or high-voltage field devices, such as motor starters, solenoids, and signaling lamps. The module offers superior galvanic isolation and can switch both AC and DC loads. We offer this unit as 100% Brand New and Original to ensure reliable control interlocks in your automated processes.
| Specification | Details |
|---|---|
| Model Number | CC-SDOR01 |
| Module Type | Digital Output (Relay) |
| Contact Type | Mechanical Relay (Dry Contacts) |
| Platform Compatibility | Experion PKS Series C |
| Weight | 5 kg |
| Mounting | Series C Relay IOTA |
| Application | High-load switching and interposing isolation |
High-Current Load Handling: Directly switches higher currents than standard transistor modules, eliminating the need for external relays.
Universal Voltage Switching: Switches 24V DC, 120V AC, or 240V AC depending on the field-side power supply.
Robust Galvanic Isolation: Provides a physical break to prevent electrical faults or transients from affecting the controller.
Fail-Safe Operation: Supports Normally Open (NO) and Normally Closed (NC) contacts for fail-safe designs.
Diagnostic Feedback: Integrates with the Experion PKS system to provide real-time channel diagnostics and software-level loop verification.
Voltage mixing depends on the IOTA used. Always refer to the Honeywell Series C wiring manual for insulation ratings between channels.
The relays are rated for millions of operations under nominal loads. However, inductive loads without proper snubbers or diodes will reduce contact life.
Yes, the CC-SDOR01 module can be replaced while the IOTA is powered, though associated relay contacts will drop to their de-energized state.
The shipping weight includes the module’s mass and protective packaging required for safe transit, as it contains mechanical relays and internal shielding.
