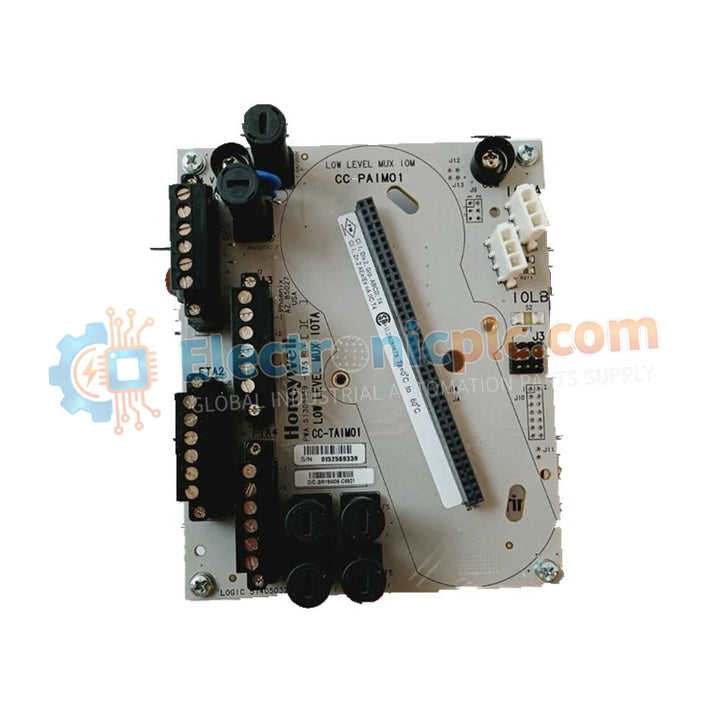

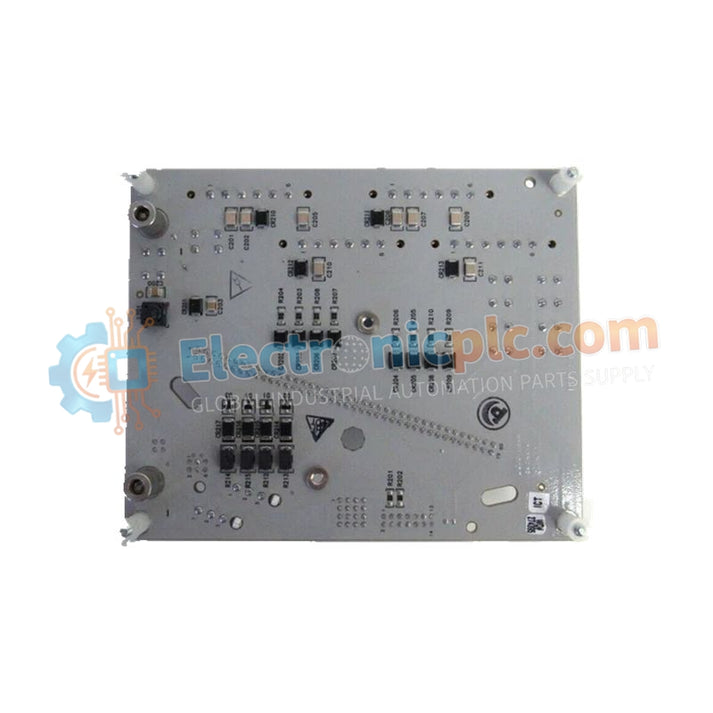

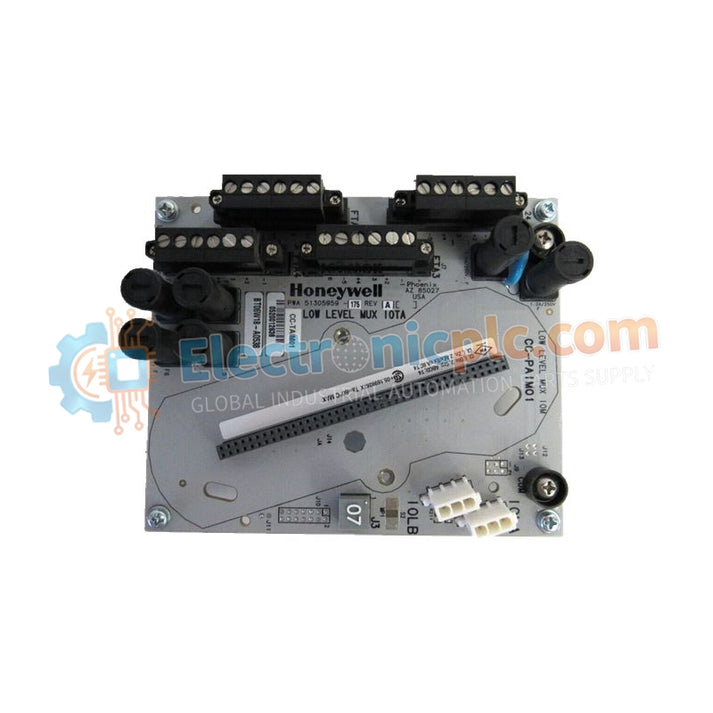

The Honeywell CC-TAIM01 (Part Number 51305959-175) is a high-density, low-level analog input multiplexer (MUX) designed for Experion PKS Series C systems. This module consolidates signals from a wide range of low-voltage field sensors, including thermocouples (TC) and RTDs,...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The Honeywell CC-TAIM01 (Part Number 51305959-175) is a high-density, low-level analog input multiplexer (MUX) designed for Experion PKS Series C systems. This module consolidates signals from a wide range of low-voltage field sensors, including thermocouples (TC) and RTDs, into the controller environment. With 64 isolated channels, the CC-TAIM01 reduces the required hardware footprint for large-scale temperature and pressure monitoring networks. We supply this module as 100% Brand New and Original for reliable signal integrity in industrial settings.
| Specification | Details |
|---|---|
| Model Number | CC-TAIM01 |
| Part Number | 51305959-175 |
| Input Type | Low-level Analog Signals (TC, RTD, mV) |
| Scan Rate | 64 Channels per second |
| Isolation | Full Channel-to-Channel and Channel-to-System isolation |
| Dimensions | 3.0 cm x 31.3 cm x 27.8 cm |
| Weight | 0.56 kg |
| Platform Compatibility | Experion PKS Series C / C300 |
| Mounting | Series C IOTA (Input Output Termination Assembly) |
Massive Channel Density: Monitor up to 64 sensors using a single I/O slot, reducing module count, cables, and termination assemblies.
Superior Signal Isolation: Prevents ground loops and limits sensor faults from propagating, ensuring high system availability in industrial environments.
Rapid Signal Scanning: Scans 64 channels per second, providing high-frequency data for accurate temperature and process monitoring.
Elimination of EMI Interference: Advanced noise rejection circuitry ensures accurate data collection from low-level signals, even in electromagnetically noisy environments.
Compact Maintenance Design: Slim 3 cm width optimizes cabinet space, while redundant diagnostic LEDs allow quick verification of module health.
The module supports mV signals from thermocouples and RTDs. The specific sensor type must be configured within Experion PKS software.
Yes, it requires a high-density Series C IOTA to support its 64-channel count. Ensure your field wiring plan accounts for the full connectivity.
The CC-TAIM01 works with the IOTA, which houses the CJC sensors to compensate for ambient temperature variations.
Yes, the -175 version is fully compatible with existing Experion PKS Series C systems and offers improved thermal resilience over older -100 series modules.
