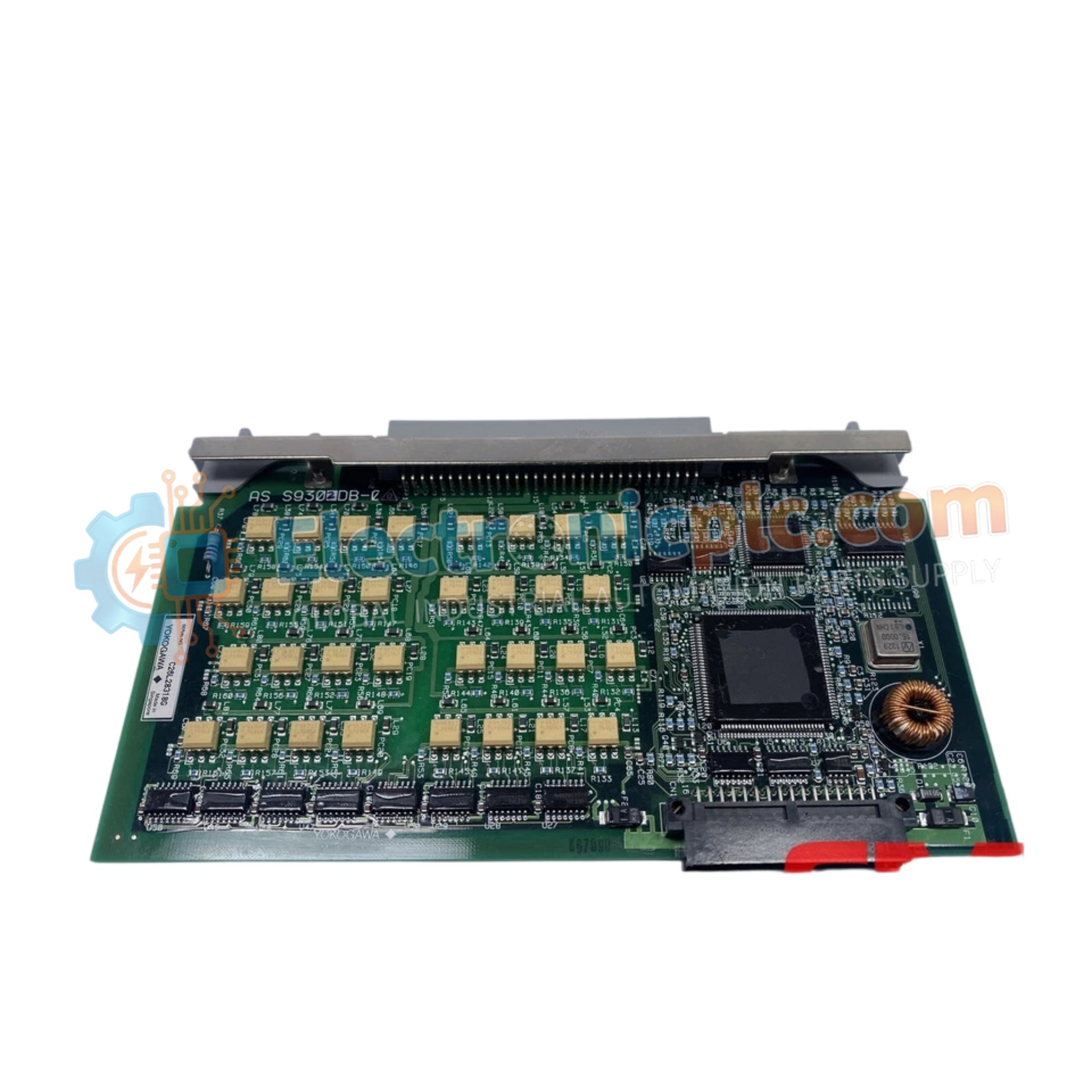

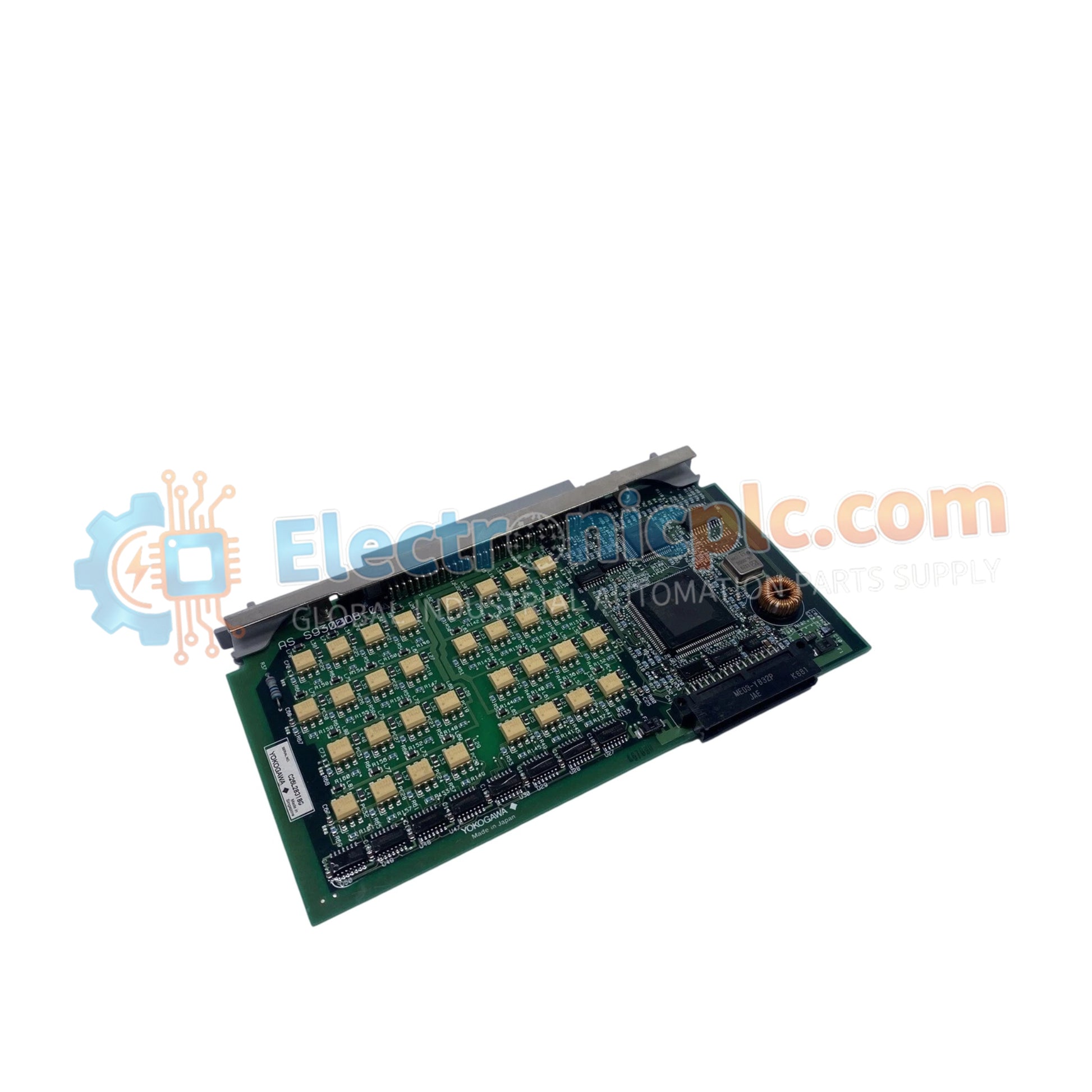

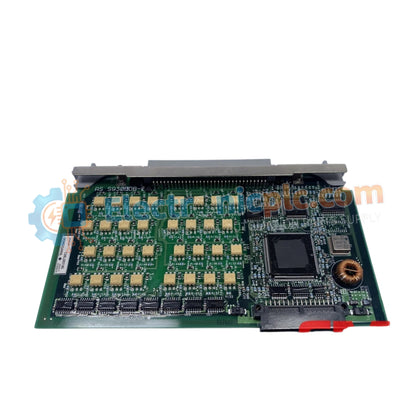

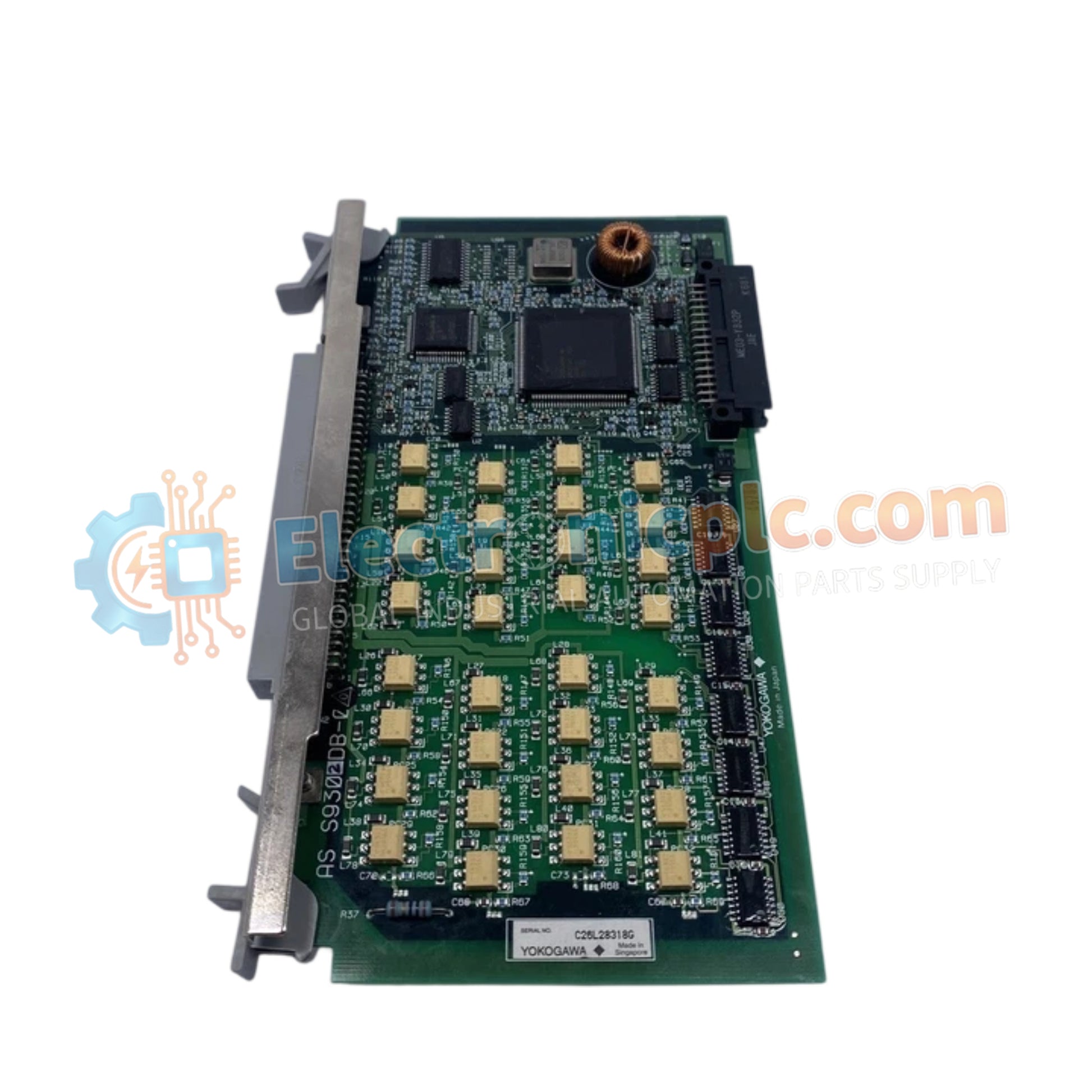

Configured for discrete actuator command and status signaling in CENTUM control system platforms, the YOKOGAWA ADM52C/CE1 (ADM52C Contact Output Module) provides direct physical/electrical execution for relay-based field device control.

Hardware Specifications

DCS Process Loop Connectivity

The ADM52C module facilitates integration into process control environments by providing isolated relay contact closure for discrete field loads. The architecture incorporates channel-to-channel isolation to prevent electrical interference between independent control loops and the internal DCS backplane. By employing robust relay-based switching, the module ensures reliable state transition management for external solenoids, alarm annunciation circuits, and auxiliary control relays, maintaining strict adherence to standard DCS digital output signal requirements.

Frequently Asked Questions (FAQ)

Q: What is the recommended practice for suppressing inductive kickback when driving solenoid loads?

A: When switching inductive loads, install an external flyback diode or RC snubber network across the field device coil to protect the internal relay contacts from arcing and premature wear.

Q: Is this module compatible with hot-swapping procedures?

A: Hot-swapping capability is dependent on the specific controller node and cabinet power distribution architecture. Always verify the status of the redundant controller and the power supply load before attempting to remove or insert the module into the active backplane.

Field Installation Guidelines

• Mounting: Secure the module into the designated slot of the control station housing. Ensure the module is seated squarely to provide a low-resistance interface with the backplane communication and power pins.
• Wiring: Connect field devices to the module terminals using appropriately sized conductor gauge for the expected current load. Utilize wire ferrules for stranded connections to ensure long-term stability under thermal cycling.
• Isolation Integrity: Maintain physical separation between the contact output wiring and sensitive analog signal cables to prevent inductive coupling and crosstalk within the cabinet ducting.
• Grounding: Bond the module chassis to the system’s protective earth (PE) bus. A low-impedance ground path is required to maintain the electrical isolation barrier and to facilitate surge protection for the relay drive circuits.
