Description

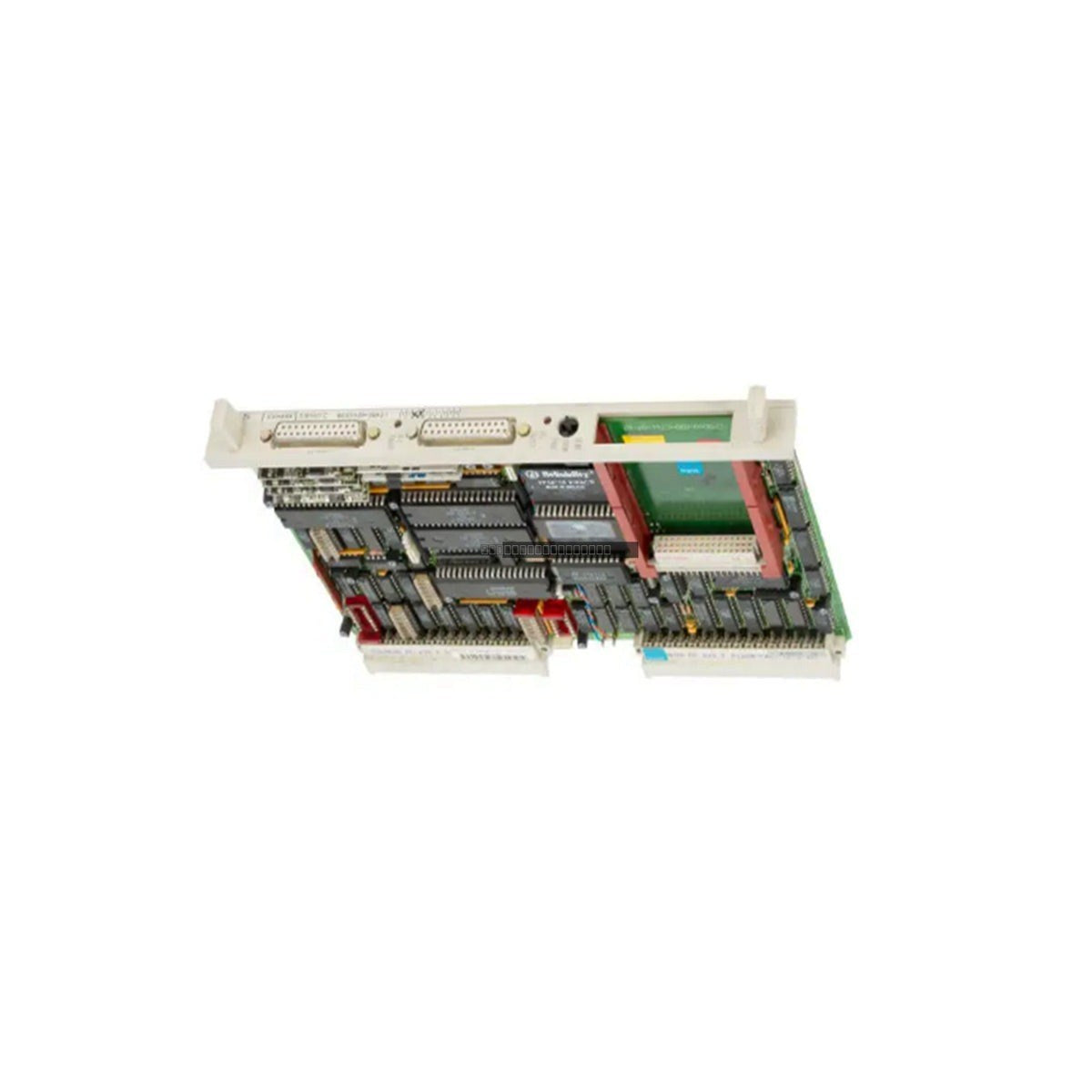

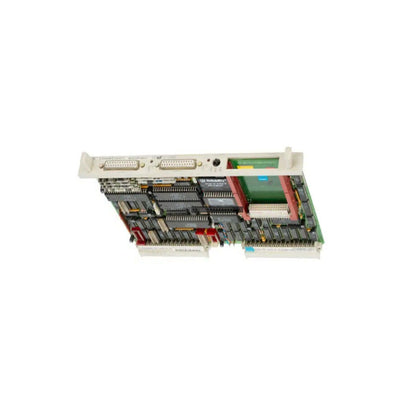

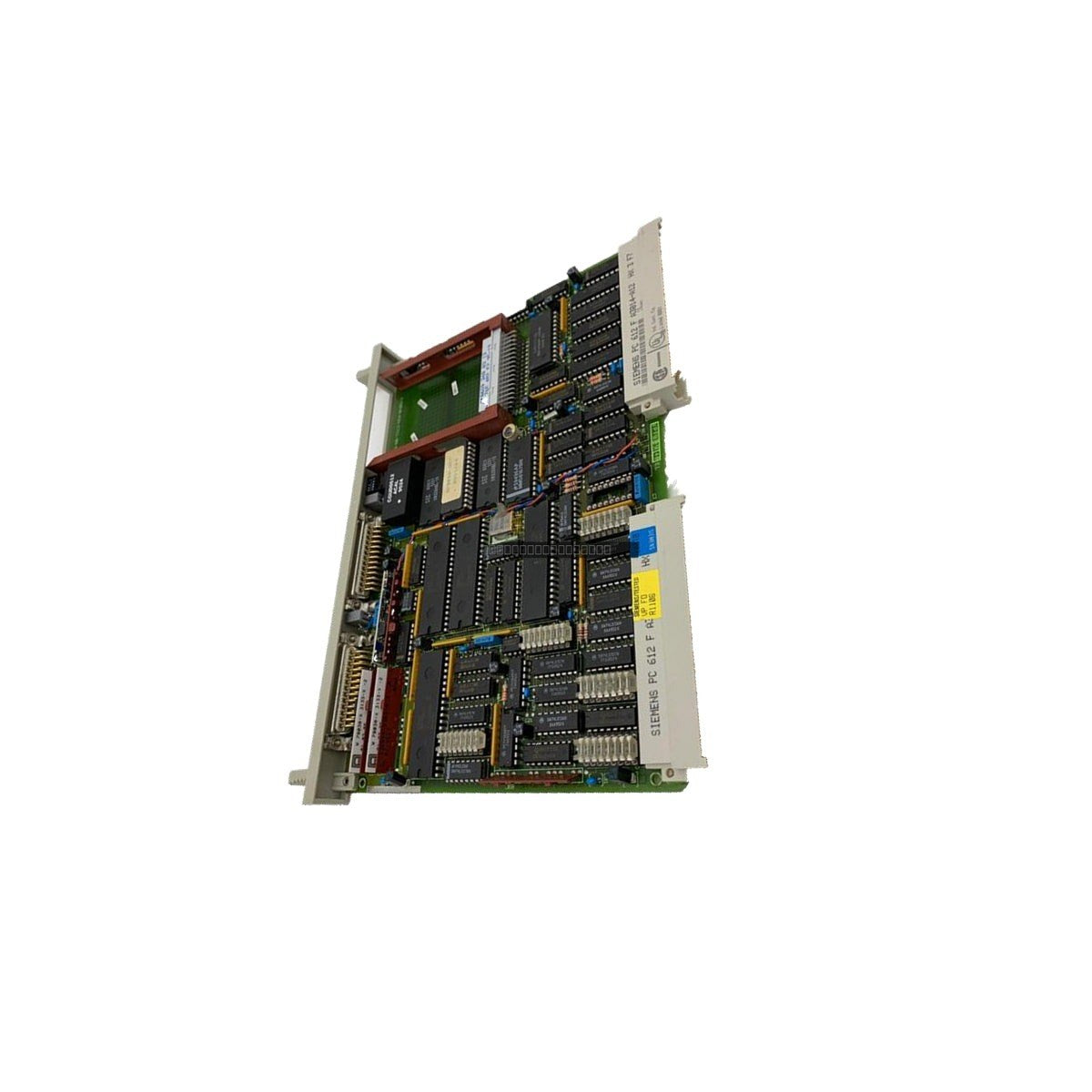

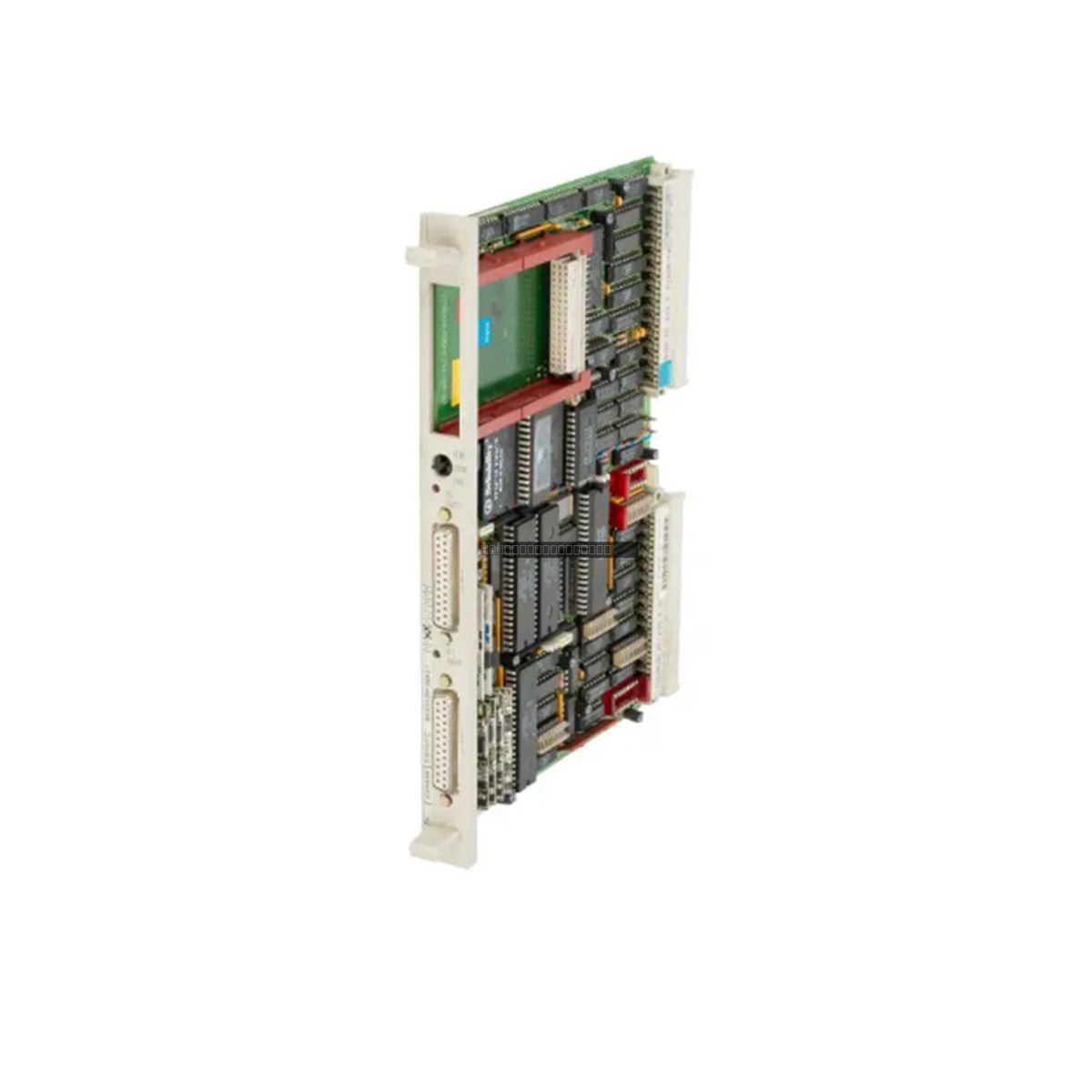

The Siemens SIMATIC S5 CP 525 (6ES5525-3UA21) is a high-performance, microprocessor-based communications processor designed to manage serial data exchange for SIMATIC S5 programmable logic controllers. By offloading complex serial communication tasks from the main CPU, this module ensures efficient and deterministic data flow between the PLC and external peripheral devices such as industrial printers, host computers, and legacy programming terminals. It is a critical component for maintaining reliable data integration in demanding industrial environments, including power generation, steel manufacturing, and paper processing facilities.

Features

• Dual-channel architecture supporting independent serial data links.
• Compatible with plug-in interface sub-modules for flexible physical layer configuration.
• Supports standard serial protocols including TTY (20 mA current loop), RS-232C (V.24), and RS-422/RS-485.
• Implements robust communication procedures including RK 512, 3964/3964R, and ASCII drivers.
• Integrated error checking and parity validation for secure data transmission.
• Designed for integration within the SIMATIC S5 rack system.

Applications

The CP 525 is primarily utilized in legacy automation systems requiring reliable serial connectivity. Typical applications include:

• Interfacing with minicomputers for supervisory control and data acquisition.
• Driving industrial report printers for real-time production logging.
• Establishing reliable communication links with third-party serial devices in S5-DOS environments.
• Managing diagnostic event logging across complex industrial networks.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the CP 525 module.
• Verify that the appropriate interface sub-modules are correctly seated in the module slots before operation.
• Use shielded communication cables to minimize electromagnetic interference (EMI) in industrial environments.
• Ensure proper grounding of the S5 rack system to maintain signal integrity for serial communications.
• Observe standard ESD precautions when handling the module to prevent damage to internal circuitry.
• Maintain adequate ventilation around the rack to ensure the module operates within its specified temperature range.

FAQ

Q: Does this module support RS-485 communication?
A: Yes, the CP 525 supports RS-485/RS-422 balanced transmission schemes, provided the correct interface sub-module is installed in the port slot.

Q: Is this module compatible with modern S7 systems?
A: No, the 6ES5525-3UA21 is specifically engineered for the SIMATIC S5 product family and is designed for use within S5-DOS environments.
