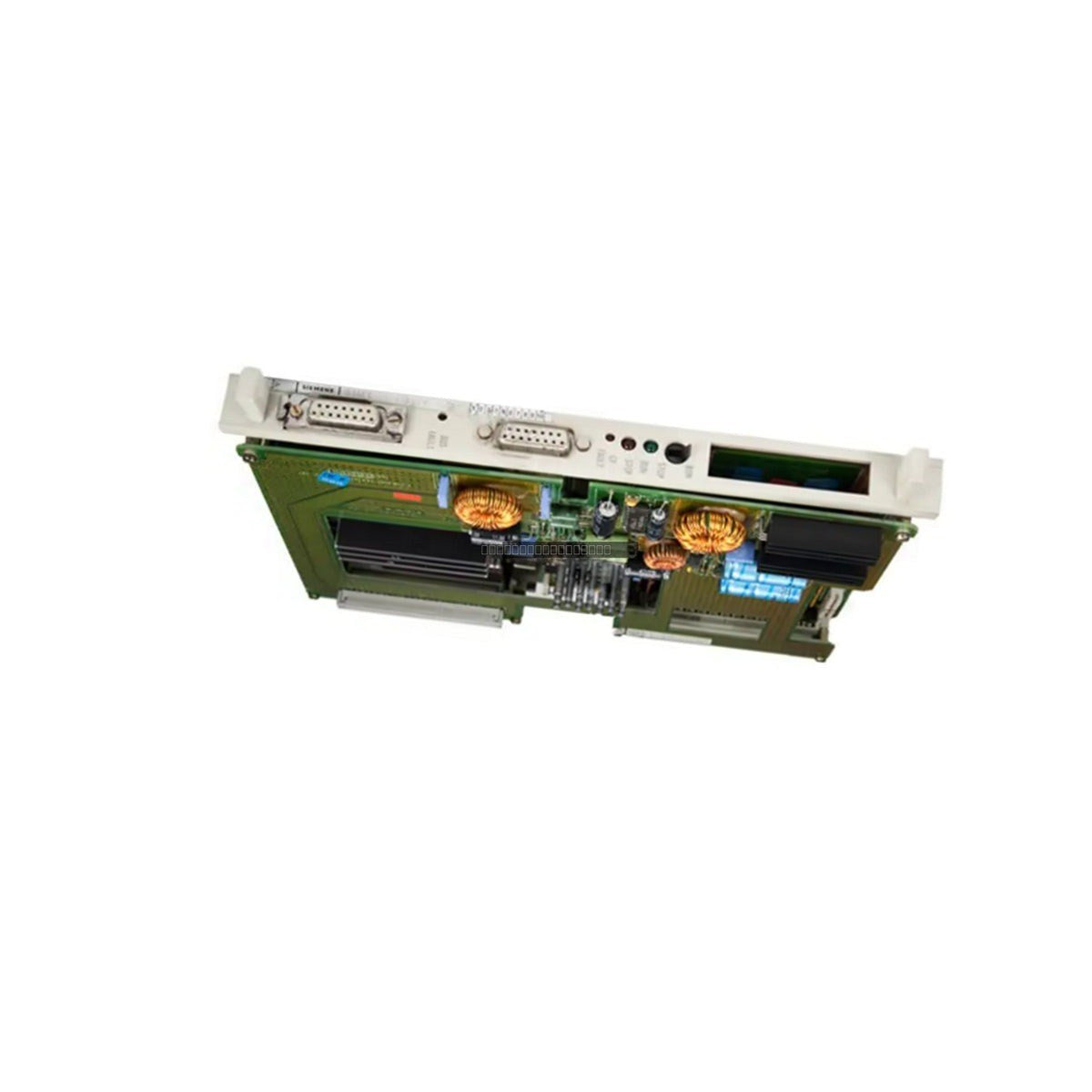

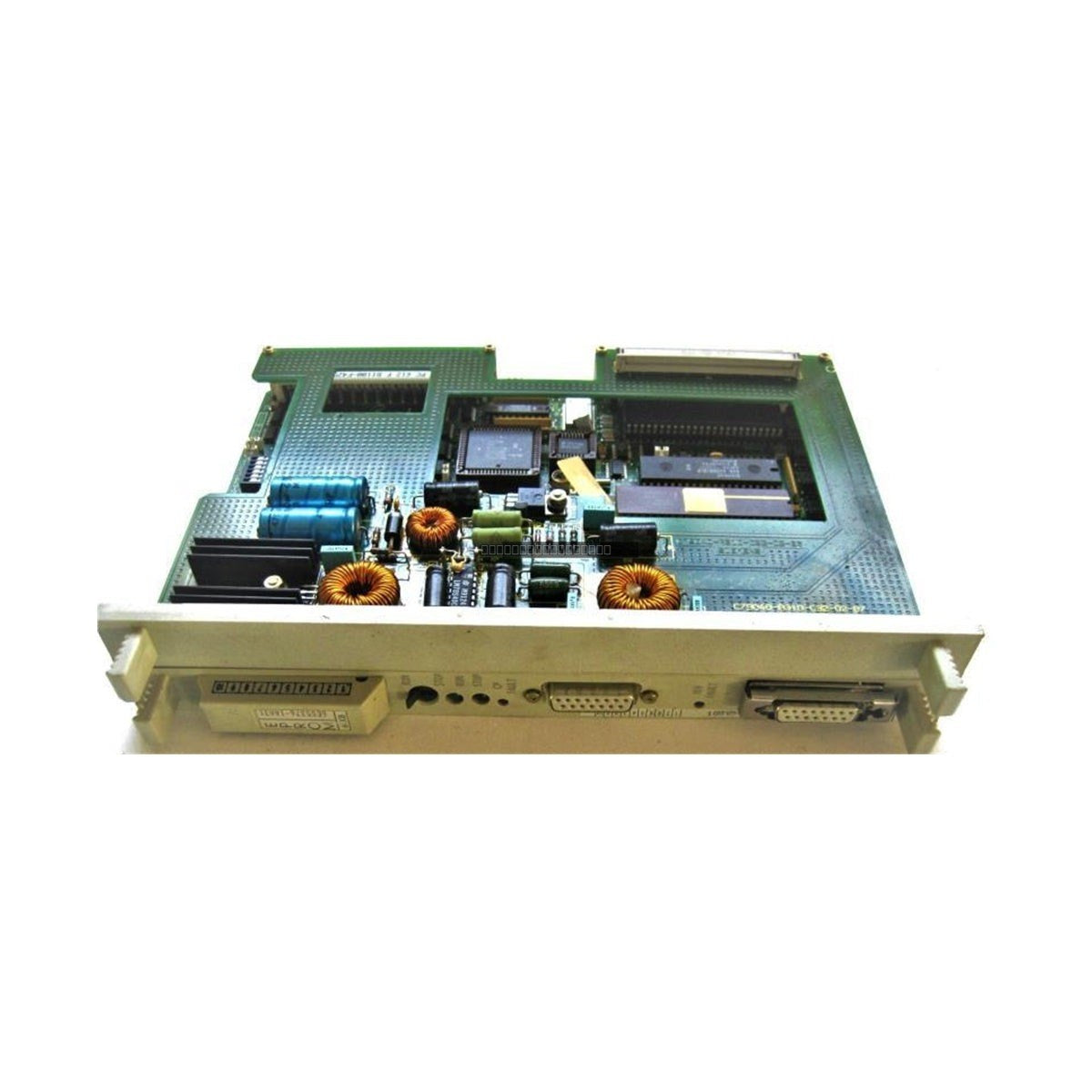

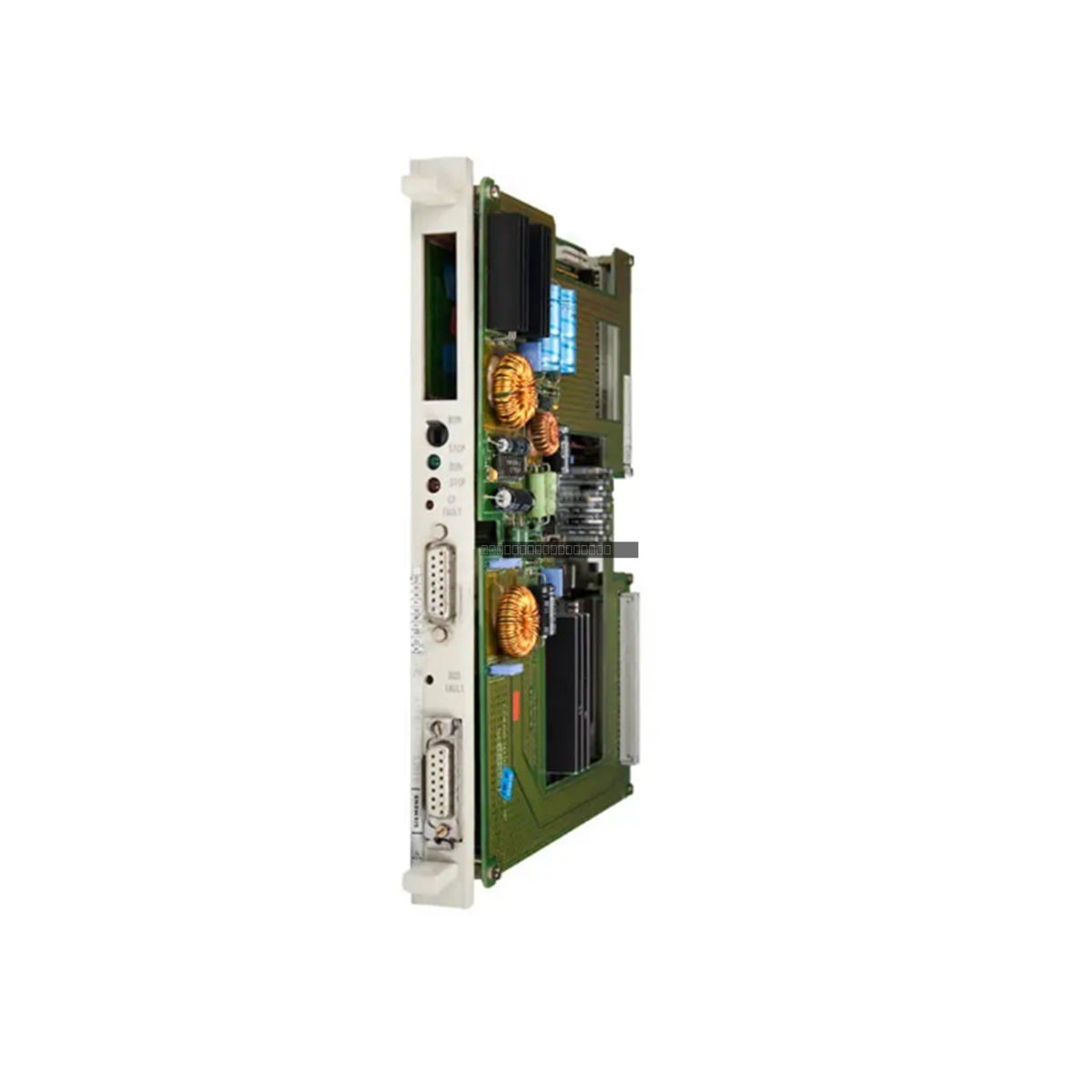

Siemens 6GK1143-0AB00 CP 143 Communication Processor

Siemens 6GK1143-0AB00 CP 143 Communication Processor

Description

The Siemens Simatic Net 6GK1143-0AB00, also known as the CP 143 TF, is a specialized communication processor module engineered for the Simatic S5 automation series. This module serves as a...

25 people are viewing this right now

Availability: In stock

SKU: 6GK1143-0AB00
Vendor: Siemens
Category: Communication Processor
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens Simatic Net 6GK1143-0AB00, also known as the CP 143 TF, is a specialized communication processor module engineered for the Simatic S5 automation series. This module serves as a robust gateway, enabling legacy S5 PLC systems to communicate over industrial Ethernet networks. By offloading communication tasks from the main CPU, the CP 143 ensures efficient data exchange and system performance in demanding industrial environments, including power generation, automotive manufacturing, and chemical processing.

Features

  • Designed for seamless integration with Simatic S5 backplane architectures.
  • Supports CP 143 TF functional profile for reliable industrial Ethernet communication.
  • Features dual connection ports for network connectivity and diagnostic access.
  • Integrated front-panel LED indicators for immediate status monitoring of link activity and hardware health.
  • Intelligent onboard processing to reduce CPU communication overhead.

Applications

This communication processor is ideal for upgrading or maintaining legacy Simatic S5 control systems. It facilitates connectivity between S5 controllers and modern SCADA systems, HMIs, and other network-integrated automation equipment, ensuring that older infrastructure remains compatible with contemporary plant-wide monitoring and control strategies.

Technical Specifications

Model 6GK1143-0AB00 (CP 143)
System Compatibility Siemens Simatic S5
Network Type Industrial Ethernet
Power Consumption 15 W (via S5 backplane)
Operating Temperature 0 to 60 deg C
Interface Ports 2 x Connection Ports
Diagnostics Front-panel LED indicators

Installation Guidelines

  • Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
  • Slide the module into the designated Simatic S5 rack slot, ensuring the backplane connector is fully seated.
  • Secure the module using the integrated locking mechanisms to prevent vibration-induced disconnection.
  • Use shielded industrial-grade Ethernet cabling to minimize EMI interference in high-noise environments.
  • Verify link status via the front-panel LEDs immediately upon power-up.
  • Maintain adequate airflow around the S5 rack to ensure the module operates within its specified temperature range.

FAQ

What is the primary function of the 6GK1143-0AB00?
It acts as a communication processor for the Simatic S5 system, allowing it to connect to industrial Ethernet networks using the CP 143 TF protocol.

Does this module require external power?
No, the module draws its operating power (15 W typical) directly from the Simatic S5 backplane bus.

Can this module be used for diagnostics?
Yes, the front panel features integrated LEDs that provide real-time status updates, including link activity and bus error reporting, allowing for rapid field diagnostics.
