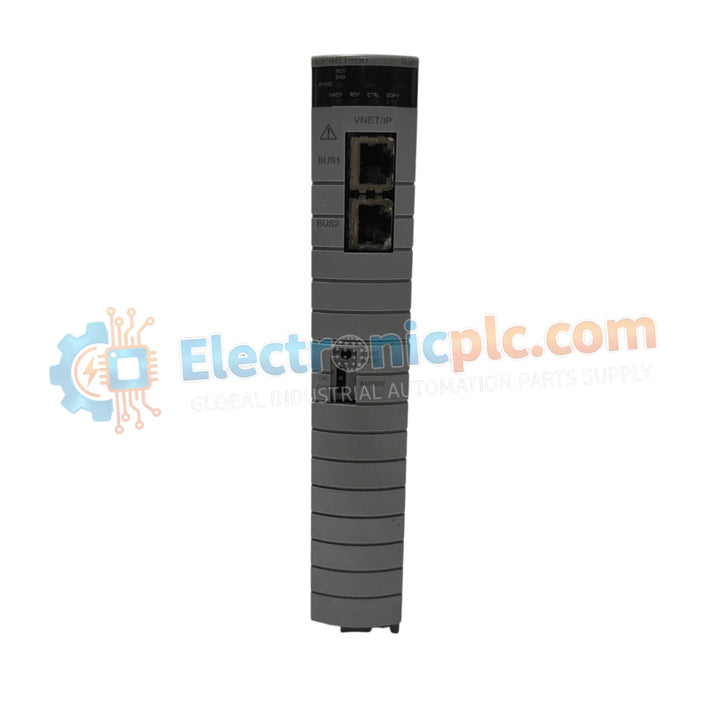

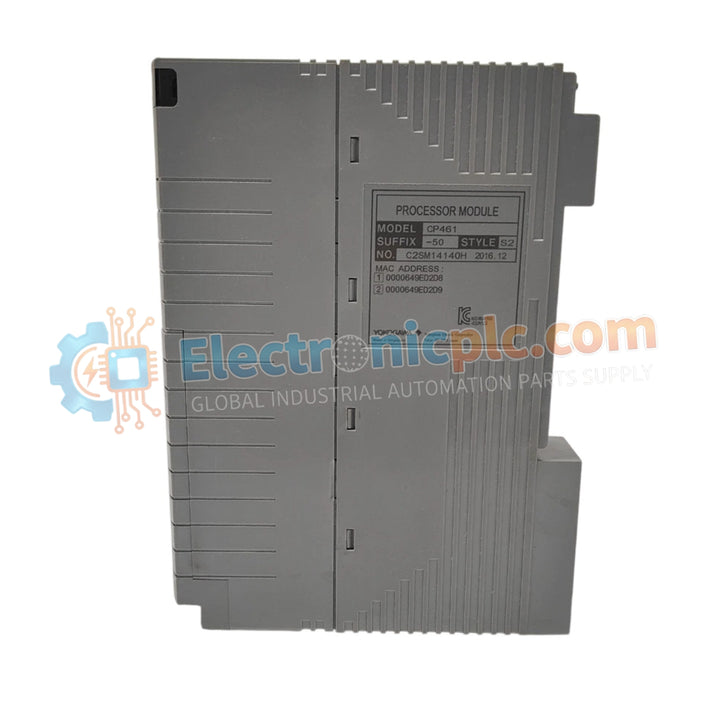

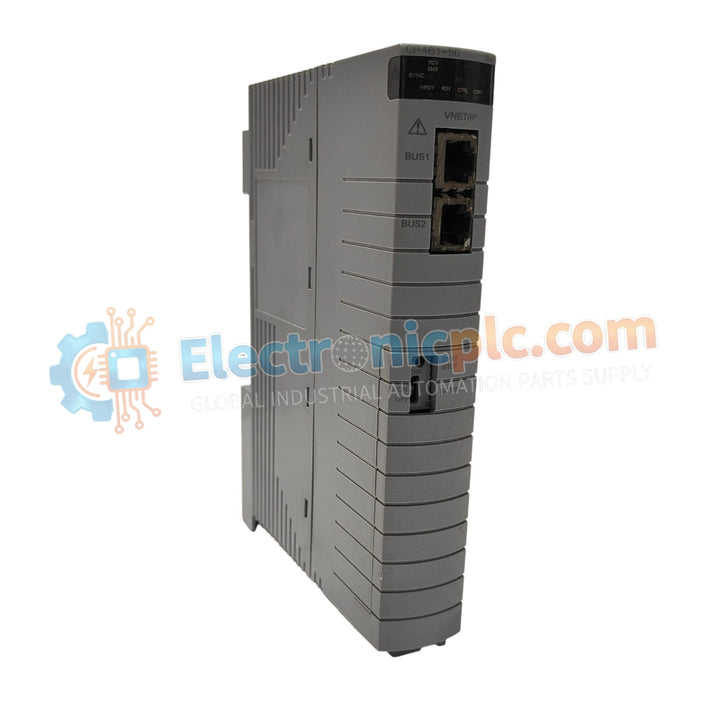

Configured for high-speed logic execution in CENTUM VP control systems, the YOKOGAWA CP461-50 S2 (CP461-50 Processor Module) provides direct physical/electrical execution. This module functions as the core computational unit for process control, managing real-time I/O data processing and regulatory control loop stability within the Field Control Unit (FCU) architecture.

Hardware Specifications

Process Control Connectivity

The CP461-50 S2 utilizes industrial-grade communication pathways to maintain signal integrity between field instrumentation and the DCS controller. The hardware design incorporates channel-to-channel isolation to suppress common-mode electrical noise and prevent ground loops during the acquisition of 4-20 mA HART loop protocol data. This galvanic separation ensures that process variables remain within strict accuracy tolerances, preventing measurement drift or communication errors caused by potential differences across the plant-wide control network.

Frequently Asked Questions

Q: Is the CP461-50 S2 compatible with redundant controller pairs?

A: Yes, this module supports redundant deployment. Ensure both modules within the pair possess matching hardware and firmware versions to maintain deterministic synchronization and prevent switchover latency.

Q: Can this processor module be integrated with non-Yokogawa field devices?

A: Yes, provided the field devices adhere to standard 4-20 mA HART signaling requirements. Configuration in the engineering station must accurately reflect the specific device ID and communication parameters.

Field Installation Guidelines

• Ensure the control cabinet is powered down before installation to protect the backplane bus interface from electrical transients.
• Verify that the rack slot is clear of mechanical obstructions and that the guide rails are aligned with the module chassis.
• Insert the module firmly into the backplane, ensuring the connector pins engage fully without lateral resistance.
• Secure the front panel locking mechanisms to maintain contact pressure and provide vibration-resistant mounting.
• Verify that all shielded I/O cabling is properly terminated at the cabinet common ground to mitigate electromagnetic interference before initiating system power-up.
