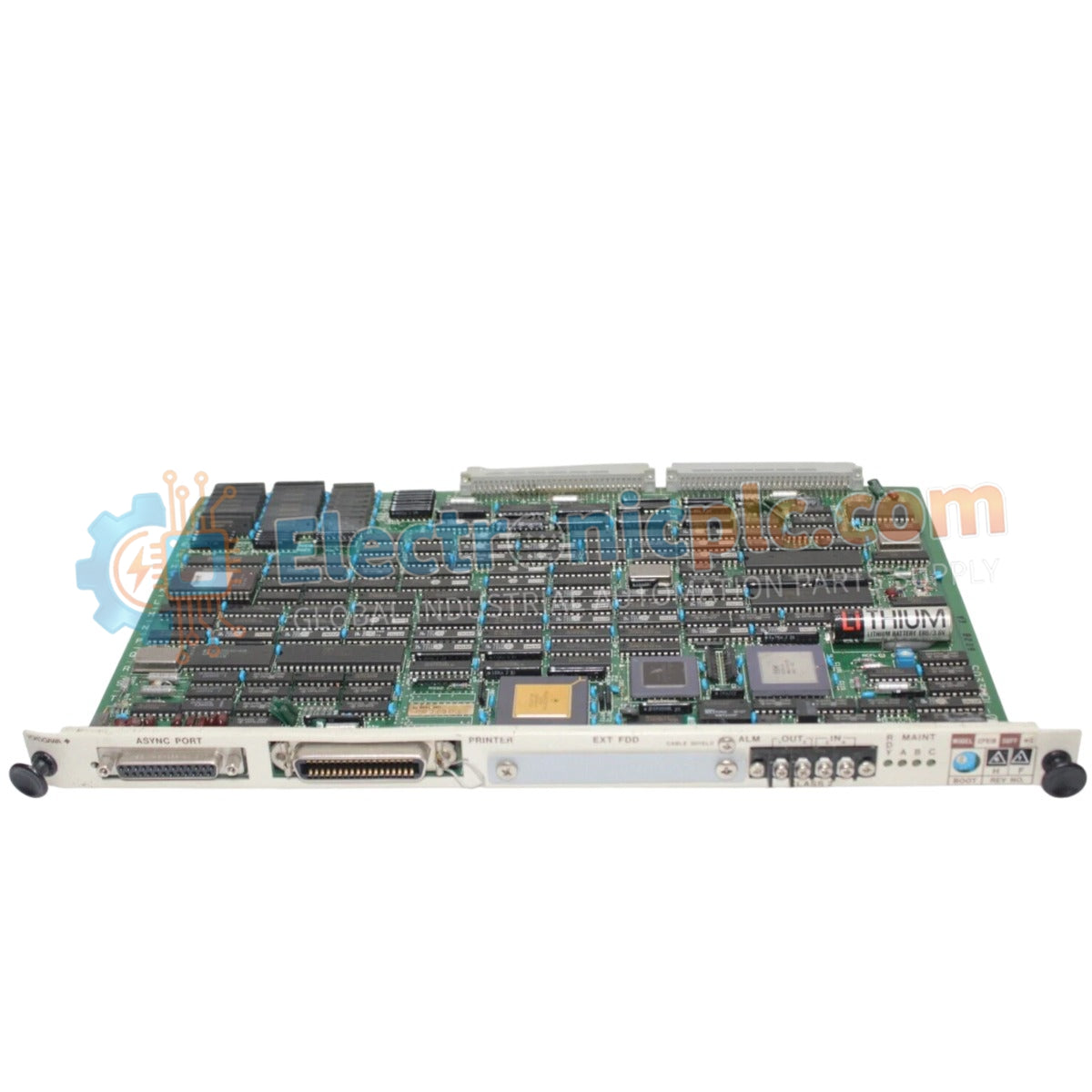

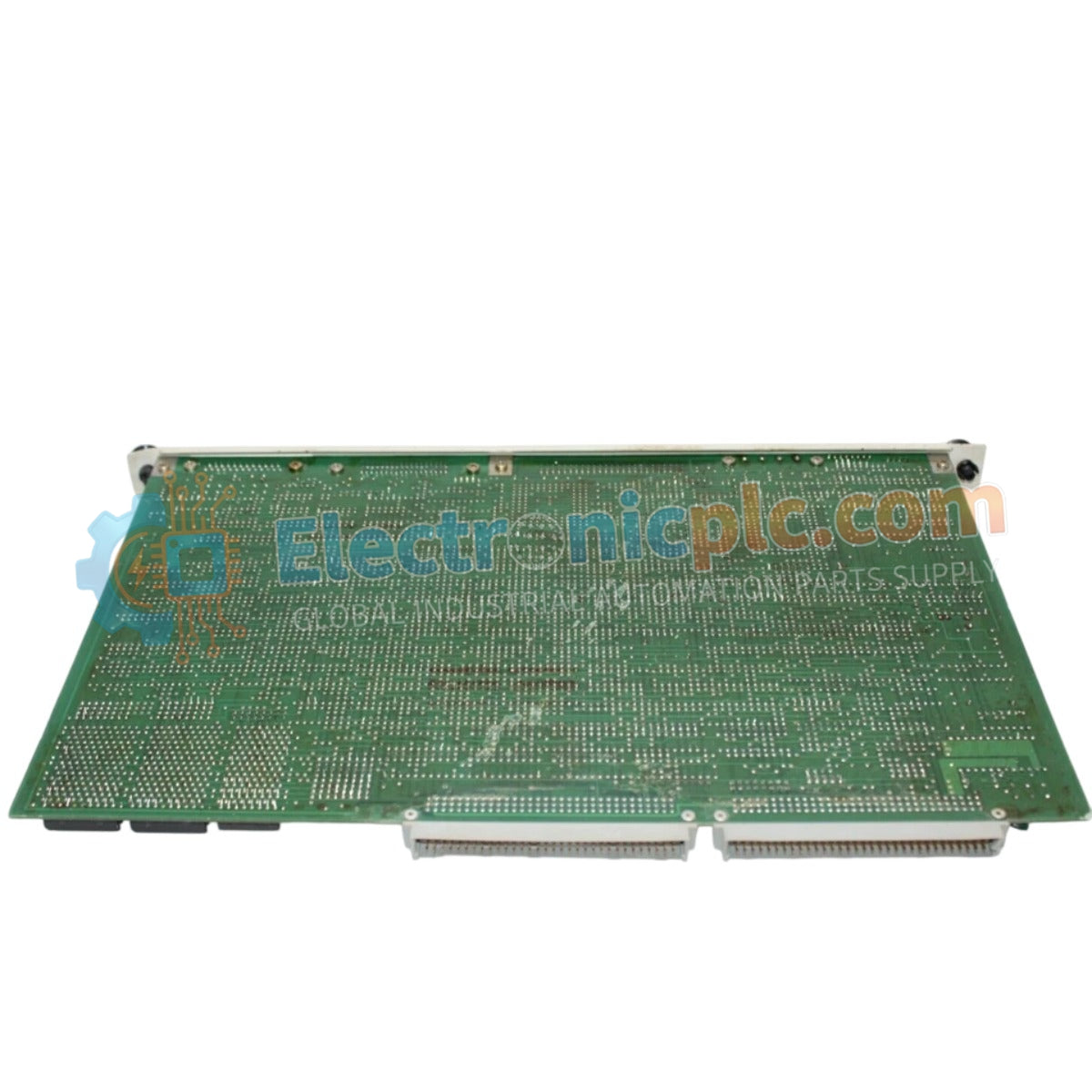

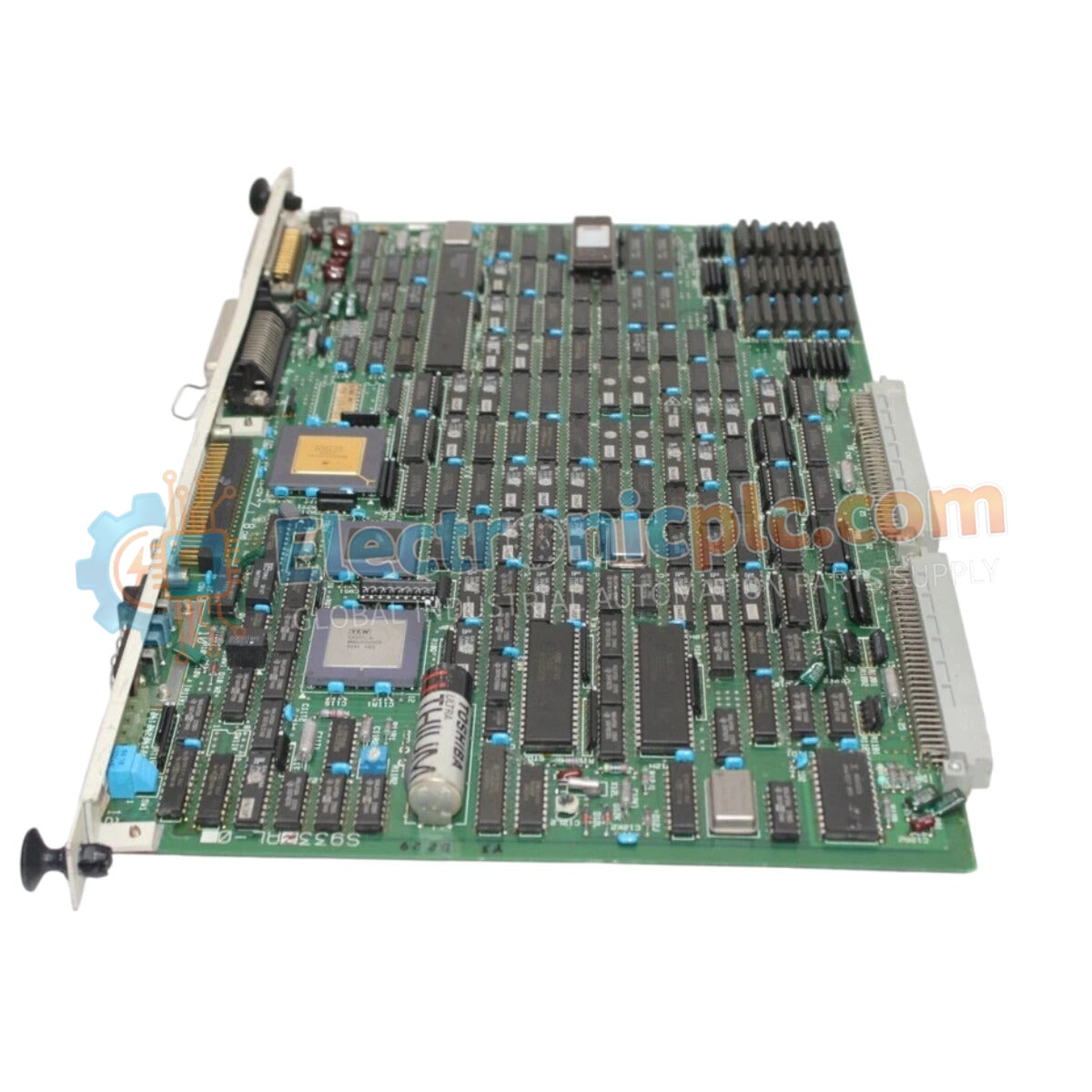

Configured for high-speed logic execution in modular automation system platforms, the YOKOGAWA CP81B*C (CP81B*C Processor Card) provides direct physical signal processing and multi-channel data management. This hardware component serves as the central processing unit utilized to execute system-wide control algorithms across Yokogawa MFCU network architectures.

Hardware Specifications

Processing Logic and System Integration

The CP81B*C functions as the primary computational engine within the MFCU environment, handling simultaneous data acquisition from multi-channel input interfaces. The module manages the conversion of raw process data into actionable control outputs with minimized latency. By utilizing high-density multi-channel connectors, the card facilitates seamless integration into existing industrial racks, ensuring that all backplane communication remains deterministic. This modular approach allows for rapid scaling of processing capacity within the control system, while the low-power circuit design supports continuous, high-availability operation required for complex automation sequences.

Frequently Asked Questions (FAQ)

Q: Can the CP81B*C be configured for redundant controller setups?

A: Yes. The module architecture supports redundant deployment within standard Yokogawa modular control systems to prevent process interruption during single-module failure events. Ensure that both modules are running the same firmware revision to maintain state synchronization.

Q: How is data integrity verified during multi-channel processing?

A: The processor utilizes integrated parity checking and hardware-level diagnostic routines to validate data packets as they are routed through the multi-channel interface connectors. Any deviation from expected cyclic patterns triggers a status alert at the engineering workstation.

Field Installation Guidelines

• Backplane Handling: Use electrostatic discharge (ESD) protection when handling the CP81B*C. Align the PCB card carefully with the backplane guide rails and verify that the multi-channel connector pins are fully seated to prevent intermittent connection faults.
• Firmware Synchronization: Prior to commissioning, ensure that the module firmware is compatible with the existing system control software. Mismatched firmware can cause communication timeouts or logic execution errors.
• Thermal Environment: Although the card features a low-power design, maintain adequate cabinet ventilation to prevent heat accumulation around the CPU. Ensure that internal fans are functional if the module is installed in a high-density, closed-chassis rack.
• Grounding: Verify that the system backplane has a solid, low-impedance connection to the cabinet protective earth (PE). Proper grounding is necessary to minimize electromagnetic interference (EMI) that can influence sensitive signal processing on the PCB.
