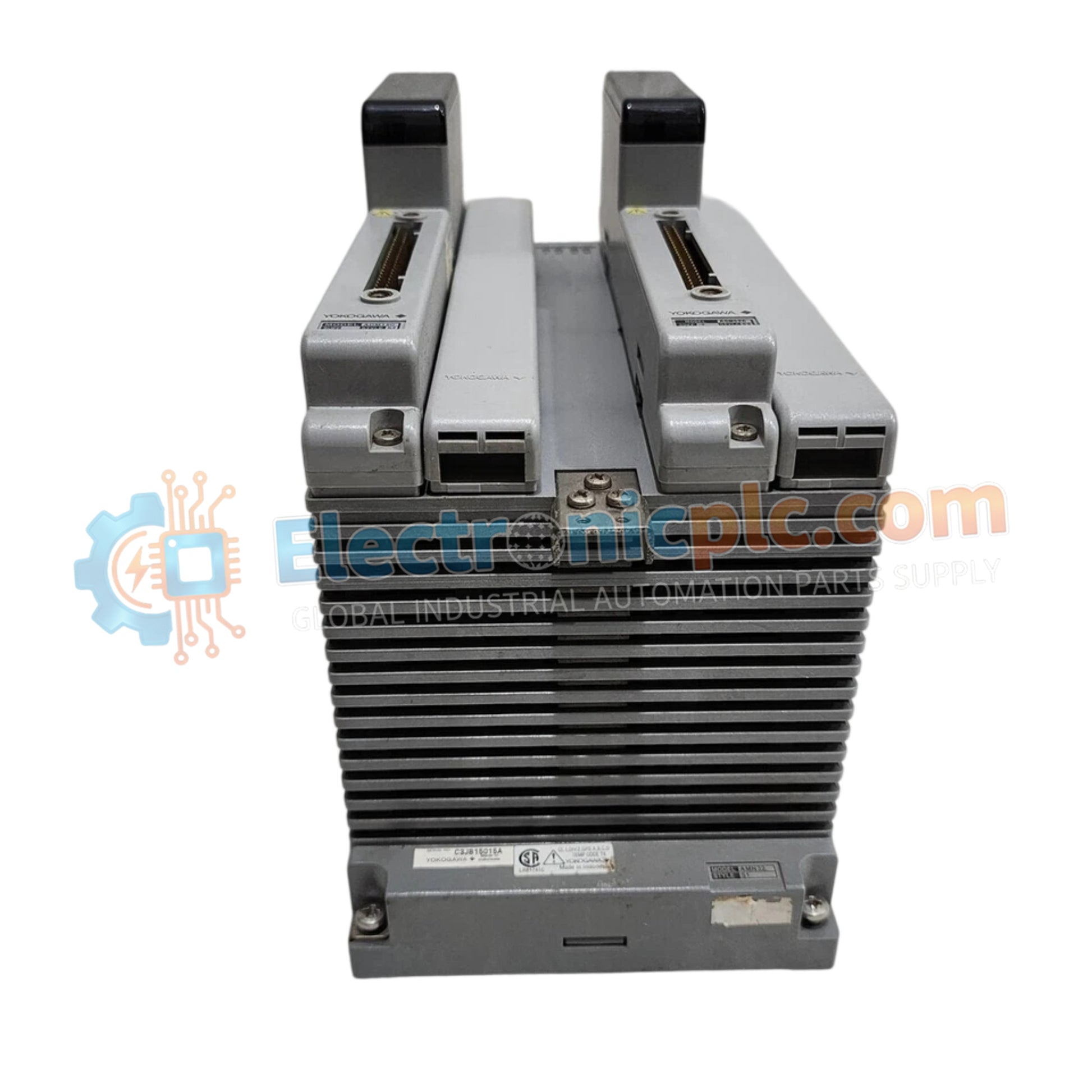

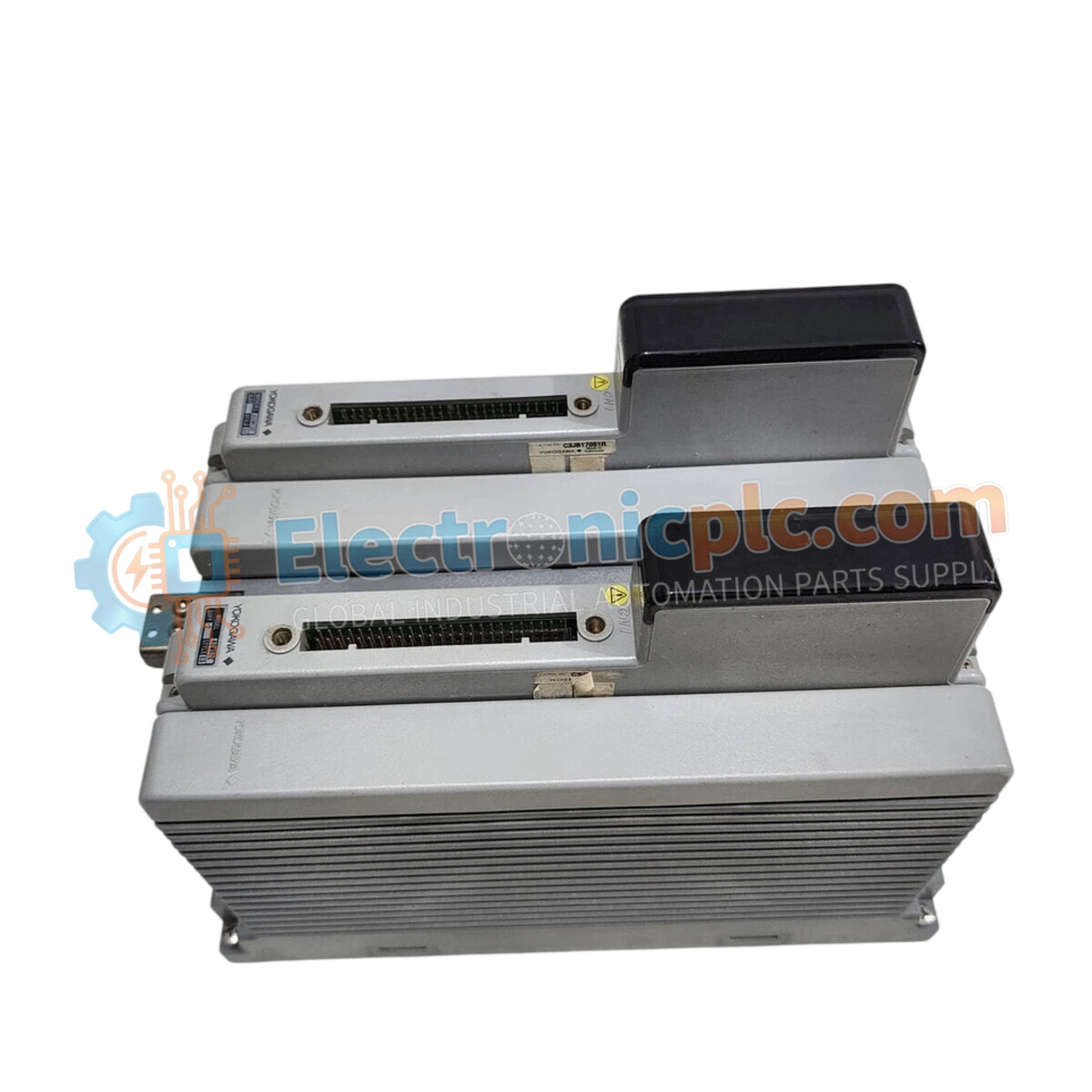

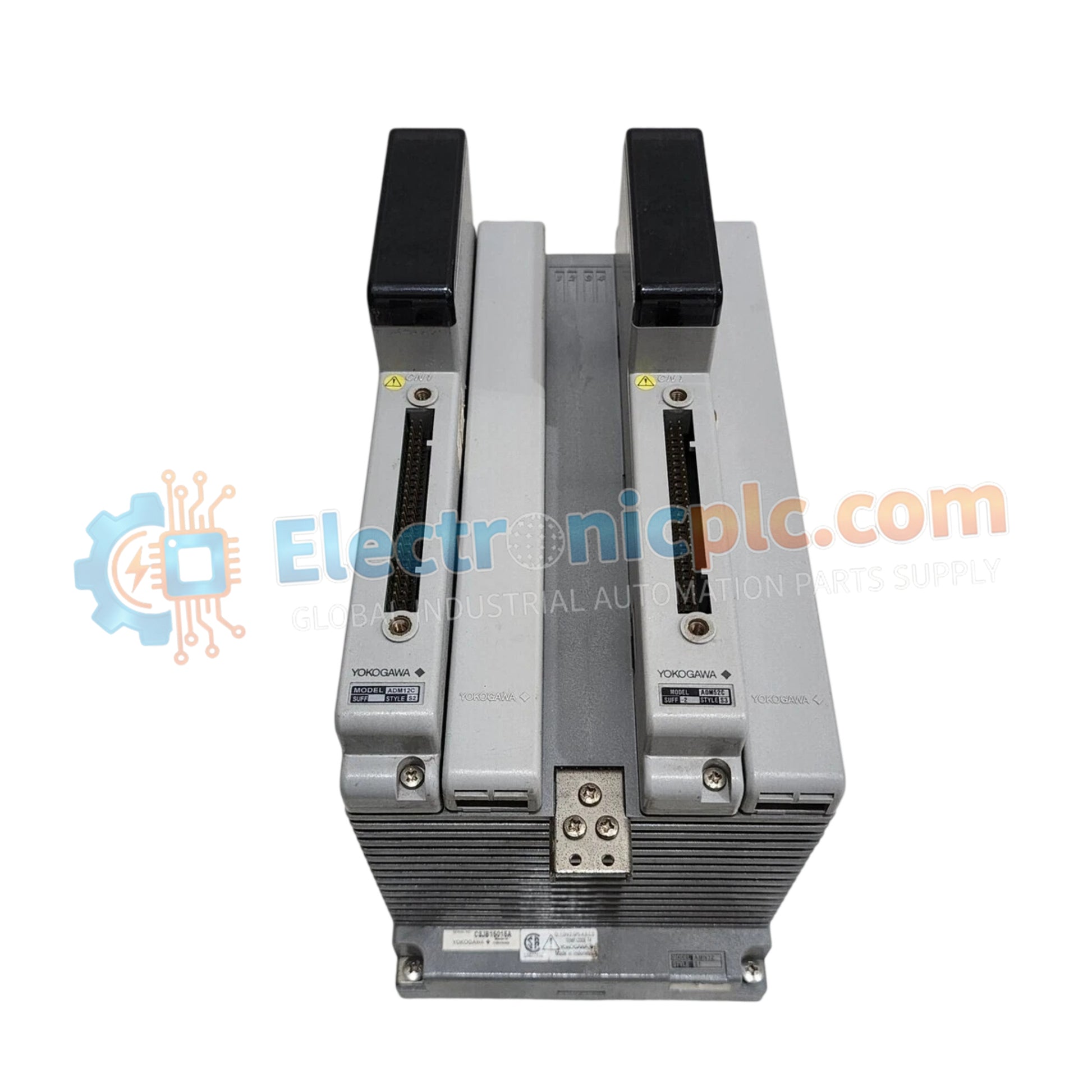

Configured for high-density discrete signal acquisition in CENTUM control systems, the Yokogawa CSL/ADM12C/22C (ADM12C/22C Contact Input Module) provides direct electrical execution for monitoring 32 independent field contacts. This module enables the status detection of external devices such as limit switches, pushbuttons, and auxiliary relays, ensuring precise digital monitoring across industrial process loops.

Suffix Breakdown & Model Matrix

Hardware Specifications

DCS Instrumentation and Signal Isolation

The CSL/ADM12C/22C architecture utilizes common-minus side isolation partitioned into two 16-point banks, effectively mitigating ground loop propagation across the discrete input field. The module is engineered to process incoming signals with a minimum pulse width of 40 ms, filtering out transient electrical noise or mechanical contact bounce. Designed for high-density I/O configurations, the module interfaces with field devices via KS9 or KS10 cables, terminating at TE32 terminal boards to maintain organized, shielded signal paths within the marshalling cabinet.

Frequently Asked Questions

Q: Can the contact input be used with voltages higher than 5 V DC?

A: No, the input is designed for a 5 V DC external contact standard; exceeding this voltage level will damage the module's input circuitry and compromise signal isolation.

Q: Is this module capable of high-speed pulse counting?

A: The module is optimized for discrete status monitoring with a maximum pulse frequency of 10 Hz; it is not intended for high-speed pulse train or frequency signal acquisition.

Field Installation Guidelines

• Mount the module firmly within the designated I/O module nest, ensuring that the backplane connectors are fully seated and clear of debris.
• Use standard KS9 or KS10 cabling for field connections to ensure electromagnetic compatibility and proper pin-to-pin alignment with the TE32 terminal board.
• Verify that external contact devices meet the 20 mA minimum current requirement to ensure reliable wetting of the contact surfaces.
• Ensure that the power supply to the module does not exceed the 600 mA limit to maintain operational stability and prevent thermal overload of the module housing.
• Route discrete input cabling away from high-power AC lines to minimize induced noise, ensuring all signal shields are properly bonded to the cabinet chassis ground.
