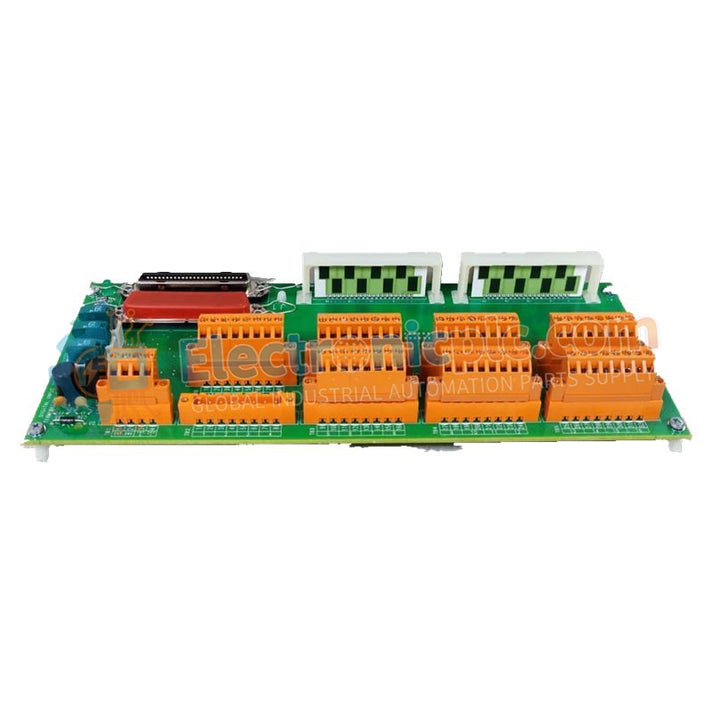

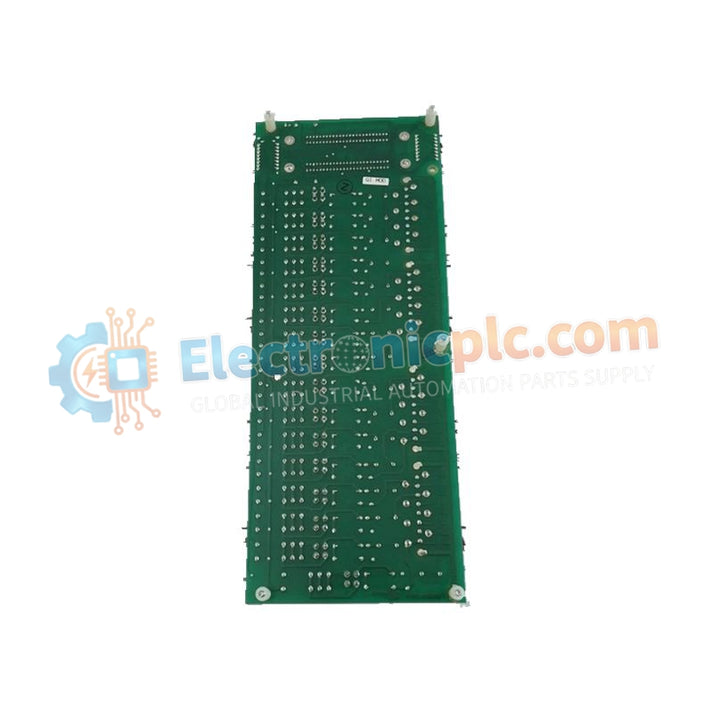

Digital Output FTA Module Honeywell MC-TDOD14 51309153-175

Digital Output FTA Module Honeywell MC-TDOD14 51309153-175

Product Overview

The Honeywell MC-TDOD14 (Part Number: 51309153-175) is a specialized Field Termination Assembly (FTA) designed to interface digital output processors with field-side equipment. This 16-channel module handles signal routing...

25 people are viewing this right now

Availability: Low stock: 50 left

SKU: MC-TD0D14 51309153-175
Vendor: Honeywell
Category: Digital Output FTA Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell MC-TDOD14 (Part Number: 51309153-175) is a specialized Field Termination Assembly (FTA) designed to interface digital output processors with field-side equipment. This 16-channel module handles signal routing for devices operating within a 3–30 VDC range.

We supply this unit in 100% brand new, original condition, featuring factory-applied conformal coating to ensure reliable performance in humid, corrosive, and harsh industrial environments.

Technical Specifications

Parameter Specification
Model Number MC-TDOD14
Part Number 51309153-175
Output Voltage Range 3–30 VDC
Channel Count 16 Channels
Terminal Type Compression Terminals
Physical Size 12 inches (307 mm)
Environmental Protection Conformal Coated (CC)
Compliance CE Compliant

Engineering Advantages

Harsh Environment Resilience
Factory-applied conformal coating protects PCB traces from moisture, dust, and chemical exposure, preventing corrosion and extending service life.

Simplified Field Wiring
Compression terminals enable fast, secure wiring without specialized tools, reducing installation time and improving maintenance efficiency.

Flexible Logic Integration
The 3–30 VDC operating range allows compatibility with a wide variety of field devices, including low-power logic circuits and standard 24V relays.

Standardized Form Factor
The 307 mm length fits standard Honeywell carrier assemblies, supporting clean cable routing and high-density cabinet layouts.

Safety Compliance
CE certification ensures compliance with international safety and EMC standards, enabling reliable deployment in global industrial environments.

FAQs

Is this module suitable for outdoor control cabinets?
Yes, the conformal coating enhances resistance to humidity and contaminants. However, installation in a NEMA 4 or IP66-rated enclosure is recommended for full environmental protection.

Does the unit support hot-swapping?
As a passive FTA, it does not impose restrictions, but removal should follow the associated controller and I/O module procedures when the system is energized.

How do the compression terminals handle vibration?
They maintain consistent mechanical pressure on conductors, preventing loosening in high-vibration environments such as near turbines or pumps.

Can I use this for 120VAC digital outputs?
No. The MC-TDOD14 is strictly rated for 3–30 VDC. Using it with high-voltage AC will result in equipment damage and safety risks.
