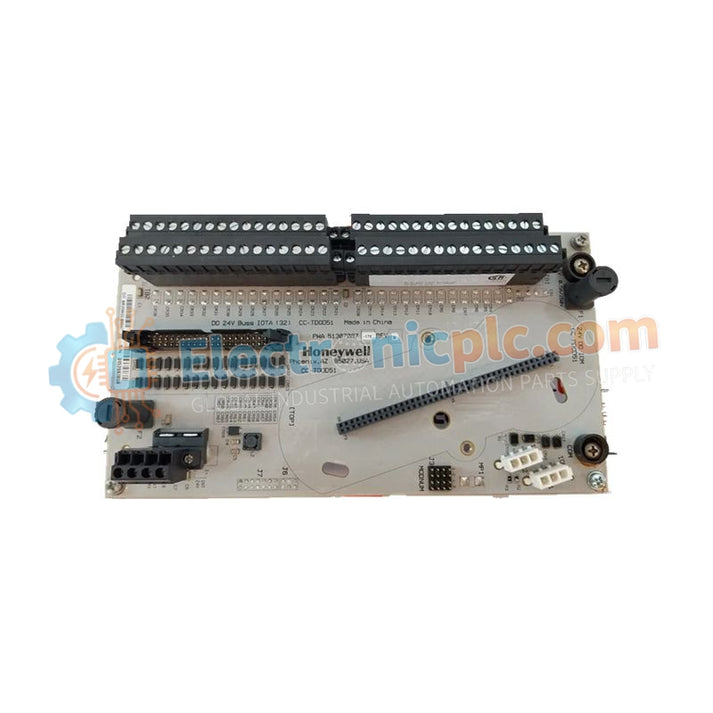

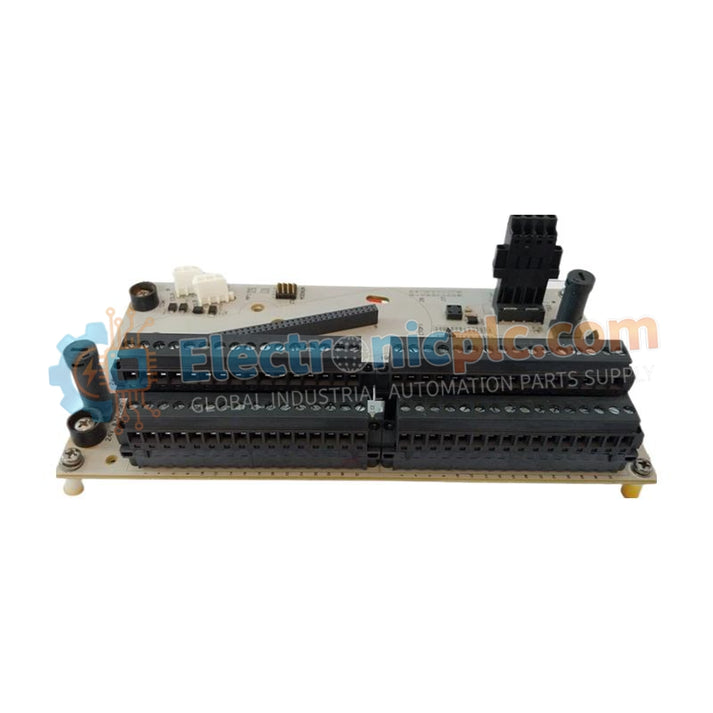

Digital Output Module Honeywell CC-TDOD51

Digital Output Module Honeywell CC-TDOD51

Product Overview

The Honeywell CC-TDOD51 is a high-density Digital Output (DO) module for the Experion PKS Series C platform. It provides 32 SINK (open drain) output channels to control field...

29 people are viewing this right now

Availability: Low stock: 50 left

SKU: CC-TDOD51
Vendor: Honeywell
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell CC-TDOD51 is a high-density Digital Output (DO) module for the Experion PKS Series C platform. It provides 32 SINK (open drain) output channels to control field devices such as solenoids, interposing relays, and indicator lamps.

The module interfaces with the Series C IOTA and delivers fast, deterministic switching for process control applications. Supplied as 100% brand new, original factory equipment, it ensures reliable performance and full system compatibility.

Technical Specifications

Parameter Specification
Model Number CC-TDOD51
Output Type SINK (Open Drain)
Channel Count 32 Channels
Load Voltage Up to 30 VDC
Load Current 0.1 A per channel (max)
System Power 24 VDC
Current Consumption 200 mA
Operating Temp -40°C to +70°C
Dimensions 263 mm × 58 mm × 28 mm
Weight 0.45 kg
Protection Short circuit & over-voltage protection

Engineering Advantages

  • 32-Channel High Density – Reduces I/O module count and cabinet space requirements

  • SINK Output Design – Flexible switching for loads referenced to a common positive supply

  • Thermal Efficiency – Vertical form factor supports natural airflow and heat dissipation

  • Built-in Protection – Guards against short circuits and voltage transients

  • Harsh Environment Ready – Operates reliably across wide temperature ranges

  • Hot-Swap Support – Enables replacement without shutting down the system

FAQs

What is SINK output?
SINK outputs switch to ground (0V), completing the circuit for a load connected to a positive supply.

Can it drive motors directly?
No, due to the 0.1 A limit per channel. It is typically used to drive interposing relays, which then control higher-power devices.

Does it support hot-swapping?
Yes, the module can be replaced while the system remains powered, with wiring retained on the IOTA.

Is it suitable for humid environments?
Yes, it supports high humidity operation and uses protective design measures to resist moisture-related issues.
