Product Overview

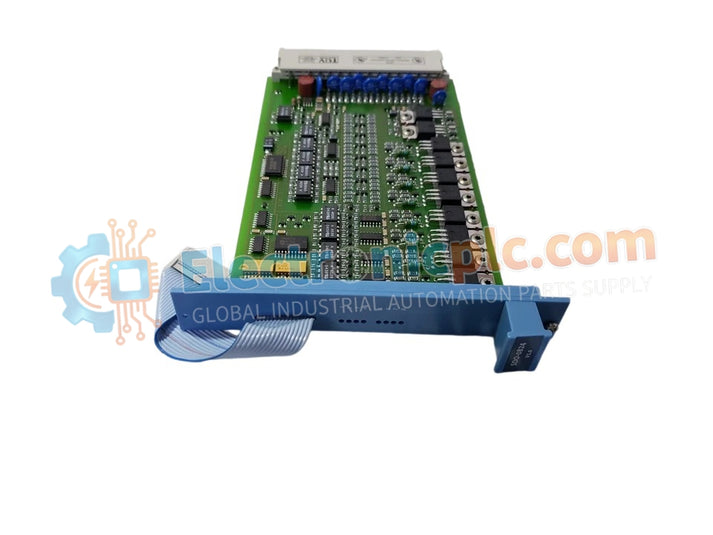

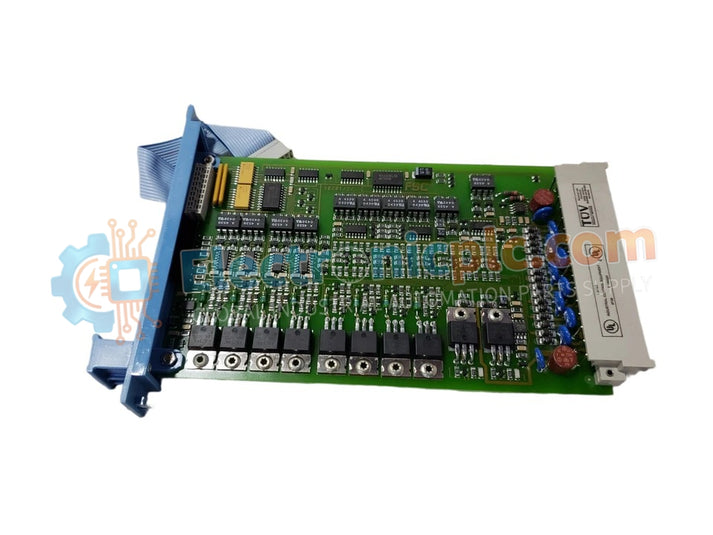

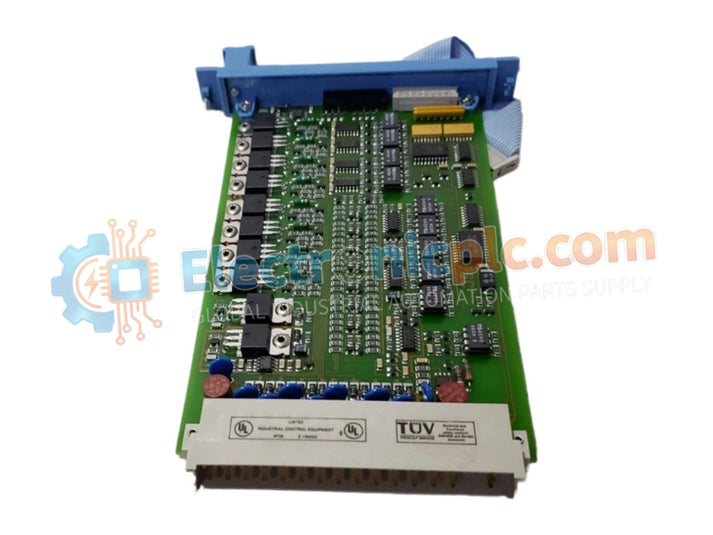

The Honeywell FS-SDO-0824 is a high-integrity 8-channel safe digital output module designed for Honeywell Safety Manager and Fail-Safe Control (FSC) systems. It executes critical safety actions such as de-energizing solenoid valves, tripping circuit breakers, and activating alarm systems. We supply this unit as 100% brand new and original, ensuring certified reliability and fail-safe performance for Safety Integrity Level 3 (SIL3) applications.

Technical Specifications

Engineering Advantages

Fail-to-Safe Circuitry
The FS-SDO-0824 operates on a de-energize-to-trip principle, ensuring that any power loss or internal fault forces outputs into a safe, de-energized state.

Integrated Loop Monitoring
Continuous diagnostics detect field wiring faults such as open circuits or short circuits, improving early fault detection before safety functions are compromised.

Redundant Internal Switching
Each channel incorporates multiple series switching elements, ensuring no single internal failure can result in an unsafe energized output.

High Galvanic Isolation
Strong isolation barriers separate field power from the internal logic bus, protecting the safety processor from surges, ground faults, and transients.

Diagnostic Feedback
LED indicators and system diagnostics provide per-channel status visibility, enabling fast troubleshooting without hardware removal.

FAQs

What is the maximum current per channel?
The FS-SDO-0824 supports standard industrial loads such as solenoids, but exact current limits must be verified using the Honeywell Safety Manager hardware manual to avoid thermal overload.

Can it drive both inductive and resistive loads?
Yes. It supports both load types and includes suppression circuitry to handle inductive kickback from devices like solenoid valves.

Does “100% Brand New” include documentation?
Yes. Each unit ships in original Honeywell packaging with certification of origin and factory quality markings confirming authenticity.

Is it compatible with older FSC systems?
It is backward compatible with multiple Honeywell safety system generations, but firmware and backplane compatibility should be confirmed prior to installation.
