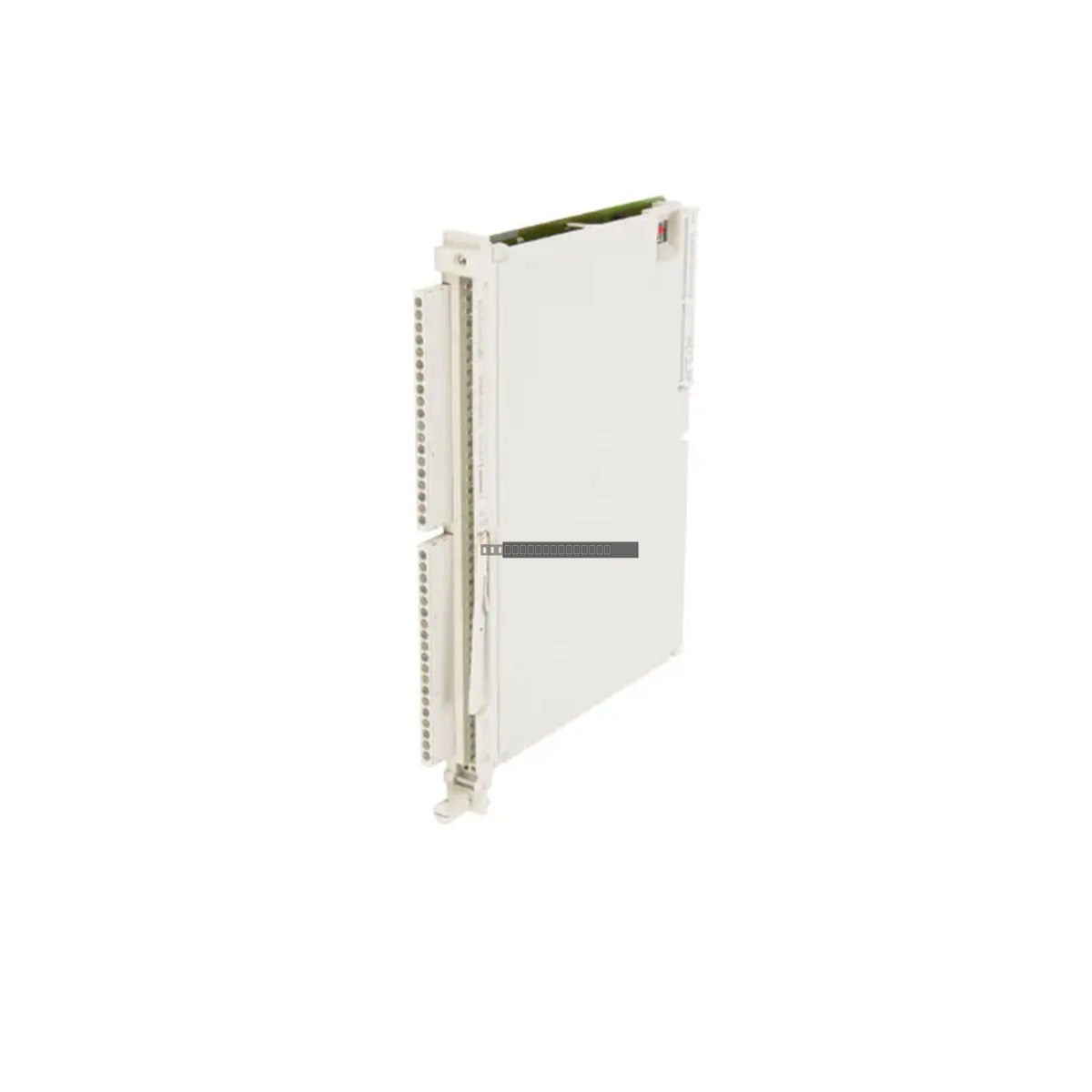

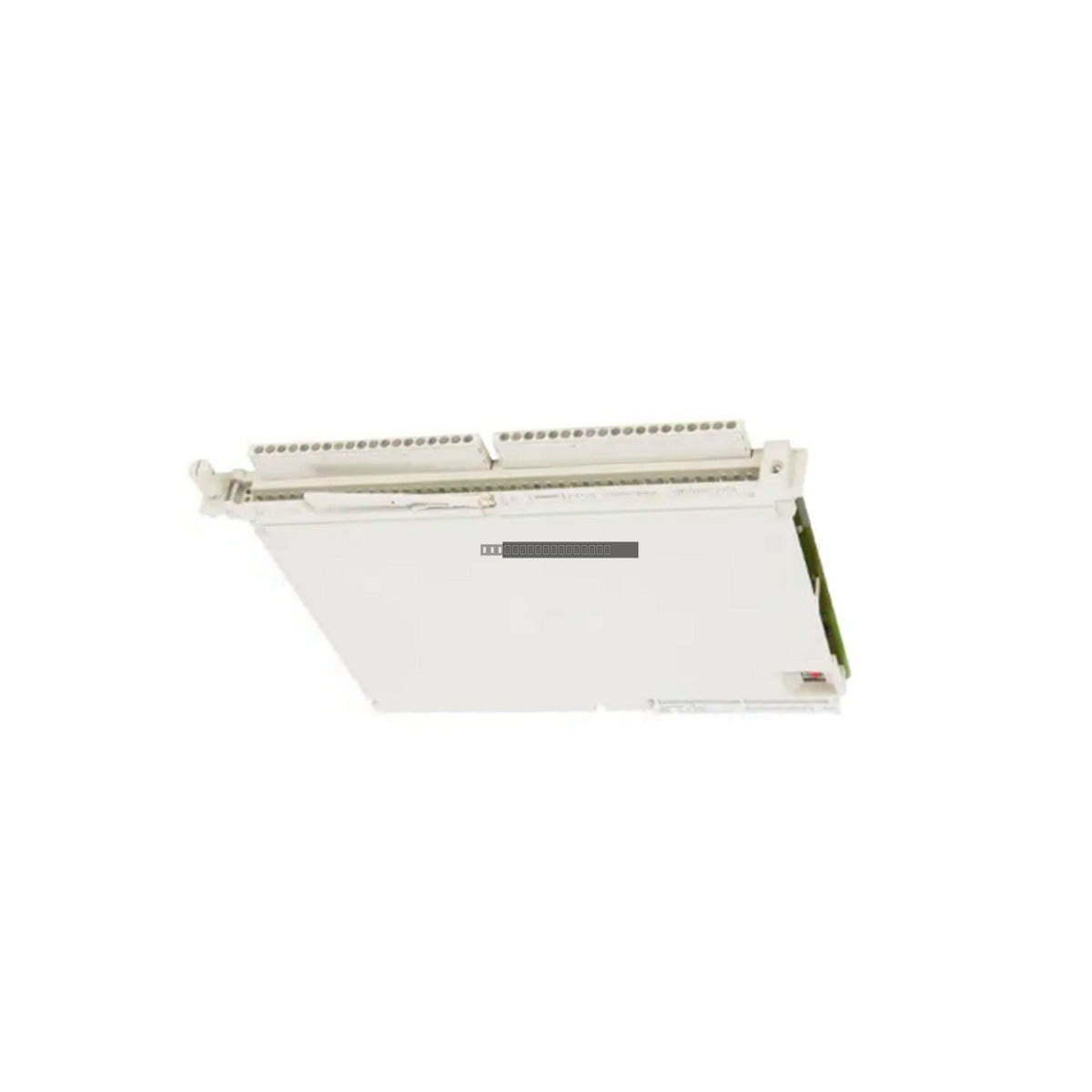

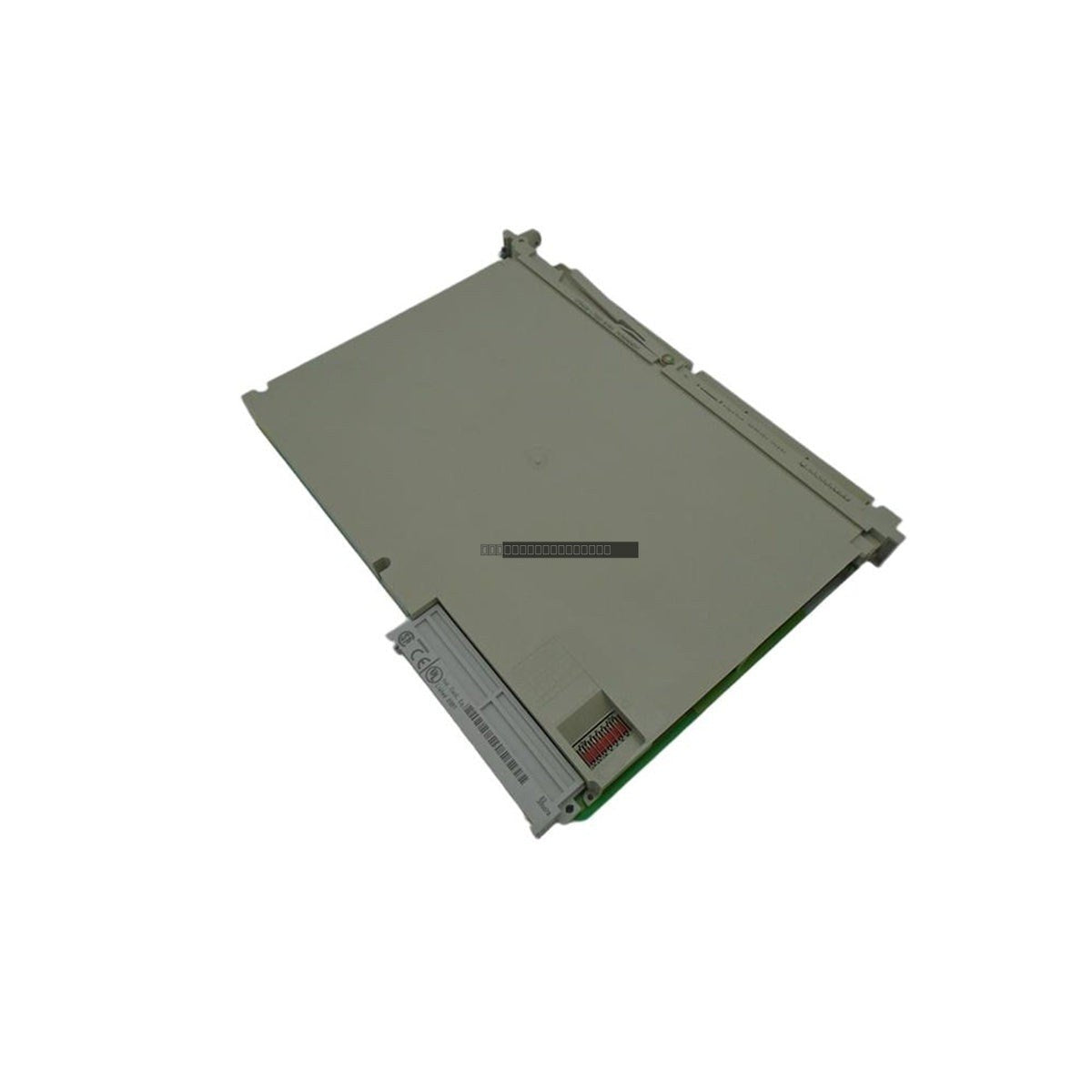

The Siemens 6ES5454-4UA14 is a high-density digital output module designed for the Simatic S5 programmable logic controller system. This module provides 16 solid-state output channels, facilitating reliable control of field devices such as solenoid valves, contactors, and indicator lamps within industrial automation environments. Engineered for robust performance, it supports a wide load voltage range from 24 VDC to 60 VDC, making it suitable for diverse control applications in manufacturing, power generation, and process automation.

Features

• 16 independent solid-state output channels for high-speed switching.
• Wide operating voltage range: 24 VDC to 60 VDC.
• Optical isolation between the field load and the S5 backplane bus to ensure signal integrity.
• Integrated short-circuit and electronic overload protection for enhanced system safety.
• Thermal shutdown protection for channel groups to prevent hardware damage during over-temperature events.
• Front-panel LED indicators for real-time status monitoring of output states and power supply.
• Designed for high-reliability operation in demanding industrial environments.

Applications

This module is widely utilized in Simatic S5 rack-based control systems to manage discrete field actuators. It is commonly deployed in automotive assembly lines, chemical processing plants, and energy infrastructure where precise, wear-free electronic switching is required to maintain operational uptime.

Technical Specifications

Installation Guidelines

• Ensure the S5 rack power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the module is fully seated in the backplane connector to ensure proper bus communication.
• Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI).
• Maintain adequate ventilation within the control cabinet to keep ambient temperatures within the specified 0 to 60 deg C range.
• Follow standard ESD handling procedures when touching the module circuitry.
• Ensure field load voltage polarity is correctly matched to the module terminals to prevent damage to the output drivers.

FAQ

Does this module require external diodes for inductive loads?
No, the 6ES5 454-4UA14 features internal circuit protection capable of handling inductive loads such as solenoid valves and contactor coils without the need for external freewheel diodes.

What is the primary function of the LED indicators on the front panel?
The LEDs provide visual confirmation of the logic state for each of the 16 output channels and verify that the module is receiving the necessary power supply for operation.
