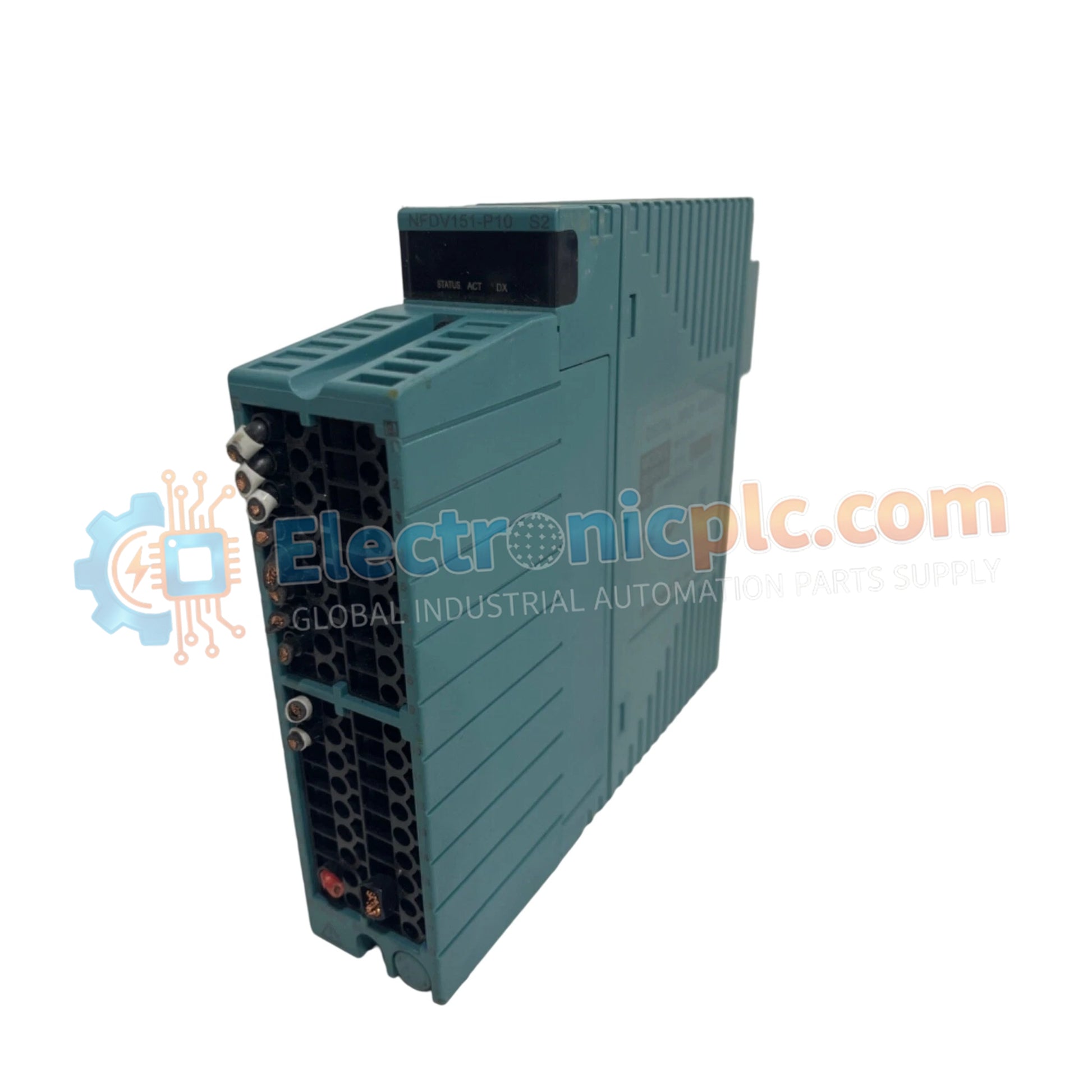

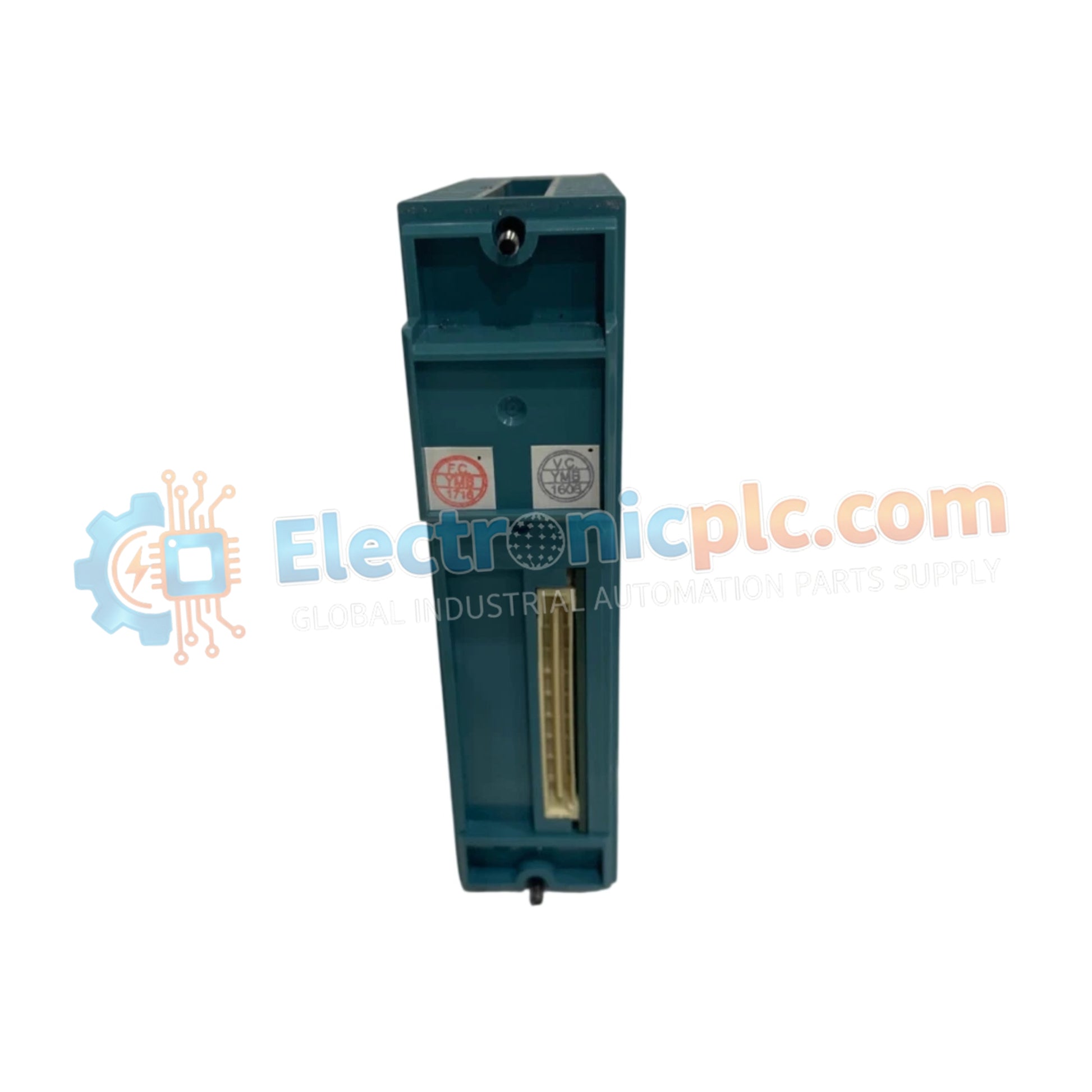

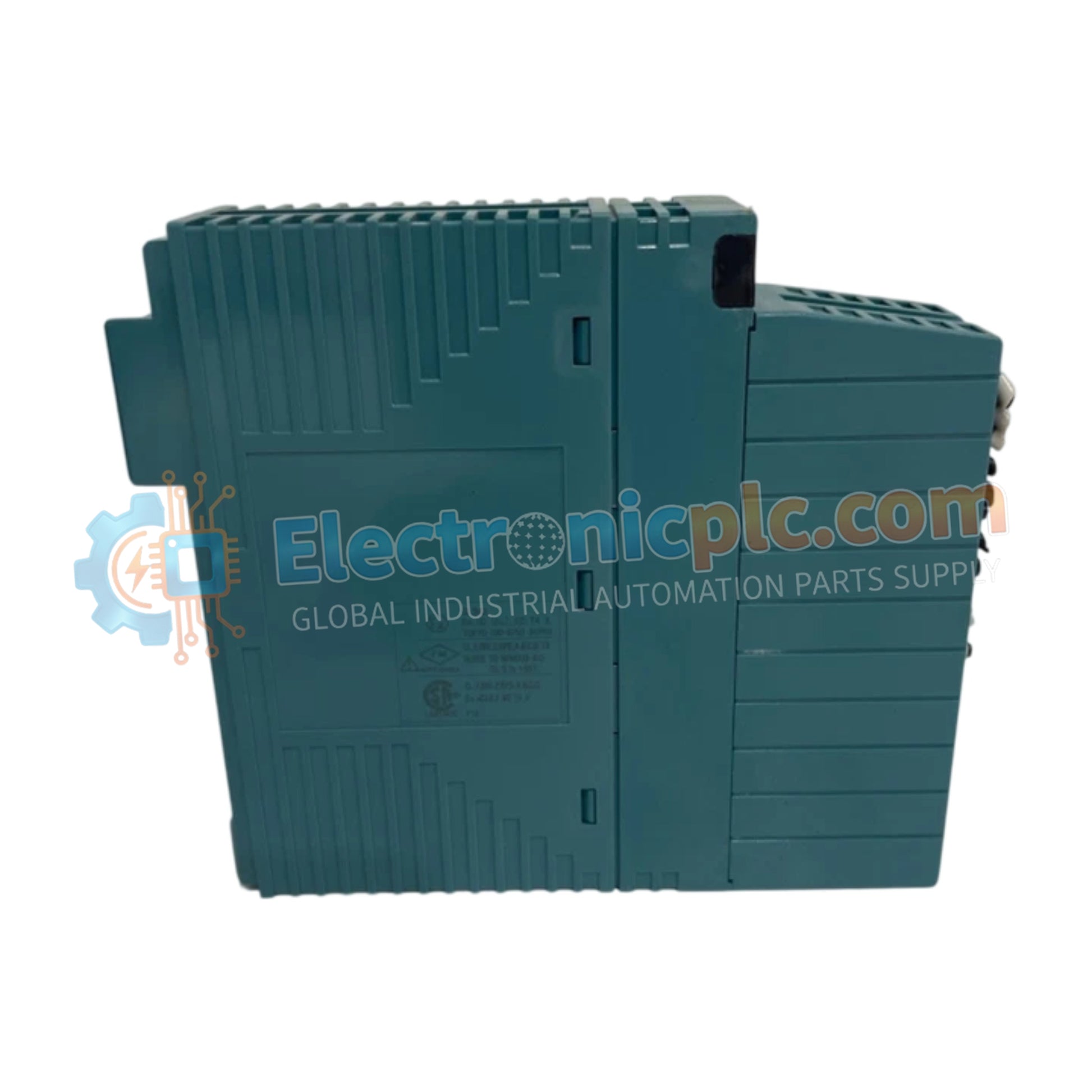

Configured for discrete signal switching and actuator control within industrial automation architectures, the Yokogawa NFDV551-P11 (NFDV551-P11 Digital Output Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

• NFDV551: Base model designation for the multi-channel digital output hardware module designed for CENTUM and ProSafe-RS platforms.
• -P11: Specific hardware build and package configuration suffix indicating standard terminal connection styles and safety release parameters.

Hardware Specifications

4-20 mA HART Loop Protocol

While operating primarily as a discrete digital output module, the circuitry incorporates robust galvanic isolation and loop supervision features to protect internal backplane buses from field-side transient voltage spikes and inductive kickback. Channel-to-channel isolation limits fault propagation across connected control valves, solenoids, and interlock relays, ensuring deterministic execution under high electromagnetic interference conditions.

Frequently Asked Questions

Q: Does the NFDV551-P11 module support hot-swapping during active system operations?

A: Yes, when installed within a baseplate architecture supporting online module replacement and redundant node configurations, the unit can be replaced without a complete power shutdown.

Q: How is backplane power utilization managed across the internal circuitry?

A: The module draws power directly from the system bus rails, maintaining optimized power distribution for its discrete output switching stages.

Field Installation Guidelines

• Insert the module firmly into the designated baseplate slot, ensuring correct backplane pin engagement prior to tightening the front retention screws.
• Terminate external field wiring onto the corresponding terminal blocks, verifying correct polarity and secure cable shielding to suppress electromagnetic interference.
• Ensure ambient cabinet temperatures remain within operational limits with sufficient vertical clearance for natural convection cooling.
