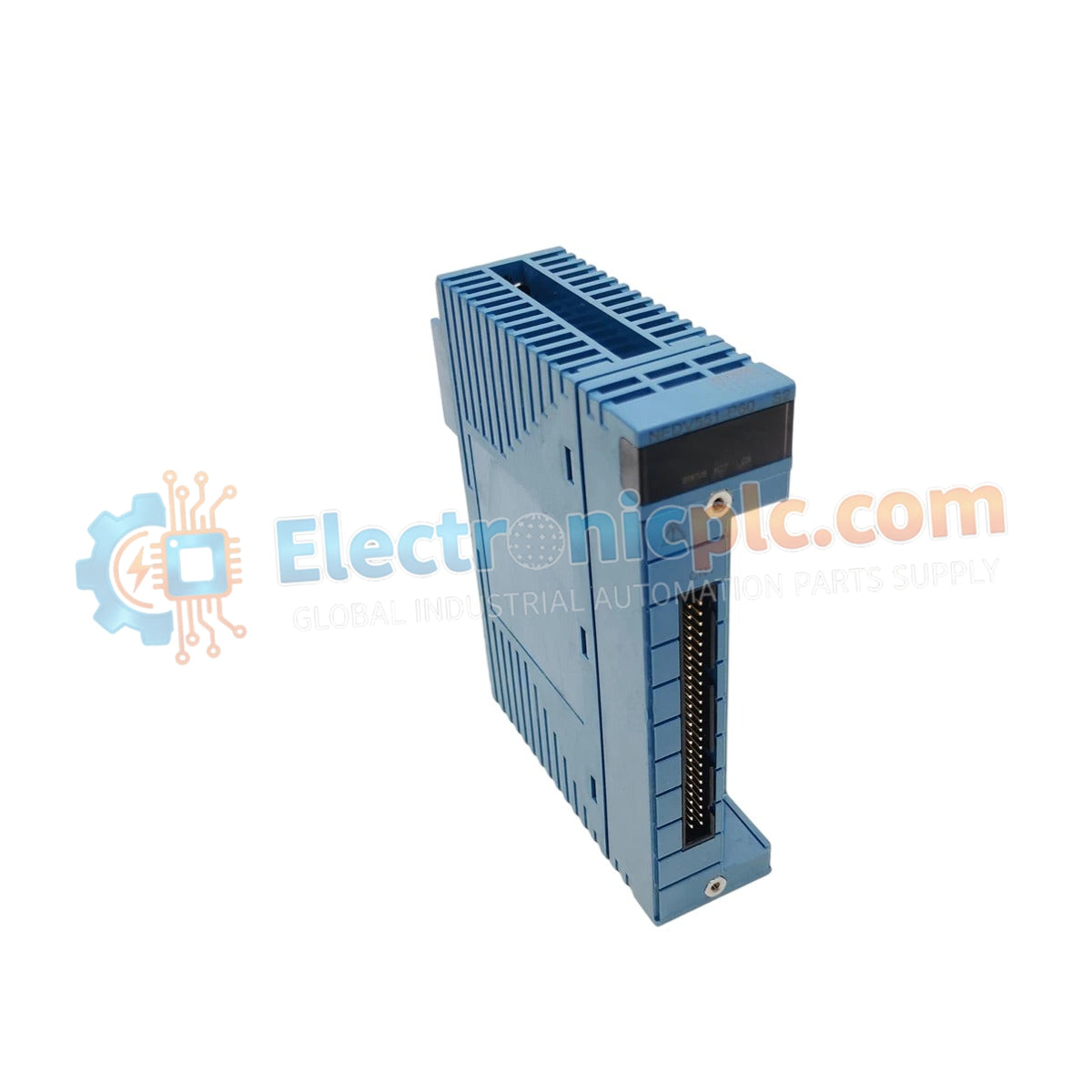

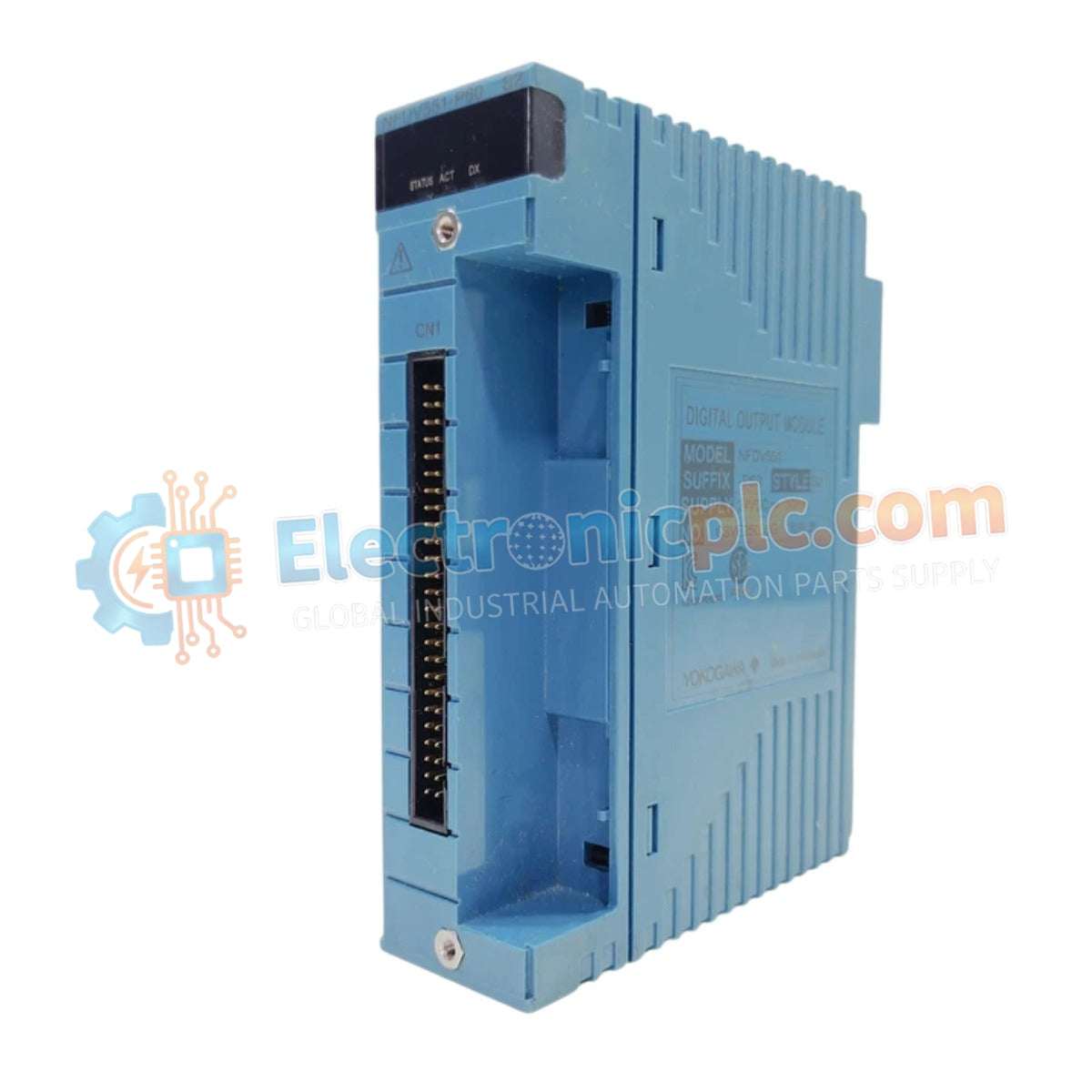

Configured for high-density command execution within STARDOM FCN/FCJ autonomous controller platforms, the YOKOGAWA NFDV557-S00 S2 (NFDV557 Digital Output Module) provides direct physical execution of discrete control signals for field-side relays, valves, and indicators.

Suffix Breakdown & Model Matrix

The NFDV557-S00 S2 follows a structured revision control scheme. The -S00 designator identifies the module as a base configuration high-density output unit, while the S2 suffix signifies the second hardware iteration, ensuring full compatibility with updated backplane bus communication protocols and enhanced electromagnetic compliance standards.

Hardware Specifications

Galvanic Isolation and Fail-Safe State Execution

The NFDV557-S00 S2 incorporates internal galvanic isolation to decouple the controller backplane from the field-side electrical environment. This design is required to suppress common-mode noise and prevent electrical transients—such as inductive kickback from solenoid valves—from propagating back to the FCN/FCJ controller logic. In the event of a system-level fault or loss of communication, the module supports fail-safe state execution, ensuring that digital outputs transition to a predefined safe state to prevent hazardous process conditions.

Frequently Asked Questions

Q: Can the NFDV557-S00 S2 drive high-current loads directly?

A: No. The output stages are designed for logic-level or pilot-duty switching. High-current loads must be interfaced via external interposing relays to prevent thermal damage to the internal module drivers.

Q: Is this module compatible with hot-swapping procedures?

A: Hot-swapping is supported within the STARDOM architecture, provided the system is configured to handle module state changes. Always verify that the process is in a safe condition before removing the module to avoid unintended field device actuation.

Field Installation Guidelines

1. Backplane Seating: Align the module with the FCN/FCJ backplane guide rails. Insert the module until the connectors are fully seated and secure the front-panel locking levers to ensure reliable bus communication.
2. Signal Shielding: All digital output wiring must utilize shielded conductors to minimize crosstalk and susceptibility to electromagnetic interference (EMI) within the control cabinet.
3. Suppressing Inductive Spikes: When switching inductive loads (e.g., solenoids, contactor coils), install flyback diodes or RC snubber circuits at the field device to suppress high-voltage transients that can compromise module longevity.
4. Thermal Management: Ensure at least 30 mm of vertical clearance around the module to facilitate convective airflow. Operating ambient temperatures must remain within 0 deg C to 60 deg C to maintain the rated reliability and accuracy of the output drivers.
