The CC-TDOB01 is a high-performance Input/Output Termination Assembly (IOTA) designed for the Honeywell Experion PKS Series C system. It provides the essential physical and electrical interface for 32-channel bussable digital output modules such as...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

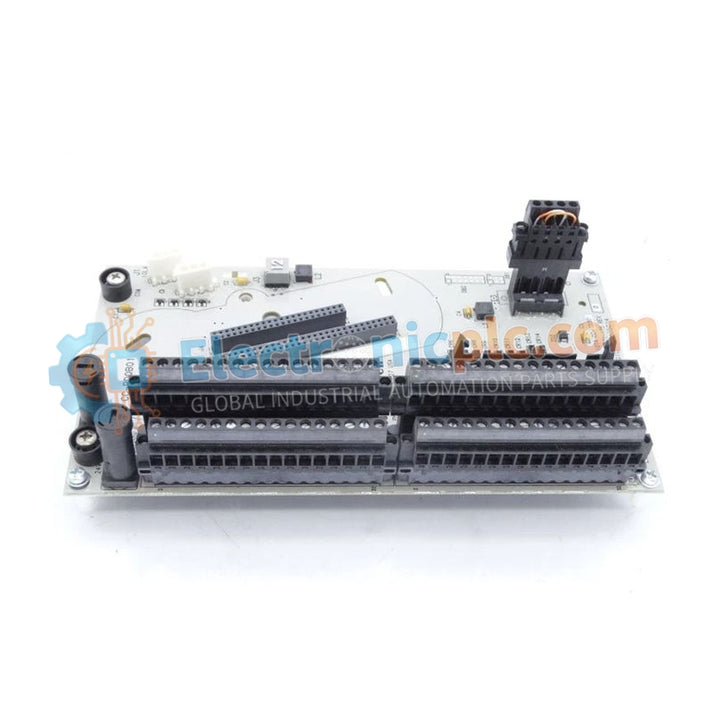

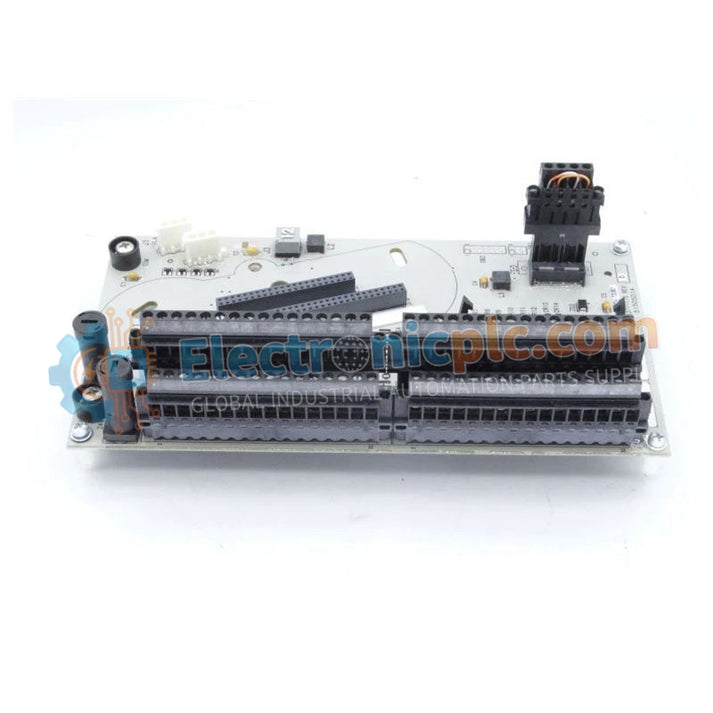

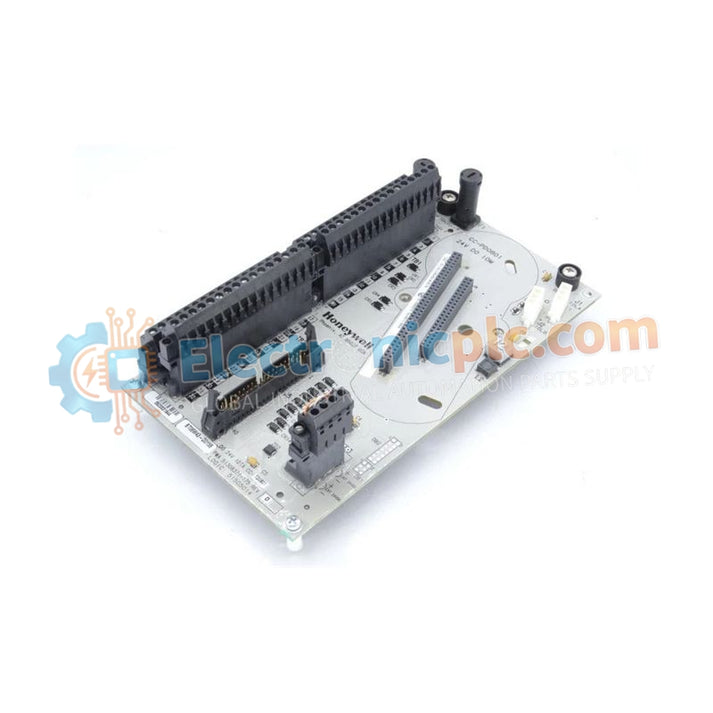

The CC-TDOB01 is a high-performance Input/Output Termination Assembly (IOTA) designed for the Honeywell Experion PKS Series C system. It provides the essential physical and electrical interface for 32-channel bussable digital output modules such as the CC-PDOB01.
This IOTA enables seamless transmission of discrete control signals from the C300 controller to field devices, including relays, solenoid valves, and indicator lamps. Its compact vertical design optimizes cabinet space while maintaining effective thermal management and reliable operation in industrial environments.
The CC-TDOB01 also incorporates integrated 24 VDC power distribution circuitry, supplying stable power to the connected I/O module and simplifying field wiring. Built for durability, it ensures secure, vibration-resistant connections for critical control applications.
| Parameter | Specification |
|---|---|
| Component Type | I/O Termination Assembly (IOTA) |
| Product Family | Series C I/O |
| Model Number | CC-TDOB01 |
| Channel Capacity | 32 Digital Output Channels |
| Configuration | Simplex (Non-Redundant) |
| Compatible Module | CC-PDOB01 Digital Output Module |
| Output Type | Bussable 24 VDC |
| Dimensions | 12.1 × 18.8 × 3.2 cm |
| Net Weight | 0.25 kg |
The CC-TDOB01 is commonly used in centralized control systems within chemical processing plants, oil refineries, and power generation facilities. It is ideal for non-redundant discrete control applications requiring high-density output channels to manage a large number of field devices such as indicators and solenoid actuators from a single termination point.
Can the CC-TDOB01 be used in a redundant configuration?
No. The CC-TDOB01 is a simplex (non-redundant) termination assembly. For high-availability applications, a redundant version such as the CC-TDOB11 is required.
Does this assembly include the electronic output module?
No. The CC-TDOB01 is only the termination assembly. The active electronic module, typically the CC-PDOB01, must be installed separately on the IOTA to complete the output functionality.
