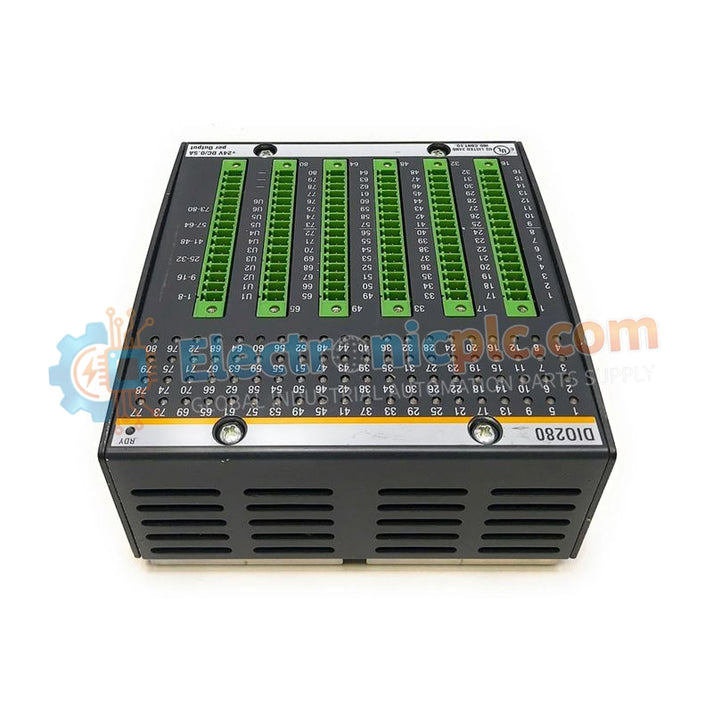

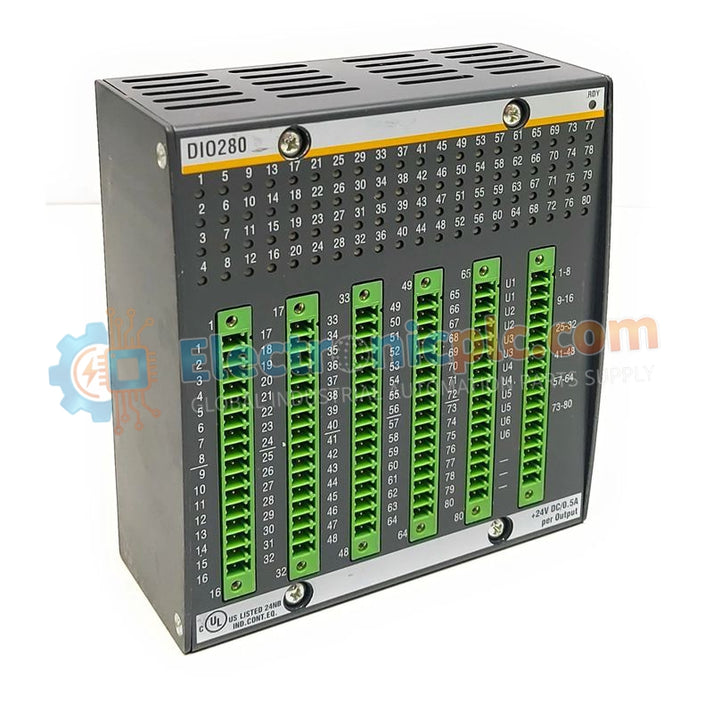

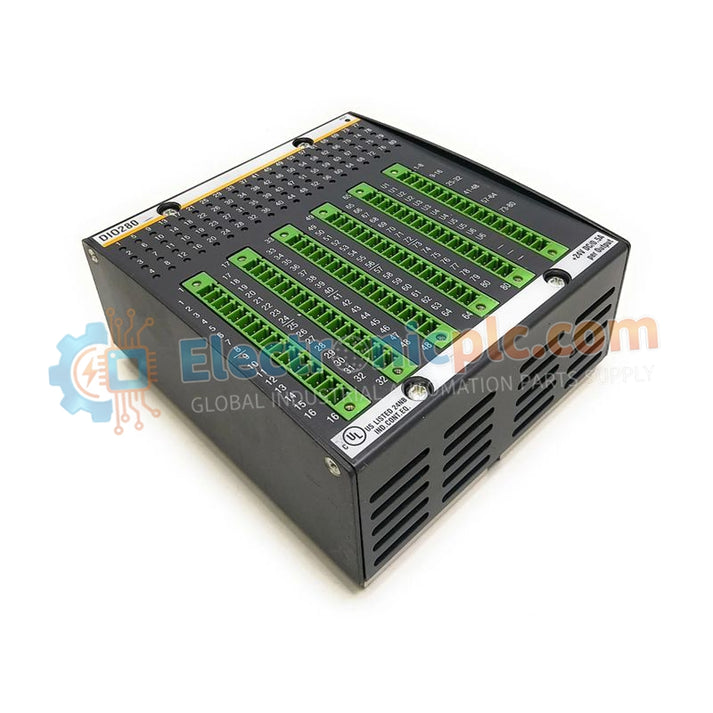

DIO280 Digital I/O Module Bachmann

DIO280 Digital I/O Module Bachmann

Product Description

The Bachmann DIO280 is a high-density digital input/output (I/O) module designed for versatile industrial automation applications. It integrates standard digital I/O functionality with specialized features such as pulse-width modulation (PWM) generation and dedicated counters, enabling precise control...

21 people are viewing this right now

Availability: Low stock: 99 left

SKU: DIO280
Vendor: Bachmann
Category: Digital I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The Bachmann DIO280 is a high-density digital input/output (I/O) module designed for versatile industrial automation applications. It integrates standard digital I/O functionality with specialized features such as pulse-width modulation (PWM) generation and dedicated counters, enabling precise control of machinery and complex process loops.

Engineered for demanding environments, the DIO280 offers a wide operating temperature range, high humidity tolerance, and a compact footprint for efficient integration into control panels. Its 32–48 channel capacity supports scalable control architectures, reducing wiring complexity and panel size requirements.

Technical Specifications

Parameter Specification
Model Number DIO280
Module Type Digital Input/Output (I/O)
Total Input Capacity 32 to 48 channels (depending on configuration)
Input Voltage Range High: 15–34 VDC; Low: 0–5 VDC
Specialized Functions Integrated counters, PWM generation
Physical Dimensions 10.8 cm x 5.7 cm x 12.1 cm (4.3" x 2.3" x 4.8")
Weight 0.4 kg
Operating Temperature -30°C to +60°C

Key Operational Features

  • Multifunctional Performance: Combines high-density digital I/O with advanced PWM generation and counting capabilities, reducing the need for additional specialized modules.

  • Scalable Architecture: Supports up to 48 inputs, optimizing panel layout and minimizing wiring complexity.

  • Environmental Resilience: Reliable operation in high humidity and wide temperature variations, meeting IEC 60664-1 standards.

  • Precision Control: PWM outputs enable proportional actuator control and variable frequency signaling for complex machinery.

Frequently Asked Questions

Can the DIO280 be configured for specific PWM frequencies?
Yes, the PWM generation is programmable to match actuator or valve control requirements.

Does the DIO280 support both high and low voltage signals?
Yes, the module distinguishes "High" inputs (15–34 VDC) from "Low" inputs (0–5 VDC) for clear signal detection in industrial environments.
