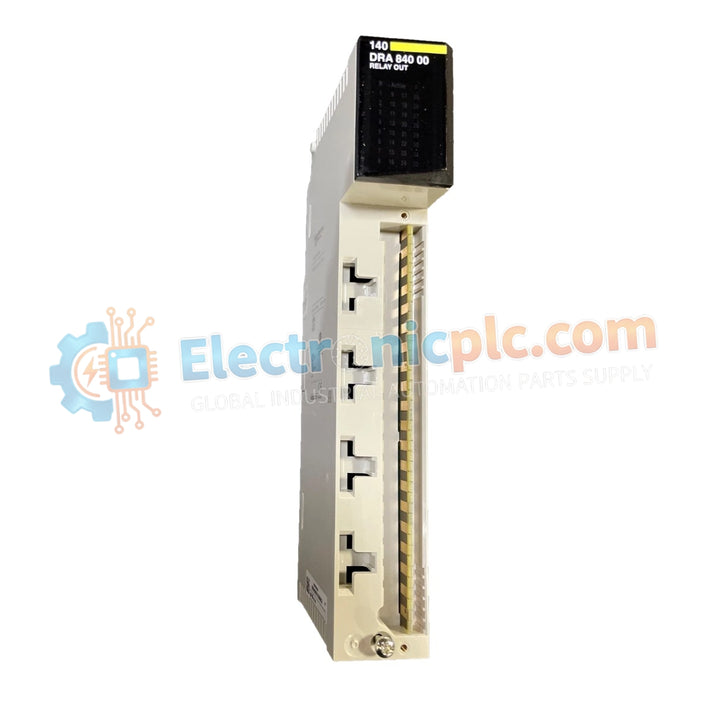

Discrete Output Module Schneider Electric 140DRA84000 Modicon Quantum

Discrete Output Module Schneider Electric 140DRA84000 Modicon Quantum

Product Overview

The Schneider Electric 140DRA84000 is a versatile relay output module for the Modicon Quantum automation platform. It provides 16 independent normally open relay channels, enabling the PLC to...

15 people are viewing this right now

Availability: Low stock: 94 left

SKU: 140DRA84000
Vendor: Schneider
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Schneider Electric 140DRA84000 is a versatile relay output module for the Modicon Quantum automation platform. It provides 16 independent normally open relay channels, enabling the PLC to switch a wide range of AC and DC loads. With true dry-contact switching, it delivers complete electrical isolation, making it suitable for applications requiring flexible voltage handling and robust load control.

Technical Specifications

Parameter Specification
Series Modicon Quantum
Output Type Relay (Normally Open)
Number of Channels 16
Switching Voltage 5–30 V DC / 5–250 V AC
Continuous Current 2 A per point
Maximum Current 16 A per module
Response Time < 10 ms (Pick or Drop)
Net Weight 0.45 kg
Operating Temperature 0°C to 60°C (32°F to 140°F)

Engineering Advantages

Multi-Voltage Versatility
Supports switching of both AC and DC loads across different channels, allowing flexible integration in mixed-voltage control systems.

High-Current Capacity
Each channel supports up to 2A, enabling direct control of solenoids, contactors, and small motors without external intermediate relays.

Zero Leakage Current
Mechanical relay design ensures a true open circuit when off, eliminating leakage current and preventing false triggering of sensitive devices.

Superior Isolation Protection
Provides strong galvanic isolation between field wiring and the PLC backplane, protecting control electronics from surges and electrical noise.

FAQs

Is this module brand new?
Yes, it is supplied as 100% brand new original Schneider Electric equipment in factory packaging.

Can it switch AC and DC loads at the same time?
Yes, each relay channel is independent, allowing mixed AC and DC switching within rated limits.

What is the relay lifespan?
Mechanical life is rated for millions of operations, but electrical life depends on load type. Surge suppression is recommended for inductive loads.

Does it require a terminal block?
Yes, it typically uses a standard 40-pin Quantum terminal block such as the 140XTS00200.
