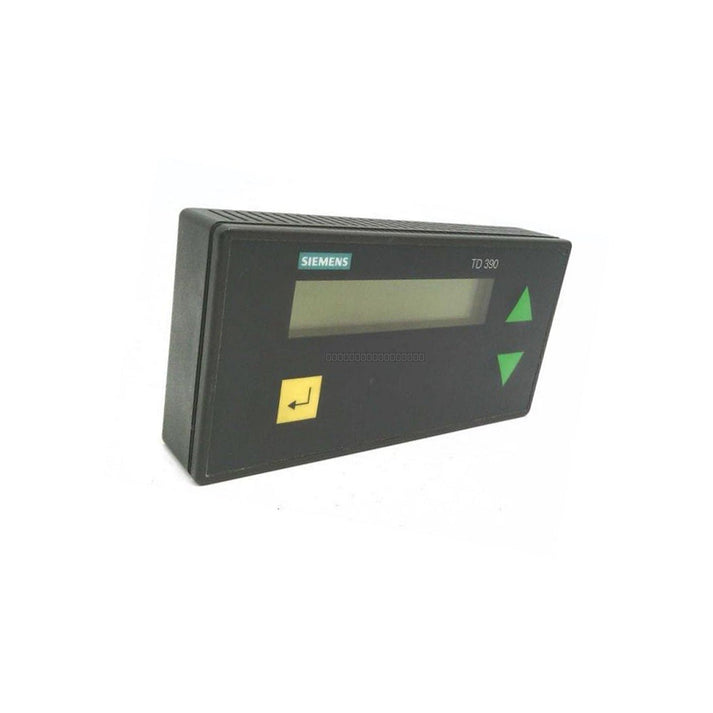

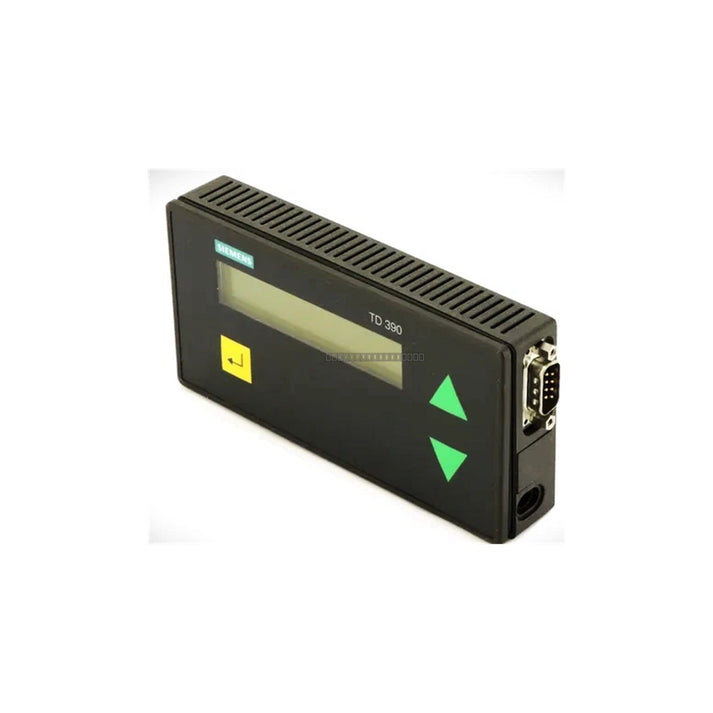

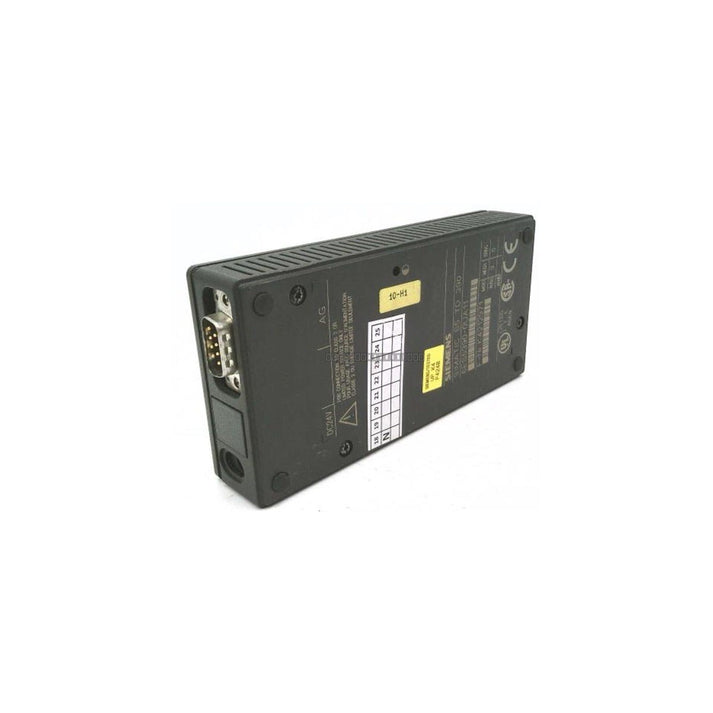

Siemens 6ES5390-0UA11 Simatic S5 TD 390 Text Display Module

Siemens 6ES5390-0UA11 Simatic S5 TD 390 Text Display Module

Description

The Siemens 6ES5390-0UA11 TD 390 is a dedicated text display module designed for the Simatic S5 programmable logic controller series. It functions as a robust human-machine interface (HMI) for systems...

22 people are viewing this right now

Availability: Low stock: 4 left

SKU: 6ES5390-0UA11
Vendor: Siemens
Category: HMI Display Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Siemens 6ES5390-0UA11 TD 390 is a dedicated text display module designed for the Simatic S5 programmable logic controller series. It functions as a robust human-machine interface (HMI) for systems ranging from the S5-90U to the S5-155U/H. By providing real-time diagnostic feedback and operational status messages directly at the machine level, this module enables operators and maintenance personnel to monitor process health and respond to alarms efficiently without the need for a programming terminal.

Features

  • Optimized for Simatic S5 PLC integration.
  • Provides clear, actionable text-based diagnostic information.
  • Compact panel-mount design suitable for space-constrained control cabinets.
  • Includes a factory-integrated 5-meter communication cable for flexible installation.
  • Operates on standard 24 VDC industrial power supplies.
  • Reduces system downtime by facilitating rapid fault identification and troubleshooting.

Applications

The TD 390 is widely utilized in industrial automation environments, including chemical processing plants, power distribution facilities, and automated manufacturing assembly lines where localized operator feedback is critical for maintaining process continuity.

Technical Specifications

Model 6ES5390-0UA11
Brand Siemens Simatic S5
Product Family Simatic S5 HMI
Display Type Text Display (TD 390)
Power Supply 24 VDC
Current Consumption 100 mA
Operating Temperature 0 to 60 degC
Connectivity 5 meter dedicated connection cable

Installation Guidelines

  • Ensure the control cabinet power is disconnected before installing or removing the module.
  • Mount the unit in a clean, dry environment within the specified operating temperature range of 0 to 60 degC.
  • Route the communication cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal integrity.
  • Verify that the 24 VDC power source is stable and properly grounded according to standard industrial practices.
  • Handle the module with care to prevent electrostatic discharge (ESD) damage to internal components.

FAQ

What is the primary function of the TD 390 display?

The TD 390 is designed to display text-based diagnostic messages and status updates from a Siemens Simatic S5 PLC, allowing operators to monitor system performance and identify faults locally.

Is the connection cable included with this module?

Yes, the 6ES5390-0UA11 comes with a factory-integrated 5-meter connection cable for direct interfacing with the PLC.

What power supply is required for this unit?

The module requires a 24 VDC power supply with a current rating of at least 100 mA.
