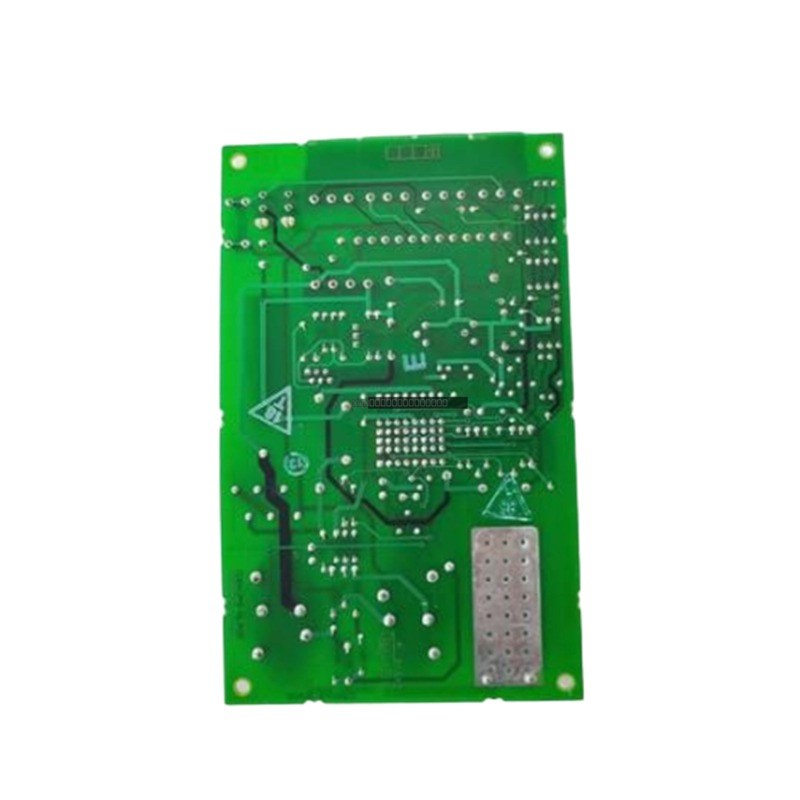

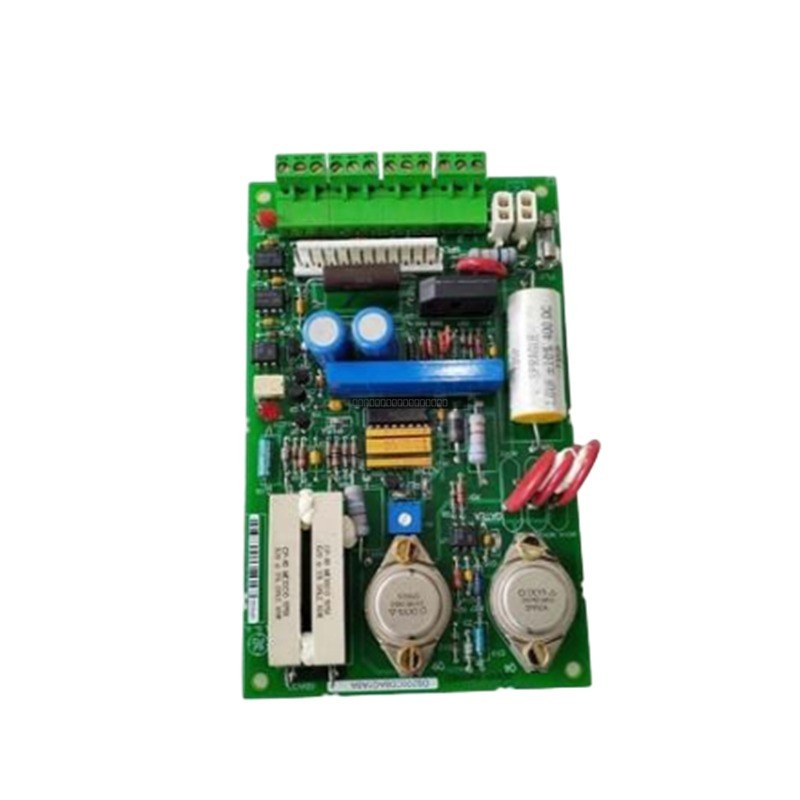

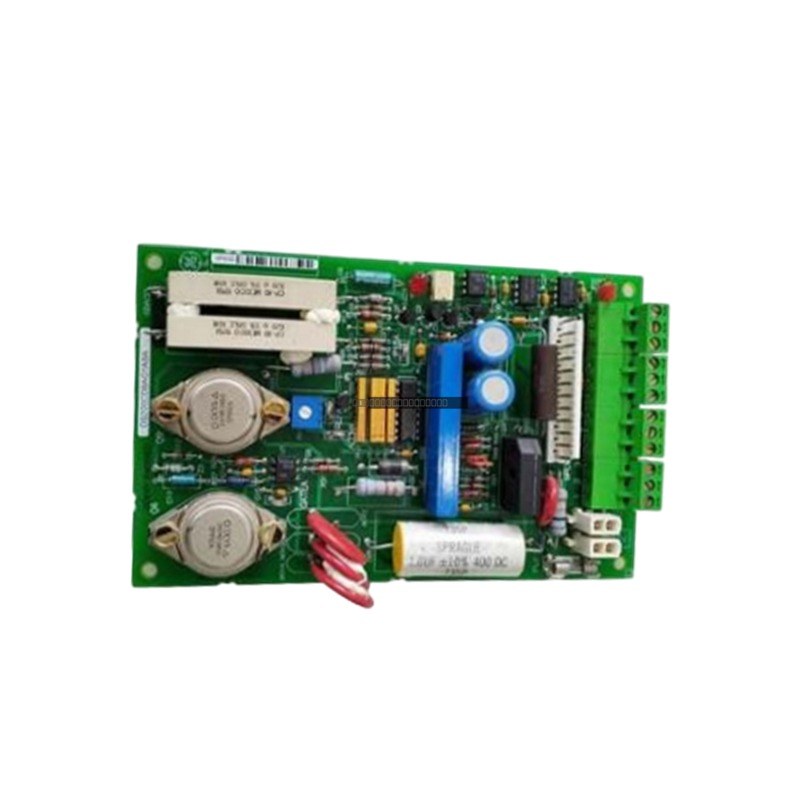

GE Fanuc DS200CDBAG1A Contactor Driver Board

GE Fanuc DS200CDBAG1A Contactor Driver Board

The GE Fanuc DS200CDBAG1A is a specialized contactor driver board designed for the Driver Control series. This PCB assembly serves as a critical interface for managing contactor switching operations in...

25 people are viewing this right now

Availability: Low stock: 9 left

SKU: DS200CDBAG1A
Vendor: GE FANUC
Category: Contactor Driver Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The GE Fanuc DS200CDBAG1A is a specialized contactor driver board designed for the Driver Control series. This PCB assembly serves as a critical interface for managing contactor switching operations in industrial environments, such as power generation and heavy manufacturing. It provides stable coil voltage regulation and includes integrated protection features to support reliable system performance.

Features

  • Integrated 4A, 125V fuse (FU1) for overcurrent protection.
  • Supports a wide input power range of 75 to 140 V ac/dc.
  • Regulates contactor coil voltage output between 30 and 40 V dc.
  • Onboard LED indicator for real-time monitoring of the local contact close command status.
  • Three dedicated test points referenced to CDBA common (ACOM) for diagnostic troubleshooting.

Applications

This driver board is primarily utilized in GE drive control systems to facilitate the reliable operation of contactors. It is commonly found in industrial automation setups where precise control of electromagnetic switching components is required to maintain system stability and reduce operational downtime.

Technical Specifications

Model DS200CDBAG1A
Brand General Electric (GE Fanuc)
Series Driver Control
Input Power 75 to 140 V ac/dc
Coil Voltage Output 30 to 40 V dc
Fuse Rating 4A, 125V
Diagnostic Interfaces 3 Test Points, 1 LED Status Indicator

Installation Guidelines

  • Ensure all power is disconnected from the drive system before attempting to remove or install the PCB.
  • Use appropriate ESD protection when handling the board to prevent static damage to sensitive components.
  • When replacing an existing board, the potentiometer RV1 must be manually calibrated to match the setting of the original unit. Failure to set RV1 correctly, especially when used with DS304-type contactors, may lead to coil failure.
  • Diagnostic measurements must be performed using isolated test equipment. Because the ACOM reference is distinct from the drive common, standard non-isolated equipment may cause short circuits or signal interference.

FAQ

Is the ACOM reference the same as the drive common?

No, the CDBA common (ACOM) is electrically distinct from the drive common. Technicians must use isolated measurement tools to avoid damaging the board or obtaining incorrect readings.

What is the function of the potentiometer RV1?

RV1 is used to calibrate the output characteristics of the board. It is essential that this setting is transferred from the old unit to the new unit during replacement to ensure compatibility with the connected contactor.
