Description

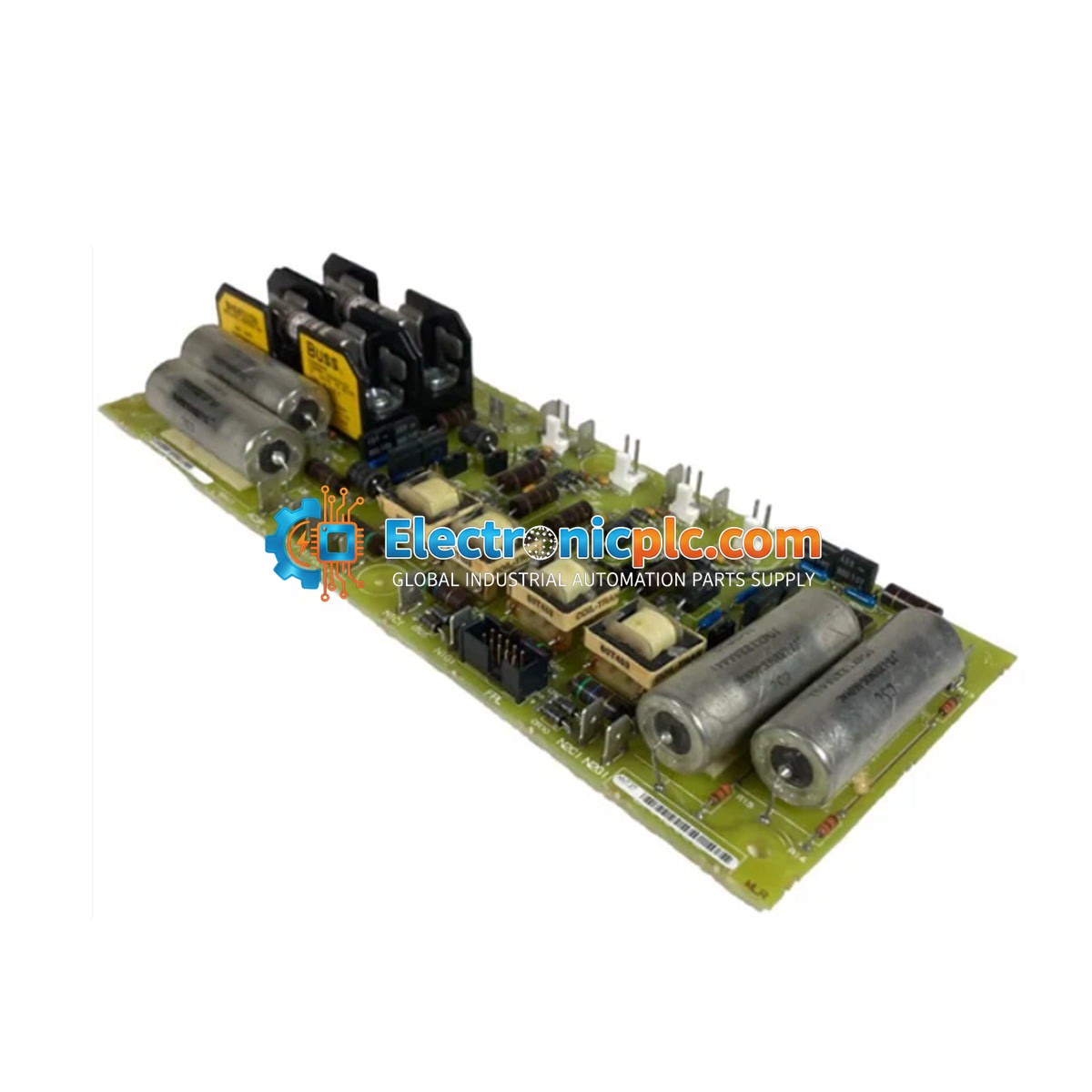

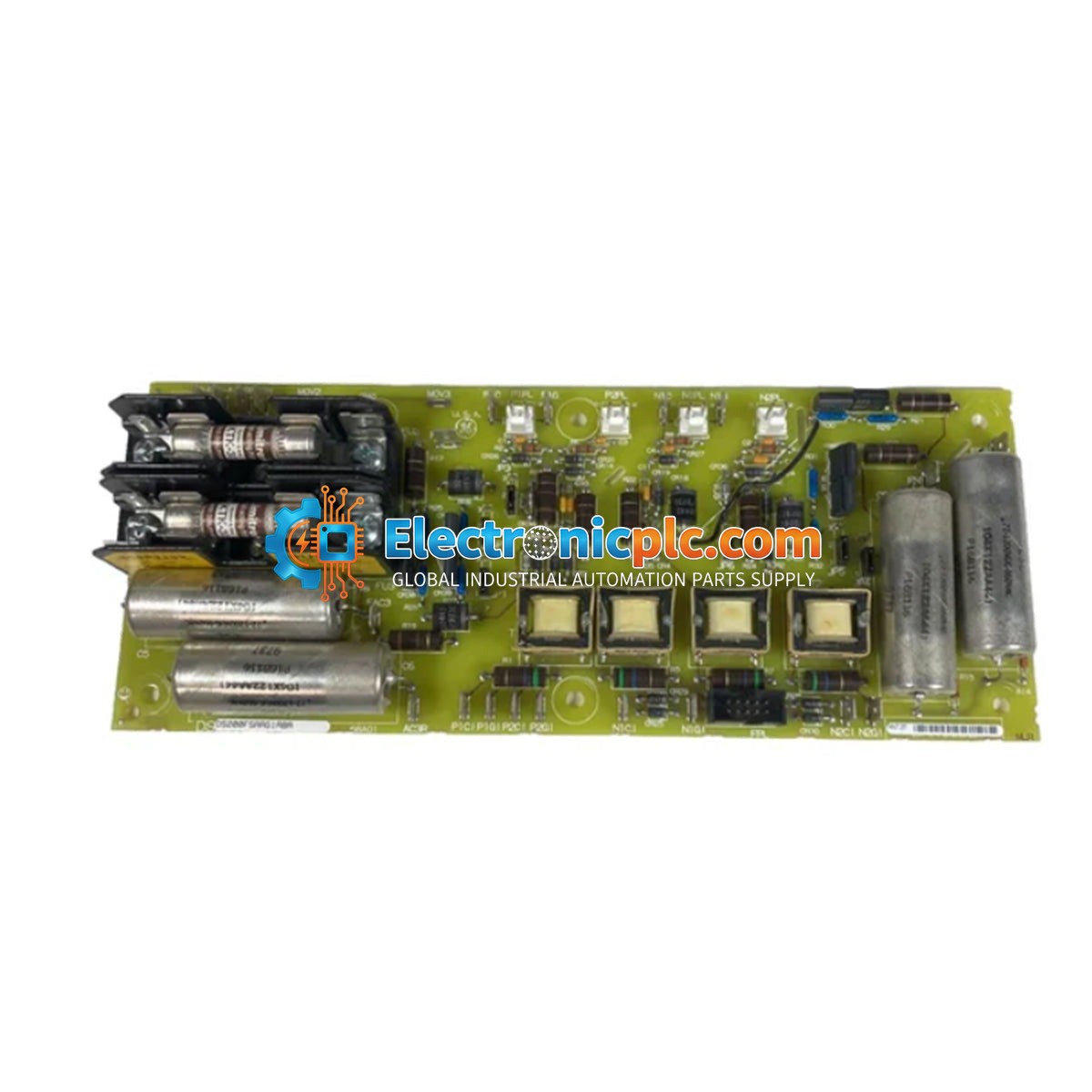

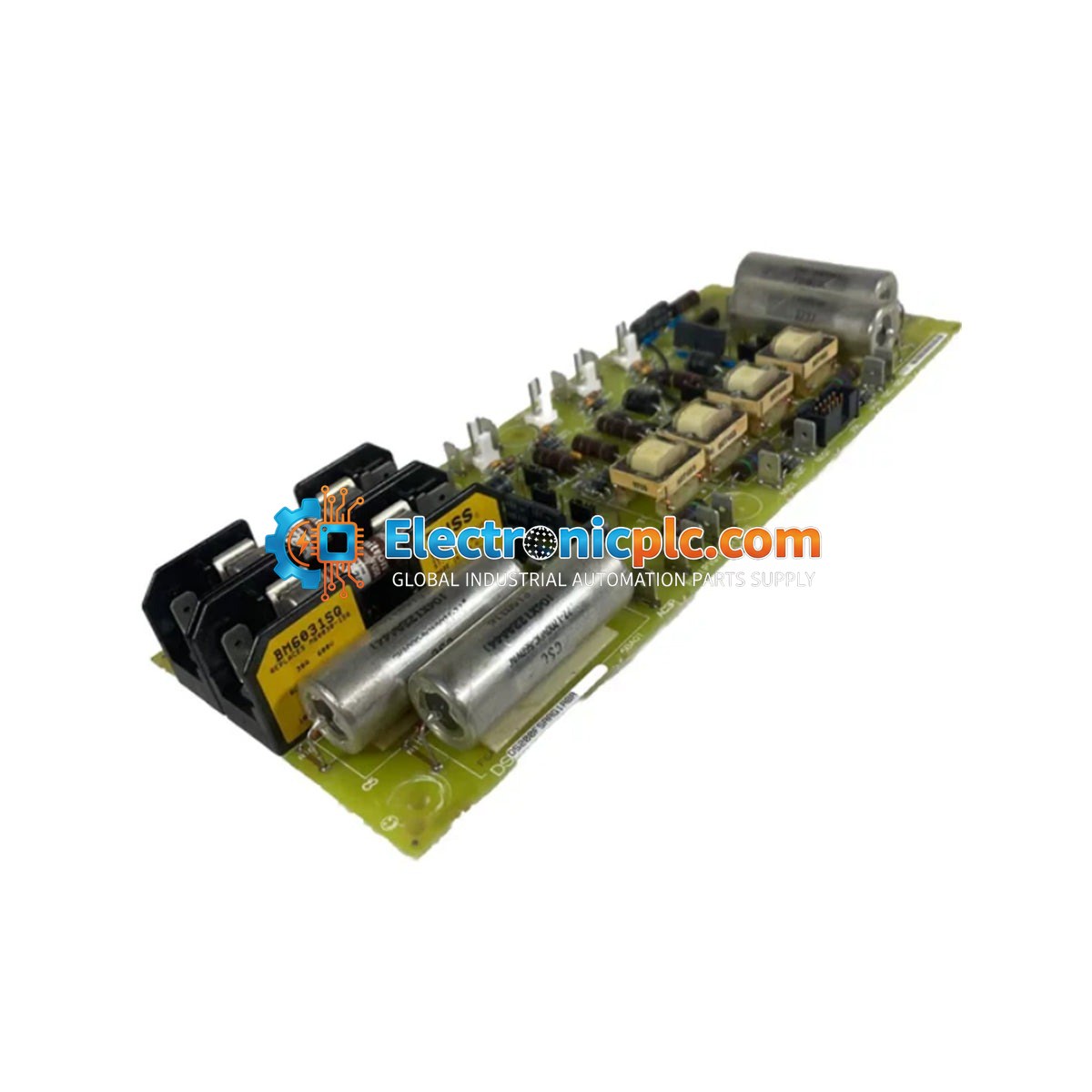

The DS200FSAAG1ABA is a Field Supply Gate Amplifier (FSAA) board designed for the GE Mark V Speedtronic turbine control system. This printed circuit board serves as a critical component in the regulation and amplification of field supply signals for gas and steam turbine automated drives. By ensuring stable excitation current and signal integrity, the board facilitates precise gate control for power conversion modules, helping to maintain operational stability and prevent unplanned downtime in power generation and industrial turbine facilities.

Features

• System Integration: Engineered specifically for the Mark V Speedtronic control rack architecture.
• Signal Processing: Provides reliable amplification and gate control for field supply signals.
• Hardware Interface: Equipped with a 10-pin primary connector for secure system integration.
• Circuit Protection: Includes two onboard fuses to safeguard logic circuitry against overcurrent conditions.
• Calibration: Features 5 configurable jumpers and multiple hardware test points for precise tuning and real-time signal monitoring.
• Revision Status: Incorporates functional revisions A and B with artwork revision A for enhanced performance.

Applications

This module is primarily utilized in power generation plants and industrial turbine control environments. It is essential for the maintenance and repair of Mark V Speedtronic systems, specifically within the excitation and power conversion sections of turbine control.

Technical Specifications

Installation Guidelines

• ESD Precautions: This board is a static-sensitive device. Always use a properly grounded anti-static wrist strap and work on an ESD-safe surface when handling.
• Power Down: Ensure all power to the Mark V control rack is disconnected before attempting to install or remove the module.
• Seating: Ensure the 10-pin connector is fully seated and aligned correctly within the rack slot to prevent pin damage.
• Configuration: Verify jumper settings match the requirements of the specific turbine application before commissioning.

FAQ

Is the DS200FSAAG1ABA compatible with all Mark V systems?

This board is part of the FSAA functional series. While it is designed for the Mark V Speedtronic system, compatibility depends on the specific revision requirements of your existing control hardware. Always verify the part number and revision history against your current system documentation.

What is the purpose of the onboard fuses?

The two integrated fuses provide essential overcurrent protection for the board's logic circuitry, preventing damage to the PCB in the event of a power surge or electrical fault within the field supply loop.
