Description

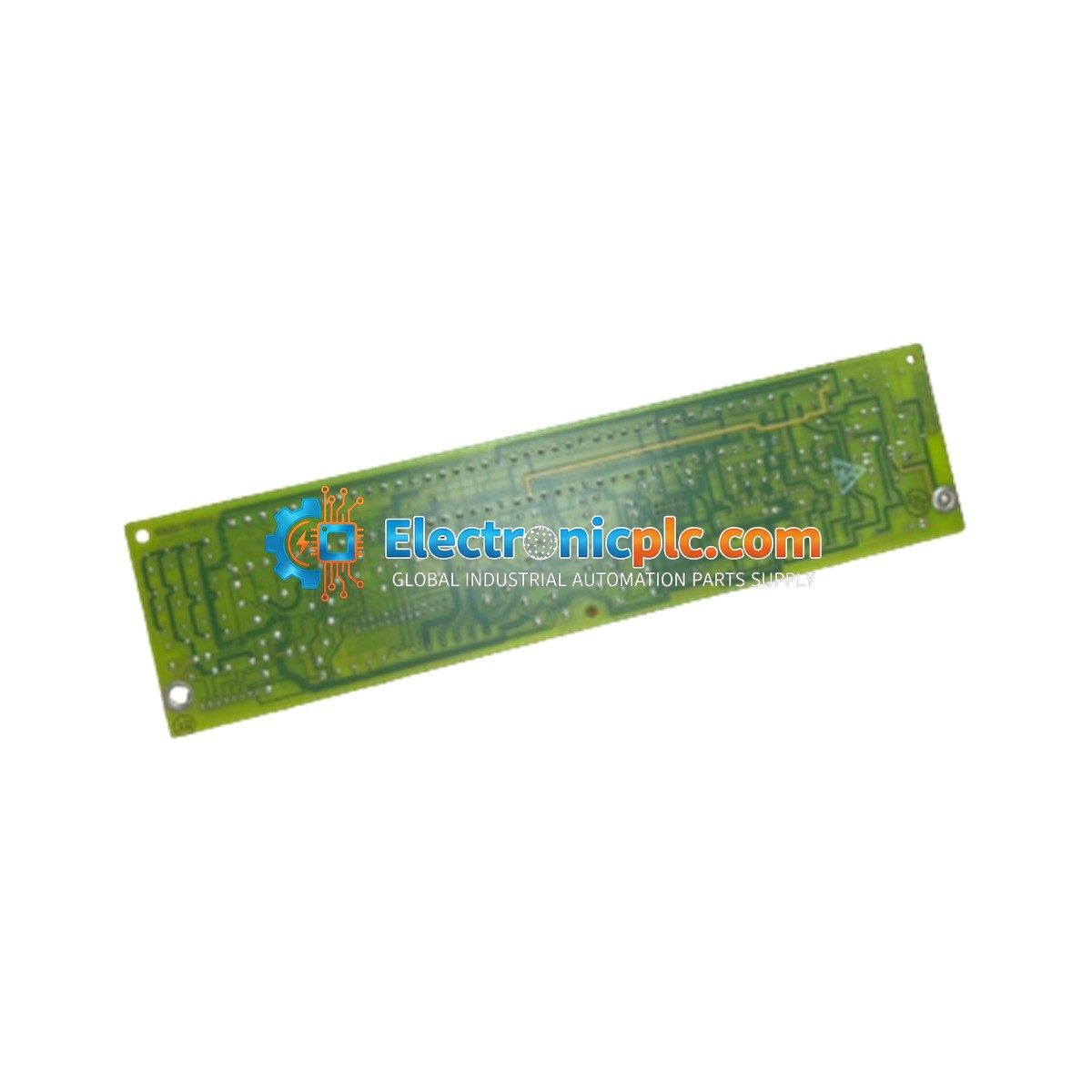

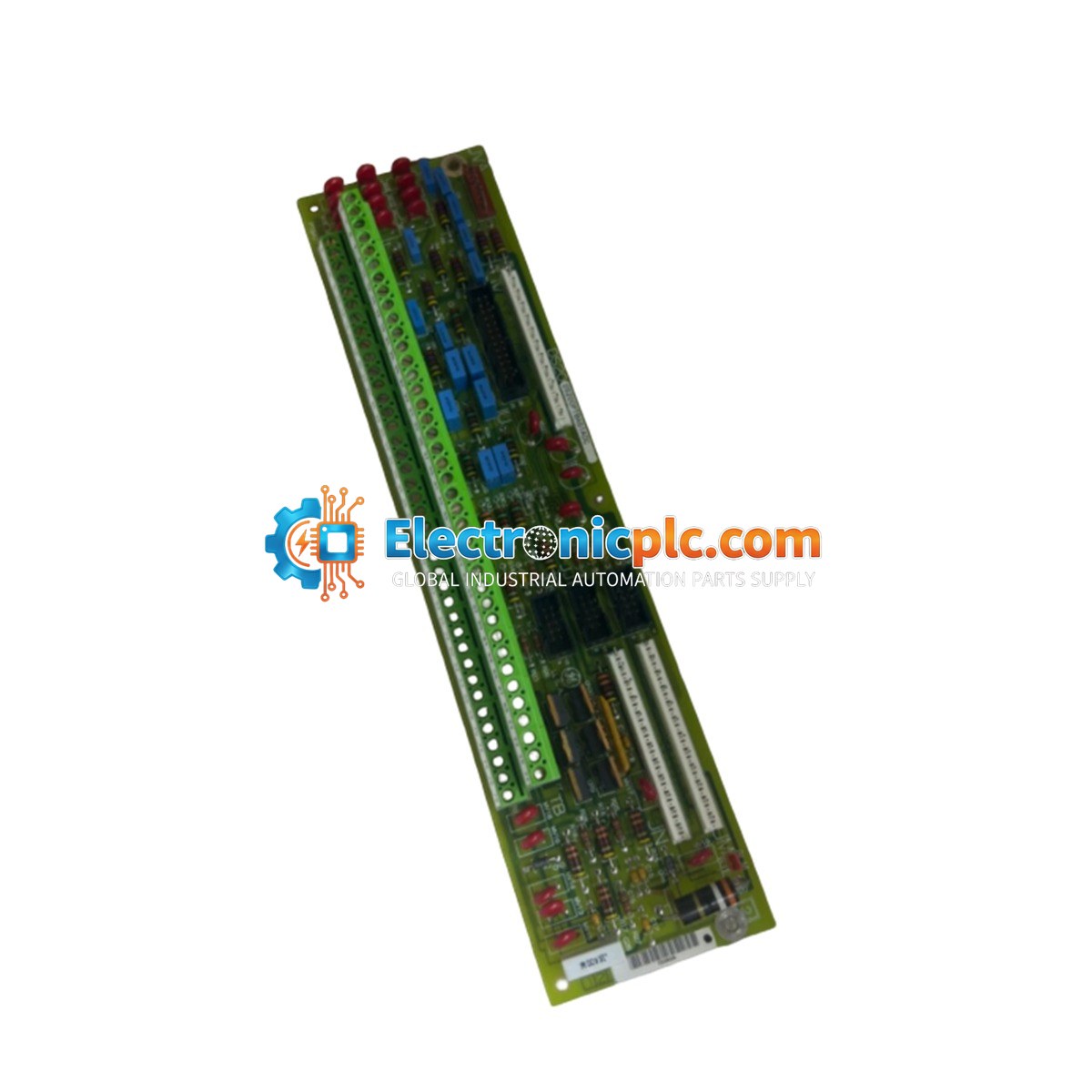

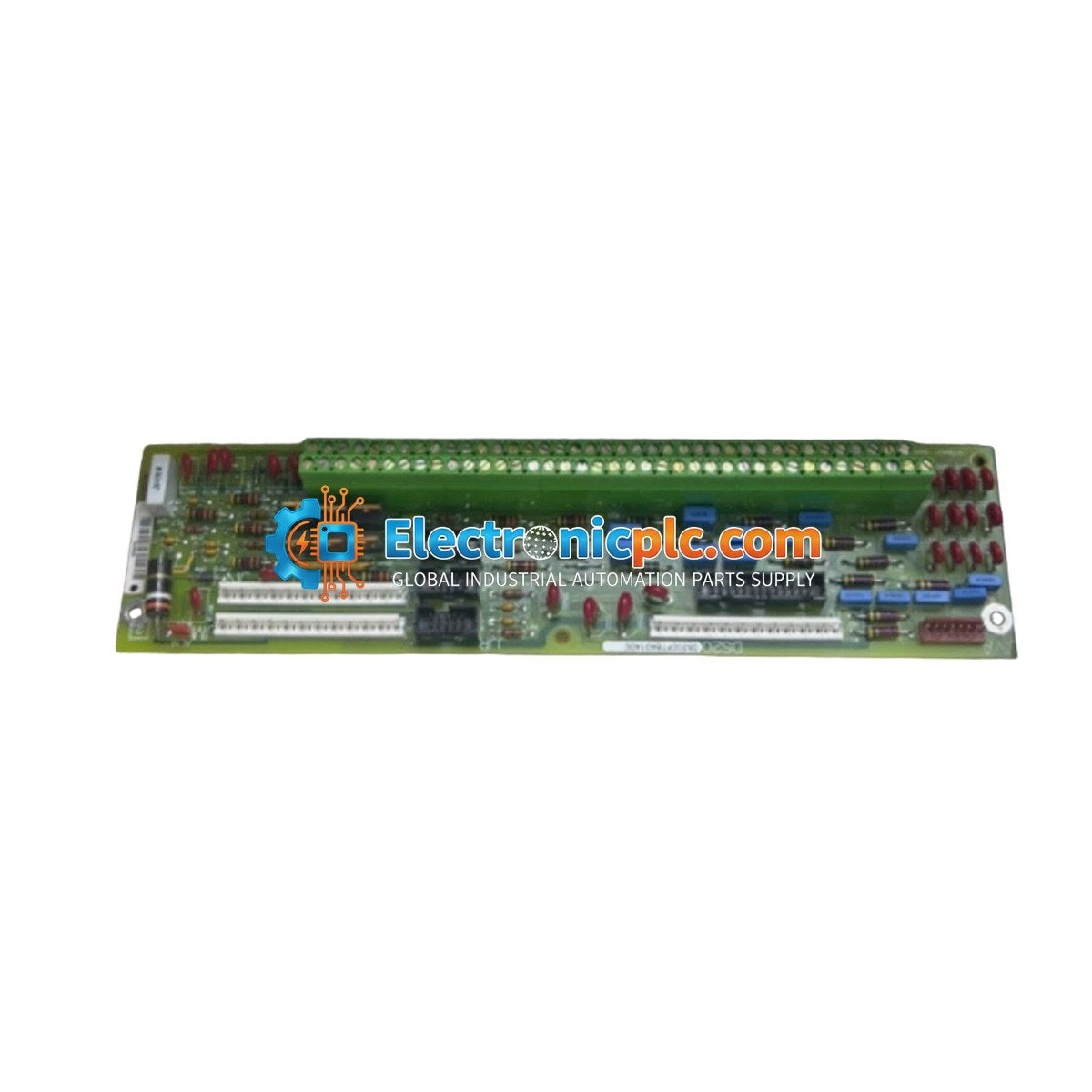

The DS200PTBAG1A is a high-integrity Protection Termination Module engineered for the General Electric Mark V Turbine Control System. As a core component of the Speedtronic control architecture, this board facilitates the interface between field devices and the automated assembly controller for gas and steam turbine management. Primarily deployed in power generation facilities and heavy industrial turbine sets, the DS200PTBAG1A ensures the reliable execution of emergency protection loops. Its design prioritizes system stability and deterministic response times, which are critical for safeguarding turbine assets and reducing operational downtime in mission-critical environments.

Features

• Speedtronic Technology: Utilizes GE-patented Speedtronic control logic for robust protection capabilities tailored for turbine synchronization and thermal management.
• Termination Layout: Serves as a primary termination point for field wiring, featuring a structured interconnect layout to streamline troubleshooting and system maintenance.
• Connector Configuration: Includes the JJS/T connector port, integrated for hardware-level compatibility within the Mark V architecture.
• Reliability: Designed as a single-revision PCB, maintaining strict adherence to original Mark V technical specifications for legacy system support.

Applications

This module is specifically designed for use within the GE Mark V Speedtronic series. It is typically found in power generation plants, utility-scale gas turbine control panels, and steam turbine management systems where high-speed protection and reliable signal termination are required.

Technical Specifications

Installation Guidelines

• ESD Protection: Always handle the PCB by its edges. Use a grounded wrist strap and an anti-static mat when handling the module to prevent electrostatic discharge damage to sensitive components.
• Power Status: Ensure all power to the Mark V rack is disconnected before inserting or removing the module.
• Mounting: Ensure the module is securely seated in the designated slot. If using stand-offs, ensure they are tightened to provide a stable, vibration-resistant connection.
• Wiring: Verify that all field wiring is properly labeled and securely terminated to the board terminals. Ensure that shielded cables are properly grounded at the designated termination points to minimize EMI interference.
• Environment: Maintain the cabinet environment within the specified 0 to 60 deg C range to ensure long-term component reliability.

FAQ

Is the JJS/T connector on the DS200PTBAG1A used in all applications?

In standard Group 1 applications, the JJS/T connector is designated as an unused port, but it remains on the board for hardware-level compatibility and specific system configurations.

What is the primary function of this module?

The DS200PTBAG1A acts as a termination interface for field devices, routing signals to the Mark V controller to facilitate emergency protection and turbine management functions.
