GE Fanuc DS200TBQBG1A Mark V Input Termination Module

GE Fanuc DS200TBQBG1A Mark V Input Termination Module

Description

The DS200TBQBG1A is a high-density Input Termination Module designed for the General Electric Mark V Speedtronic turbine control system. This terminal board serves as a critical interface for signal acquisition,...

23 people are viewing this right now

Availability: Low stock: 6 left

SKU: DS200TBQBG1A
Vendor: GE FANUC
Category: Input Termination Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

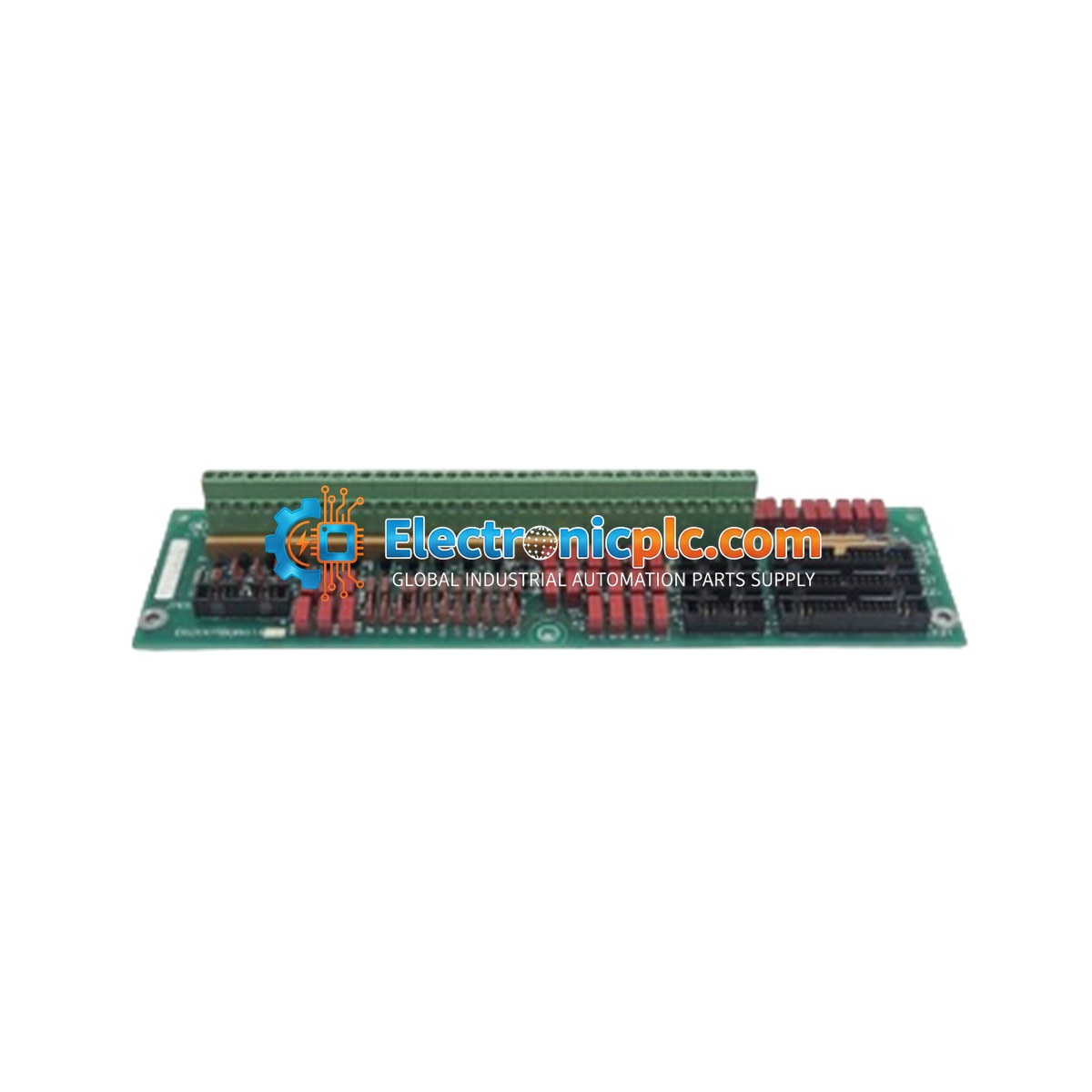

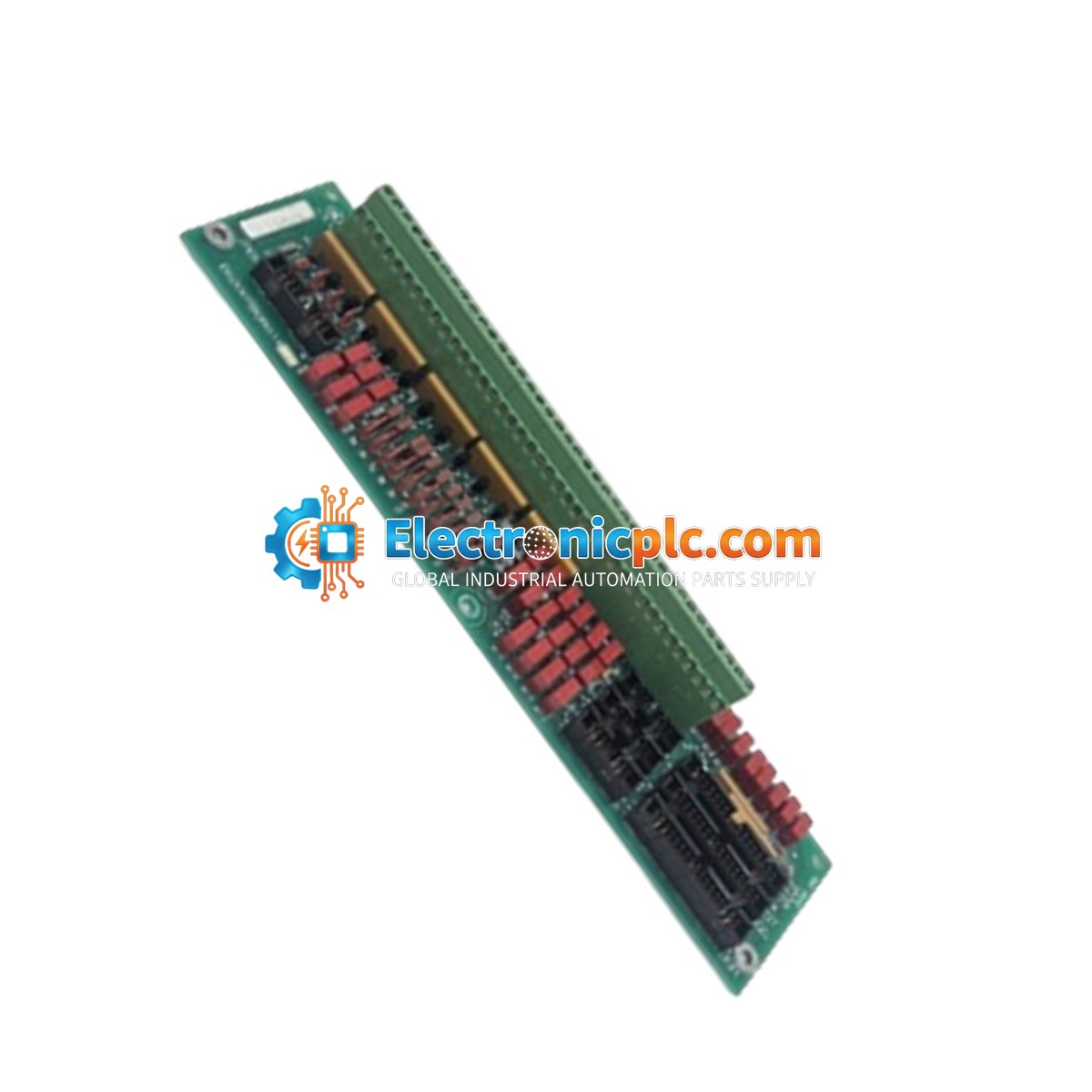

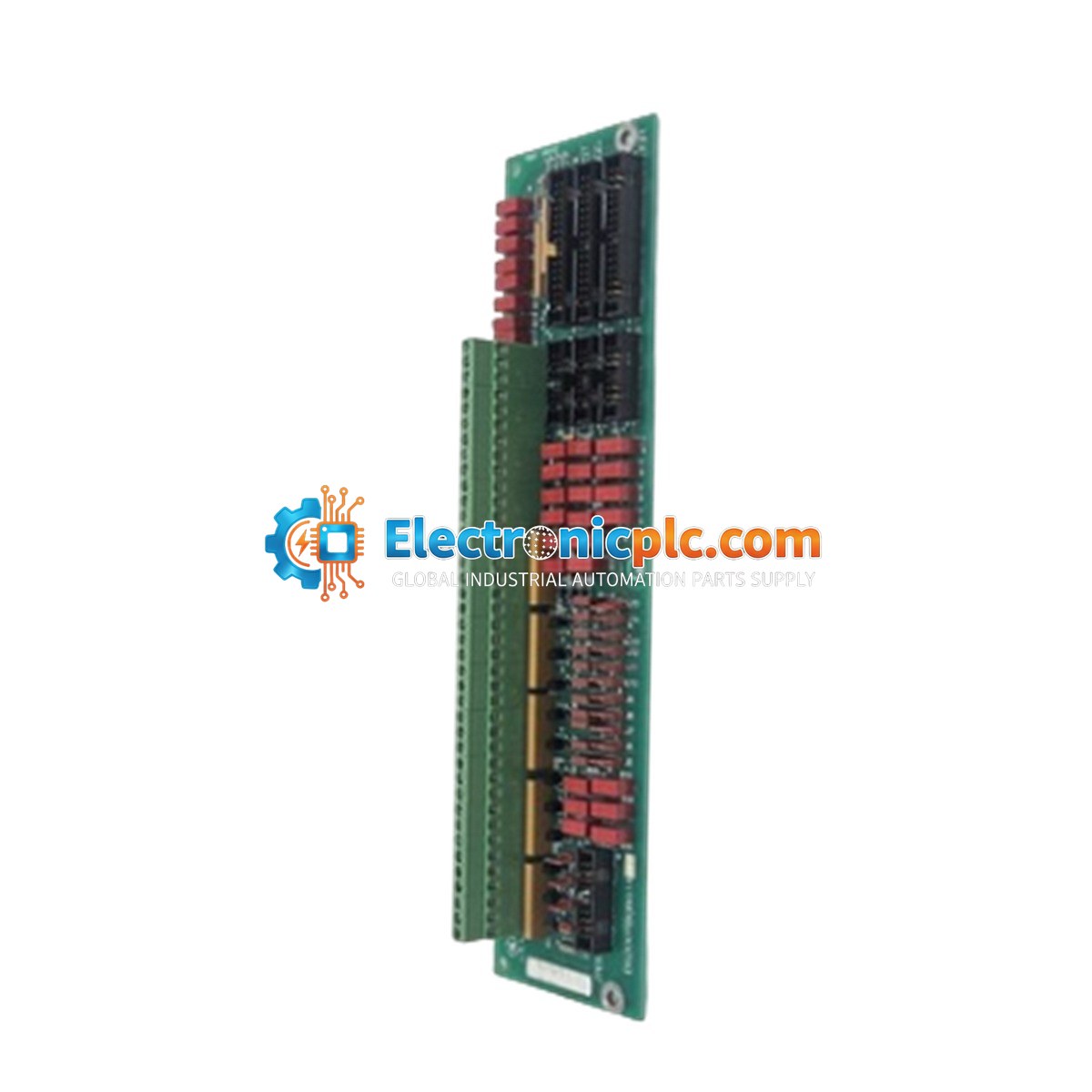

The DS200TBQBG1A is a high-density Input Termination Module designed for the General Electric Mark V Speedtronic turbine control system. This terminal board serves as a critical interface for signal acquisition, specifically handling analog current, voltage, vibration, and pulse rate inputs. It is typically installed in the seventh position of the R2 and R3 cores, acting as the primary bridge between field instrumentation and the TCQA/TCQC processing boards within the control rack. The module is essential for maintaining signal integrity in power generation and heavy industrial drive applications, including compressor stall detection and shaft monitoring.

Features

  • Designed for integration with GE Mark V Speedtronic control systems.
  • Supports diverse signal types including voltage, current, vibration, and pulse rate.
  • Features JGR and JHR connectors for direct communication with TCQA and TCQC processing boards.
  • On-board jumper configuration (BJ1-BJ15) for signal fanning, burden resistor installation, and voltage/current mode selection.
  • Engineered for high-reliability signal conditioning in turbine control environments.

Applications

  • Power generation turbine control systems.
  • Compressor stall detection monitoring.
  • Shaft vibration and speed monitoring.
  • Heavy industrial drive control and instrumentation.

Technical Specifications

Model DS200TBQBG1A
Brand General Electric (GE)
Product Line Mark V Speedtronic
Module Type Input Termination Module (TBQB)
Input Signal Types Voltage, Vibration, Pulse Rate, Analog Current
Signal Connections JGR (Analog/Vibration), JHR (Stall/Pulse)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5% to 95% non-condensing

Installation Guidelines

  • Ensure the control rack is powered down before inserting or removing the module to prevent electrical damage.
  • Verify correct jumper settings (BJ1-BJ15) based on your specific field instrumentation requirements prior to installation.
  • Handle the board using ESD-safe practices to prevent damage to sensitive electronic components.
  • Ensure secure seating in the R2/R3 core position 7.
  • Route signal cables away from high-EMI sources to maintain signal integrity for vibration and pulse rate inputs.

FAQ

What is the primary function of the DS200TBQBG1A?

The DS200TBQBG1A acts as an input termination board for the Mark V system, conditioning and routing field signals like vibration and analog current to the TCQA and TCQC processing boards.

Can this module be configured for different signal types?

Yes, the board features configurable jumpers (BJ8-BJ15) that allow the user to select between voltage and current modes, as well as jumpers for burden resistor installation.

Where is this module installed in the Mark V rack?

It is specifically designed for placement in the seventh position of the R2 and R3 cores.
