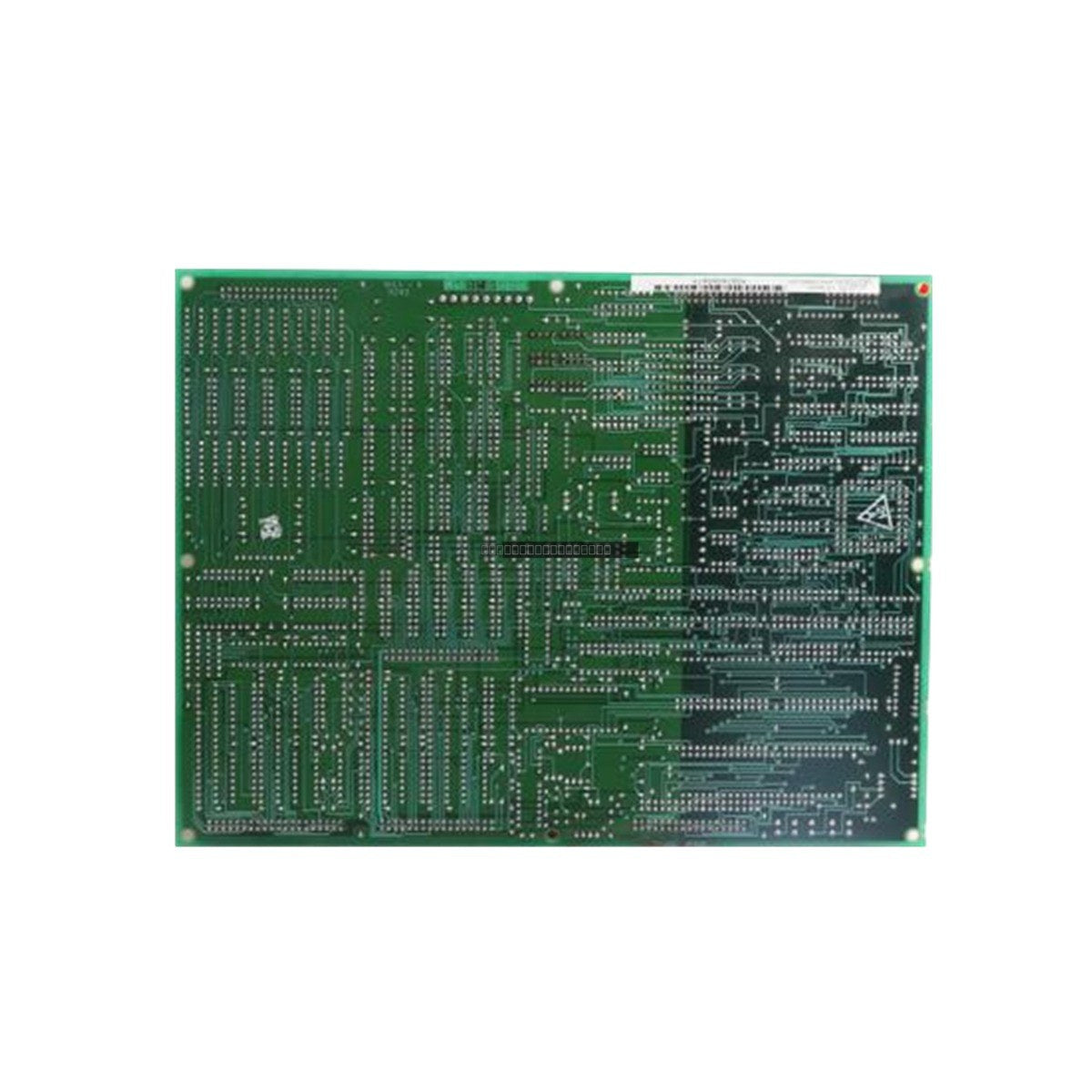

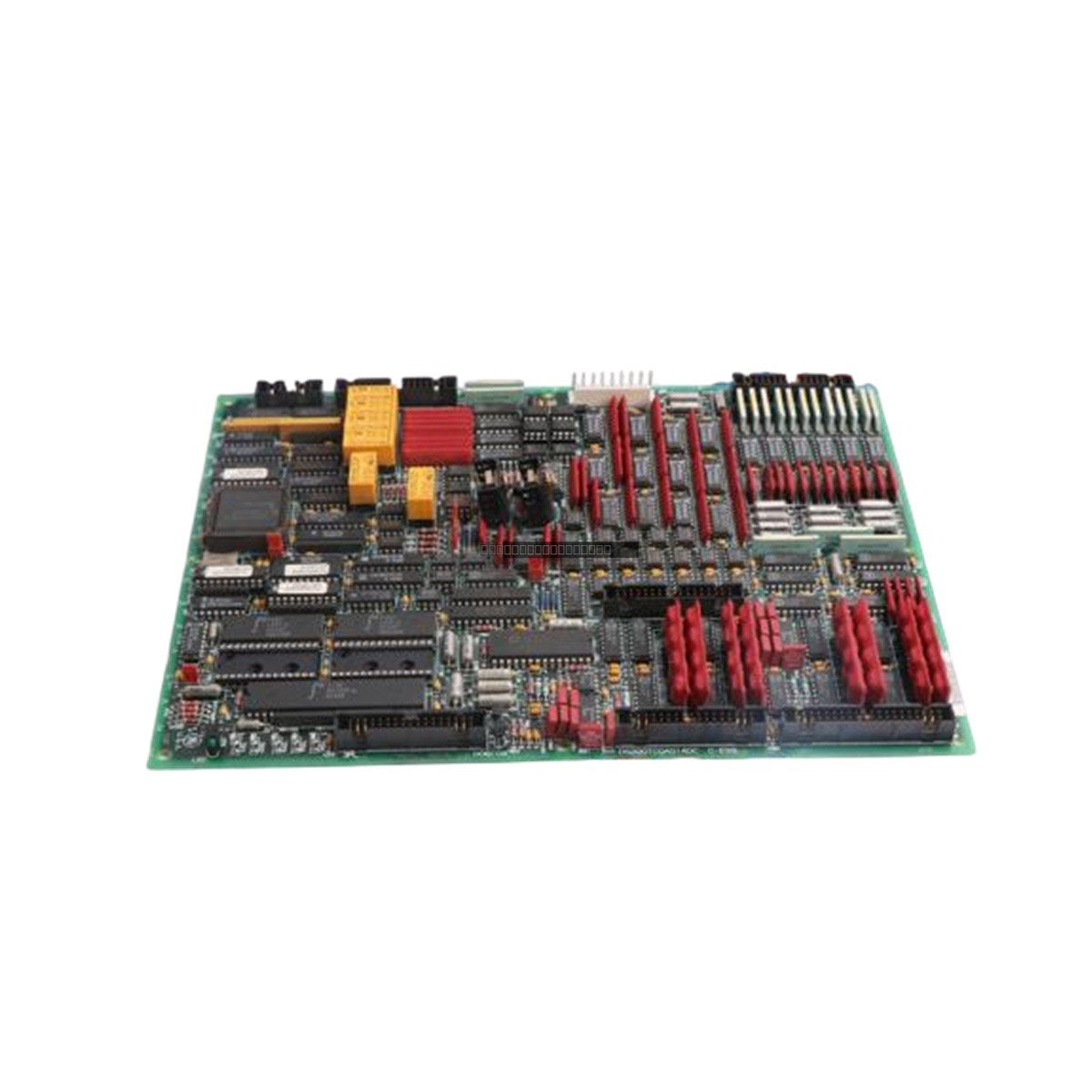

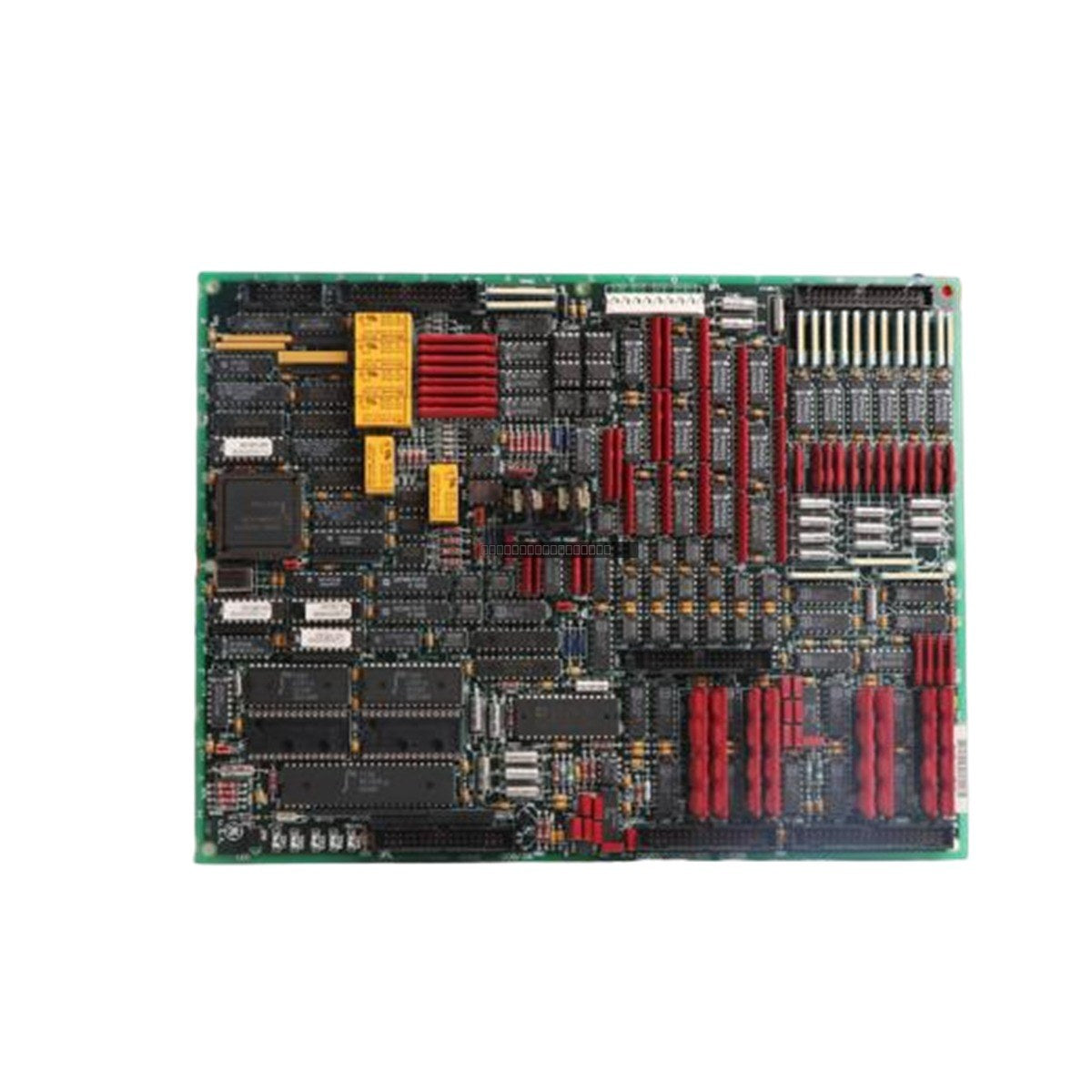

GE Fanuc DS200TCQAG1A Mark V Analog I/O Board

GE Fanuc DS200TCQAG1A Mark V Analog I/O Board

Description

The DS200TCQAG1A is an Analog I/O Board designed for the GE Mark V turbine control system. This module serves as a critical interface for signal conditioning and scaling, processing inputs...

18 people are viewing this right now

Availability: In stock

SKU: DS200TCQAG1A
Vendor: GE FANUC
Category: Analog I/O Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The DS200TCQAG1A is an Analog I/O Board designed for the GE Mark V turbine control system. This module serves as a critical interface for signal conditioning and scaling, processing inputs from terminal boards within the R1, R2, and R3 I/O cores. It is engineered to handle a wide range of industrial signals, including LVDT feedback, thermocouple monitoring, 4-20 mA control signals, vibration analysis, and servo valve regulation, ensuring high-speed data exchange and operational stability within power generation control loops.

Features

  • Supports diverse signal types including pulse, voltage, and 4-20 mA current loops.
  • Facilitates complex feedback loops for fuel flow, pressure, and compressor stall detection.
  • High-speed communication via dedicated 3PL and JE board-to-board connectors.
  • Modular architecture designed for integration into the Mark V control environment.
  • Optimized for high-reliability turbine regulation and instrumentation.

Applications

This board is primarily utilized in GE Mark V turbine control systems to manage critical feedback loops. It is essential for applications involving generator and line signal processing, servo valve control, and comprehensive sensor monitoring in power plant environments.

Technical Specifications

Model DS200TCQAG1A
Series Mark V
Brand GE Fanuc
Product Type Analog I/O Board
Signal Conditioning LVDT, Thermocouple, 4-20 mA, Vibration, Pulse, Voltage
Communication 3PL (to STCA), JE (to TCQC)
Operating Temperature 0 to 60 degC

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the module from the I/O core.
  • Handle the board using proper ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive components.
  • Verify that all connectors, specifically the 3PL and JE interfaces, are fully seated and secured to ensure reliable signal transmission.
  • Ensure the environment meets the specified operating temperature range of 0 to 60 degC to maintain long-term reliability.
  • Route signal cables away from high-EMI sources to minimize noise interference on analog input channels.

FAQ

What system is the DS200TCQAG1A designed for?

The DS200TCQAG1A is specifically engineered for the GE Mark V turbine control system.

What types of signals does this board process?

This board processes a variety of signals including LVDT, thermocouple, 4-20 mA, vibration, pulse, and voltage inputs.

How does this board communicate with other modules?

It utilizes a 3PL connector for communication with the STCA board and a JE connector for bi-directional data exchange with the TCQC board.
