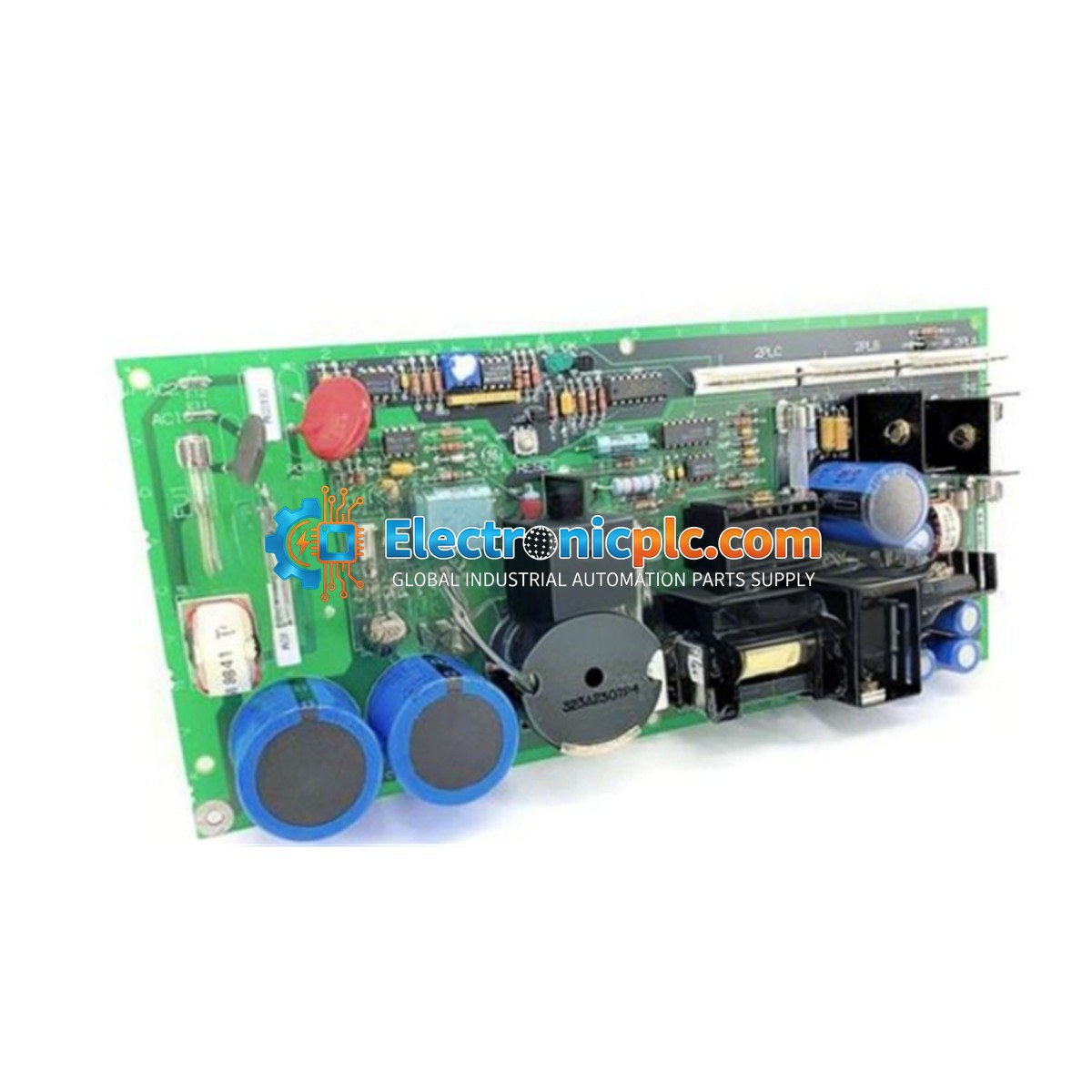

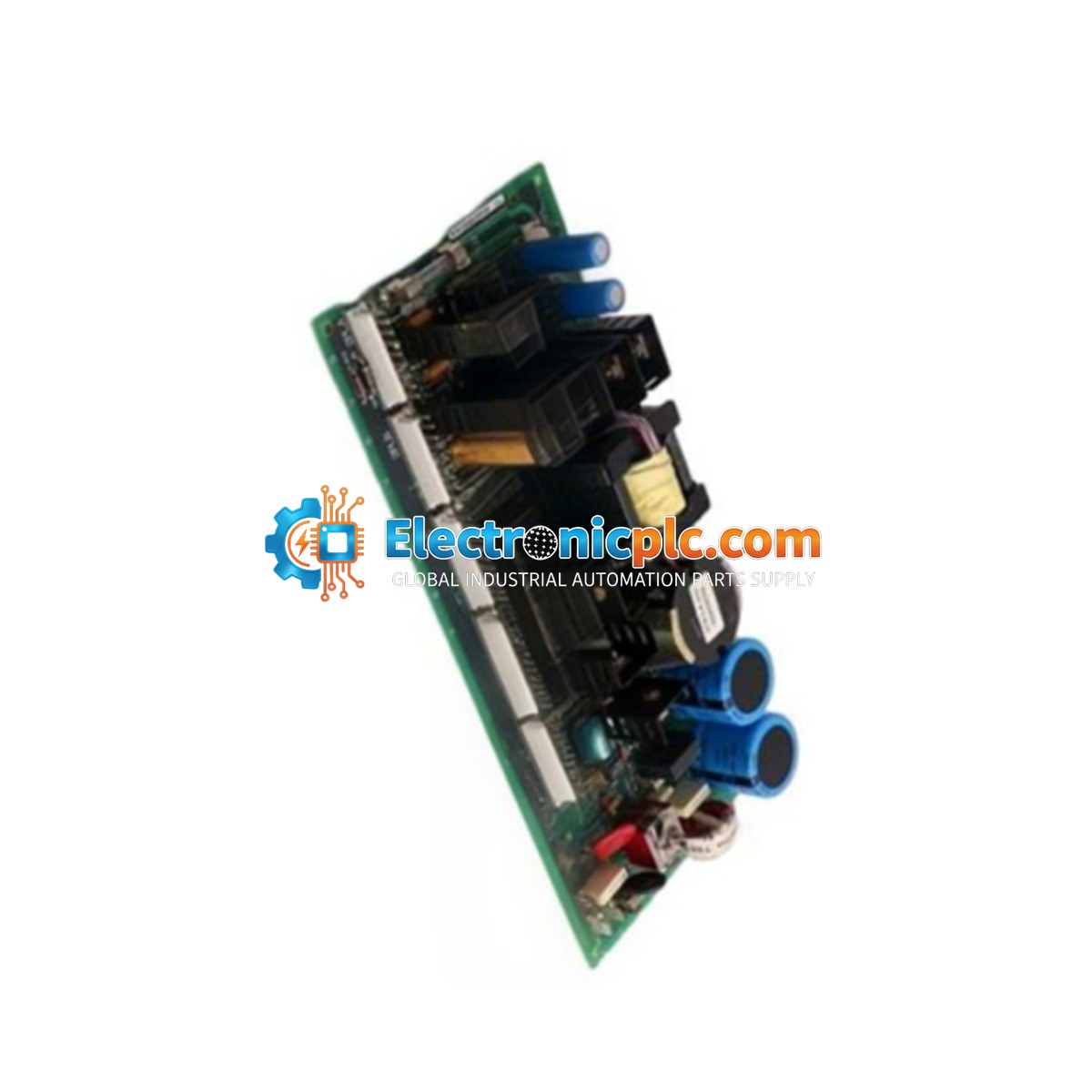

GE Fanuc DS200UPSAG1AGD Mark V Power Supply Board

GE Fanuc DS200UPSAG1AGD Mark V Power Supply Board

Description

The DS200UPSAG1AGD is a UC200 Power Supply Board designed for the GE Speedtronic Mark V turbine control system. This module is engineered for critical industrial environments, including power generation and...

28 people are viewing this right now

Availability: Low stock: 10 left

SKU: DS200UPSAG1AGD
Vendor: GE FANUC
Category: Power Supply Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The DS200UPSAG1AGD is a UC200 Power Supply Board designed for the GE Speedtronic Mark V turbine control system. This module is engineered for critical industrial environments, including power generation and oil refineries, where it provides regulated DC power to support essential control logic operations. By stabilizing voltage output through high-capacity electrolytic capacitors, the board ensures continuous turbine monitoring and protects against momentary power fluctuations.

Features

  • Designed for seamless integration into the GE Mark V control rack architecture.
  • Equipped with triple-fuse over-current protection to safeguard downstream components.
  • Includes a front-facing status LED for immediate visual health diagnostics.
  • Features an onboard hardware reset button for local system maintenance.
  • Interfaces directly with the TCGB (Terminal Board Case Ground) for reliable electrical communication.

Applications

This power supply board is specifically utilized within the GE Speedtronic Mark V series, commonly found in heavy-duty gas turbine control sequences, power plant management systems, and petrochemical processing facilities.

Technical Specifications

Model DS200UPSAG1AGD
Brand GE Fanuc
Series Mark V Speedtronic
Product Type UC200 Power Supply Board
Protection Triple fuse over-current protection
Interface 3 x 9-pin connectors
Indicators 1 Status LED
Controls 1 Hardware Reset Button
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the control rack is powered down before inserting or removing the board to prevent electrical arcs or damage to the backplane.
  • Handle the module by the edges to avoid electrostatic discharge (ESD) damage to sensitive integrated circuits.
  • Verify that all three 9-pin connectors are properly aligned and seated into the TCGB board interface.
  • Confirm that the environment is within the specified 0 to 60 deg C operating range to prevent thermal degradation of the electrolytic capacitors.
  • Check the status LED after power-up to confirm the board is providing the correct regulated output.

FAQ

What is the primary function of the DS200UPSAG1AGD?

The DS200UPSAG1AGD acts as a UC200 Power Supply Board, providing regulated DC power to the Mark V turbine control system and ensuring voltage stability for control logic.

Can this board be reset manually?

Yes, the board features a physical hardware reset button on the front panel, allowing for local system resets without requiring external diagnostic tools.

What should I check if the status LED is off?

If the LED is off, verify the input power to the rack and inspect the three onboard fuses for signs of over-current failure or damage.
