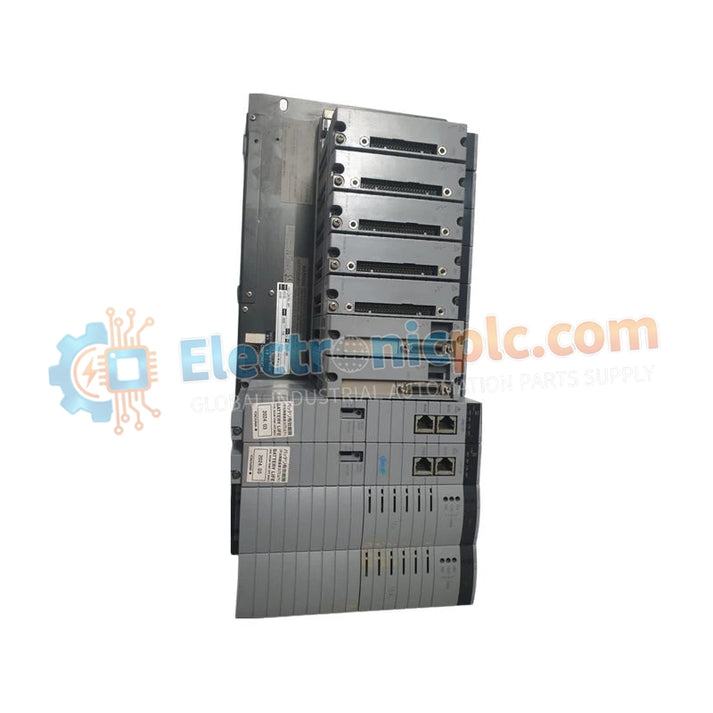

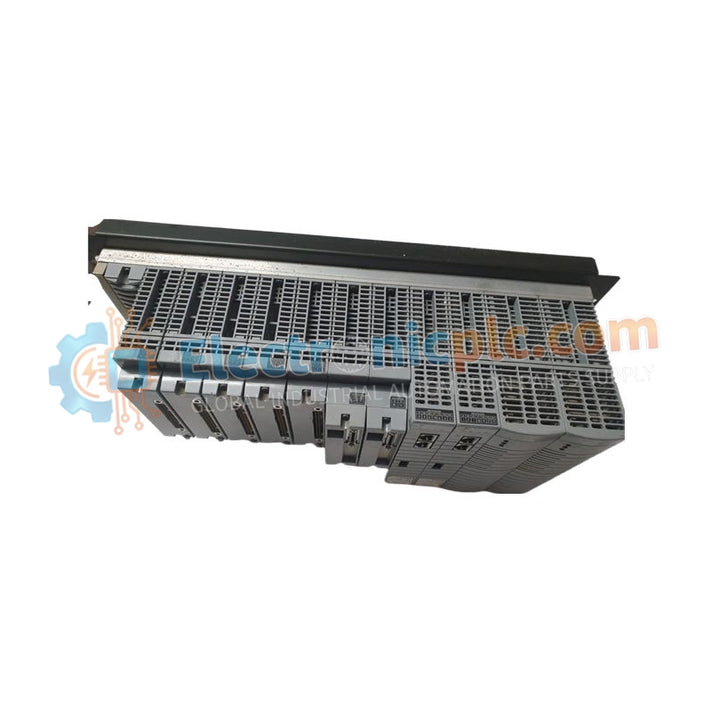

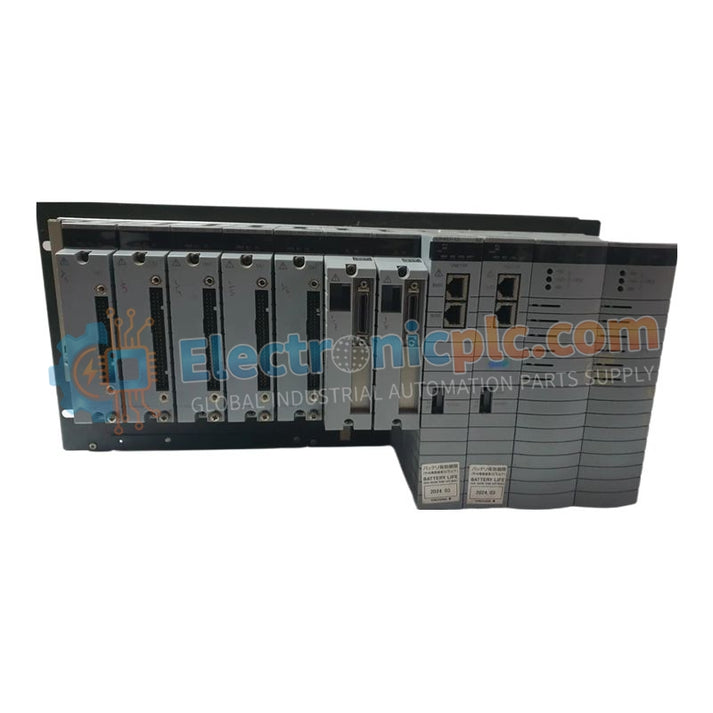

Duplexed Field Control Unit AFV10D-S41401 Yokogawa

Duplexed Field Control Unit AFV10D-S41401 Yokogawa

Product Description

The AFV10D-S41401 (AFV10D) is a high-availability Field Control Unit (FCU) for the Yokogawa CENTUM VP. Serving as the logical core of the system, this duplexed unit features redundant processors to eliminate single points of...

29 people are viewing this right now

Availability: Low stock: 99 left

SKU: AFV10D-S41401
Vendor: Yokogawa
Category: Duplexed Field Control Unit
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

The AFV10D-S41401 (AFV10D) is a high-availability Field Control Unit (FCU) for the Yokogawa CENTUM VP. Serving as the logical core of the system, this duplexed unit features redundant processors to eliminate single points of failure. In case of a primary CPU malfunction, it performs a bumpless switchover to the secondary CPU, keeping all control loops active and stable without manual intervention.

Optimized for complex industrial environments, the AFV10D-S41401 manages high-speed coordination between field instruments and operator interfaces. It supports multiple industrial protocols including Foundation Fieldbus, HART, PROFIBUS, Modbus, and Ethernet/IP, enabling seamless integration of intelligent field devices. The module is ideal for oil & gas, petrochemical, and power generation facilities, handling regulatory control, sequence logic, and advanced computational tasks.

Technical Parameters

Parameter Specification
Control Architecture Duplexed (Redundant) FCU
Processor Platform High-speed proprietary industrial CPU
Network Interface Vnet/IP (High-speed control network)
Redundancy Type Dual-redundant CPU, Power Supply, and Communication
Supported Protocols Foundation Fieldbus, HART, Modbus, Ethernet/IP, PROFIBUS DP
Input Voltage 24 V DC (Nominal)
Heat Dissipation Optimized for fanless or forced-air cooling
Operational Temperature 0°C to +60°C (32°F to 140°F)
Physical Dimensions 180 mm (H) x 200 mm (W) x 250 mm (D)
Net Weight 2.0 kg

System Performance and Reliability

  • EMC and vibration resistant, compliant with industrial standards.

  • Offloads control tasks to the field, reducing central server load.

  • High-speed "S4" revision optimized for Vnet/IP communication.

  • Supports scaling via ESB or Optical ESB bus to connect multiple remote I/O nodes.

Technical FAQ

What is the advantage of the Duplexed configuration?
The duplexed design contains two independent processor modules running in parallel. If the active module fails, control switches to the standby module within a single scan cycle, preventing process glitches.

Can this unit be expanded with additional I/O nodes?
Yes. The AFV10D-S41401 acts as a bus master for ESB or Optical ESB expansions, supporting multiple remote I/O nodes (ANB or ANT series) to increase system capacity.
