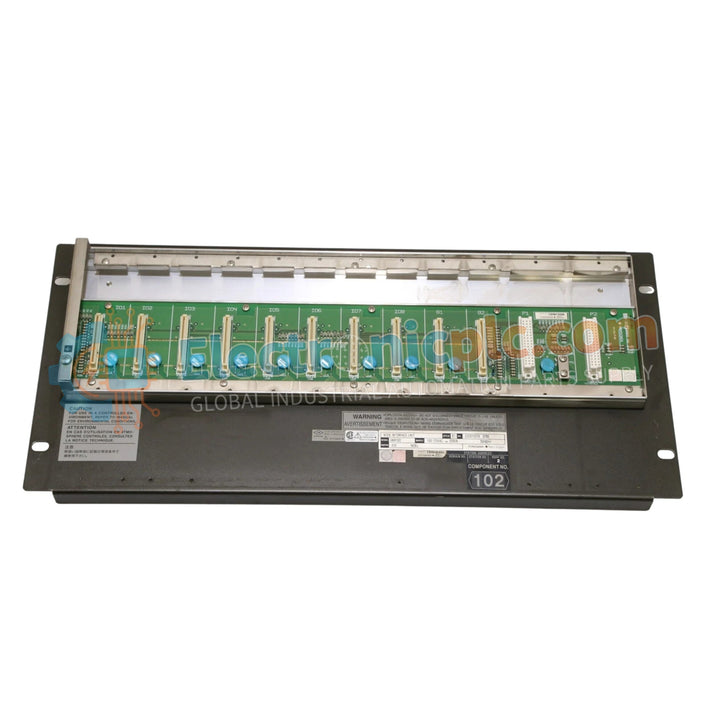

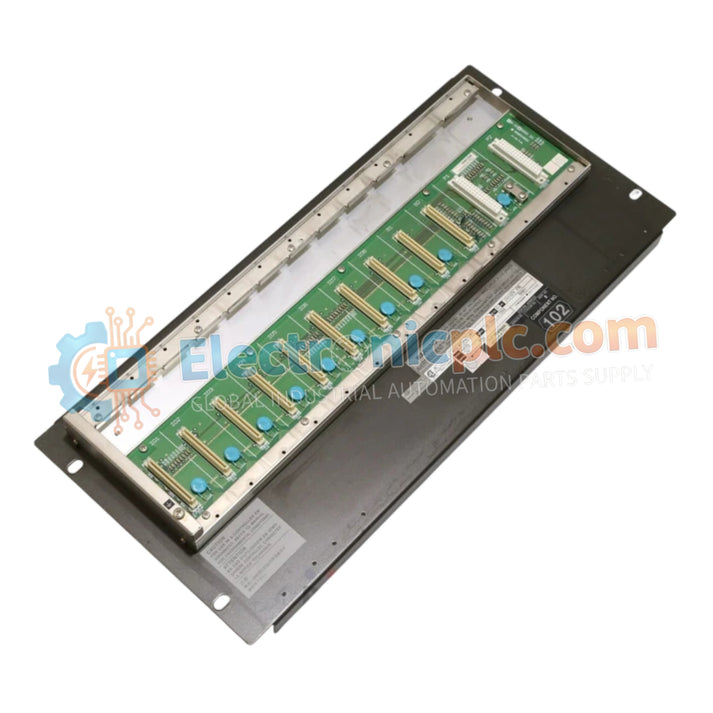

The YOKOGAWA S2SC70D-S412010-S1, also cataloged as the S2SC70D Safety Control Unit, operates as a dedicated hardware component for high-integrity logic execution and process safety management within SIS (Safety Instrumented System) platforms.

Hardware Specifications

Safety Instrumented System (SIS) Technical Characteristics

The S2SC70D utilizes a high-availability architecture designed to execute fail-safe state execution in the event of process excursions or internal diagnostic failures. The duplexed design enables seamless redundancy, ensuring that the primary logic controller remains operational even during a fault condition in the standby module. The circuitry incorporates rigorous galvanic isolation between safety-critical inputs and the logic processor, preventing common-cause failures and protecting the integrity of the safety loop from transient electrical noise.

Frequently Asked Questions (FAQ)

Q: What is the fail-safe response time for the S2SC70D unit?

A: The response time is calibrated to meet safety loop integrity requirements. Refer to the site-specific safety logic diagram and system manual to confirm the total process safety time, including sensor input scan and internal logic processing latency.

Q: How does the duplexed configuration handle a diagnostic error in one of the controllers?

A: Upon detecting a diagnostic mismatch or fault, the system initiates a bumpless transfer or initiates a transition to the safe state, depending on the programmed redundancy logic. Ensure the synchronization cabling is correctly terminated to facilitate continuous status verification between the duplexed units.

Field Installation Guidelines

• Mounting: Install the control unit in a certified control cabinet, ensuring proper spacing for thermal regulation. The unit must be secured to a vibration-dampened mounting surface to maintain long-term physical connection stability.
• Wiring: Connect safety-critical field wiring using specified shielded cabling. Ensure that all terminations are inspected for mechanical integrity to prevent intermittent signals which could trigger a spurious safety trip.
• Redundancy Link: Connect the communication link between the duplexed modules using manufacturer-approved cables. Verify that the link is routed away from potential EMI sources to ensure error-free synchronization.
• Grounding: Establish a low-resistance path to the facility protective earth (PE) bus. A reliable ground is mandatory to protect the internal safety logic circuitry from common-mode surges and electromagnetic interference.
